Description

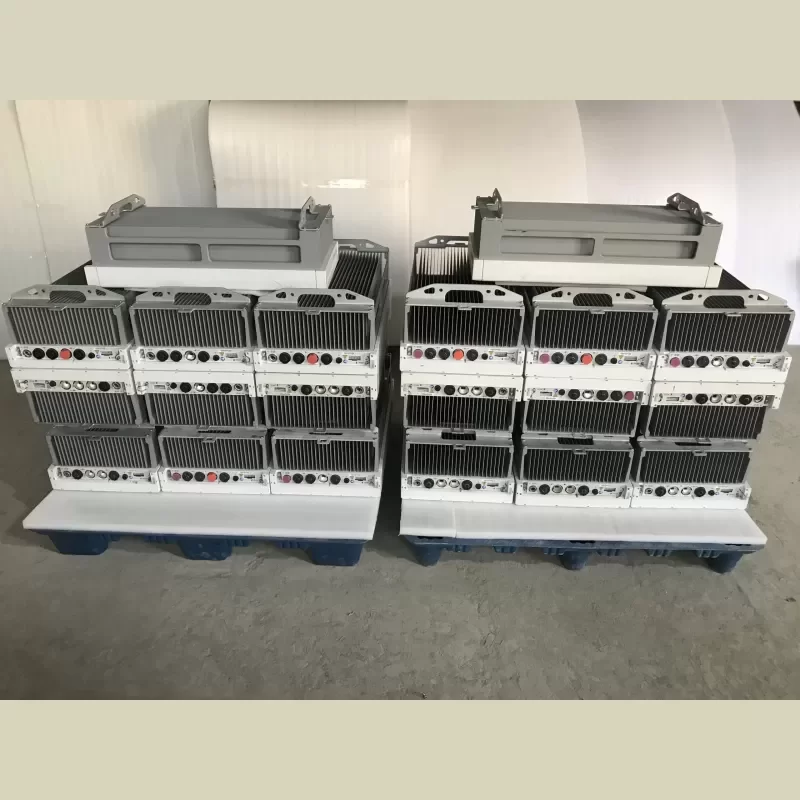

The Ericsson AIR 6488 B41, designated by part number KRD 901 108/11, is an advanced Antenna Integrated Radio engineered specifically for high-capacity 5G New Radio (NR) and LTE networks operating in the mid-band spectrum. Utilizing Massive MIMO technology with a 64T64R configuration, this unit maximizes spectral efficiency and network coverage, making it a critical asset for dense urban deployments and high-traffic telecommunications infrastructure. The Original Engineering of the AIR 6488 ensures seamless Technical Compatibility with Ericsson baseband units via high-speed eCPRI interfaces, facilitating low-latency data transmission essential for modern 5G architectures.
Technical Specifications:
Manufacturer: Ericsson
Model Number: AIR 6488 B41
Part Number: KRD 901 108/11
Equipment Type: Antenna Integrated Radio (AIR)
Technology Support: 5G NR, LTE TDD
Operating Frequency: Band 41 (2496 – 2690 MHz)
Antenna Configuration: Massive MIMO 64T64R (64 Transmit, 64 Receive)
Maximum Output Power: 320W
Instantaneous Bandwidth (IBW): 194 MHz
Occupied Bandwidth (OBW): 100 MHz
Fronthaul Interface: eCPRI / CPRI (SFP28 optical ports)
Power Supply: -48 VDC
Cooling System: Passive convection cooling
Operating Temperature: -40°C to +55°C
Environmental Protection: IP65
Weight: 45.0 kg
Dimensions (H x W x D): 893 mm x 520 mm x 238 mm
Industrial Application:
The Ericsson AIR 6488 B41 is deployed in macro cell sites and rooftop installations to resolve network congestion in high-density urban environments. By leveraging 3D beamforming and Multi-User MIMO (MU-MIMO), it directs radio energy precisely to active user equipment, significantly reducing interference and increasing overall cell throughput. This capability is vital for telecommunications operators upgrading from legacy LTE to 5G NR networks, requiring robust hardware capable of handling exponential data growth. Procurement planning should account for standard Lead Time requirements to ensure uninterrupted network rollout schedules.
Key Attributes

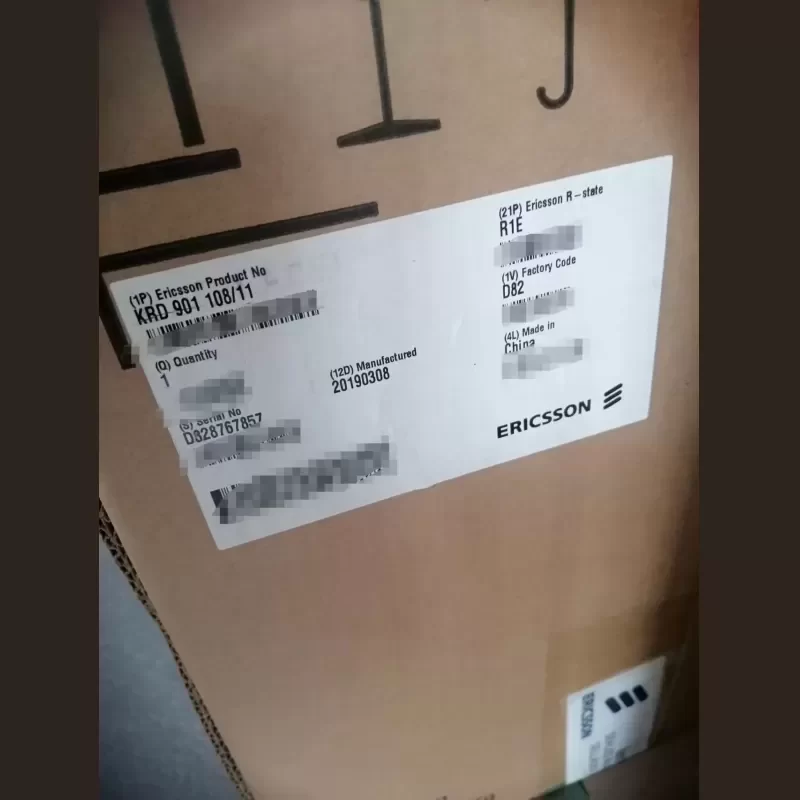

Model Number: AIR 6488 B41 KRD 901 108/11
Place of Origin: Anhui, China
Brand Name: Ericsson
Condition: Un Used
External dimension: 98.5CM*73CM*33CM
Gross weight: 54KG
Net weight: 53.75KG
Qty Available: 50pieces
Packaging and Delivery
Selling Units: Single item
