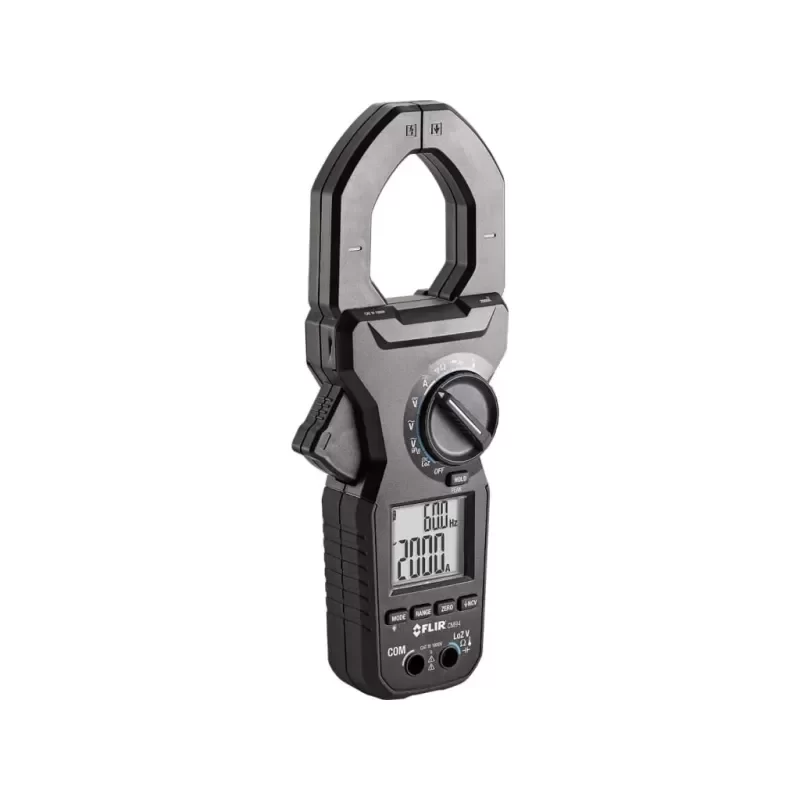

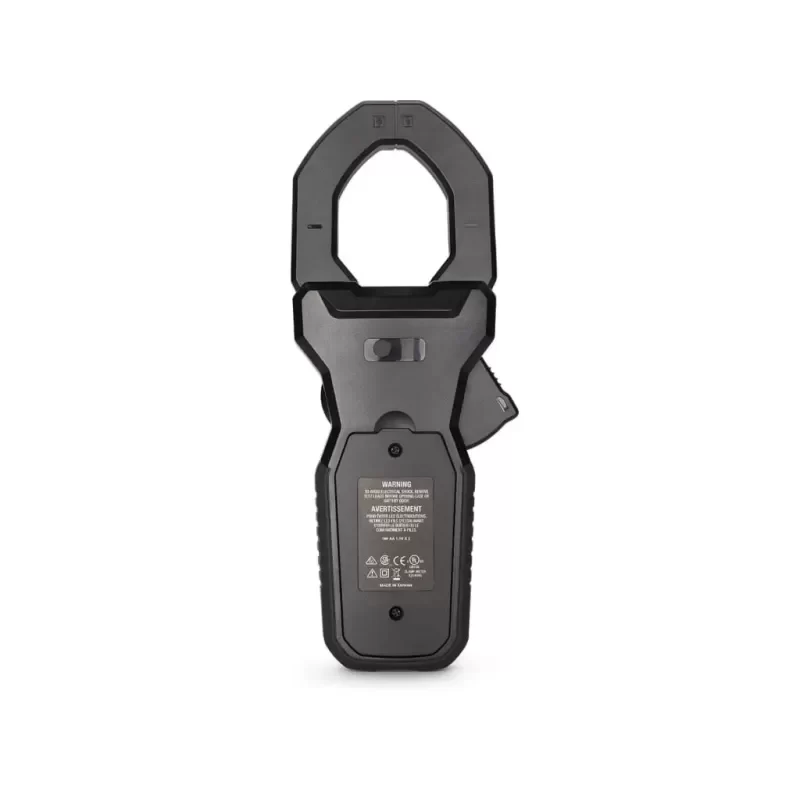

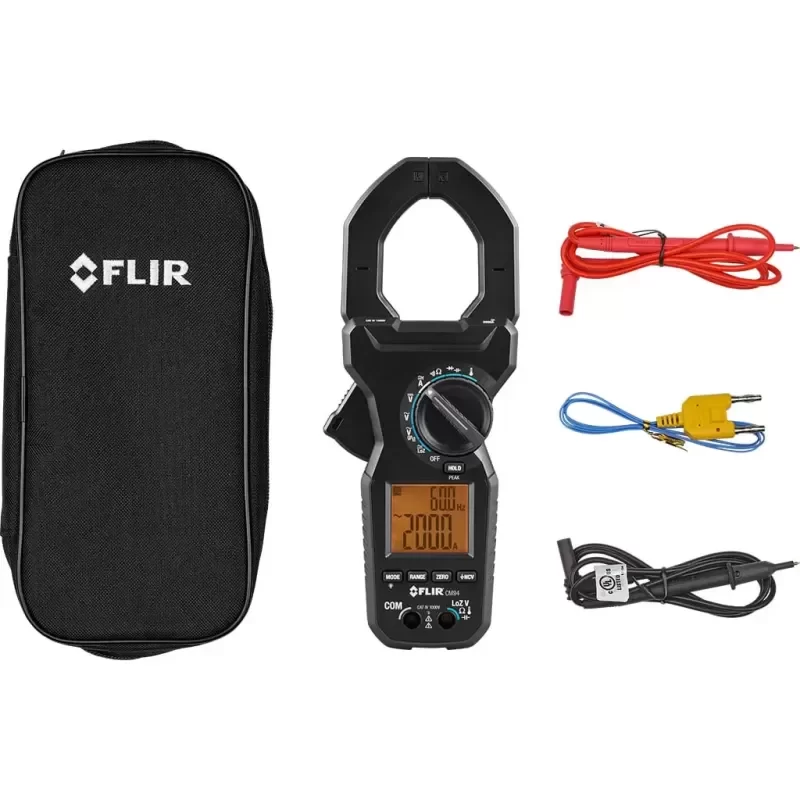

FLIR CM94 Digital Clamp Meter 2000A AC/DC CAT IV-1000V IP40

Description

The FLIR CM94 is engineered for high-current industrial environments, specifically targeting utility and large-scale electrical infrastructure. The device utilizes advanced True RMS technology to ensure accuracy when measuring non-linear signals in complex electrical systems. The oversized 55 mm jaw allows for the clamping of large conductors and multiple wire bundles that standard meters cannot accommodate. Integrated VFD mode (Variable Frequency Drive) employs a low-pass filter to provide accurate voltage and frequency readings on equipment controlled by switching electronics, ensuring precise diagnostic data in noisy electrical environments.
Technical Specifications and System Architecture:
Manufacturer: FLIR Systems
Model Series: CM94
Measurement Category: CAT IV 1000V / CAT III 1000V
Current Measurement Range: 0 to 2000A AC/DC
Voltage Measurement Range: 0 to 1000V AC/DC
Jaw Opening: 55 mm (2.2 in)
Display Type: 6000 Count Backlit LCD
Frequency Range: 45 Hz to 400 Hz
Resistance Range: 60.00 kΩ
Capacitance Range: 1000 µF
Continuity Threshold: 30 Ω
Diode Test: 1.5 V
Ingress Protection: IP40
Drop Test Rating: 2 Meters
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Battery Type: 3 x AA Alkaline
Dimensions: 269 mm x 106 mm x 51 mm
Weight: 563 g

Industrial Application Scenario:

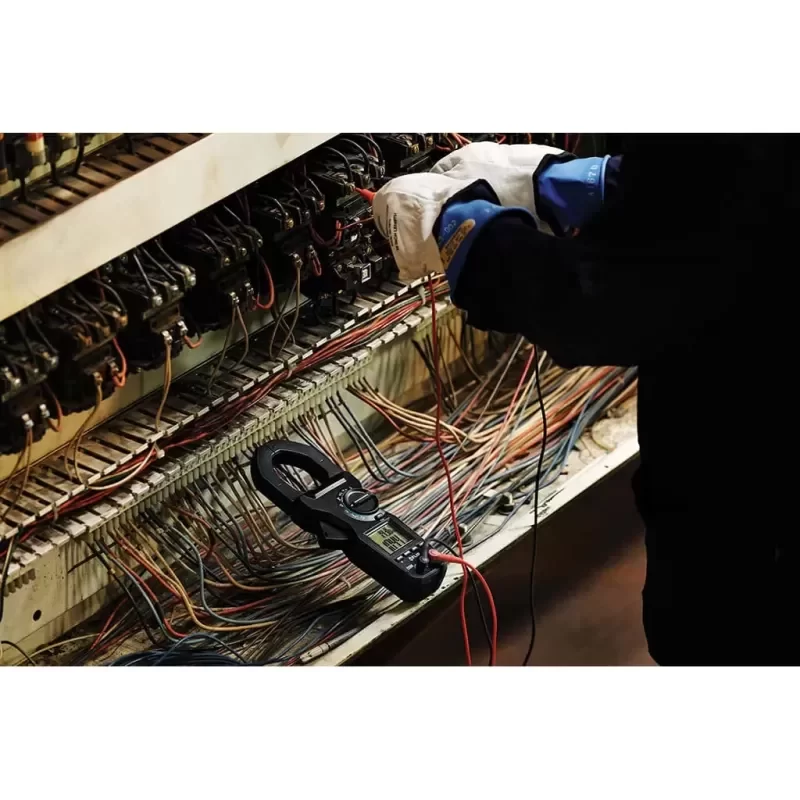

In heavy industrial power distribution centers, technicians often encounter high-amperage busbars and large-diameter cables where standard 600A or 1000A clamps fail. The CM94 solves this by providing a 2000A capacity combined with CAT IV-1000V safety ratings, allowing for safe measurement on the service entrance side of the facility. Its high-density build quality ensures technical compatibility with rigorous field use, maintaining calibration integrity despite mechanical shocks or environmental temperature fluctuations.

Logistics and Procurement:
Condition: Original Engineering New
Technical Compatibility: Universal Industrial Electrical Systems
Lead Time: Inquire for current stock availability and global shipping schedules.

Key Attributes
Measuring Voltage Range: 6.000, 60.00, 600.0, 1000 V
Place of Origin: China
Model Number: CM94
Brand Name: FLIR
Dimensions: 269 x 106 x 51 mm
Display Type: Digital Only
Measuring Capacitance Range: 6.000, 60.00, 6000.0, 2000 uF
Measuring Current Range: 2000A
Measuring Inductance Range: ,
Measuring Resistance Range: 6.000 k, 60.00 kΩ 6.000 M 40.00 MΩ
Operating Temperature: -4 to 140°F (-20 to 60°C)
Weight: 700g
Product name: FLIR
Model: CM94
AC/DC Current Range: 200.0, 2000 A
AC/DC Voltage Range: 6.000, 60.00, 600.0, 1000 V
Resistance Range: 600.0, 6.000 k, 60.00 kΩ 600.0 kΩ 6.000 M 40.00 MΩ
Capacitance Range: 6.000, 60.00, 6000.0, 2000 uF
Temperature Range: -58 to 1832°F (-50 to 1000°C)
Continuity Range: 10 to 200 Ω, 2 kHz buzzer
Safety Category Rating: CAT IV-1000 V
IP Rating: IP40

Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X11 cm
Single gross weight: 1.500 kg
