Description

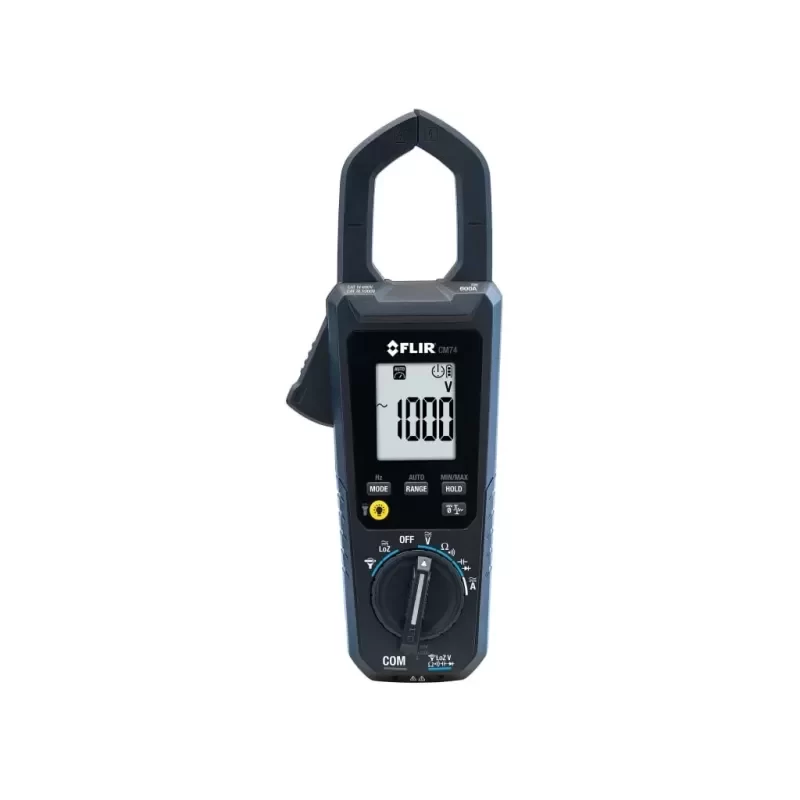

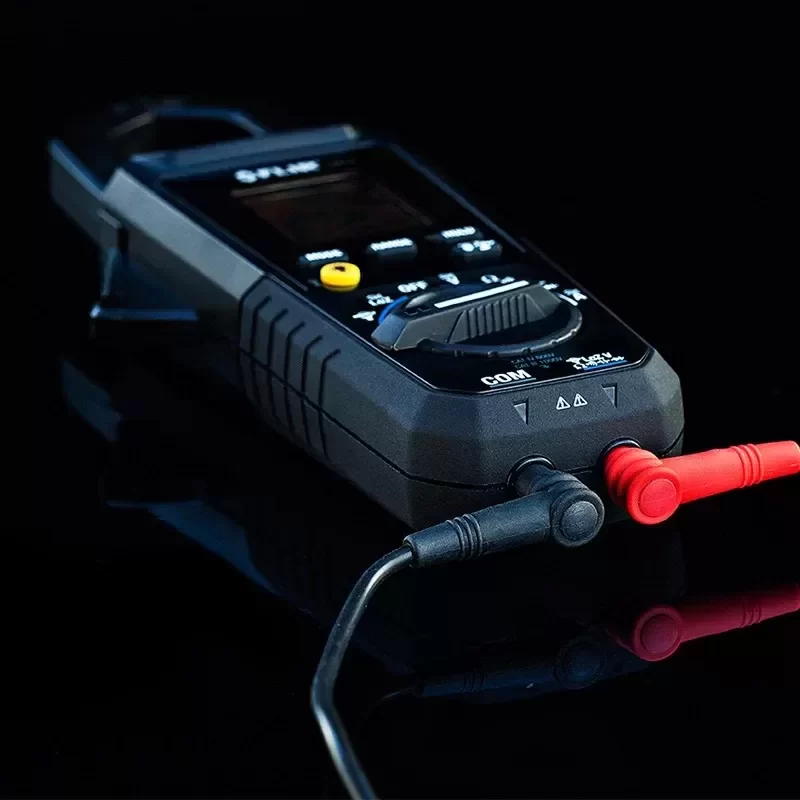

The FLIR CM74 is an advanced True RMS AC/DC clamp meter engineered for high-precision electrical diagnostics in demanding industrial environments. Designed with Original Engineering standards, this portable multimeter integrates specialized features such as Variable Frequency Drive (VFD) filtering and LoZ (low impedance) mode to eliminate ghost voltage and ensure accurate readings on complex machinery. Its narrow jaw design facilitates Technical Compatibility with tightly packed panels and complex wiring architectures, minimizing downtime and optimizing maintenance Lead Time.
Technical Specifications:
Measurement Type: True RMS AC/DC
Maximum AC/DC Current: 600A
Maximum AC/DC Voltage: 1000V
Jaw Opening: 35 mm (1.38 in)
Safety Rating: CAT IV 600V, CAT III 1000V
VFD Filter: Integrated, for accurate motor drive measurements
Inrush Current Measurement: Integrated
Resistance Range: 6000 Ohms
Capacitance Range: 1000 µF
Frequency Range: 60.00 kHz
Display: 6000 count, backlit LCD
Worklight: Dual LED
Operating Temperature: -10°C to 50°C
Power Supply: 4 x AAA batteries
Dimensions: 241 x 89 x 40 mm
Weight: 426 g
Industrial Application:

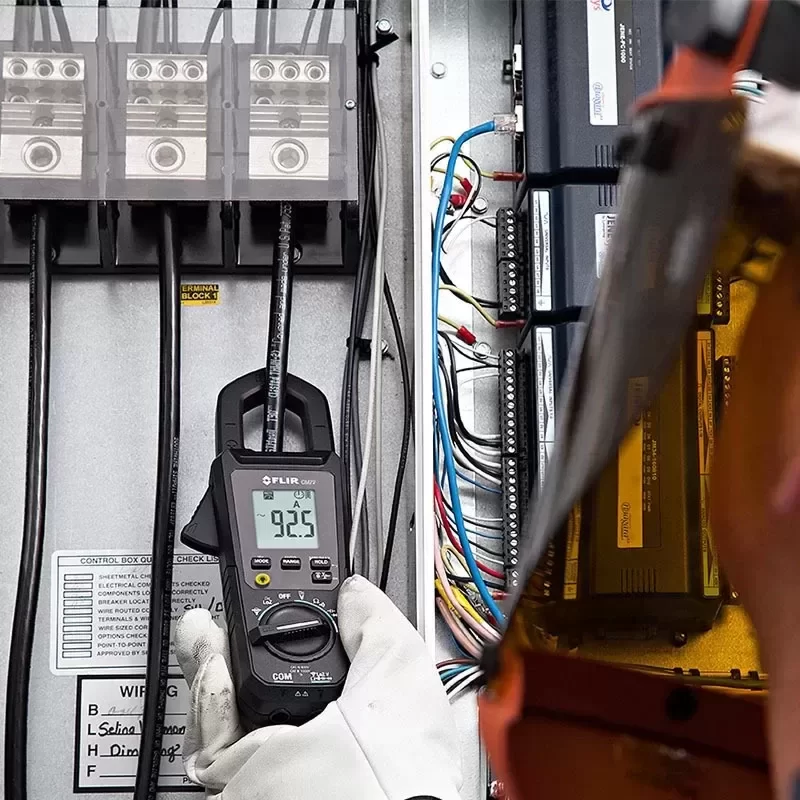

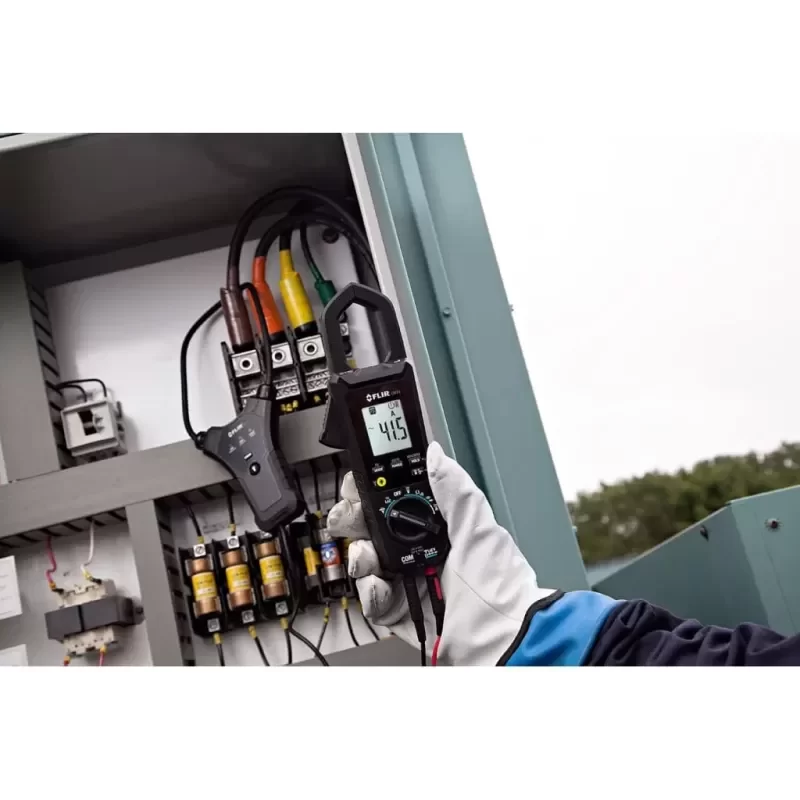

The FLIR CM74 is specifically deployed in industrial motor control centers and automated manufacturing facilities. Its VFD mode is critical for maintenance engineers troubleshooting variable frequency drives, where non-sinusoidal waveforms typically cause standard meters to display erratic readings. By providing precise current and voltage measurements in these high-noise environments, the CM74 ensures accurate diagnostics of motor health, preventing catastrophic equipment failure and maintaining continuous production lines.
Key Attributes
Measuring Voltage Range: 1000V
Place of Origin: China
Model Number: CM74
Brand Name: FLIR
Dimensions: 26 * 16 * 10cm
Display Type: Digital Only
Measuring Capacitance Range: ,
Measuring Current Range: 600.0A
Measuring Inductance Range: ,
Measuring Resistance Range: ,
Operating Temperature: -10°C~50°C
Weight: 1.3kg
Product name: FLIR
Model: CM74
AC/DC Voltage: 1000V
AC/DC Current: 600.0A
Category Rating: CAT IV-600V, CAT III-1000V
Display Counts: 6000
Packaging and Delivery
Selling Units: Single item
Single package size: 28X15X12 cm
Single gross weight: 1.500 kg
