Leica DISTO D1 Laser Rangefinder 40M Distance Meter

Description

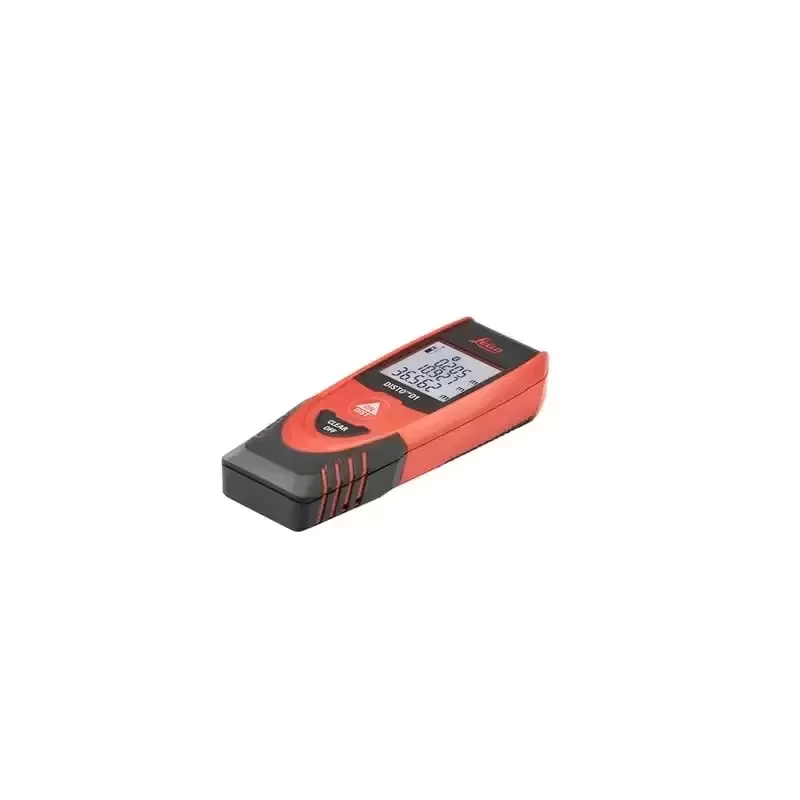

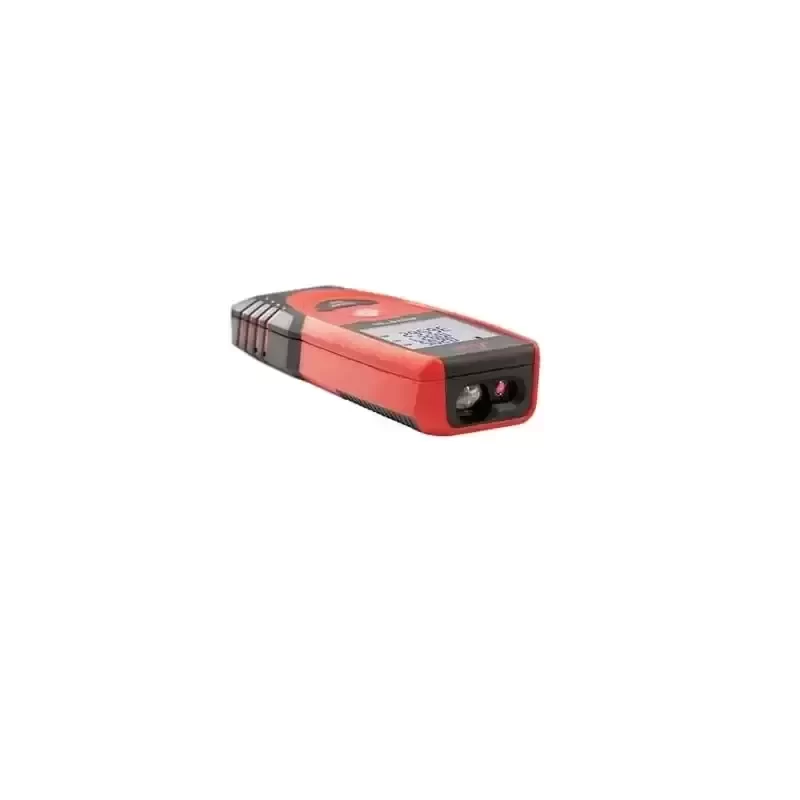

Leica DISTO D1 Laser Rangefinder
Manufacturer: Leica Geosystems
Model Series: DISTO
Part Number: 843418

Technical Specifications:
Measuring Accuracy: ± 2.0 mm
Range: 0.2 m to 40 m
Measuring Units: m, ft, in
X-Range Power Technology: Integrated
Display: Clear, illuminated 3-line display
Data Interface: Bluetooth® Smart (Version 4.0)

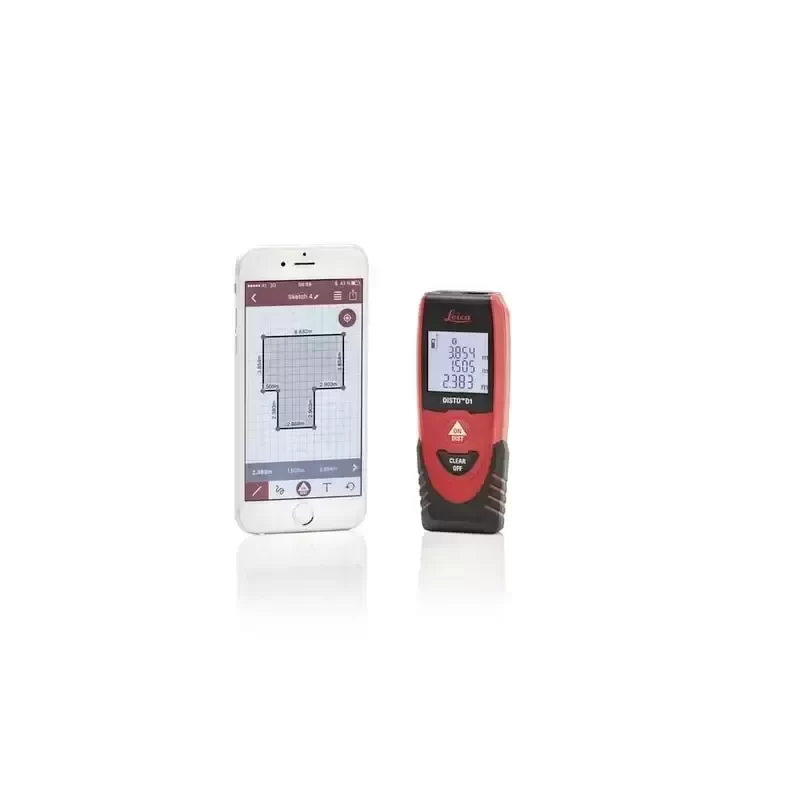

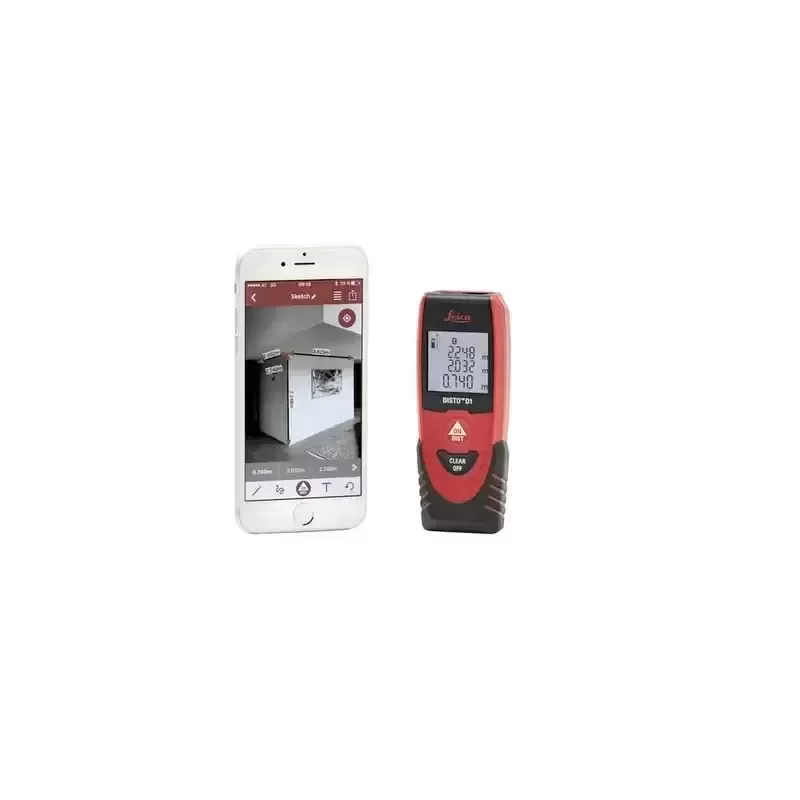

Free App Support: Leica DISTO Plan (iOS/Android)
Laser Class: Class 2
Laser Type: 635 nm, < 1 mW
Protection Class: IP54 (Dust and splash water protected)
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -25 °C to 70 °C
Battery Type: 2x AAA 1.5 V (Alkaline)
Measurements per Battery Set: Up to 10,000
Dimensions: 115 x 43.5 x 23.5 mm
Weight with Batteries: 87 g

Engineering and Design Logic:
The Leica DISTO D1 represents the professional entry point for digital distance measurement, utilizing X-Range Power Technology to ensure maximum measurement performance and reliability even on poorly reflective surfaces. The device is engineered for rapid, high-frequency measurements where traditional tape measures fail due to distance or physical obstacles.

Industrial Application and Technical Compatibility:
This unit is optimized for interior finishing, facility management, and architectural site surveys. The integrated Bluetooth® Smart interface allows for direct data transfer to BIM (Building Information Modeling) software and CAD applications, eliminating manual transcription errors. Its IP54 rating ensures durability in active construction environments. Technical Compatibility is guaranteed with the Leica DISTO Plan app for digital floor plan creation and documentation.

Logistics and Quality Assurance:
Condition: Original Engineering Standard
Quality Control: ISO 9001 Compliant Manufacturing
Lead Time: Standard global distribution availability
Package Includes: Leica DISTO D1, 2x AAA batteries, Calibration Certificate Blue

Key Attributes
Place of origin: Hungary
Size: 115 x 43.5 x 23.5 mm
Model number: DISTO D1
Brand name: Leica
Customized support: OEM, ODM
Warranty: 1 years
Product name: Leica
Model: DISTO D1
Protection class: IP54
Measure distance: 40m
Auto. laser switch off: After 90 s
Auto. power switch off: After 180 s
Operation Temperature Range: -25 to 70°C

Packaging and Delivery
Selling Units: Single item
Single package size: 21X18X10 cm
Single gross weight: 1.000 kg
