Description

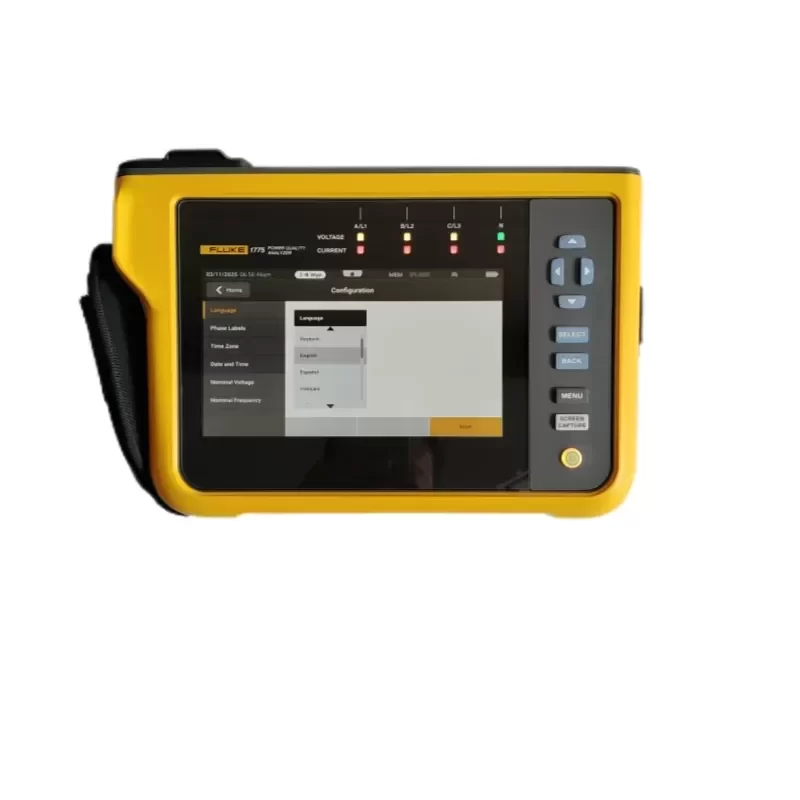

The Fluke 1775 is a highly advanced Three-Phase Power Quality Analyzer engineered for comprehensive energy profiling and power quality troubleshooting. As an enhanced iteration of the Fluke 1773, this model integrates high-speed transient capture capabilities up to 1 MS/s, allowing for the precise identification of microsecond voltage anomalies that disrupt sensitive industrial automation systems. Built on Original Engineering principles, the analyzer features automated setup routines and direct power-from-measurement-circuit functionality, eliminating the need for external power cords during critical field diagnostics.
Technical Specifications
Brand: Fluke
Model: 1775
Equipment Type: Three-Phase Power Quality Analyzer
Measurement Standard: IEC 61000-4-30 Class A Edition 3
Power Quality Standard: EN 50160, IEEE 519
Voltage Measurement Range: 0 V to 1000 V
Voltage Accuracy: ±0.1% of nominal voltage
Current Measurement Range: 1 A to 6000 A (probe dependent)
Transient Capture: 1 MS/s (High-speed voltage transients up to 8 kV)
Harmonics Measurement: Up to 50th harmonic
Safety Rating: CAT IV 600 V / CAT III 1000 V
Communication Interfaces: Ethernet, USB, Wi-Fi, Bluetooth
Display: 7-inch capacitive touch screen (1280 x 800 resolution)
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -20 °C to +60 °C
Operating Humidity: 10% to 90% non-condensing
Ingress Protection: IP50
Weight: 2.2 kg
Dimensions: 28.0 cm x 19.0 cm x 6.2 cm
Industrial Application

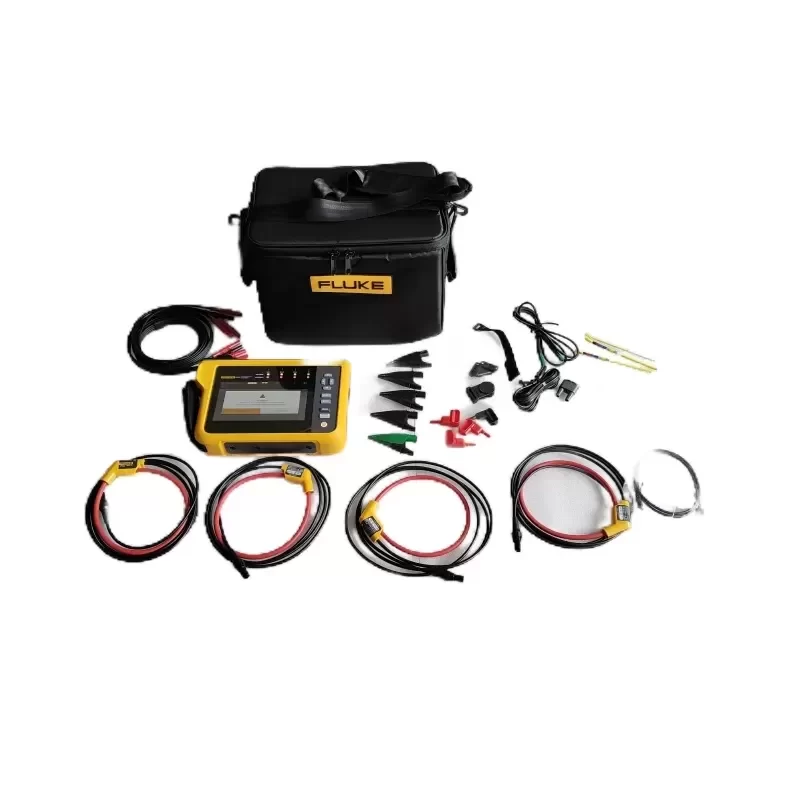

The Fluke 1775 is specifically designed for predictive maintenance and root-cause analysis in heavy manufacturing facilities, data centers, and semiconductor fabrication plants. By capturing high-speed transients and harmonic distortions, facility engineers can diagnose erratic PLC resets, premature motor failures, and nuisance breaker tripping. Its Technical Compatibility with a wide range of Fluke current clamps and flexible coils ensures seamless integration into existing diagnostic workflows, enabling precise load studies and energy consumption optimization across complex three-phase electrical networks.
Procurement Information
We guarantee the supply of authentic Fluke instruments with full Original Engineering documentation. Please contact our technical sales team for current Lead Time estimates, calibration certificates, and global shipping logistics.
Key Attributes
Type: Power Quality Analyzer
Accuracy: 1%
Place of origin: Romania
Customized support: NO
Power: 80 kS/s at 50/60 Hz
Protection Class: IP50
Voltage: 1000 V
Logo/graphic design: 3D Printing
Brand name: Fluke
Warranty: 2 Years
Measurement Category: 1000 V CAT III/600 V CAT IV
Maximum Input Voltage: 1000 V rms/1000 V DC (1700 Vpk)
Resolution: 24-bit synchronous sampling
Sampling Frequency: 80 kS/second at 50/60 Hz
Measurement Range: ±8 kV
Sampling Rate: 1 MS/second 20 MS/second
Bandwidth: DC to 1 MHz
Packaging and Delivery
Selling Units: Single item
Single package size: 52X40X35 cm
Single gross weight: 8.000 kg
