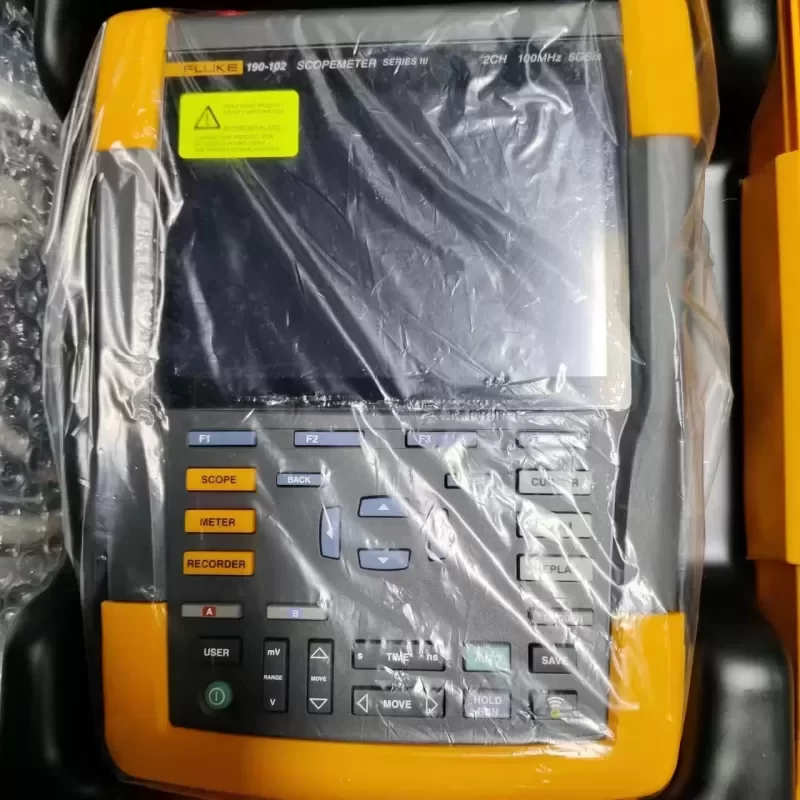

Fluke 190-102-III-S Color ScopeMeter with FlukeView-2 Software Package 100 MHz 2 Channels

Description

The Fluke 190-102-III-S Color ScopeMeter is a high-performance, portable oscilloscope engineered for demanding industrial environments. Combining the rugged durability of a multimeter with the advanced diagnostic capabilities of a benchtop oscilloscope, this Series III instrument provides precise waveform analysis and troubleshooting capabilities. The -S configuration includes the comprehensive SCC290 kit, featuring FlukeView-2 software for advanced data documentation and a protective hard carrying case. Designed with electrically isolated channels, it ensures maximum safety and signal fidelity when measuring mixed circuits.

Technical Specifications:
Manufacturer: Fluke
Model Number: 190-102-III-S
Bandwidth: 100 MHz
Number of Channels: 2 (Electrically Isolated)
Real-Time Sample Rate: 1.25 GS/s
Record Length: 10,000 samples per channel
Timebase Range: 5 ns/div to 4 s/div
Input Impedance: 1 MΩ ± 1% // 14 pF ± 2 pF
Display Type: High-resolution Color LCD
Safety Rating: CAT III 1000 V / CAT IV 600 V
Environmental Protection: IP51 (Dust and Drip-proof)
Operating Temperature: 0 °C to 40 °C (with battery), 0 °C to 50 °C (excluding battery)
Battery Type: BP290 Li-ion (Up to 7 hours continuous operation)
Software Included: FlukeView-2 Software Package
Accessories Included: SCC290 Kit (Hard Case, USB Interface Cable)
Weight: 2.2 kg

Industrial Application:
This ScopeMeter is specifically designed for field service engineers and maintenance technicians working with industrial machinery, motor drives, and power conversion equipment. Its isolated inputs allow for simultaneous measurement of control signals and power outputs without the risk of ground loops or circuit damage. The 100 MHz bandwidth is optimal for diagnosing timing issues, transient anomalies, and harmonic distortions in variable frequency drives (VFDs), solar inverters, and complex three-phase power systems.

Procurement and Lifecycle Value:
Ensuring Technical Compatibility with existing Fluke diagnostic ecosystems, the 190-102-III-S guarantees seamless data integration via the FlukeView-2 software. Sourced through Original Engineering channels, this diagnostic tool provides verified accuracy and longevity. We maintain an optimized Lead Time for this critical testing equipment, minimizing downtime and accelerating your maintenance operations.

Key Attributes
Sample rate: 100 Mhz
Type: Color ScopeMeter
Place of origin: China
Size: 5.3 x 3.5" (133 x 90 mm) LCD
Model number: 190-102-III-S
Brand name: Fluke
Customized support: OEM, ODM
Warranty: 1 years
Number of Channels: 2
Bandwidth: 100 Mhz
Rise Time: 3.5 ns
Bandwidth Limiter: 20 MHz and 10 kHz
Vertical Resolution: 8 bit
Resolution: 1120 pixels x 765 pixels
Display Size: 5.3 x 3.5" (133 x 90 mm) LCD
Drip and Dust Proof: IP 51 according to IEC60529

Packaging and Delivery
Selling Units: Single item
Single package size: 52X36X26 cm
Single gross weight: 6.000 kg
