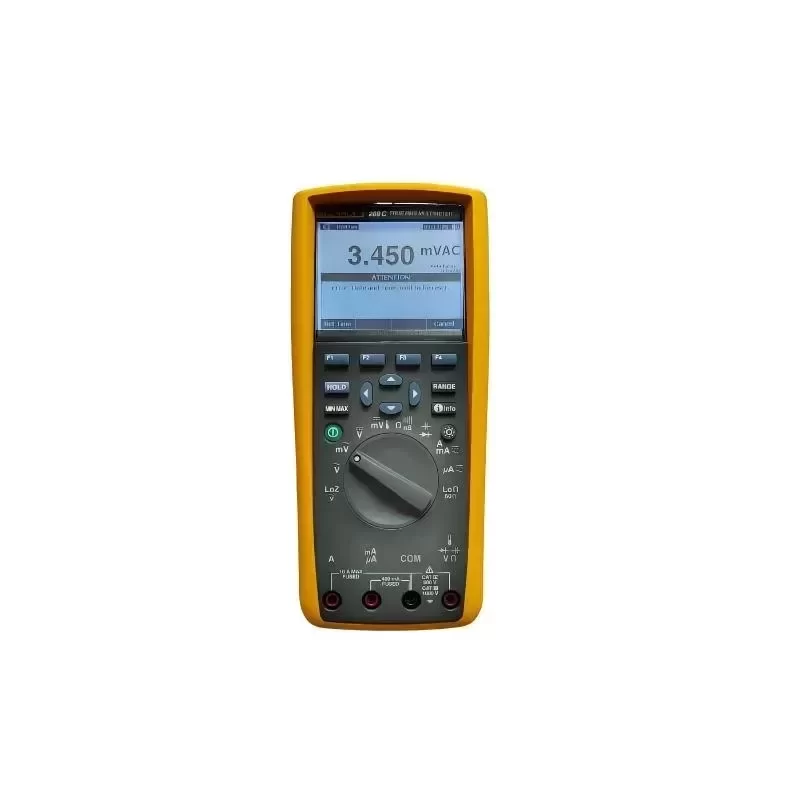

Fluke 289 True RMS Industrial Data Logging Multimeter with TrendCapture FLUKE 289C

Description

The Fluke 289 (FLUKE 289C) represents the pinnacle of high-performance industrial logging multimeters, engineered specifically for professionals managing complex electrical systems, automation, and manufacturing plant machinery. This unit features advanced TrendCapture capabilities, allowing maintenance personnel to visually review logged data directly on the high-resolution display without exporting to a PC. Built on Fluke Original Engineering, it provides unmatched measurement accuracy and rugged dependability in the most demanding industrial environments.

Industrial Application Scenario:
In modern automated processing plants, intermittent power quality anomalies and control-loop dropouts can cause catastrophic unscheduled downtime. The Fluke 289 solves this critical issue by functioning as an autonomous standalone data logger. Maintenance technicians can deploy the instrument to monitor variable frequency drive (VFD) outputs or low-voltage control circuits over extended shifts. Utilizing the low-pass filter and LoZ (low impedance) voltage functions, the meter accurately filters out ghost voltages and high-frequency noise, identifying the precise moment of component degradation or thermal overload.

Technical Specifications:
DC Voltage Range: 50.000 mV to 1000.0 V
DC Voltage Basic Accuracy: ± 0.025 %
AC Voltage Range: 50.000 mV to 1000.0 V
AC Voltage Basic Accuracy: ± 0.4 % True-RMS
DC Current Range: 500.00 µA to 10.000 A
AC Current Range: 500.00 µA to 10.000 A
Resistance Range: 500.00 Ω to 500.0 MΩ
Capacitance Range: 1.000 nF to 100.0 mF
Frequency Range: 99.999 Hz to 999.99 kHz
Temperature Range: -200.0 °C to 1350.0 °C
Display Count: 50,000 count, high-resolution dot-matrix with white backlight
Data Logging Capacity: Up to 15,000 recorded events
Battery Type: 6 AA Alkaline batteries
Battery Life: 100 hours minimum (200 hours in logging mode)
Enclosure Rating: IP54 dust and water splash resistance
Safety Rating: CAT III 1000 V / CAT IV 600 V
Dimensions: 22.2 cm x 10.2 cm x 6.0 cm
Weight: 870.9 g
Certifications: CE, CSA, UL, TÜV, VDE

Technical Compatibility and Integration:
The Fluke 289 maintains full Technical Compatibility with the Fluke Connect mobile app and desktop software via the IR3000 FC connector (sold separately), allowing seamless integration into existing enterprise asset management workflows. Standard inventory lead time applies based on regional distribution channels; consult your representative to confirm local Lead Time schedules for bulk industrial deployments.

Key Attributes
Measuring Current Range: 50.000 to 400.00 mA
Measuring Voltage Range: 5.0 to 1000.0 V
Parameters Measured: Temperature (K), AC Voltage, DC Current
Place of Origin: China
Model Number: 289C
Brand Name: FLUKE
Dimensions: 8.75 x 4.03 x 2.38" (222 x 102 x 60 mm)
Feature: Waterproof
Low Battery Indicator: Yes
Max. AC Current: 10A
Max. AC Voltage: 5.0 to 1000.0 V
Max. DC Current: 10A
Max. DC Voltage: 5.0 to 1000.0 V
Measuring Capacitance Range: 0-100
Measuring Inductance Range: 0-100
Measuring Resistance Range: 5.0 to 500.0 MΩ
Operating Temperature: -4 to 131°F (-20 to 55°C)
AC/DC Volts: 5.0 to 1000.0 V
AC/DC Current: 10A
Basic Accuracy: 0.4% (True RMS)
Temperature (Excluding Probe) Range: 328 to 2462°F (-200 to 1350°C)
Electromagnetic Compatibility: EMC EN61326-1
Operating Temperature: -4 to 131°F (-20 to 55°C)
Dimensions: 8.75 x 4.03 x 2.38" (222 x 102 x 60 mm)
Weight: 1.92 lbs (870.9 g)

Packaging and Delivery
Selling Units: Single item
Single package size: 30X18X15 cm
Single gross weight: 1.600 kg
