Fluke 374FC True RMS Clamp Meter Measures AC DC Current up to 600A 1000V 375FC 376FC Series

Description

The Fluke 374FC is a high-performance industrial clamp meter designed for advanced troubleshooting and preventive maintenance within the Fluke Connect ecosystem. This instrument provides True-RMS voltage and current measurements to ensure accuracy on non-linear signals and variable frequency drives.

Technical Specifications and Parameters:
Model Number: 374FC
Measurement Type: True-RMS
AC Current Range: 600.0 A
DC Current Range: 600.0 A
AC Voltage Range: 1000 V
DC Voltage Range: 1000 V
Resistance Range: 6000 Ω
Capacitance Range: 1 μF to 1000 μF
Inrush Current Measurement: 100 ms integration period
Jaw Opening: 34 mm (1.34 in)

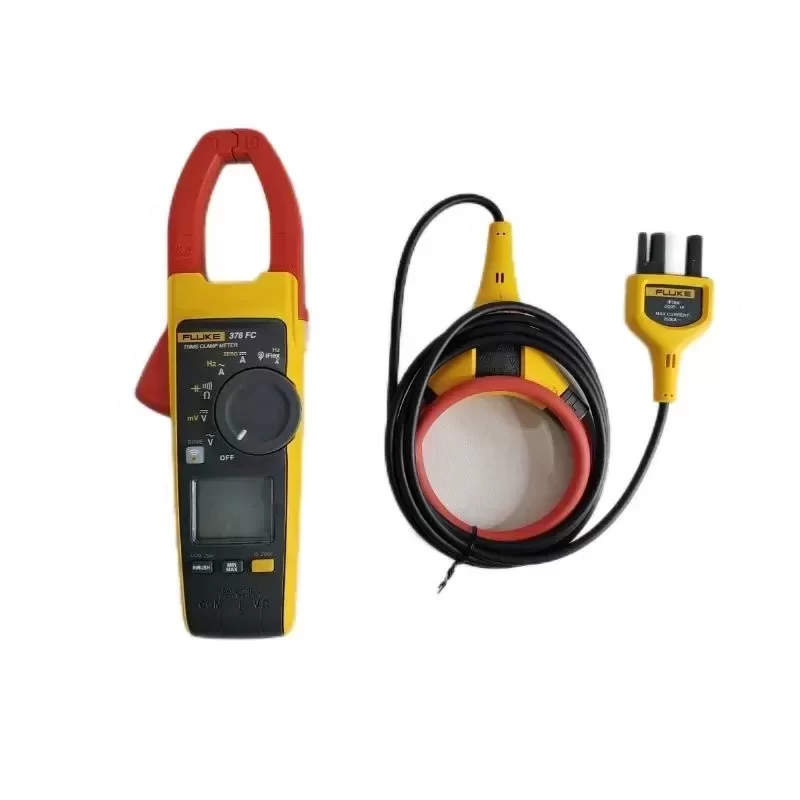

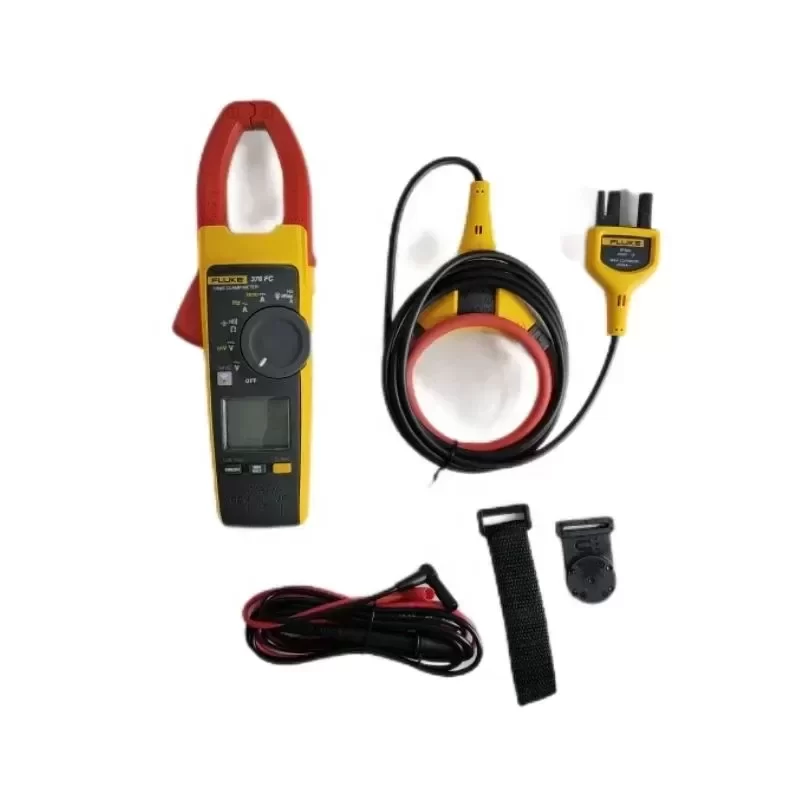

iFlex Flexible Current Probe Compatibility: Supported (expands AC range to 2500 A)
Wireless Connectivity: Fluke Connect® enabled via Bluetooth
Safety Rating: CAT III 1000 V / CAT IV 600 V
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -40 °C to +60 °C
Operating Humidity: 90% RH (at 10 °C to 30 °C)
Altitude Rating: 2000 m (Operating), 12000 m (Storage)
Battery Type: 2 AA, IEC LR6 Alkaline
Weight: 395 g
Dimensions: 249 mm x 85 mm x 45 mm

Operational Logic and System Integration:
The 374FC utilizes advanced signal processing to filter electrical noise and capture the motor starting current exactly as the circuit protection sees it. Through the Fluke Connect interface, the device transmits measurement data to a smartphone or cloud-based software, allowing maintenance teams to trend data, identify intermittent faults, and perform remote monitoring without entering the arc flash boundary.

Industrial Application and Technical Compatibility:
This unit is engineered for heavy-duty industrial environments including motor control centers, HVAC systems, and renewable energy installations. It is particularly effective for technicians requiring Original Engineering precision when diagnosing DC battery strings or high-voltage AC distribution panels. The 374FC serves as a critical bridge between the 373 series and the high-frequency 376FC, offering a balanced technical profile for general industrial electrical contractors. Lead Time for this specialized diagnostic equipment is subject to regional distribution availability.

Key Attributes
Max. Ac Current: 600 A
Max. DC Current: 600 A
Measuring Voltage Range: 1000 V
Place of Origin: China
Model Number: 374 FC
Brand Name: Fluke
Dimensions: 9.8 x 3.3 x 1.8" (249 x 85 x 45 mm)
Display Type: Digital Only
Max. Ac Voltage: 1000 V
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 1000 μF
Measuring Current Range: 600 A
Measuring Inductance Range: /
Measuring Resistance Range: 6000 Ω
Operating Temperature: 14 to 122°F (-10 to 50°C)
Parameters Measured: AC Voltage, DC Current
Weight: 0.87 lb (395 g)
AC/DC Current via Jaw: 600 A
AC/DC Voltage: 1000 V
MV DC Range: 500.0 mV
Resistance Range: 6000 Ω
Capacitance Range: 1000 uF
Accuracy: 1%
Temperature Operating: 14 to 122°F (-10 to 50°C)
Batteries: 2 x AA, NEDA 15 A, IEC LR6

Packaging and Delivery
Selling Units: Single item
