Description

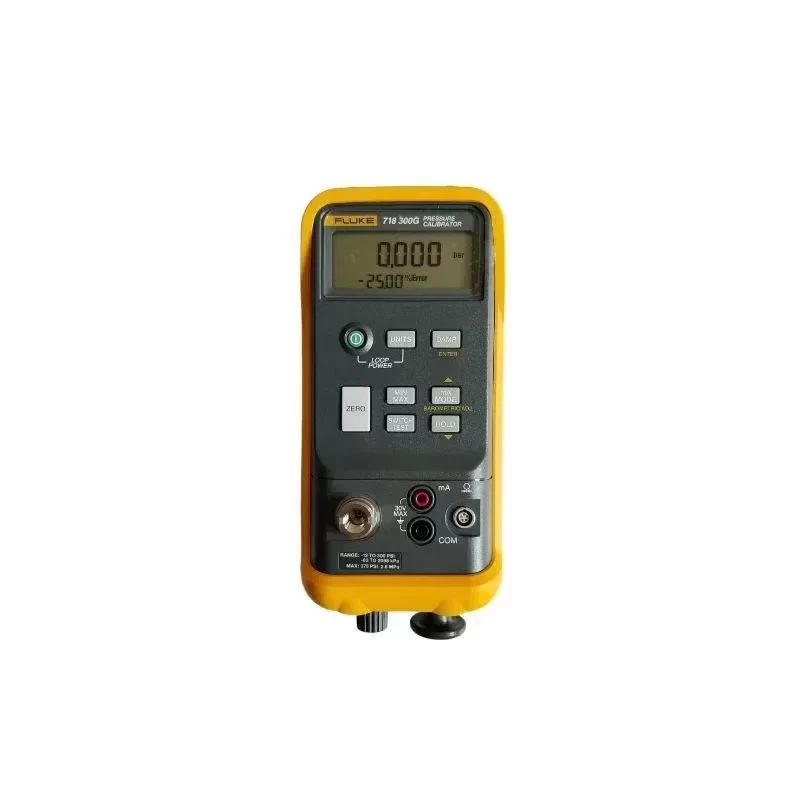

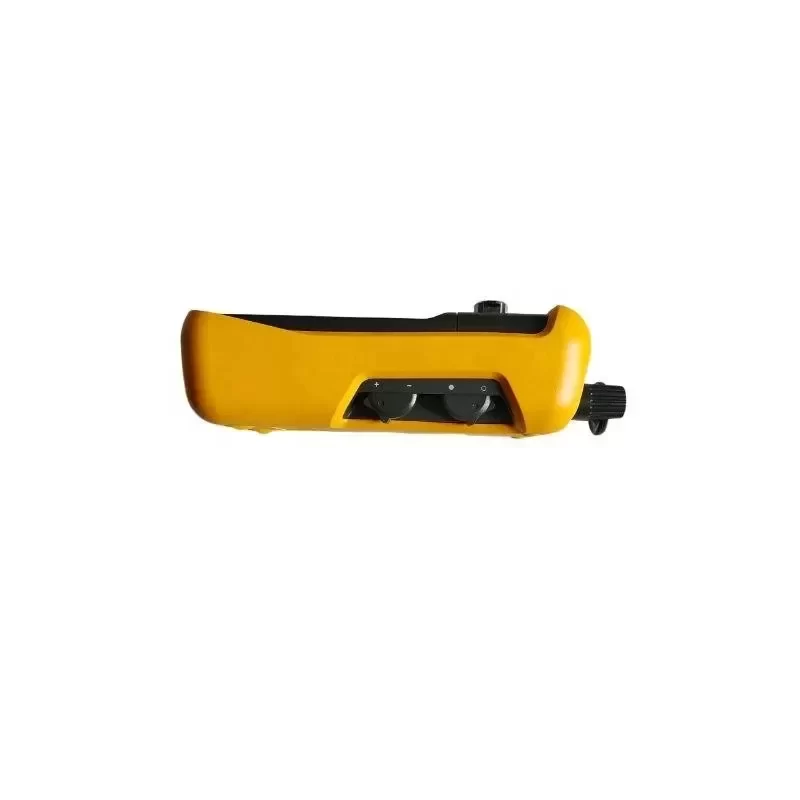

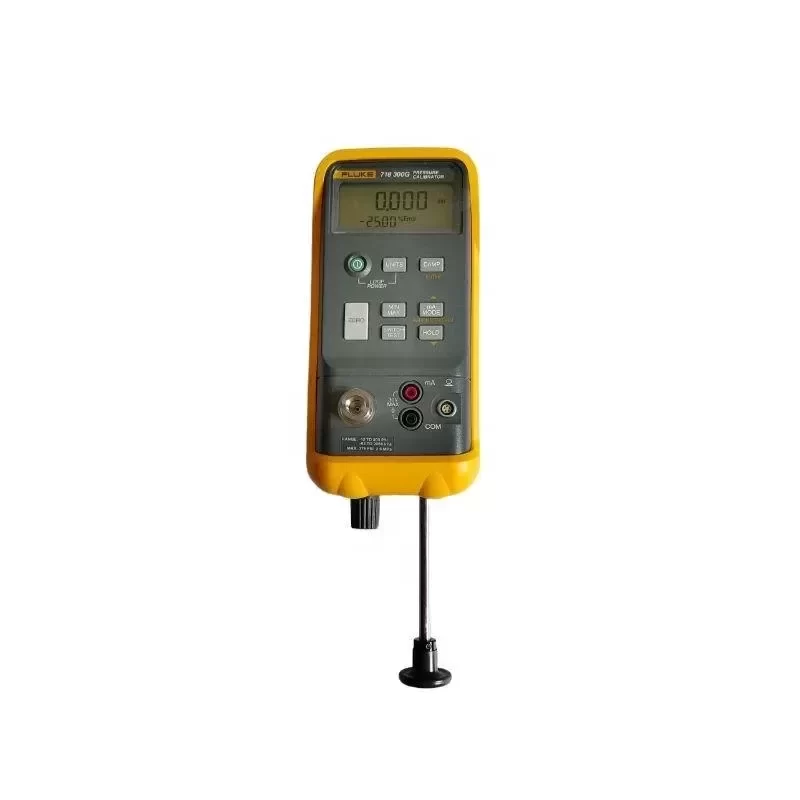

The Fluke 718 series represents a comprehensive, self-contained pressure calibration solution designed for field and laboratory environments. Engineered to deliver exceptional accuracy and reliability, this series integrates a built-in pressure/vacuum hand pump with a fine-adjustment vernier and bleed valve, eliminating the need for external pressure sources. The 30G, 100G, and 300G variants provide scalable pressure ranges to accommodate diverse industrial requirements, ensuring Technical Compatibility across a wide spectrum of pneumatic and process control systems.
Technical Specifications:
Manufacturer: Fluke
Series: 718
Available Models: 30G, 100G, 300G
Pressure Range (30G): -12 to 30 psi (-850 mbar to 2 bar)
Pressure Range (100G): -12 to 100 psi (-850 mbar to 7 bar)
Pressure Range (300G): -12 to 300 psi (-850 mbar to 20 bar)
Pressure Accuracy: ±0.025% to ±0.05% of full scale
Current Measurement Range: 0 to 24 mA
Current Measurement Accuracy: ±0.015% of reading + 1 count
Loop Power Supply: 24V DC
Pressure Connection: 1/8 in NPT female
Media Compatibility: Non-corrosive, non-ionic gases
Operating Temperature: -10°C to 55°C
Storage Temperature: -40°C to 60°C
Dimensions: 210 mm x 83 mm x 62 mm
Weight: 992 g
Power Source: One 9V battery
Shock and Vibration: Random, 2G, 5-500 Hz
Safety Certifications: CE, CSA
Industrial Application:
The Fluke 718 series is critical for the maintenance, troubleshooting, and calibration of pressure transmitters, gauges, and switches in petrochemical, pharmaceutical, and power generation facilities. By combining pressure generation and milliamp measurement in a single handheld device, technicians can perform zero and span adjustments on 4-20 mA loop-powered transmitters directly in the field. The integrated pump protects against fluid contamination, ensuring the Original Engineering integrity of sensitive process instrumentation.
Procurement and Lifecycle Value:
Designed for rugged industrial use, the Fluke 718 minimizes downtime by streamlining calibration workflows. Its compact form factor and robust construction reduce the need to transport heavy, multi-component test rigs. When planning maintenance schedules, standard Lead Time applies for these highly sought-after calibration instruments, ensuring your facility maintains compliance with ISO 9001 and other stringent quality management standards.
Key Attributes
Type: Pressure Calibrator
Accuracy: 1%
Place of origin: China
Customized support: OEM, ODM
Power: 5-500 Hz
Protection Class: IP65
Voltage: 24 V dc
Logo/graphic design: 3D Printing
Brand name: Fluke
Warranty: 1 years
Range: -12 to 30 PSI, -850 mbar to 2 bar
Resolution: 0.001 psi, 0.1 mbar
Measure Accuracy Range: 0 to 24 mA
Operating temperature: -10 to 55°C
Display: LCD, 5 digit pressure and current simultaneous
Safety: C22.2 No. 1010.1:1992
Maximum voltage: 30V
Shock & Vibration: Random, 2G, 5-500 Hz, 1m drop test

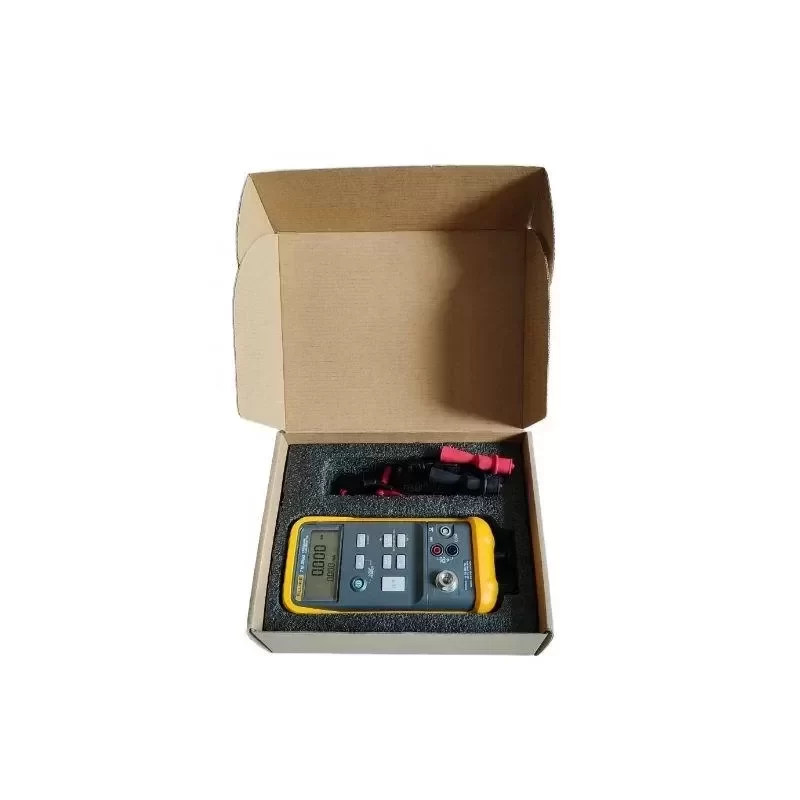

Packaging and Delivery
Selling Units: Single item
Single package size: 35X28X19 cm
Single gross weight: 2.600 kg
