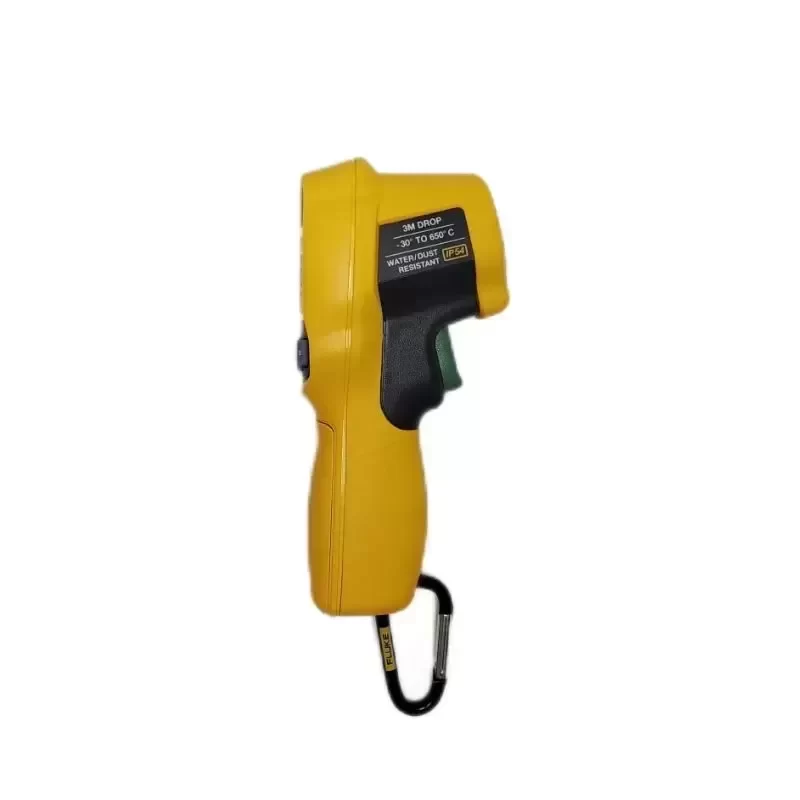

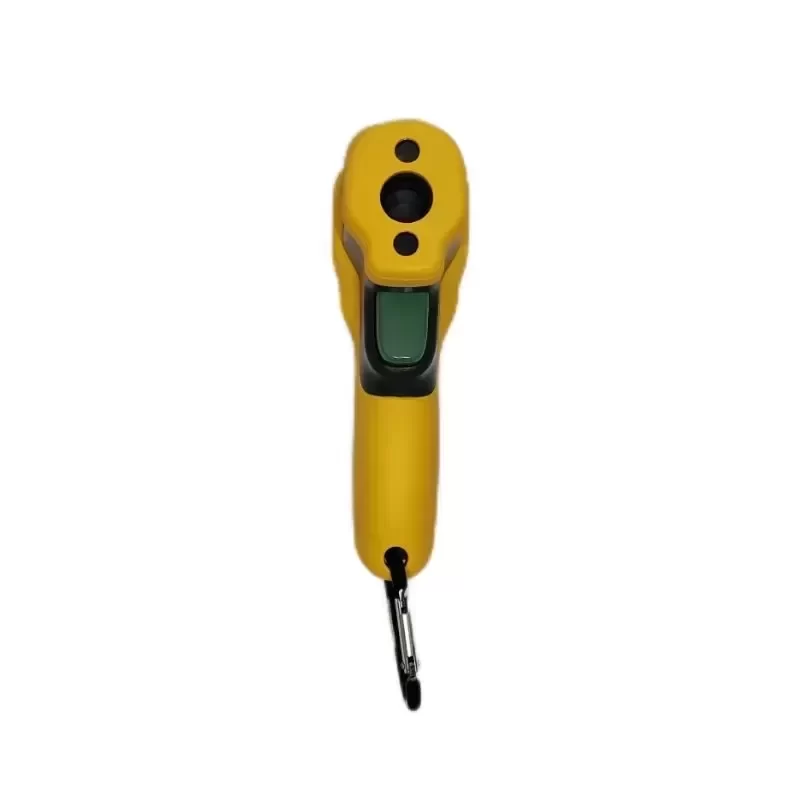

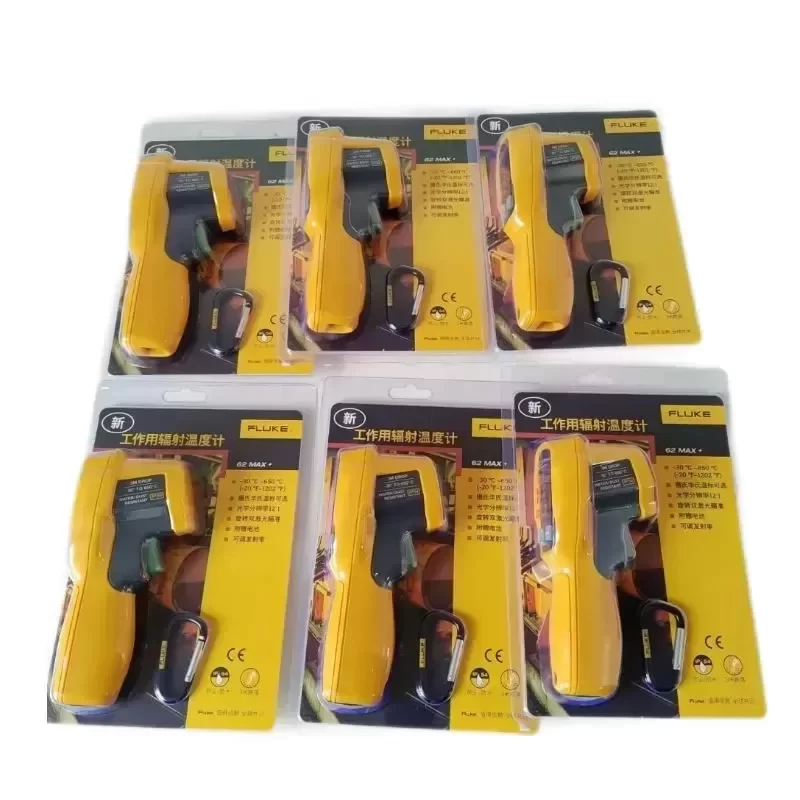

Fluke 62 MAX Infrared Thermometer 59E+

Description

The Fluke 62 MAX and 62 MAX+ infrared thermometers are precision non-contact thermal measurement instruments engineered for demanding field service and industrial condition monitoring. Built with robust environmental sealing and mechanical shock absorption, these units allow technicians to safely measure surface temperatures in high-voltage, rotating machinery, and hazardous process environments from a distance.

Technical Specifications
Measurement Range (62 MAX): -30 °C to 500 °C (-22 °F to 932 °F)
Measurement Range (62 MAX+): -30 °C to 650 °C (-22 °F to 1202 °F)
Optical Resolution (D:S Ratio 62 MAX): 10:1 at 90% energy
Optical Resolution (D:S Ratio 62 MAX+): 12:1 at 90% energy
System Accuracy (62 MAX): ±1.5 °C or ±1.5% of reading, whichever is greater (at >= 0 °C)
System Accuracy (62 MAX+): ±1.0 °C or ±1.0% of reading, whichever is greater (at >= 0 °C)
Response Time (62 MAX): < 500 ms (95% of reading)
Response Time (62 MAX+): < 300 ms (95% of reading)
Spectral Response: 8 µm to 14 µm
Emissivity: Digitally adjustable from 0.10 to 1.00
Sighting System (62 MAX): Single laser point
Sighting System (62 MAX+): Dual rotating lasers for precise measurement area demarcation
Ingress Protection: IP54 per IEC 60529 (Dust and water splash resistant)
Impact Resistance: 3-meter (9.8-foot) drop tested
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F) without battery
Operating Humidity: 10% to 90% RH non-condensing up to 30 °C
Power Supply: 1x AA IEC LR06 alkaline battery
Battery Life: 10 hours continuous (62 MAX), 8 hours continuous (62 MAX+) with laser and backlight active
Dimensions: 175 mm x 85 mm x 75 mm (6.88 in x 3.34 in x 2.95 in)
Weight: 255 g (8.99 oz)
Safety Certifications: EN/IEC 61010-1, EN 60825-1 Class II laser

Industrial Applications
Engineered specifically for predictive maintenance, electrical distribution inspection, HVAC commissioning, and mechanical drive diagnostics. The high distance-to-spot ratio and rapid response time enable rapid scanning of switchgear panels, bus ducts, motor bearings, pumps, and steam traps without requiring process interruption or personal contact with live equipment.

Procurement and Engineering Logistics
Original Engineering: Authentic manufacturer standard with full factory calibration
Technical Compatibility: Compatible with standard industrial tool belts and automated logging workflows via visual display
Standard Lead Time: Stock item ready for dispatch within 24 to 48 hours

Key Attributes
Type: Infrared Thermometer
Place of origin: China
Model number: 62 MAX
Brand name: Fluke
Customized support: OEM, ODM
Material: Plastic+Iron
Thermal color palettes: Other
Warranty: 1 years
Temperature Range: -30 °C to 500 °C (-22 °F to 932 °F)
Accuracy: ±1.0°C or ±1.0%
Response Time (95%): <500 ms (95% of reading)
Optical Resolution: 10:1 (calculated at 90% energy)
Drop Test: 9.8' (3 m)
IP Rating: IP 54 per IEC 60529
Dimensions: 6.88 x 3.34 x 2.95" (175 x 85 x 75 mm)
Weight: 0.56 lbs (255 g)
Theory: Infrared Thermometer
Temperature Control Accuracy: ±1.0°C or ±1.0%

Packaging and Delivery
Selling Units: Single item
Single package size: 29X17X13 cm
Single gross weight: 0.800 kg
