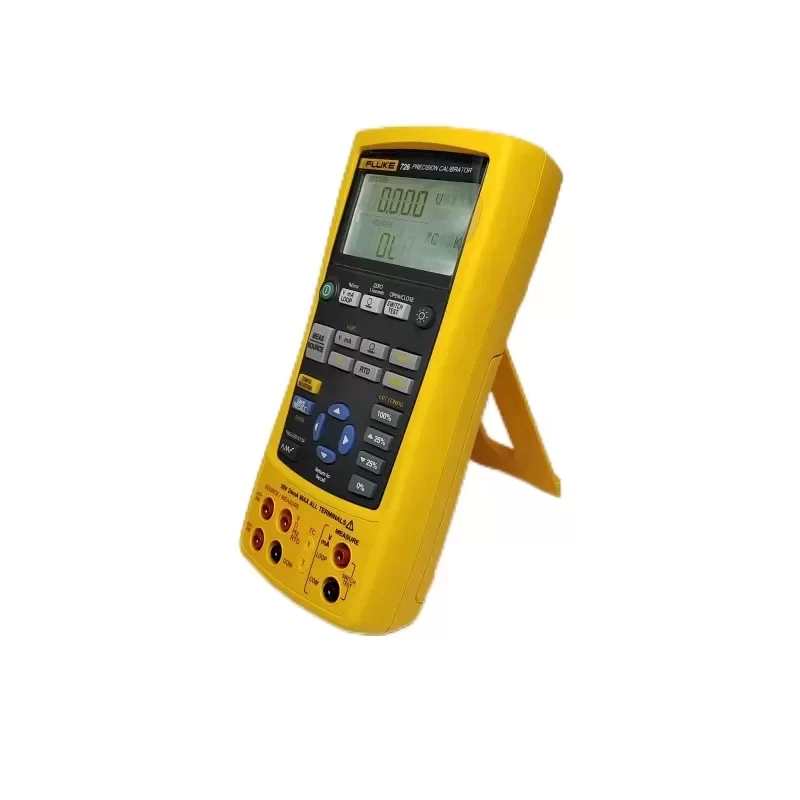

Fluke 726 Precision Multifunction Process Calibrator Fluke 725

Description

The Fluke 726 Precision Multifunction Process Calibrator is a highly accurate, comprehensive field diagnostic tool designed specifically for the process industry. Building upon the foundational architecture of the Fluke 725, the 726 model delivers enhanced precision, expanded workload coverage, and superior calibration power. It is engineered to measure and source nearly all process parameters, including voltage, current, temperature, frequency, and resistance, functioning as an indispensable asset for maintaining complex control systems and instrumentation loops.

Technical Specifications

Brand: Fluke
Model: 726
Device Type: Precision Multifunction Process Calibrator
DC Voltage Measurement Range: 0 to 30 V
DC Voltage Accuracy: ±0.01% + 2 counts
DC Current Measurement Range: 0 to 24 mA
DC Current Accuracy: ±0.01% + 2 counts
Resistance Range: 0 to 4000 Ω
Frequency Range: 2.0 to 15.00 kHz
Thermocouple Compatibility: J, K, T, E, L, N, U, C, BP, XK, B, R, S
RTD Compatibility: Pt100, Pt200, Pt500, Pt1000, Cu(10), Ni120
Pressure Calibration: Supported via Fluke 750P Series Modules
HART Capability: Integrated 250 Ω resistor in mA measure and source modes
Data Logging: Memory storage for up to 8 calibration results
Operating Temperature: -10°C to +50°C
Storage Temperature: -20°C to +71°C
Dimensions: 200 mm x 96 mm x 47 mm
Weight: 0.65 kg
Certifications: CE, CSA, EN 61010-1

Application & Integration

Engineered for rigorous industrial environments such as petrochemical refineries, pharmaceutical manufacturing plants, and power generation facilities, the Fluke 726 solves critical diagnostic challenges. Its integrated HART mode eliminates the need for external resistors when troubleshooting smart transmitters, significantly streamlining field operations. The device ensures strict Technical Compatibility with both legacy and modern PLC/DCS architectures. By adhering to Original Engineering standards, this calibrator guarantees data fidelity during loop testing, valve stroking, and sensor verification. Supported by reliable Lead Time availability for critical procurement, the Fluke 726 minimizes operational downtime and maximizes maintenance efficiency during scheduled plant turnarounds.

Key Attributes
Type: Process Calibrator
Place of origin: China
Customized support: OEM, ODM
Power: 1 to 15 kHz
Voltage: 20 V
Brand name: Fluke
Warranty: 1 years
Current DC: 24 mA: 0.01%+ 2 mA
Resistance: 0 to 4000 Ω: ±0.015%
Loop Power Voltage: 24 V
Operating temperature: 14 to 131°F (-10 to 55°C)
Battery Type: 4 x AA alkaline batteries
Dimensions: 7.9 x 3.8 x 1.9" (200 x 96 x 47 mm)
Weight: 23 oz (650 g)

Packaging and Delivery
Selling Units: Single item
Single package size: 28X18X11 cm
Single gross weight: 1.500 kg
