Fluke Basic Geo Earth Ground Tester Kit 1623-2KIT 1625-2KIT Digital Display Only

Description

The Fluke 1623-2KIT and 1625-2KIT Basic Geo Earth Ground Tester Kits represent the pinnacle of Original Engineering for critical grounding diagnostics. Designed around a high-visibility digital display architecture, these instruments provide engineers with precise, real-time data for verifying the integrity of grounding systems. Both models facilitate advanced testing methodologies, ensuring Technical Compatibility with a wide array of industrial and utility-scale electrical infrastructures.

Testing Methodologies
3- and 4-Pole Fall-of-Potential: Standard earth ground resistance testing.
4-Pole Soil Resistivity: Essential for initial site surveying and grounding system design.
Selective Testing: Utilizes a single clamp to measure ground resistance without disconnecting the ground rod.
Stakeless Testing: Employs two clamps to measure ground loop resistance without the need for earth stakes, ideal for paved or highly congested industrial sites.

Technical Specifications
Brand: Fluke
Model Series: 1623-2KIT and 1625-2KIT
Display Type: High-contrast Digital LCD
Measuring Frequency (1623-2): 128 Hz
Measuring Frequency (1625-2): Automatic Frequency Control (AFC) 94 Hz, 105 Hz, 111 Hz, 128 Hz
Resistance Measurement Range: 0.001 Ω to 299.9 kΩ
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -30 °C to 60 °C
Environmental Protection: IP56 (Dust and Water Resistant)
Safety Rating: CAT II 300 V
Data Storage: Internal memory with USB data transfer capability
Weight: 1.1 kg (Base Unit)

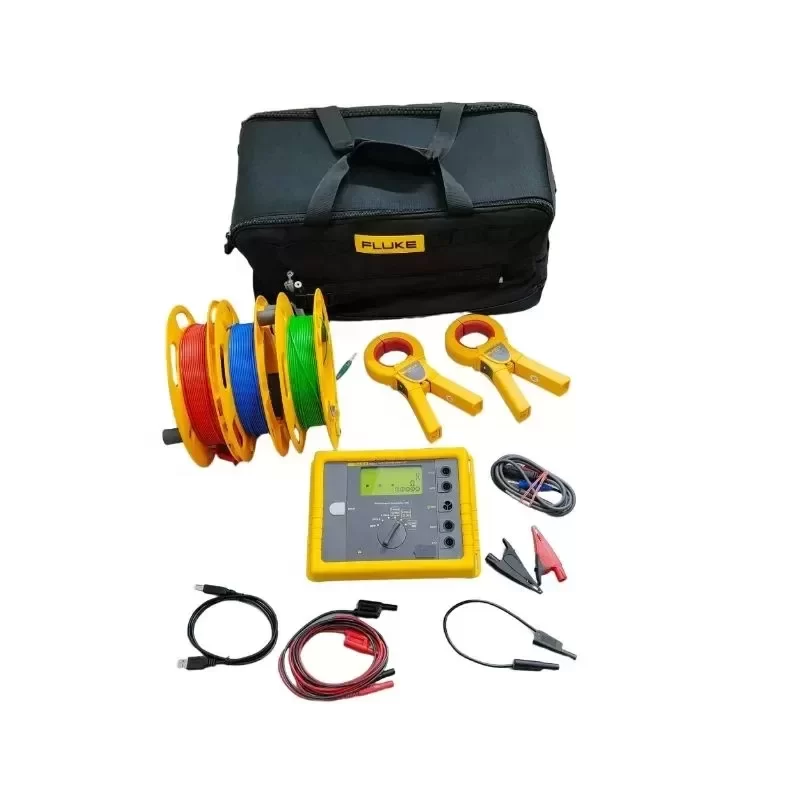

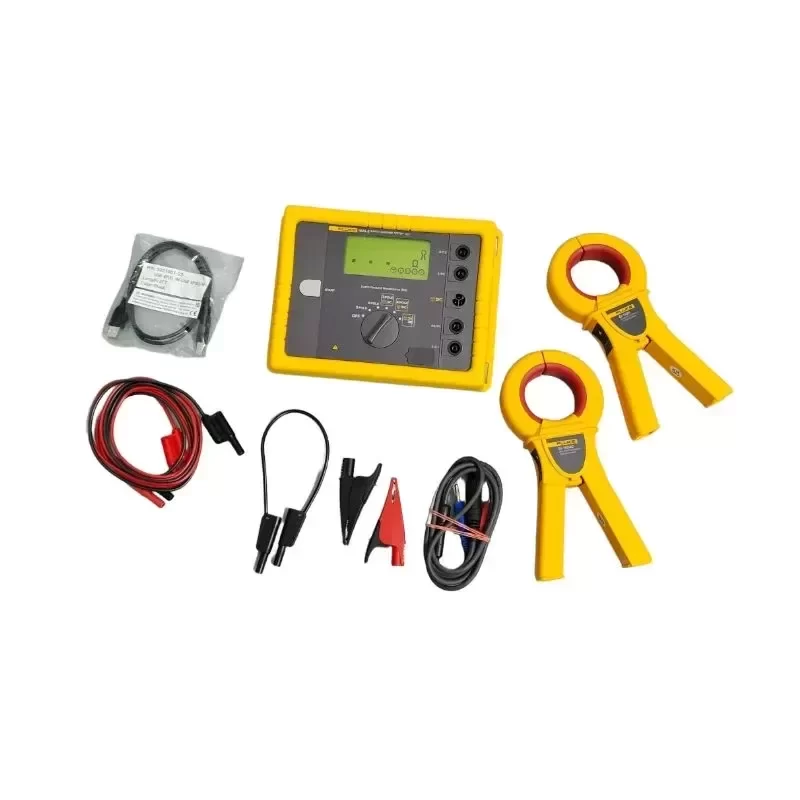

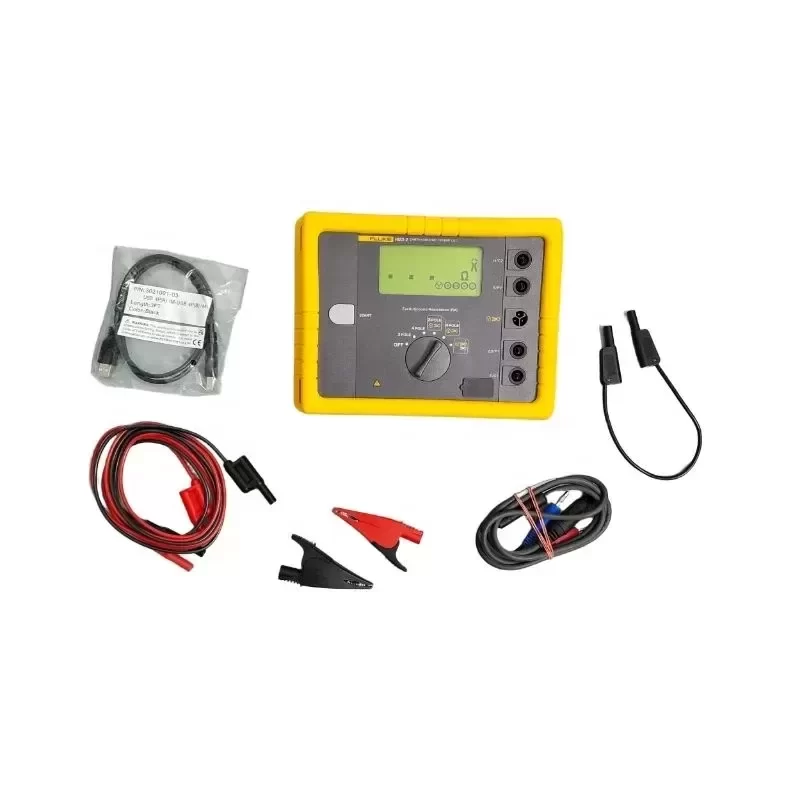

Kit Inclusions: Digital Tester, Earth Stakes, Test Leads, Current Clamps, Rugged Hard Case

Industrial Application
These testers are engineered for high-stakes environments such as high-voltage electrical substations, telecommunications towers, and large-scale manufacturing facilities. In a substation scenario, the 1625-2 utilizes its Automatic Frequency Control to mitigate interference from existing ground currents, allowing technicians to verify grounding grids without powering down the facility. The stakeless testing capability specifically solves the critical problem of measuring ground resistance inside fully paved industrial complexes where driving traditional stakes is impossible. Standard Lead Time applies for complete kit configurations.

Key Attributes
Accuracy Class: 0.2%
Current Range: 50 mA
Insulation Resistance: 100 kΩ
Measuring Range: 100 kΩ
Testing Voltage: 48 V ac
Place of Origin: Romania
Model Number: 1623-2-KIT
Brand Name: Fluke
Current Resolution: 1 mA
Dimensions: 59cm*32cm*37cm
Display Type: Digital Only
Operating Temperature: 14 to 122°F (-10 to 50°C)
Speed Range: 10 m/s
Time Resolution: 1 ms
Operating Temperature: 14 to 122°F (-10 to 50°C)
Display:1999 digit LCD: Display with special symbols, digit height 25 mm
Measuring time: Typical 6 sec.
EMC (Emission Immunity): IEC61326-1: Portable
Battery life span: Typical > 3,000 measurements
Measuring Range: 0.020 Ω to 19.99 kΩ
Accuracy: ±(2% rdg + 3 d)
Measure Frequency: 128 Hz

Packaging and Delivery
Selling Units: Single item
Single package size: 56X32X36 cm
Single gross weight: 8.000 kg
