SANWA CX506A Analog Multimeter EM7000 YX361TR YX360TRF Digital Multimeter

Description

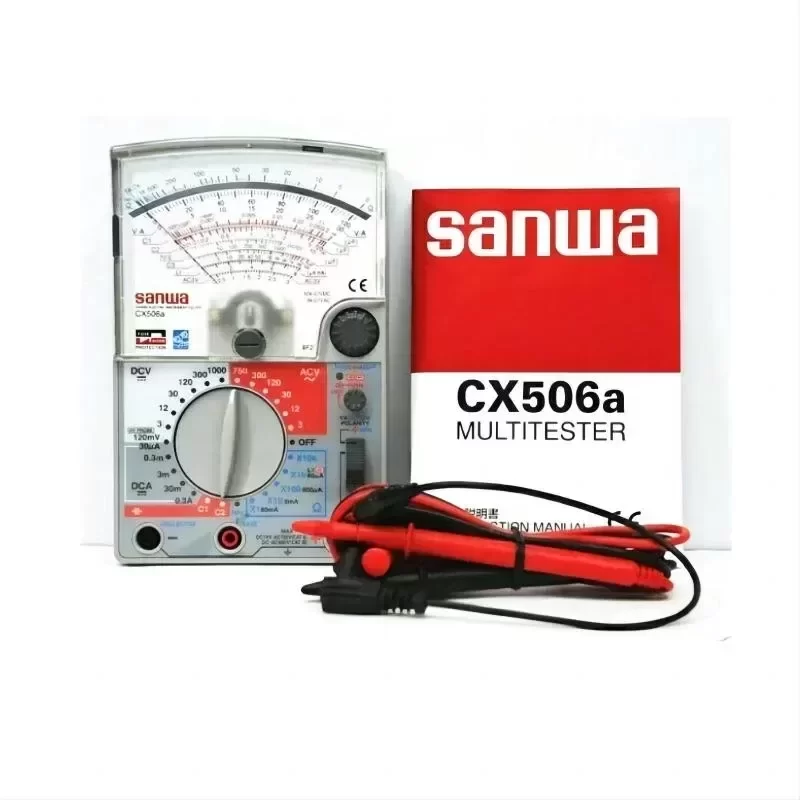

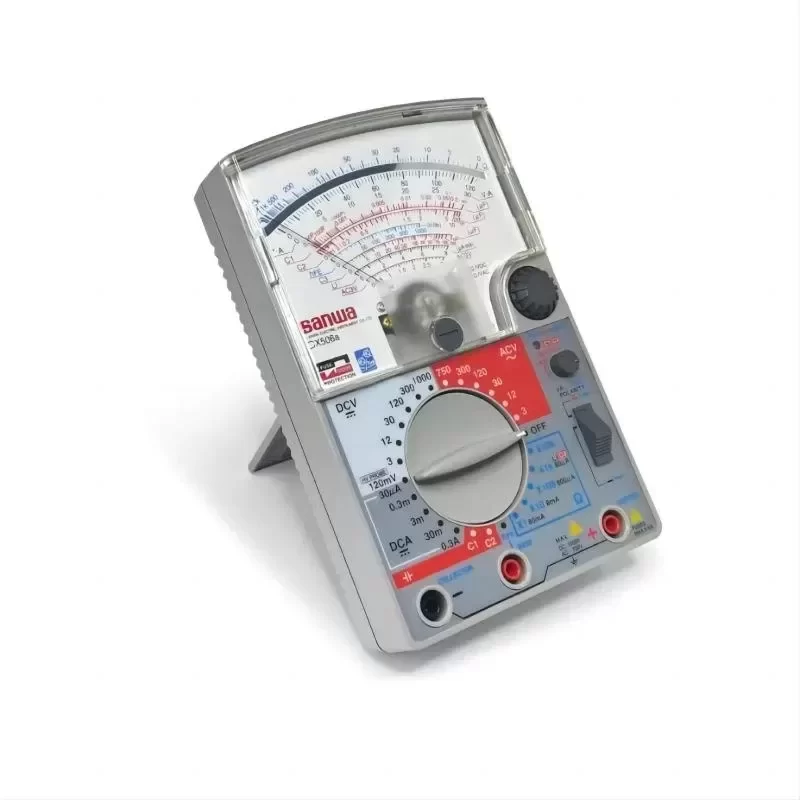

The SANWA CX506A is a high-grade analog multimeter designed for rigorous industrial diagnostics and precision electronic troubleshooting. Built upon SANWA’s Original Engineering standards, this instrument provides exceptional transient response and visual signal tracking that digital counterparts often miss. The CX506A is engineered with a taut-band drop-shock proof meter, ensuring sustained accuracy in high-vibration environments. It serves as a critical diagnostic tool alongside other renowned SANWA models such as the EM7000, YX361TR, and YX360TRF, offering unparalleled Technical Compatibility across established industrial test benches.

Technical Specifications
Model: CX506A
Brand: SANWA
Instrument Type: High-Precision Analog Multimeter
DC Voltage Range: 120mV / 3V / 12V / 30V / 120V / 300V / 1000V (±2.0% F.S.)
AC Voltage Range: 3V / 12V / 30V / 120V / 300V / 750V (±3.0% F.S.)
DC Current Range: 30µA / 0.3mA / 3mA / 30mA / 0.3A (±2.0% F.S.)
Resistance Range: 5kΩ / 50kΩ / 500kΩ / 5MΩ / 50MΩ
Capacitance Range: 50pF to 2000µF (across 3 ranges)
Transistor Check (hFE): 0 to 1000
Frequency Response: 40Hz to 30kHz (up to 30V)
Safety Certification: IEC61010-1 CAT.III 600V / CAT.II 1000V
Operating Temperature: 5°C to 40°C
Power Supply: 1.5V (R6/AA) x 2, 9V (6F22) x 1
Dimensions: 165 x 106 x 46 mm
Weight: 370g

Industrial Application
The CX506A excels in legacy control panel diagnostics and variable frequency drive (VFD) troubleshooting. In scenarios involving fluctuating signals or transient voltage spikes, the analog needle provides immediate visual feedback, allowing technicians to detect erratic control loop behaviors in PLC analog outputs (4-20mA) that digital sampling rates might alias or obscure. Its built-in capacitance and transistor check functions further streamline component-level PCB repair on the factory floor.

Procurement & Lifecycle Value
Integrating the SANWA CX506A into your maintenance toolkit ensures high-fidelity data acquisition for critical electrical infrastructure. We maintain an optimized Lead Time for this unit and its compatible accessories, ensuring minimal downtime for your calibration and testing facilities. Its robust analog architecture guarantees a long operational lifecycle, reducing total cost of ownership while maintaining strict compliance with international electrical safety standards.

Key Attributes
Measuring Current Range: 30?/0.3m/3m/30m/0.3A
Measuring Voltage Range: 3/12/30/120/300/750V
Parameters Measured: DC Current, AC Voltage, DC Voltage, AC Current
Place of Origin: Japan
Model Number: CX506a
Brand Name: Sanwa
Dimensions: 28*18*14cm
Feature: Data Logging
Low Battery Indicator: Yes
Max. AC Current: 0.3A
Max. AC Voltage: 1000V
Max. DC Current: 0.3A
Max. DC Voltage: 1000 V, 750V
Measuring Capacitance Range: 20μF
Measuring Inductance Range: 20μF
Measuring Resistance Range: 120m(4kΩ)/3/12/30/120 300(50kΩ/V)/1000V(15kΩ/V)
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Product Name: Sanwa
Model: CX506A
DCV: 1000V
ACV: 3/12/30/120/300/750V
Resistance: 5k/50k/500k/5M/50MΩ
Capacitance: C1:50p-0.2μF C2:0.01?-20μF C3:1-2000 μF
Battery: R6P(AA battery)1.5Vx2

Packaging and Delivery
Selling Units: Single item
Single package size: 28X18X15 cm
Single gross weight: 2.000 kg
