Description

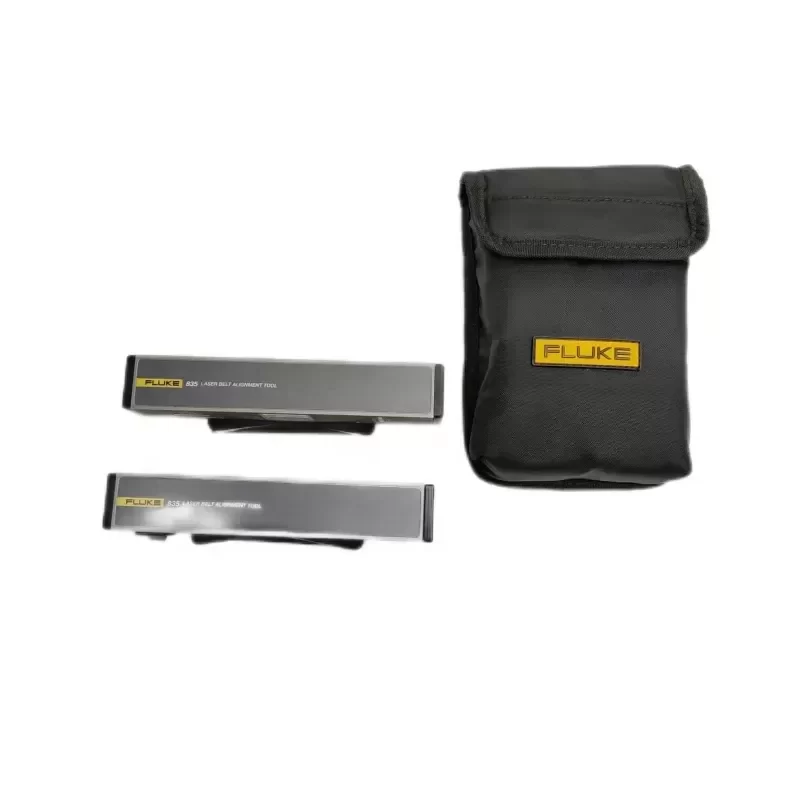

The Fluke 835 Laser Belt Alignment Tool is a precision-engineered diagnostic instrument designed to optimize the performance and lifespan of belt-driven machinery. By utilizing a highly visible Class 2 laser and a calibrated reflector, this system provides real-time, simultaneous visualization of both angular and offset misalignment. This Original Engineering ensures that maintenance technicians can achieve exact alignment tolerances rapidly, reducing vibration, minimizing belt wear, and preventing premature bearing failure in critical industrial rotating equipment.
Technical Specifications
Brand: Fluke
Model: 835
Equipment Type: Laser Belt Alignment Tool
Laser Classification: Class 2 Visible Red Laser
Laser Wavelength: 635 nm to 670 nm
Maximum Output Power: < 1 mW
Measuring Range: 10 m
Measurement Accuracy: ± 0.2 mm/m
Mounting Method: High-strength Neodymium Magnets
Minimum Pulley Diameter: Ø 60 mm
Power Source: 4x AAA Alkaline Batteries
Operating Time: 25 hours continuous
Operating Temperature: -5°C to 40°C
Storage Temperature: -10°C to 70°C
Housing Material: Extruded Aluminum and High-Impact ABS
Weight: 1.2 kg
Warranty: 1-Year
Industrial Application
The Fluke 835 is specifically deployed in heavy-duty HVAC blower drives, industrial conveyor systems, and large-scale compressor motor alignments. In these high-torque environments, even minor sheave misalignment can lead to catastrophic drive failure. The magnetic mounting system attaches directly to the pulley face, allowing a single operator to execute precise corrections without secondary measurement tools.
Lifecycle Value and Integration
Maintaining strict Technical Compatibility with standard industrial V-belts, synchronous belts, and chain drives, this instrument is a critical addition to any predictive maintenance program. Procuring this tool ensures minimal Lead Time for critical alignment tasks, directly reducing unplanned downtime and maximizing the operational efficiency of plant-floor assets.
Key Attributes
Type: Belt Alignment Tool
Place of origin: China
Customized support: OEM, ODM
Power: 505 - 535 nm
Voltage: Other
Brand name: FLUKE
Warranty: 1 Year
Laser Wavelength: 505 to 535 nm (green is more visible)
Operating Time: 6 hours
Controls: Laser ON/OFF rocker switch
Laser Line Length: 5m to 7m
Temperature Operating: 23 to 104°F (-5 to 40℃)
Battery type: 4 x AAA alkaline batteries
Mounting Method: Strong Magnets
Packaging and Delivery
Selling Units: Single item
Single package size: 30X23X15 cm
Single gross weight: 2.000 kg
