CEM LA-1012 Electronic Cable Pipe Locator Cable Short Fault Locator

Description

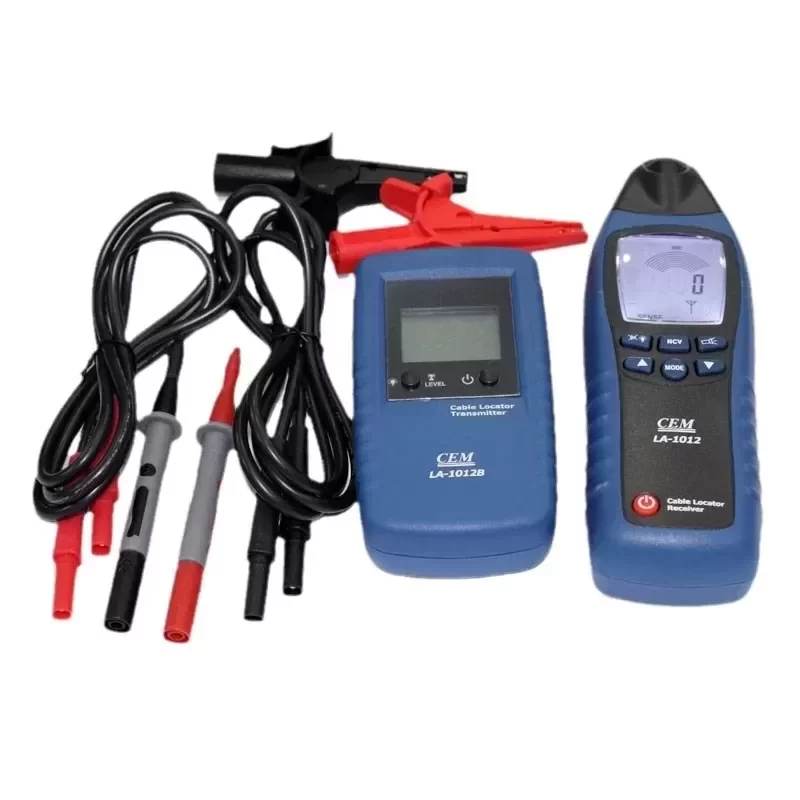

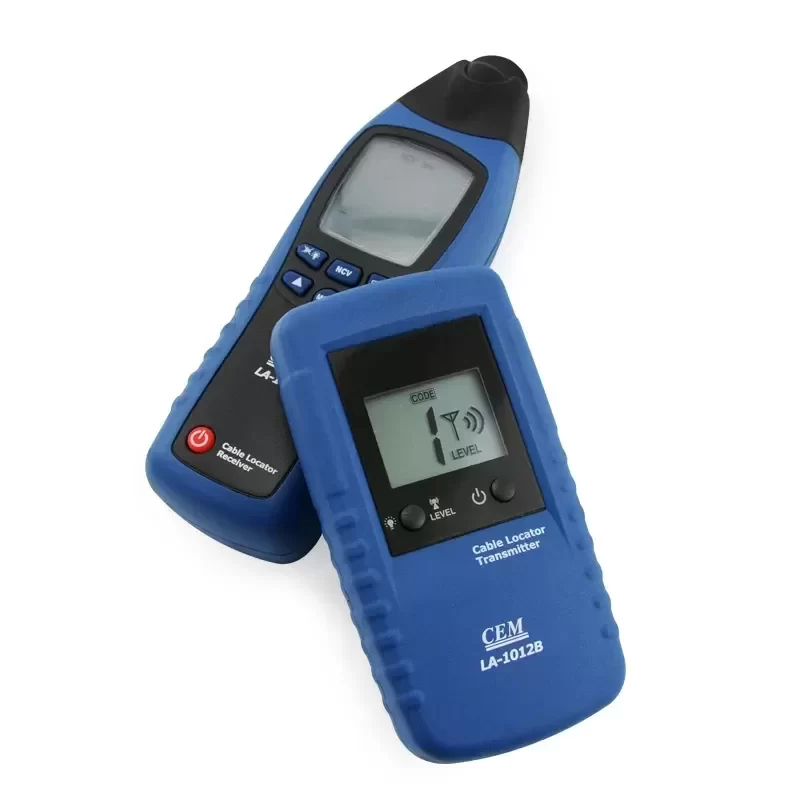

The CEM LA-1012 is an advanced professional electronic cable and pipe locator designed for precise fault detection in complex industrial and commercial infrastructures. Engineered for high-fidelity signal tracing, this diagnostic instrument consists of a robust transmitter and a highly sensitive receiver, operating on a 125kHz signal frequency to ensure minimal interference. The system is optimized for locating short circuits, open circuits, and tracing embedded metallic conduits or live electrical lines without requiring destructive structural access.

Technical Specifications:
Brand: CEM
Model: LA-1012
Signal Frequency: 125kHz
Voltage Measurement Range: 12V to 400V AC/DC
Locating Depth Range: 0 to 2.5 meters
Mains Voltage Detection Depth: 0 to 0.4 meters
Display: Digital LCD with analog bargraph and backlight
Safety Certification: EN 61010-1, CAT III 300V
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Power Supply: 9V DC
Transmitter Dimensions: 130 x 69 x 32 mm
Receiver Dimensions: 192 x 61 x 37 mm
Transmitter Weight: 130g
Receiver Weight: 180g

Industrial Application:
The LA-1012 is critical for facility maintenance and infrastructure diagnostics. It is specifically deployed in scenarios requiring the non-destructive tracing of buried utility pipes, the identification of short circuits in concealed industrial wiring, and the mapping of electrical grids prior to structural modifications. By utilizing Original Engineering principles, the device ensures seamless Technical Compatibility with standard industrial power networks. Its rapid deployment capability significantly reduces diagnostic Lead Time during critical electrical failures, minimizing facility downtime and operational disruption.

Key Attributes
Place of origin: Guangdong, China
Customized support: Software Reengineering
Brand name: CEM
Warranty: 1 years
Model number: LA-1012
Voltage Measuring Ranges: 12V, 50V, 120V, 230V, 400V
Freqnecy Range: 0 ... 60Hz
Output Signal: 125kHz
Voltae: Upto 400V AC/DC
Power: Electronic

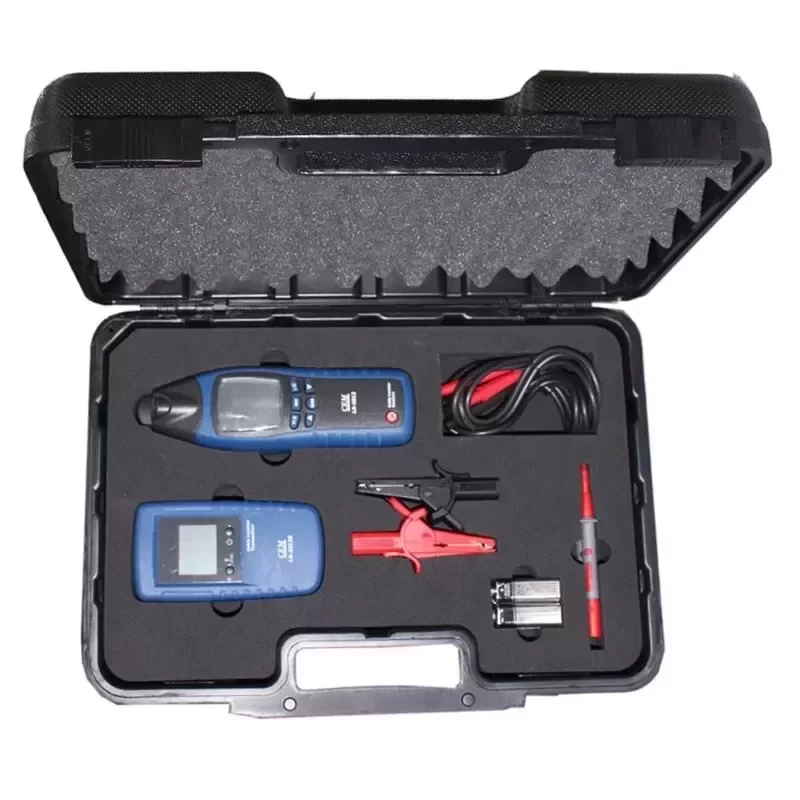

Packaging and Delivery
Selling Units: Single item
Single package size: 38X28X16 cm
Single gross weight: 2.500 kg
