Fluke VISIFAULT Visual Fault Locator Testing Equipment

Description

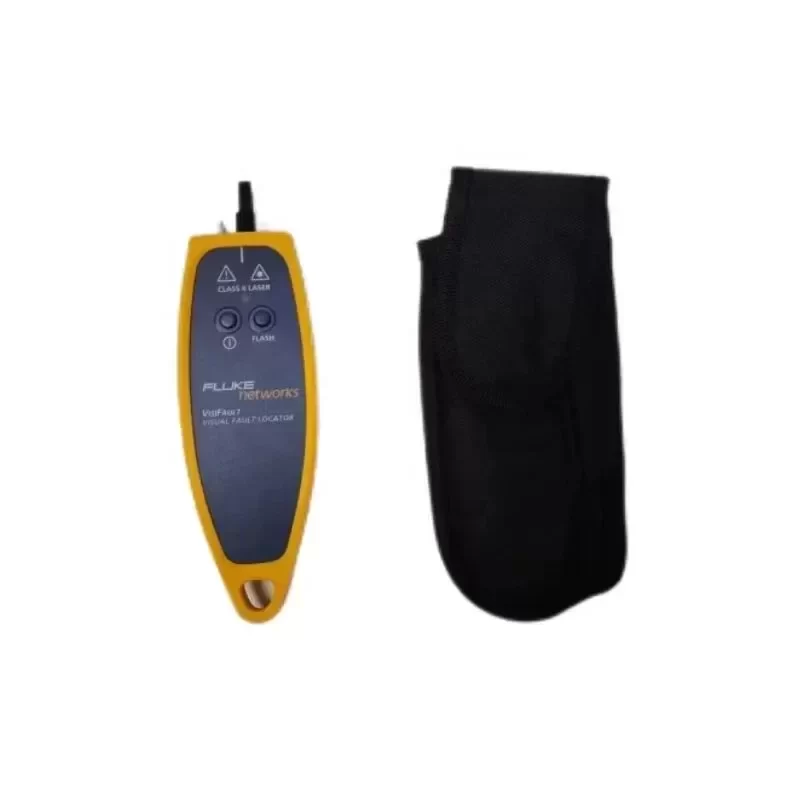

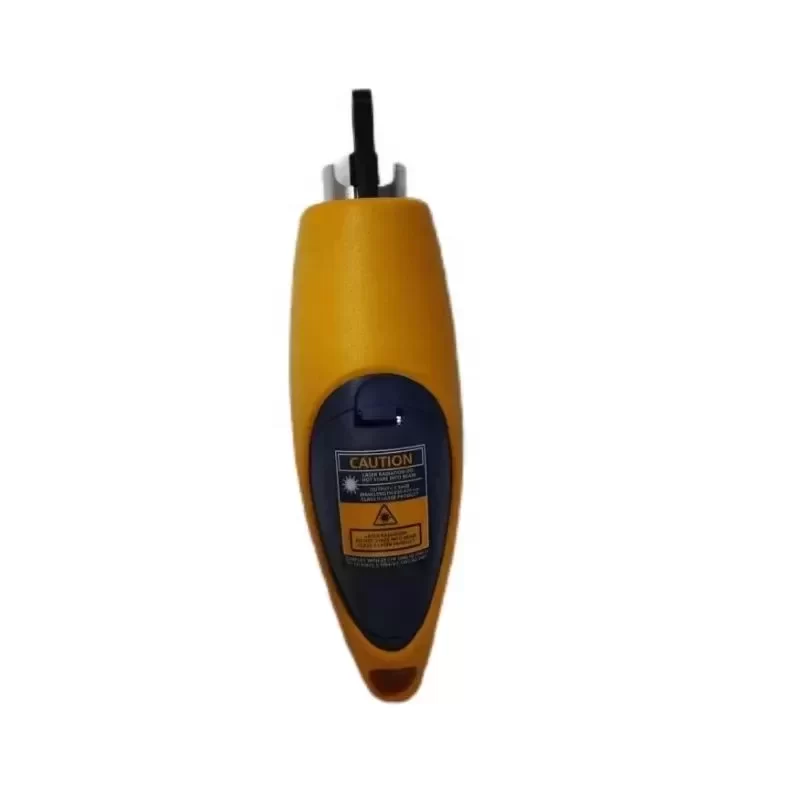

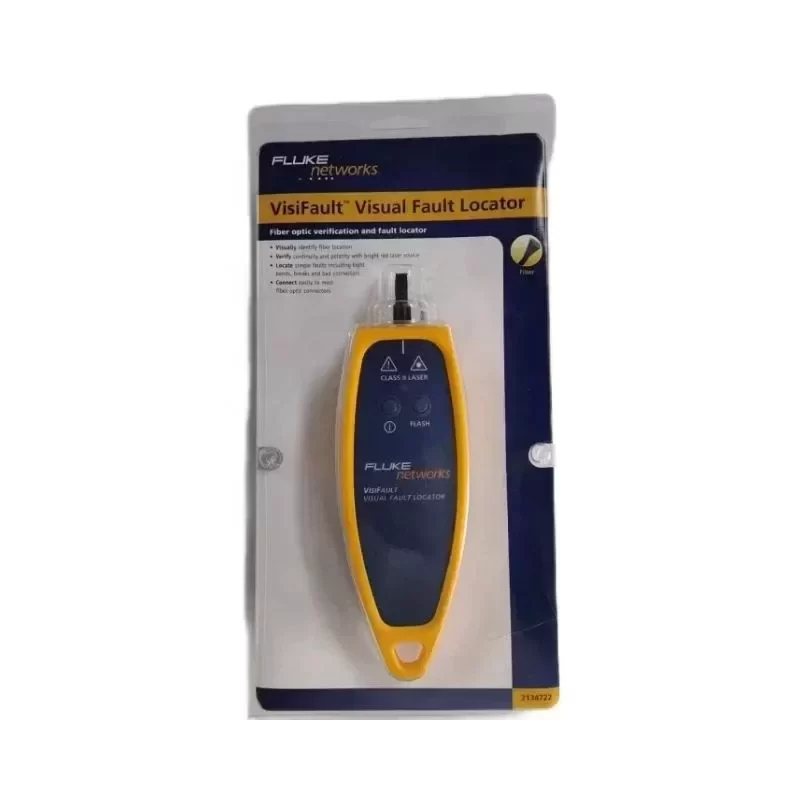

The Fluke Networks VisiFault Visual Fault Locator (VFL) is a precision-engineered diagnostic tool designed for rigorous fiber optic cable testing and troubleshooting. Engineered to deliver high-visibility red laser light, this device rapidly identifies breaks, microbends, faulty splices, and defective connectors within complex optical networks. Built with an impact-absorbing overmolded case, it ensures operational survivability in demanding field environments.

Technical Specifications
Brand: Fluke Networks
Model: VisiFault
Equipment Type: Visual Fault Locator (VFL)
Light Source: Class II Visible Laser Diode
Wavelength: 650 nm ± 10 nm (Visible Red)
Optical Output Power: < 1.3 mW
Operating Modes: Continuous Wave (CW) and Flashing (2 Hz)
Transmission Range: Up to 3 km (Multimode) / Up to 4 km (Singlemode)
Connector Interface: 2.5 mm Universal Adapter (Compatible with SC, ST, FC, E2000)
Power Supply: 2 x AA Alkaline Batteries
Battery Life: > 80 hours (Continuous operation)
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Dimensions: 157 mm x 52 mm x 33 mm
Weight: 0.18 kg (including batteries)
Safety Certifications: CE, CSA, EN 61010-1, EN 60825-1

Industrial Application
The VisiFault is critical for technicians managing high-density data centers and industrial telecommunication nodes. In scenarios involving hundreds of patched fibers, the 650 nm laser provides immediate visual verification of continuity and polarity. When a fusion splice fails or a macrobend occurs within a congested server rack, the escaping red light allows for instantaneous fault isolation, minimizing network downtime without the need for complex OTDR analysis.

Procurement and Lifecycle Value
Backed by Fluke Networks Original Engineering, this testing equipment guarantees long-term reliability and precise diagnostic accuracy. The universal 2.5 mm interface ensures broad Technical Compatibility across legacy and modern fiber infrastructures. Contact our procurement team for current Lead Time and global shipping availability.

Key Attributes
Type: Fault Locator
Place of origin: China
Customized support: OEM, ODM
Power: 5-500 Hz
Voltage: Other
Brand name: Fluke
Warranty: 1 years
Fiber Compatibility: Multimode and Singlemode
Wavelength: 650 nm (visible wavelength)
Laser Safety Rating: Class II
Range: 3 km multimode, 4 km singlemode
Operating Temperature: 0 to 40°C
Relative Humidity: 95% (10 to 35°C)
Dimensions: 6.2 x 2.0 x 1.3" (157 x 52 x 37 mm)
Battery Type: 2 x AA

Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X13 cm
Single gross weight: 1.000 kg
