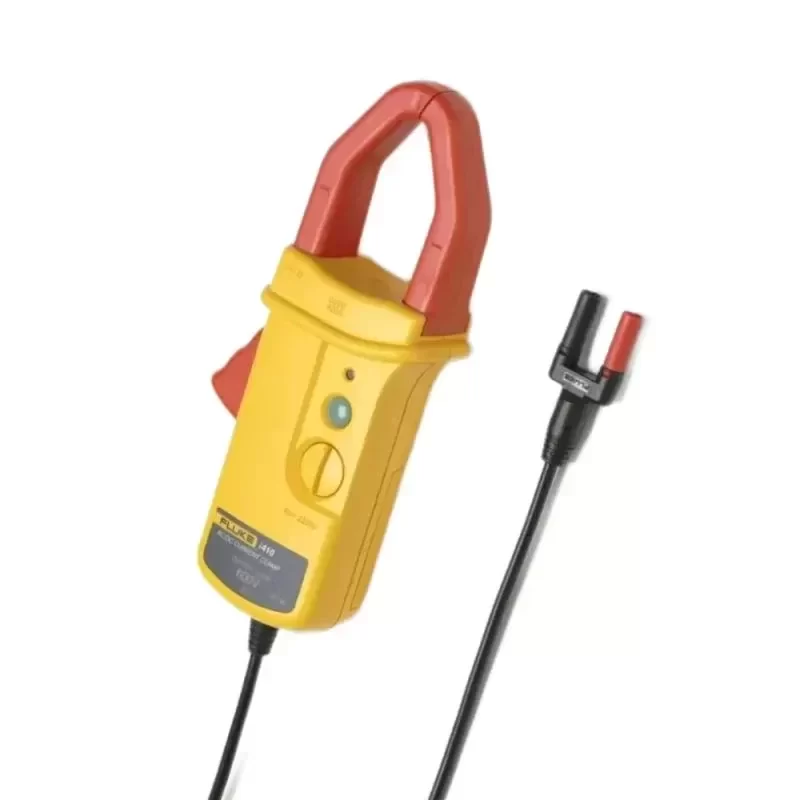

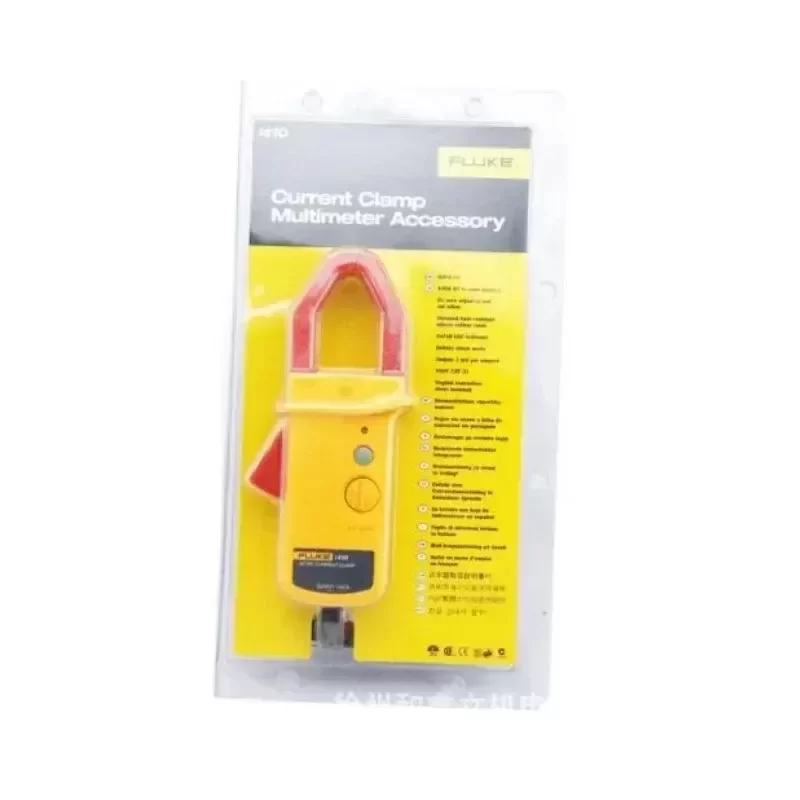

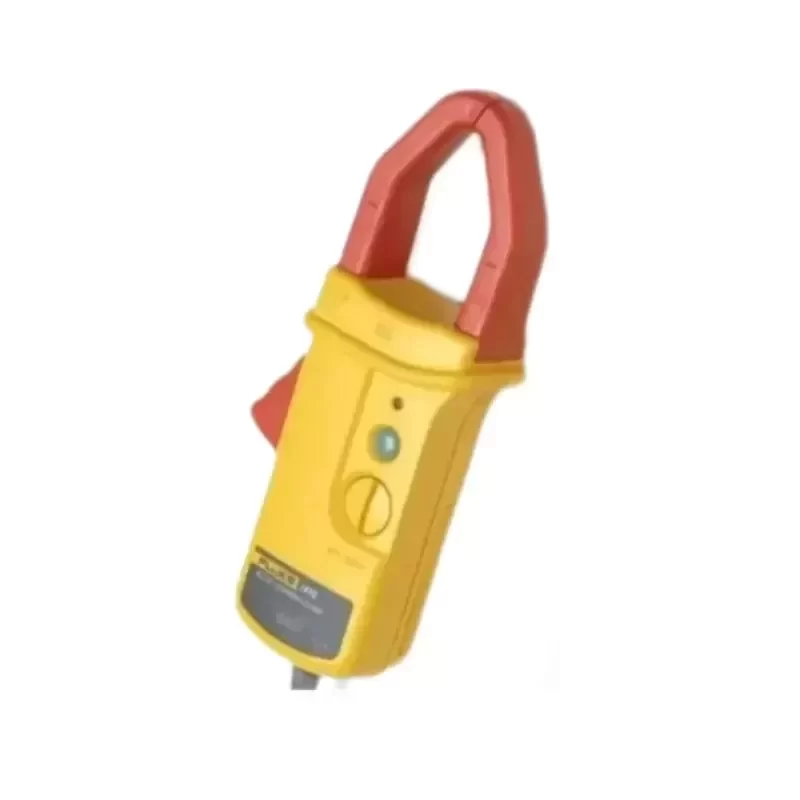

Fluke I410 AC/DC Current Clamp with Hall Sensor Technology Measures up to 400A AC/DC 600V CAT III Safety

Description

The Fluke i410 AC/DC Current Clamp is a precision-engineered diagnostic tool designed to extend the current measuring capabilities of standard digital multimeters. Utilizing advanced Hall Sensor Technology, this clamp facilitates accurate, non-intrusive measurement of both alternating and direct currents up to 400A without breaking the circuit. The instrument outputs a standardized 1 mV/A signal, ensuring seamless Technical Compatibility with a wide array of industrial multimeters and oscilloscopes equipped with standard shrouded banana inputs. Built to Fluke’s rigorous Original Engineering standards, the i410 guarantees reliable performance in demanding electrical environments.

In heavy industrial and commercial settings, the Fluke i410 solves critical troubleshooting challenges. Maintenance engineers utilize this clamp for load testing on DC backup systems, evaluating inverter outputs in solar installations, and diagnosing high-current industrial motors. The 30 mm jaw capacity accommodates large gauge cables, while the CAT III 600V safety rating provides essential operator protection during live-panel diagnostics and switchgear maintenance.

Procurement professionals can rely on optimized Lead Time for this essential diagnostic component, ensuring minimal downtime for facility maintenance teams. The ergonomic design combined with a 1.6-meter cable allows for safe, remote reading of measurements in confined or hazardous spaces.

Technical Specifications:
Brand: Fluke
Model Number: i410
Equipment Type: AC/DC Current Clamp
Measurement Technology: Hall Effect Sensor
Current Range: 1A to 400A AC/DC
Output Signal: 1 mV per Amp
Basic Accuracy (DC): ±(3.5% + 0.5A)
Basic Accuracy (AC): ±(3.5% + 0.5A) at 45 Hz to 400 Hz
Maximum Conductor Diameter: Ø 30 mm
Safety Rating: CAT III 600V
Operating Voltage: 600V AC rms or DC maximum
Power Supply: 9V Alkaline Battery
Battery Life: 60 hours (typical)
Operating Temperature: -10°C to +50°C
Storage Temperature: -20°C to +60°C
Temperature Coefficient: 0.1 x (specified accuracy) per °C (<18°C or >28°C)
Output Cable Length: 1.6 m
Connection Type: Shrouded Banana Plugs
Dimensions: 209 mm x 78 mm x 48 mm
Weight: 227 g

Key Attributes
Max. Ac Current: 400 A,
Max. DC Current: 400 A,
Measuring Voltage Range: 600 V
Place of Origin: China
Model Number: I410
Brand Name: Fluke
Dimensions: 172*64*32mm
Display Type: Digital Only
Max. Ac Voltage: 600 V
Max. DC Voltage: 600 V
Measuring Capacitance Range: ,
Measuring Current Range: 400 A
Measuring Inductance Range: ,
Measuring Resistance Range: ,
Operating Temperature: -10~50 ℃
Parameters Measured: AC/DC
Weight: 180g
Measurement Type: Hall sensor
Nominal Current Range: 400 A, AC/DC
Lowest Measurable Current: 0.5 A
Basic Accuracy: 3.5%
Maximum Voltage: 600 V
Safety: CAT III, 600 V
Useable Frequency: DC - 3 kHz

Packaging and Delivery
Selling Units: Single item
Single package size: 35X25X15 cm
Single gross weight: 2.000 kg
