Description

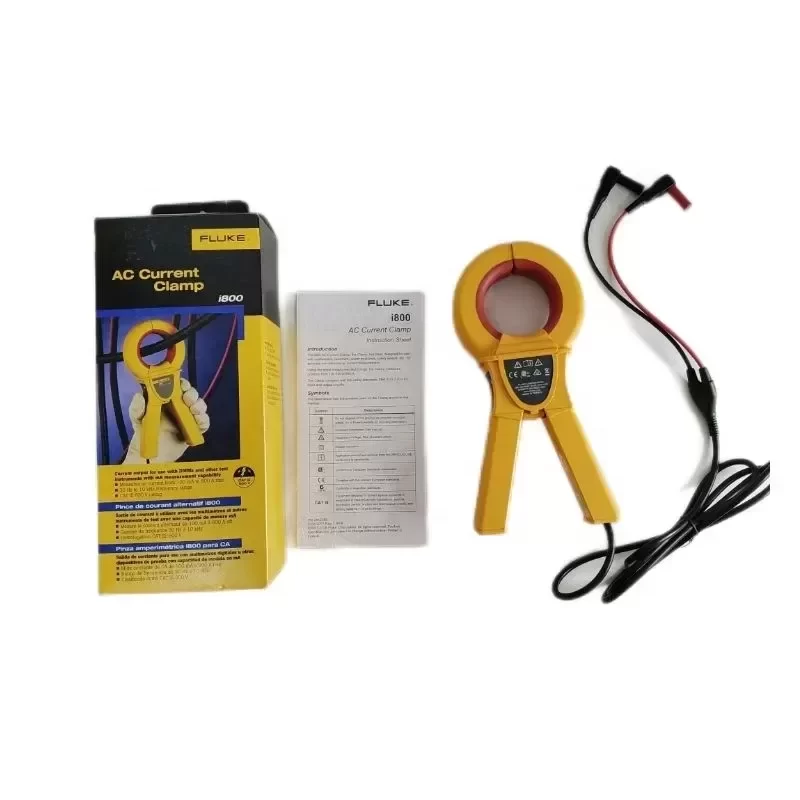

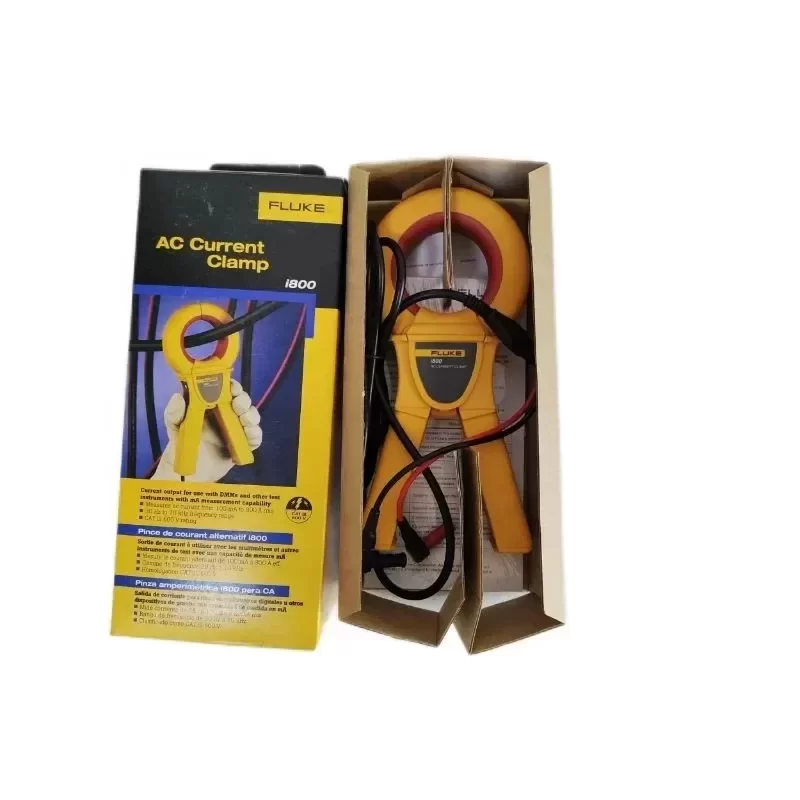

The Universal AC Current Clamp Probe is engineered for seamless integration with high-performance testing equipment, offering direct Technical Compatibility with Fluke i800, i200, i410, and i3000s series instruments. Designed for precision non-intrusive current measurement, this probe facilitates accurate diagnostics in complex electrical architectures without circuit interruption. It serves as a critical interface for capturing alternating current waveforms and translating them into measurable voltage or current signals for advanced multimeters and oscilloscopes.
TECHNICAL SPECIFICATIONS
Equipment Type: Universal AC Current Clamp Probe
Technical Compatibility: Fluke i200, i410, i800, i3000s multimeters and power quality analyzers
Current Measurement Range: 1 A to 3000 A AC
Output Signal: Switchable 10 mV/A, 1 mV/A, 0.1 mV/A
Frequency Response: 10 Hz to 100 kHz ± 0.5 dB
Maximum Conductor Size: Ø 64 mm
Operating Temperature: -10 °C to +55 °C
Storage Temperature: -20 °C to +70 °C
Relative Humidity: 0% to 90% non-condensing
Safety Category: IEC 61010-1 CAT III 600 V, CAT IV 300 V
Dielectric Strength: 5.4 kV AC rms
Weight: 0.55 kg
Housing Material: High-impact polycarbonate/ABS blend
Original Engineering: Compliant with OEM calibration standards
Lead Time: Standardized for rapid global procurement
INDUSTRIAL APPLICATION
This current clamp probe is specifically deployed in heavy industrial power distribution networks, variable frequency drive (VFD) motor load testing, and switchgear commissioning. Its wide frequency response and high current capacity allow maintenance engineers to perform accurate harmonic analysis and transient load monitoring in electrically noisy environments. The robust jaw mechanism ensures secure attachment to large busbars or thick insulated cables, minimizing phase shift errors during critical power quality assessments.
LIFECYCLE AND INTEGRATION
By maintaining strict Technical Compatibility with industry-standard interfaces, this probe extends the operational lifecycle of existing testing equipment. The Original Engineering guarantees reliable signal transduction, reducing diagnostic downtime and ensuring precise fault isolation in mission-critical electrical infrastructure. Optimized Lead Time ensures minimal disruption to facility maintenance schedules, providing a dependable replacement or upgrade for standard diagnostic toolkits.
Key Attributes
Type: Current Clamp Probe
Place of origin: China
Customized support: OEM, ODM
Power: 50/60 Hz
Voltage: 600 V
Brand name: FLUKE
Application: Auto Testing
Warranty: 1 years
Nominal current range: 800 A rms
Continuous current range: 100 mA to 800 A rms
Maximum Non-Destrucive Current: 1500 A rms (50/60 Hz)
Lowest measurable current: 100 mA
Basic accuracy: ±1% of reading
Useable frequency: 30 Hz - 10 kHz (-3dB)
Output level(s): 1 mA / A
Maximum voltage: 600 V ac rms or dc
Packaging and Delivery
Selling Units: Single item
Single package size: 30X18X16 cm
Single gross weight: 2.000 kg
