Description

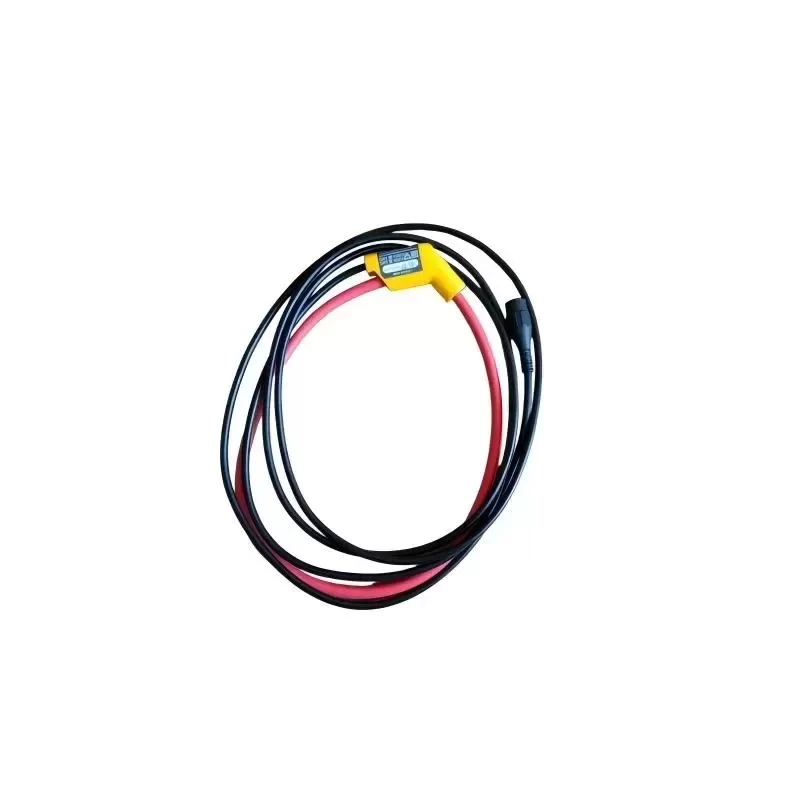

The Fluke I430-FLEXI-TF-II is a high-performance flexible AC current probe designed for integration with the Fluke 430 Series II Power Quality Analyzers. Utilizing Rogowski coil technology, this probe allows for non-intrusive current measurements in tight spaces and around large or irregular conductors where standard rigid clamp-on probes cannot fit.
Technical Specifications:
Model Number: I430-FLEXI-TF-II
Manufacturer: Fluke Corporation
Measurement Range: 30 A to 3000 A AC
Output Sensitivity: 0.085 mV/A at 50 Hz
Accuracy: ±1% of reading at 25 °C
Frequency Range: 10 Hz to 10 kHz
Safety Rating: CAT IV 600 V, CAT III 1000 V
Probe Length: 610 mm
Probe Diameter: 12.4 mm
Cable Length: 2.5 m
Connector Type: BNC with safety shroud
Operating Temperature: -20 °C to +70 °C
Storage Temperature: -40 °C to +80 °C
Enclosure Rating: IP41
Material: High-durability thermoplastic elastomer and reinforced plastic housing
Weight: 0.22 kg
Application Scenario:
In industrial substation maintenance, engineers frequently encounter crowded busbars and high-amperage distribution panels with minimal physical clearance. The flexible design of the I430-FLEXI-TF-II enables technicians to wrap the sensor around thick conductors without disconnecting the circuit, ensuring safe, continuous monitoring of harmonic currents and power quality anomalies.
Commercial Integration:
This product features Original Engineering from Fluke, ensuring precise calibration and seamless Technical Compatibility with Fluke 434-II, 435-II, and 437-II analyzers. Contact our sales department to verify current Lead Time and availability for your facility maintenance schedule.
Key Attributes
Accuracy: 1%
Place of origin: China
Material: Plastic
Brand name: Fluke
Customized support: No
Warranty: 1 years
Packaging and Delivery
Selling Units: Single item
Single package size: 25X15X11 cm
Single gross weight: 0.500 kg
