Fluke LIQ-KIT Cable and Network Tester Advanced Kit

Description

The Fluke LIQ-KIT is an advanced diagnostic instrument designed for comprehensive cable performance validation and active network troubleshooting. Engineered to bridge the gap between physical layer testing and network connectivity diagnostics, this kit provides Original Engineering reliability for IT professionals, system integrators, and industrial network technicians.

Technical Specifications:
Manufacturer: Fluke Networks
Model Number: LIQ-KIT
Device Type: Cable and Network Tester Advanced Kit
Display: 800 x 480 color capacitive multi-touch screen
Cable Test Capacity: Up to 10GBASE-T via frequency-based measurements
Supported Cable Types: Twisted pair (UTP, STP, SSTP)
Maximum Test Length: 305 m (1000 ft)
PoE Load Testing: Up to Class 8 (90W) per IEEE 802.3af/at/bt
Network Diagnostics: IPv4/IPv6 Ping, Switch Port Advertisement (Speed, Duplex, VLAN)
Battery Type: Rechargeable Lithium-ion
Battery Life: 8 hours (typical operation)
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 50°C
Operating Humidity: 0% to 90% (0°C to 35°C) non-condensing
Dimensions: 21.6 cm x 11.3 cm x 4.7 cm
Weight: 0.62 kg
Certifications: CE, UKCA, CSA, FCC

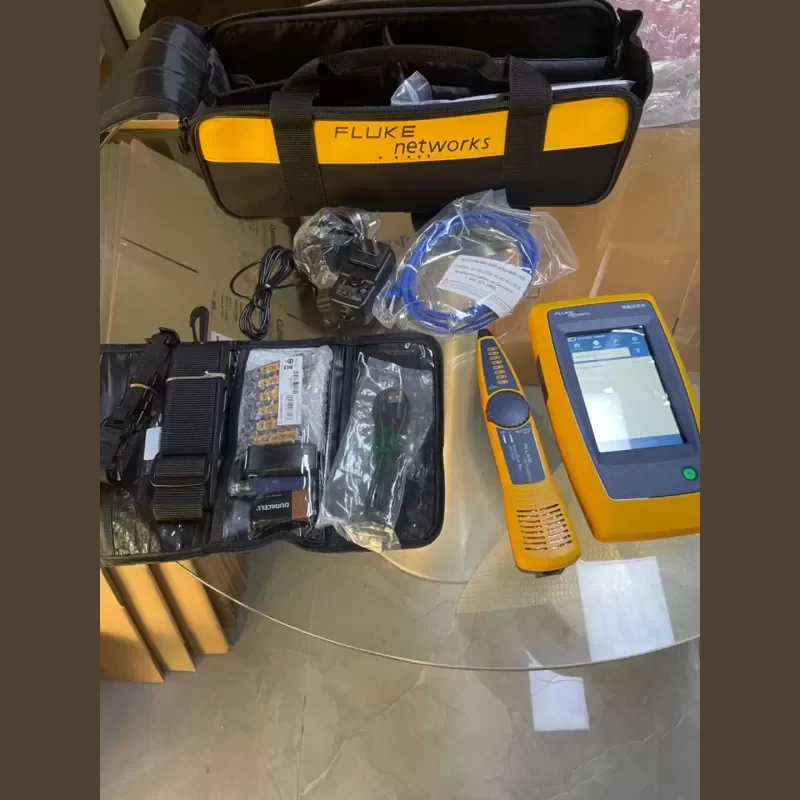

Advanced Kit Inclusions:
LinkIQ Main Unit
Remote IDs 1-7

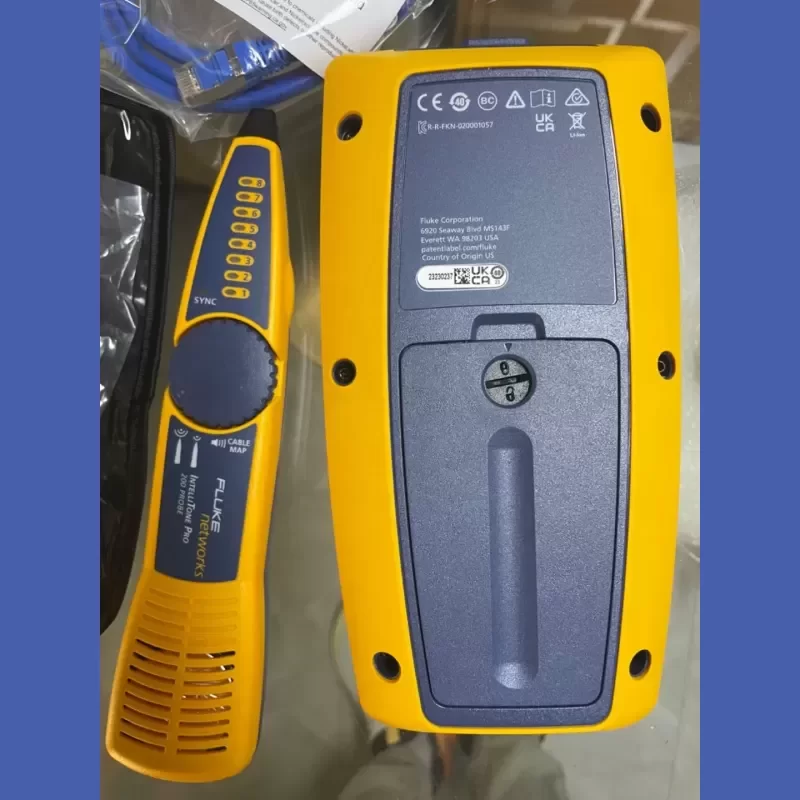

IntelliTone Pro 200 Probe
RJ45-RJ45 Patch Cords
Universal Couplers
AC Charger

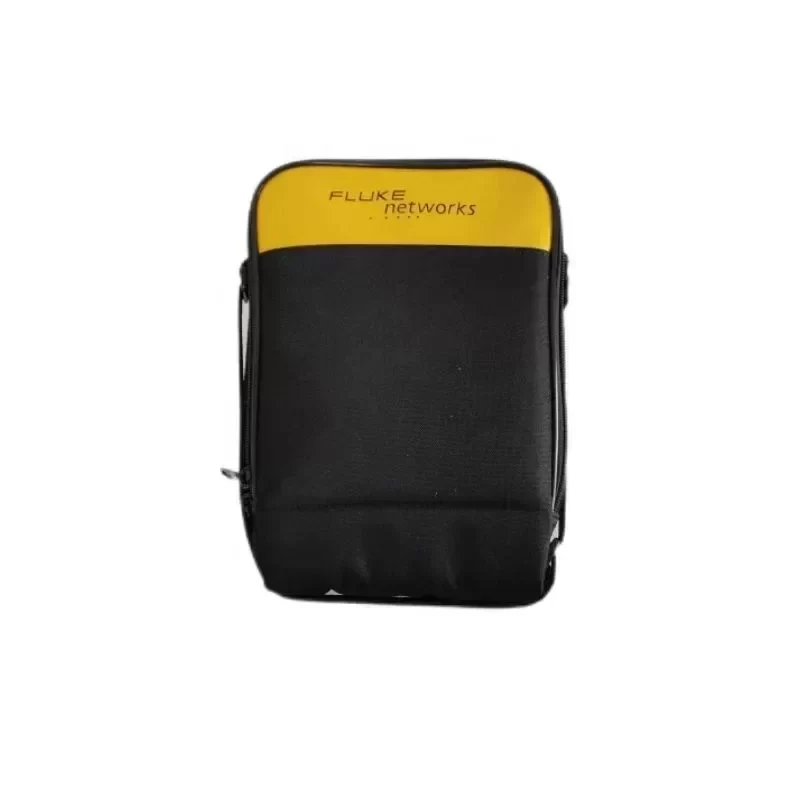

Deluxe Carrying Case

Industrial Application and Technical Compatibility:
The LIQ-KIT is critical for deploying and maintaining high-speed industrial Ethernet and PoE-driven infrastructure. In automated manufacturing facilities where IP cameras, access points, and PLC communication rely on flawless physical layer integrity, this tester identifies distance to fault, wiremap errors, and verifies that edge switches deliver the required PoE wattage under load. Its Technical Compatibility with modern IEEE 802.3bt standards ensures seamless integration into next-generation smart building and industrial IoT deployments.

Procurement and Lead Time:
Available for global B2B procurement with optimized Lead Time to minimize network downtime. This Original Engineering equipment guarantees precision diagnostics and long-term lifecycle value for enterprise network maintenance.

Key Attributes
Type: Network Tester
Place of origin: United States
Customized support: OEM, ODM
Power: 500 Hz
Voltage: Other
Brand name: Fluke
Warranty: 1 years
Diagnostic Protocols: (LLDP) (CDP) (FLP)
Power Over Ethernet Compatibility: IEEE 802.3af/at (SW v1.0)
Port Blink: Blink the light of the connected port
Test Port: Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs
Length (Maximum): 1000' (305 m)
Vibration: Random, 2 g, 5 to 500 Hz
Operating Relative Humidity: 0 to 90%
Host Interface: USB type C

Packaging and Delivery
Selling Units: Single item
Single package size: 47X35X30 cm
Single gross weight: 3.000 kg
