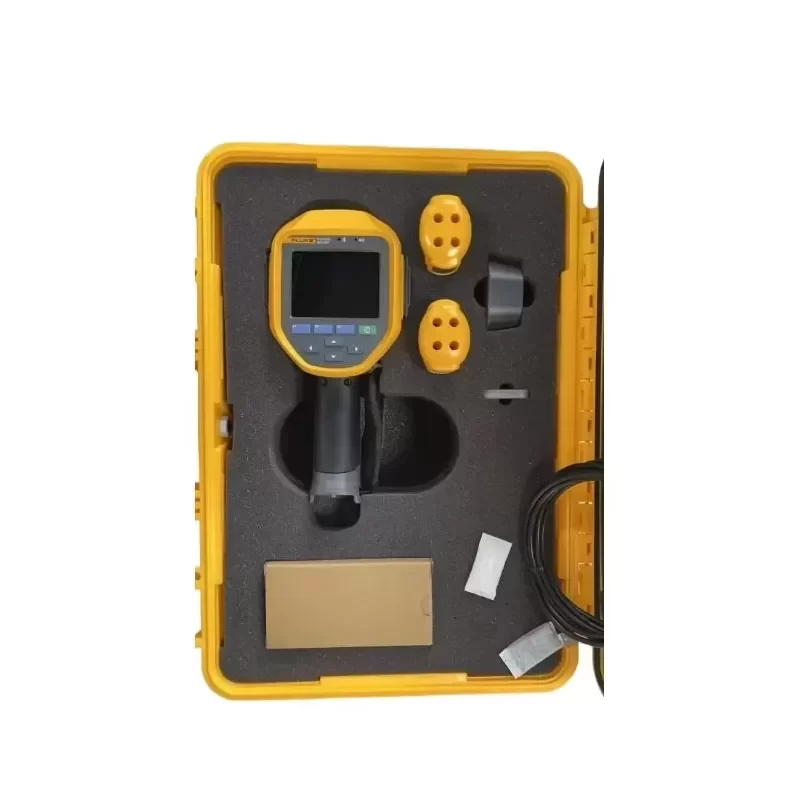

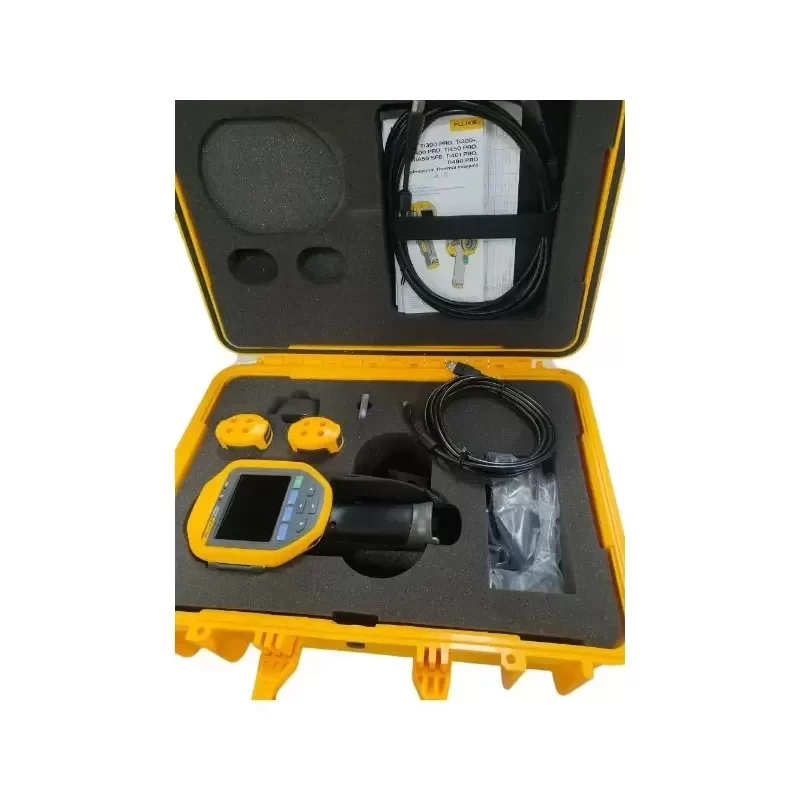

Fluke Ti480 PRO Infrared Thermal Imager

Description

The Fluke Ti480 PRO is an advanced 640 x 480 infrared thermal imager engineered for rigorous industrial diagnostics and predictive maintenance. Built with Fluke Original Engineering, this thermography system delivers exceptional measurement accuracy and thermal sensitivity to detect minute temperature differentials in critical infrastructure.

Technical Specifications:
Manufacturer: Fluke
Model: Ti480 PRO
Detector Resolution: 640 x 480 (307,200 pixels)
SuperResolution: 1280 x 960 (1,228,800 pixels)
Thermal Sensitivity (NETD): ≤ 0.05 °C at 30 °C (50 mK)
Temperature Measurement Range: -20 °C to +1000 °C
Field of View (FOV): 34° H x 24° V
Spatial Resolution (IFOV): 0.93 mRad
Focus Mechanism: MultiSharp Focus and LaserSharp AutoFocus
Frame Rate: 60 Hz
Display: 3.5-inch 640 x 480 LCD touchscreen
Enclosure Rating: IP54
Drop Resistance: 2 meters
Weight: 1.04 kg

System Architecture and Integration:
The Ti480 PRO utilizes a highly calibrated microbolometer array integrated with proprietary MultiSharp technology, which captures multiple images and combines them to produce one clear, in-focus image of targets both near and far. The LaserSharp AutoFocus utilizes a built-in laser distance meter to calculate and display the exact distance to the designated target, ensuring absolute focal precision. Technical Compatibility is maximized through the Fluke Connect system, allowing seamless wireless data transfer, asset tagging, and integration with broader CMMS networks.

Industrial Application:
In high-voltage power generation and petrochemical refining environments, the Ti480 PRO serves as a critical diagnostic tool. Maintenance engineers utilize its high thermal sensitivity to identify phase imbalances, degraded electrical connections, and refractory insulation failures before catastrophic equipment breakdown occurs. The +1000 °C upper limit ensures safe monitoring of high-temperature industrial furnaces and boilers.

Procurement of this instrument guarantees authentic Original Engineering. Lead Time is optimized through our global B2B distribution network, ensuring rapid deployment for urgent facility turnaround schedules.

Key Attributes
Thermal color palettes: Other
Place of Origin: United States
Model Number: Ti480 PRO
Brand Name: Fluke
Infrared Resolution: 640 x 480 (307,200 pixels)
Field of View: 34 x 24°
Minimum Focus Distance: Approximately 6" (15 cm)
Temperature Measurement Range: ≤14 to 1832°F (-10 to 1000°C)
Accuracy: ±2°C or 2%
Relative Humidity: 10 to 95% non-condensing
Dimensions: 10.9 x 4.8 x 6.5" (27.7 x 12.2 x 16.7 cm)
Weight: 2.3 lbs (1.04 kg)
Theory: Infrared Thermometer
Temperature Control Accuracy: ±2°C or 2%

Packaging and Delivery
Selling Units: Single item
Single package size: 54X42X31 cm
Single gross weight: 6.000 kg
