FOTEK CDR-30X for M18 Tubular Type Photo Sensor

Description

The Fotek CDR-30X is an industrial-grade M18 cylindrical diffuse reflective photoelectric sensor engineered for precision target verification across automated assembly, packaging, and sorting machinery. Manufactured according to strict Original Engineering specifications, this sensor integrates modulated infrared emission circuitry with advanced ambient light rejection algorithms to deliver dependable non-contact presence sensing up to 300 mm. Its integrated dual-polarity (NPN and PNP) switching output architecture provides broad Technical Compatibility, allowing direct hardware integration into sourcing or sinking PLC digital input channels without supplementary relay logic or signal conditioning.

TECHNICAL SPECIFICATIONS
Manufacturer: Fotek Controls Co., Ltd.
Model: CDR-30X
Sensing Principle: Diffuse Reflective
Nominal Sensing Range: 300 mm (30 cm)
Adjustable Range: 50 mm to 300 mm
Standard Detectable Target: White paper 200 mm × 200 mm (reflectivity 90%)
Light Source: Modulated Infrared LED (880 nm wavelength)
Operating Voltage: 10 to 30 VDC (±10% ripple P-P max)
Current Consumption: 25 mA maximum at 24 VDC
Control Output: NPN and PNP complementary dual output
Output Mode: Light-ON / Dark-ON selectable by wiring configuration
Maximum Load Current: 150 mA maximum per output channel
Voltage Drop: < 1.5 VDC at 150 mA load current
Response Time: < 2.0 ms
Operating Frequency: 250 Hz
Sensitivity Adjustment: Single-turn precision trimmer potentiometer
Circuit Protection: Reverse polarity protection, surge voltage suppression, output short-circuit protection

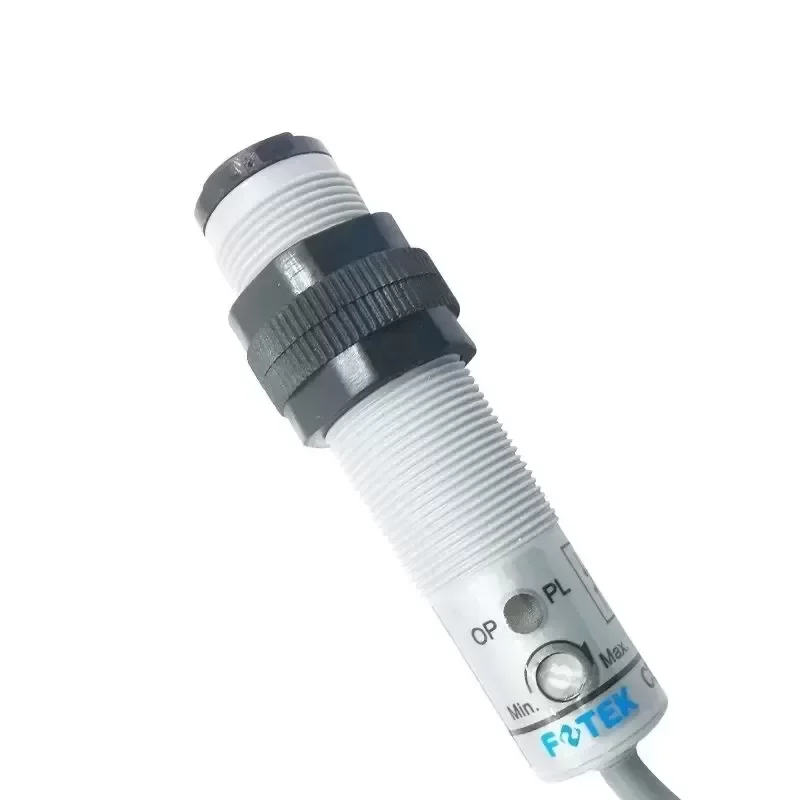

Indicator LEDs: Red LED (Operation / Output Active), Green LED (Stable Signal Margin)

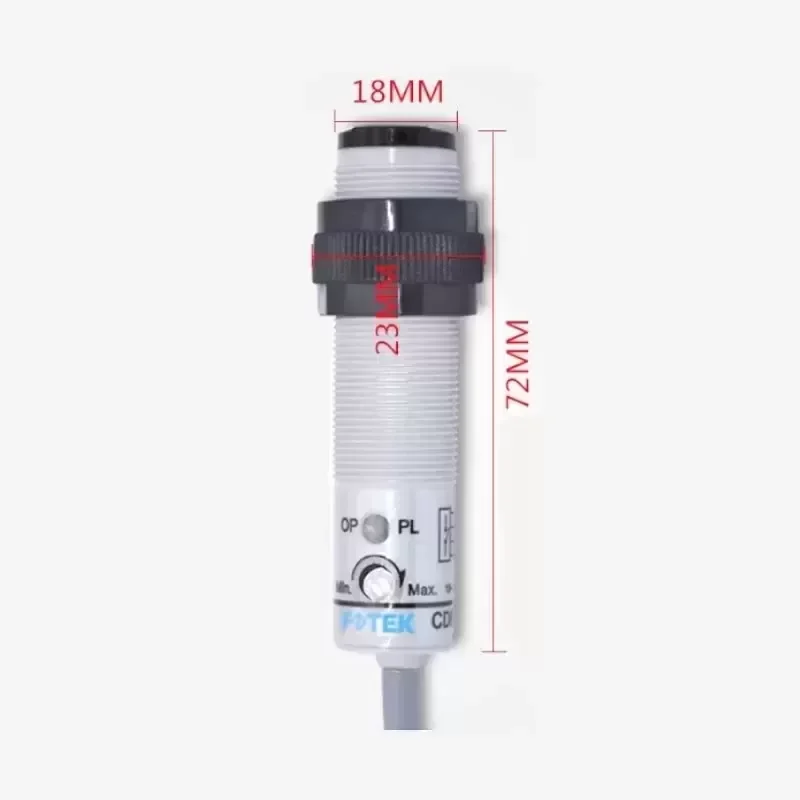

Housing Profile: Threaded Cylindrical M18 × 1.0
Total Barrel Length: 65 mm
Housing Material: Nickel-plated brass barrel with PBT end-caps
Optical Surface Material: PMMA (Optical Grade Polycarbonate Acrylic)

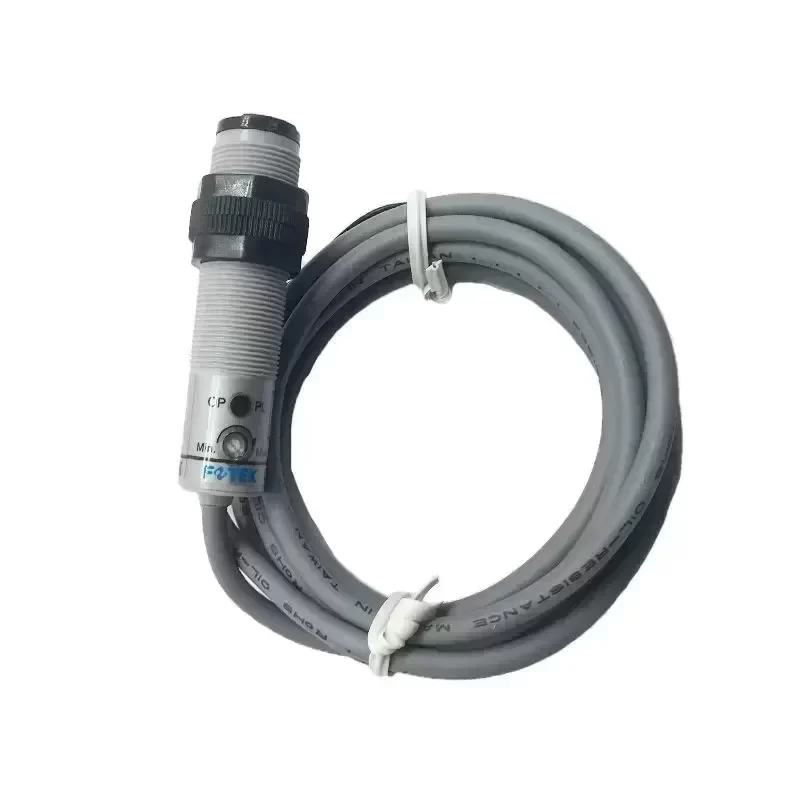

Connection Type: 4-Core PVC insulated cable (Ø 4.5 mm, 2.0 m length)
Wire Cross-Section: 0.2 mm² per conductor
Enclosure Ingress Rating: IP66 (IEC 60529 standard)
Operating Ambient Temperature: -20 °C to +60 °C (non-freezing)
Storage Temperature: -30 °C to +70 °C
Ambient Humidity: 35% to 85% RH (non-condensing)
Insulation Resistance: ≥ 20 MΩ at 500 VDC
Dielectric Breakdown Voltage: 1,000 VAC at 50/60 Hz for 1 minute
Vibration Resistance: 10 to 55 Hz (1.5 mm double amplitude for 2 hours each in X, Y, Z axes)
Shock Resistance: 500 m/s² (approx. 50 G) 3 times in X, Y, Z directions
Total Weight: Approximately 110 g (including 2 m cable and mounting hardware)
Compliance and Standards: CE Marked, RoHS Compliant

INDUSTRIAL APPLICATION SCENARIO
The Fotek CDR-30X is primarily deployed in automated carton handling and secondary packaging lines where varying package dimensions, matte coatings, and shifting ambient light profiles cause intermittent detection failures in non-stabilized optical sensors. The wide-beam 880 nm infrared spectrum effectively penetrates surface moisture and dust films common to production floors. By providing concurrent NPN and PNP switching signals, maintenance engineers can simultaneously trigger high-speed hardware input cards (e.g., Siemens or Omron PLCs) and direct pilot indicators, eliminating signal distribution bottlenecks during conveyor indexing operations.

INTEGRATION AND AVAILABILITY

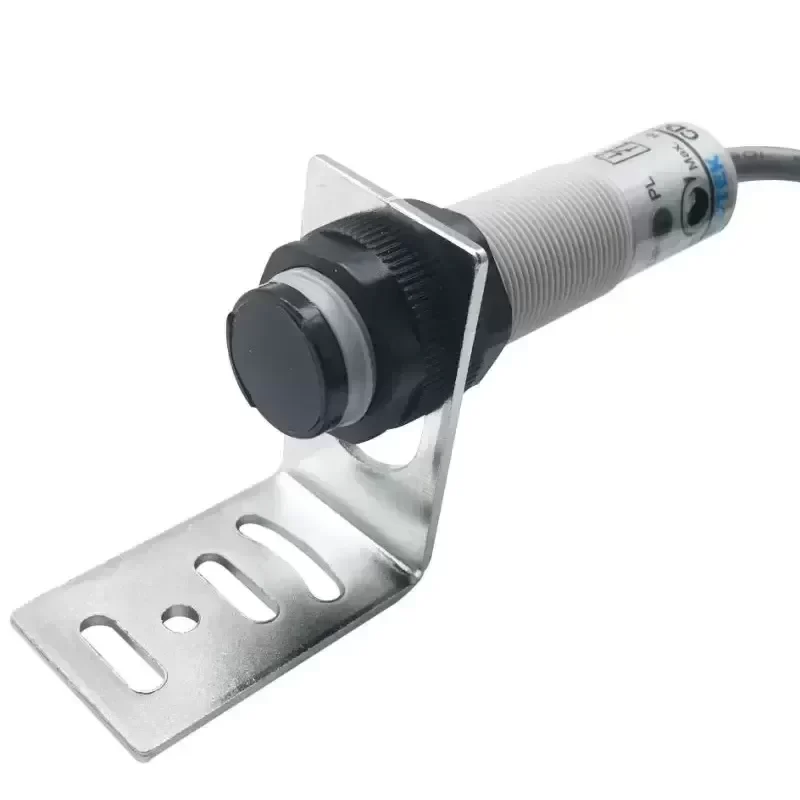

Technical Compatibility: Direct drop-in interface for standard M18 bracket configurations and global 24 VDC I/O modules.
Lead Time: In-stock standard item with factory-direct supply chains ensuring expedited shipping for scheduled maintenance or critical line replacements.

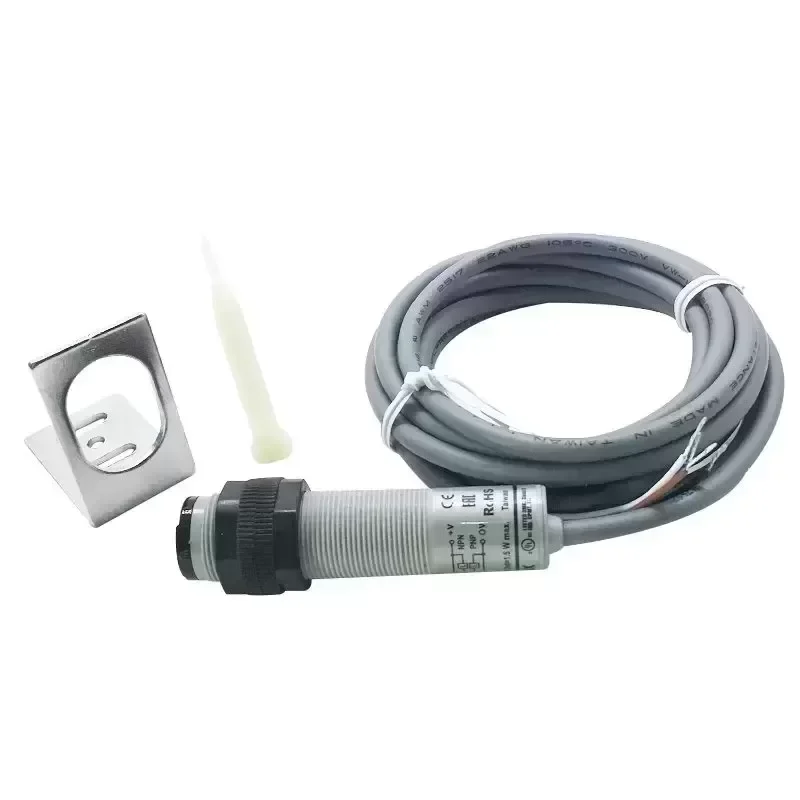

Included Accessories: Two M18 mounting locknuts, toothed retaining washers, and adjustment trimmer tool.

Key Attributes
Mounting Type: Manual installation
Manufacturing Date Code: 2023.06.05
Model Number: CDR-30X
Brand Name: FOTEK
Usage: PHOTO SENSOR
Description: Sensor
Type: PHOTO SENSOR
Place of Origin: Taiwan, China
Series: CDR
Features: M18 TUBULAR TYPE
Theory: Diffuse reflection
Output: NPN&PNP NO
Description: Sensor

Packaging and Delivery
Selling Units: Single item
Single package size: 25X20X20 cm
Single gross weight: 0.250 kg
