FOTEK NT-96VE Output SSR (30mA/12V)

Description

The Fotek NT-96VE is a high-precision, 1/4 DIN panel-mount microprocessor temperature controller engineered for industrial thermal regulation requiring fast-response and low thermal overshoot. Built on advanced self-adaptive Fuzzy PID architecture, the unit continuously calculates process dynamics to stabilize temperatures during rapid thermal load fluctuations. Featuring a dedicated 12VDC/30mA solid-state relay (SSR) drive output, the NT-96VE ensures clean, contact-free switching and extended hardware lifetime across demanding manufacturing lines.

TECHNICAL SPECIFICATIONS
Manufacturer: Fotek Controls Co., Ltd.
Model Code: NT-96VE
Control Algorithm: Self-Adaptive Fuzzy Logic + Microprocessor PID / ON-OFF

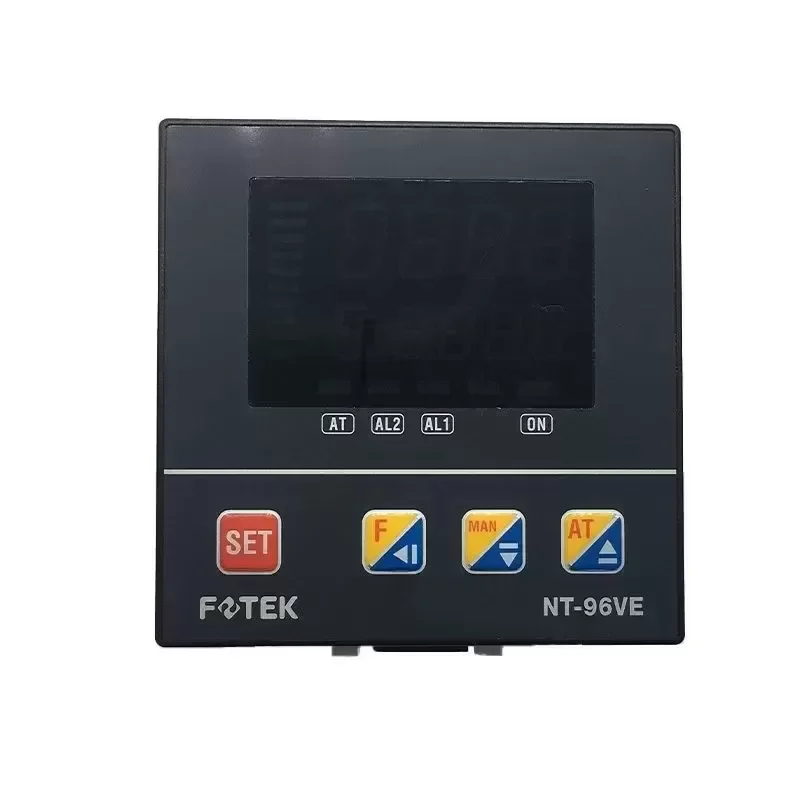

Display Type: Dual 4-digit 7-segment LED (Process Value: Red, Set Value: Green)
Physical Dimensions: 96 mm x 96 mm x 60 mm (1/4 DIN)
Panel Cutout Dimensions: 92 mm x 92 mm
Operating Voltage: 90 to 265 VAC, 50/60 Hz
Power Consumption: 5 VA max
Primary Control Output: SSR Voltage Pulse Output (12 VDC ±2V, 30 mA)
Auxiliary Output: Relay Alarm (250 VAC, 3A resistive)
Input Compatibility: Universal (Thermocouple: K, J, T, E, B, R, S, N; RTD: Pt100, JPt100)
Sampling Rate: 250 ms
Measurement Accuracy: ±0.1% of span ±1 digit
Dielectric Strength: 2000 VAC for 1 min (AC terminals to ground)
Insulation Resistance: 100 MΩ at 500 VDC
Operating Ambient Range: -20 °C to +75 °C, 25% to 85% RH (non-condensing)
Front Panel Sealing: IP65 equivalent (with perimeter gasket)
Terminal Protection: IP20 finger-safe terminal block
Weight: 280 g

APPLICATION & INTEGRATION ANALYSIS
The Fotek NT-96VE is specifically deployed in thermal processing equipment such as multi-zone plastic extrusion barrels, blown film lines, heat-shrink packaging tunnels, and continuous reflow ovens. In standard PID loops, sudden raw material mass shifts or external draft disturbances cause significant temperature undershoots and overshoots, resulting in plastic degradation or inconsistent seam sealing. The self-adaptive Fuzzy logic in the NT-96VE dynamically adjusts proportional and integral gains in real time, dampening thermal cycling and maintaining stability within ±1 °C even under variable throughput.

SYSTEM COMPATIBILITY & LIFECYCLE MANAGEMENT
Engineered according to Original Engineering standards for continuous 24/7 duty cycles, the Fotek NT-96VE offers seamless Technical Compatibility with all standard single-phase and three-phase industrial Solid State Relays (SSRs). Its shallow 60 mm panel-depth profile allows for retrofitting into compact electrical enclosures where standard 100 mm-deep controllers cannot fit. Standard global dispatch guarantees minimal Lead Time for scheduled maintenance, critical facility overhauls, and replacement cycles.

Key Attributes
Rated Voltage: AC220V
Power: AC220V
Place of Origin: Taiwan, China
Model Number: NT-96VE
Brand Name: FOTEK
Alarm output: Two alarm Relay 1a ( 3A/250VAC SPDT)
Control method: Fuzzy + PID or ON/OFF selectable
Control output: SSR (30mA/12V)
Display range: -999~9999

Packaging and Delivery
Selling Units: Single item
