GIC5-27C Industrial Endoscope GIC4-23C Peeping Instrument Replaces the Old Model GIC120C

Description

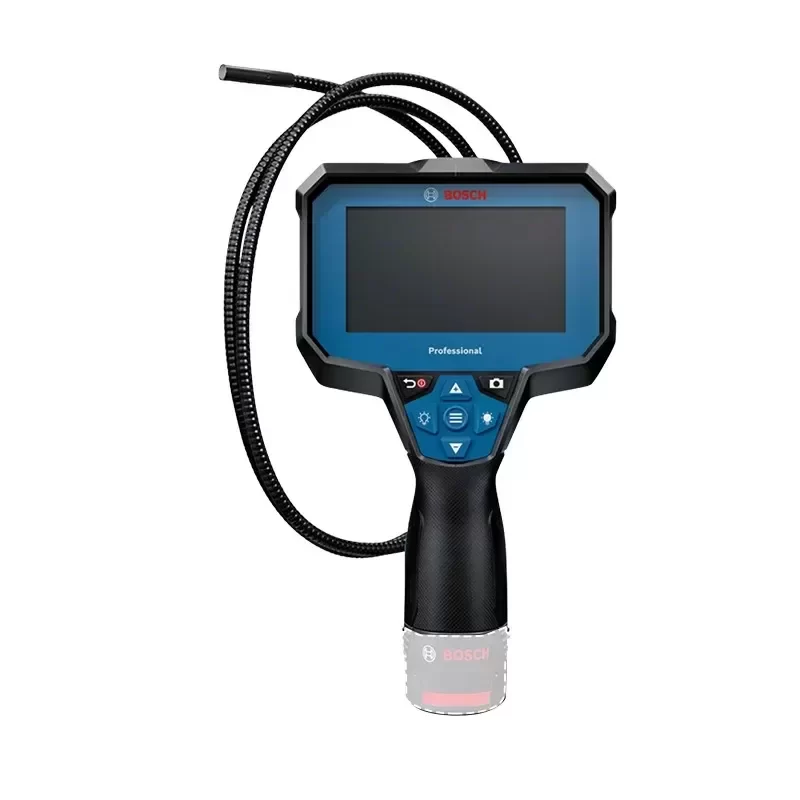

Bosch Professional GIC 5-27 C and GIC 4-23 C Industrial Inspection Cameras.Engineered for high-definition visual inspection in inaccessible industrial environments, the GIC 5-27 C and GIC 4-23 C serve as the direct Original Engineering replacements for the legacy GIC 120 C model. These diagnostic systems provide superior image fidelity, robust environmental protection, and seamless data documentation for critical maintenance operations.

Technical Specifications:
Model Series: GIC 5-27 C / GIC 4-23 C
Display Size: 5.0 inches (GIC 5-27 C) / 4.3 inches (GIC 4-23 C)
Display Resolution: 1280 x 720 HD (GIC 5-27 C) / 800 x 480 (GIC 4-23 C)
Camera Head Diameter: Ø 8.3 mm
Camera Cable Length: 1.5 m
Field of View (FOV): 75 degrees
Optimal Focus Distance: 30 mm to 80 mm
Ingress Protection (Cable and Head): IP67
Ingress Protection (Main Tool): IP54
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -20 °C to +70 °C
Power Supply: 12V Lithium-ion battery or 4 x 1.5V LR6 (AA) via adapter
Weight: 0.7 kg
Data Interface: USB-C

Advanced System Features:
The GIC 5-27 C integrates an AutoUp function that automatically rotates the image to ensure correct spatial orientation, eliminating user disorientation during complex inspections. Both units feature high-intensity LED illumination with adjustable brightness levels, ensuring clear visibility in dark cavities. Technical Compatibility is guaranteed with standard 12V professional battery platforms, ensuring continuous operation without extended Lead Time for proprietary power sources.

Industrial Application:
Designed for non-destructive testing (NDT) and preventative maintenance. These endoscopes are critical for inspecting automotive engine cylinders, aerospace turbine blades, complex HVAC ductwork, and internal hydraulic valve bodies. By utilizing the Ø 8.3 mm camera head, technicians can bypass complete system teardowns, identifying micro-fractures, blockages, or corrosion in confined spaces with absolute precision.

Key Attributes
Place of Origin: Malaysia
Model Number: GIC5-27C
Brand Name: Bosch
Product name: BOSCH
Model: GIC5-27C
Automatic Shut-Off: Yes
Charger: 12V Max Charger
IP Rating: IP 67

Packaging and Delivery
Selling Units: Single item
Single package size: 38X27X18 cm
Single gross weight: 2.500 kg
