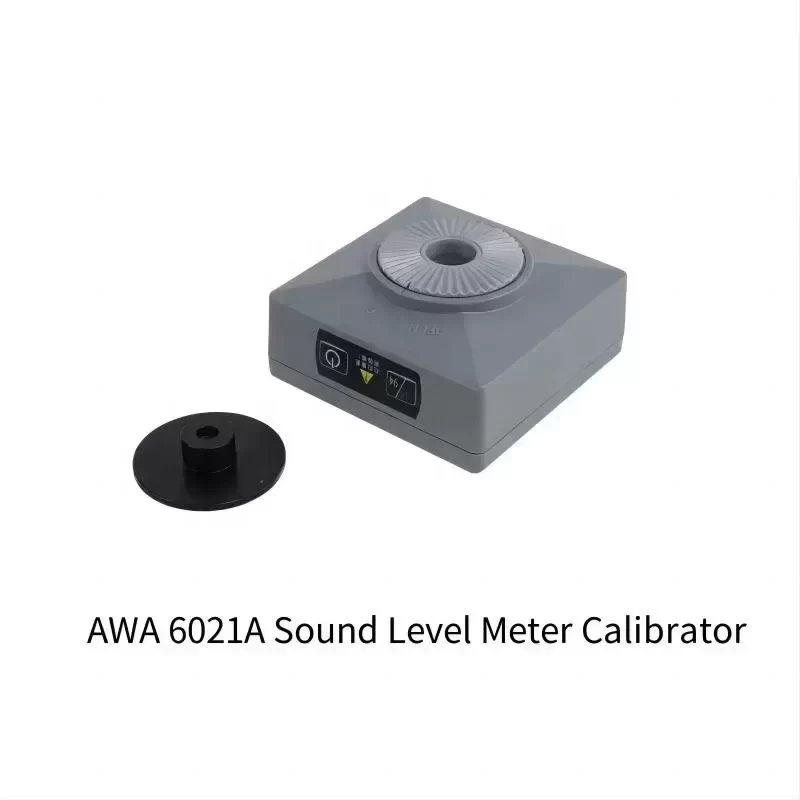

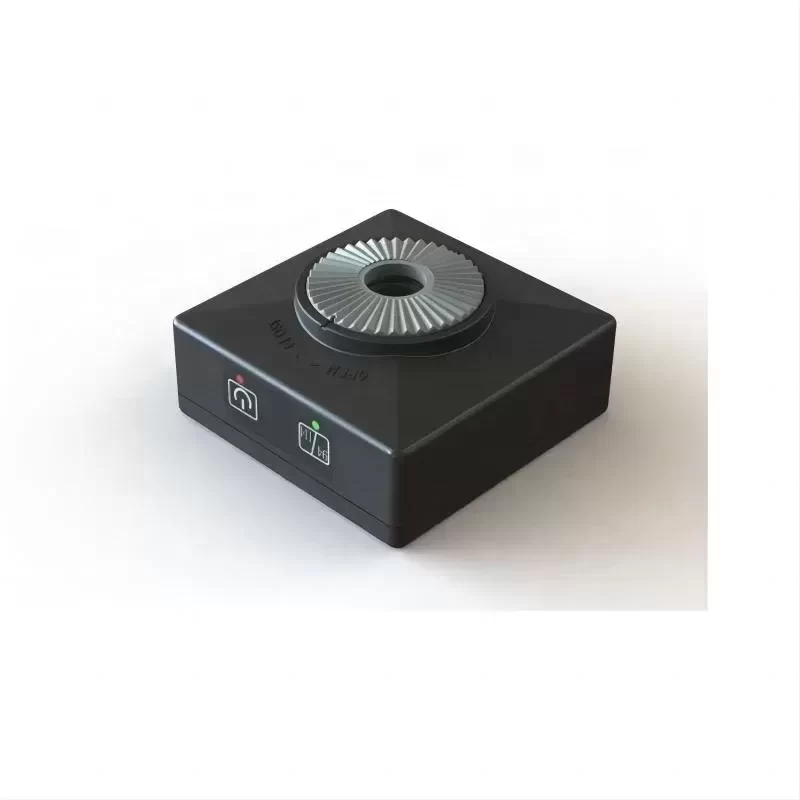

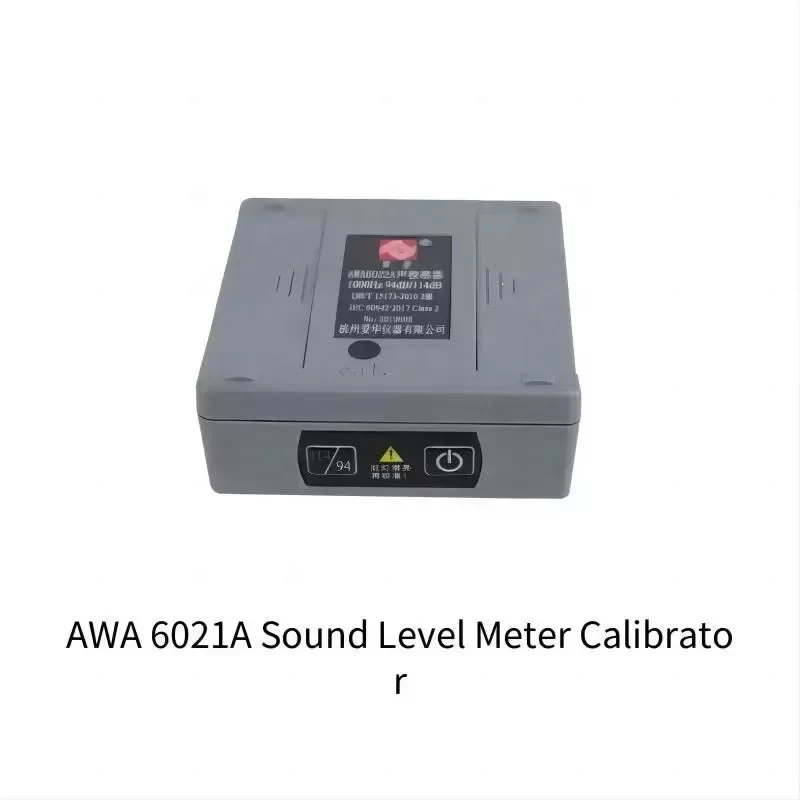

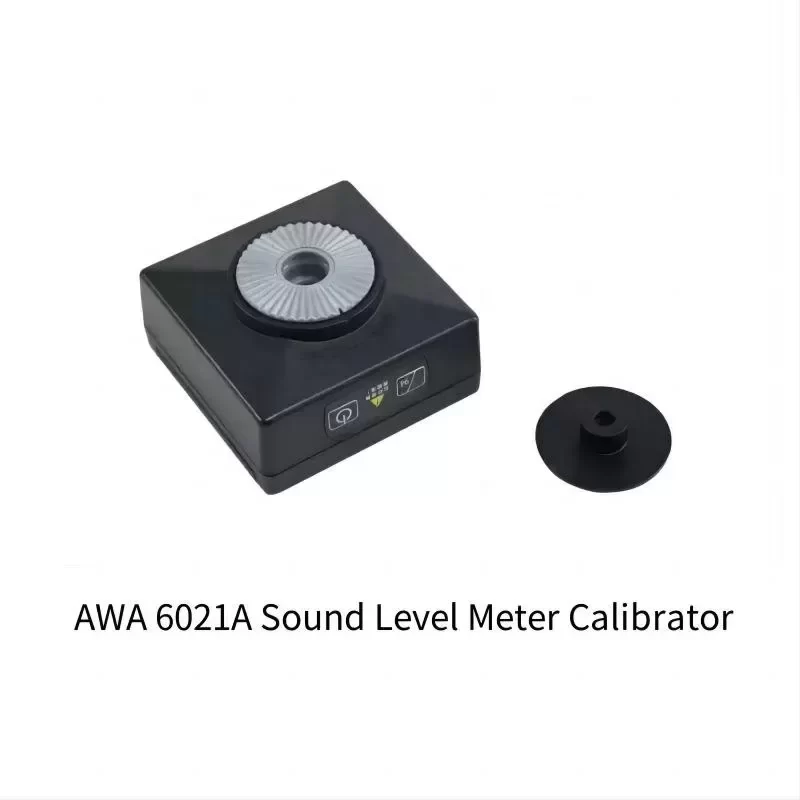

AWA 6021A Electronic Sound Level Meter Calibrator and AWA 6022A Sound Calibrator

Description

AWA 6021A and AWA 6022A Sound Level Calibrators.The AWA series represents a critical standard in acoustic metrology, designed for the precise calibration of sound level meters and acoustic measurement systems. These units utilize Original Engineering to provide a stable and repeatable reference signal, ensuring Technical Compatibility with a wide range of industrial and laboratory-grade microphones. The AWA 6021A is engineered for Class 1 precision requirements, while the AWA 6022A serves as a robust Class 2 reference for general field applications.

Technical Specifications: AWA 6021A (Class 1)
Standard Compliance: IEC 60942:2017 Class 1, GB/T 15173 Class 1
Sound Pressure Levels: 94.0 dB and 114.0 dB
Reference Frequency: 1000 Hz ± 1%
Total Harmonic Distortion: < 1%
Level Accuracy: ± 0.2 dB
Microphone Diameter Compatibility: 1 inch (23.77 mm) and 1/2 inch (12.7 mm) with adapter
Power Supply: 9V Battery (6F22)

Technical Specifications: AWA 6022A (Class 2)
Standard Compliance: IEC 60942:2017 Class 2, GB/T 15173 Class 2
Sound Pressure Level: 94.0 dB
Reference Frequency: 1000 Hz ± 1%
Total Harmonic Distortion: < 2%
Level Accuracy: ± 0.3 dB
Microphone Diameter Compatibility: 1/2 inch (12.7 mm)
Power Supply: 9V Battery (6F22)

Physical and Environmental Parameters
Operating Temperature Range: -10°C to +50°C
Storage Temperature Range: -20°C to +70°C
Atmospheric Pressure: 65 kPa to 108 kPa
Relative Humidity: 25% to 90% RH (non-condensing)
Dimensions: Ø 50 mm × 120 mm
Weight: 200 g (including battery)
Material Composition: High-impact ABS and Aluminum Alloy coupling

Industrial Application and Logic
In industrial noise monitoring and environmental impact assessments, the integrity of data depends entirely on pre-test and post-test calibration. The AWA 6021A solves the problem of measurement drift in high-precision Class 1 meters used in legal metrology and research. By providing dual output levels (94/114 dB), it allows technicians to verify the linearity of the measurement chain in high-noise environments. The AWA 6022A is optimized for high-volume field use where durability and rapid verification of Class 2 equipment are required for occupational health and safety compliance.

Logistics and Availability
Lead Time: Typically 3-5 business days for standard inventory units.
Certification: Factory Calibration Certificate included; ISO/IEC 17025 traceable certification available upon request.
Technical Compatibility: Compatible with B&K, G.R.A.S., and AWA measurement microphones.

Key Attributes
Place of origin: China
Customized support: OEM, ODM
Brand name: AWA
Warranty: 1 years
Model number: 6021A
Product name: AWA
Model: 6021A
Type: Sound level meter calibrator
Accuracy level: 1
Country of origin: China
Power: Electronic

Packaging and Delivery
Selling Units: Single item
Single package size: 20X20X12 cm
Single gross weight: 1.300 kg
