Description

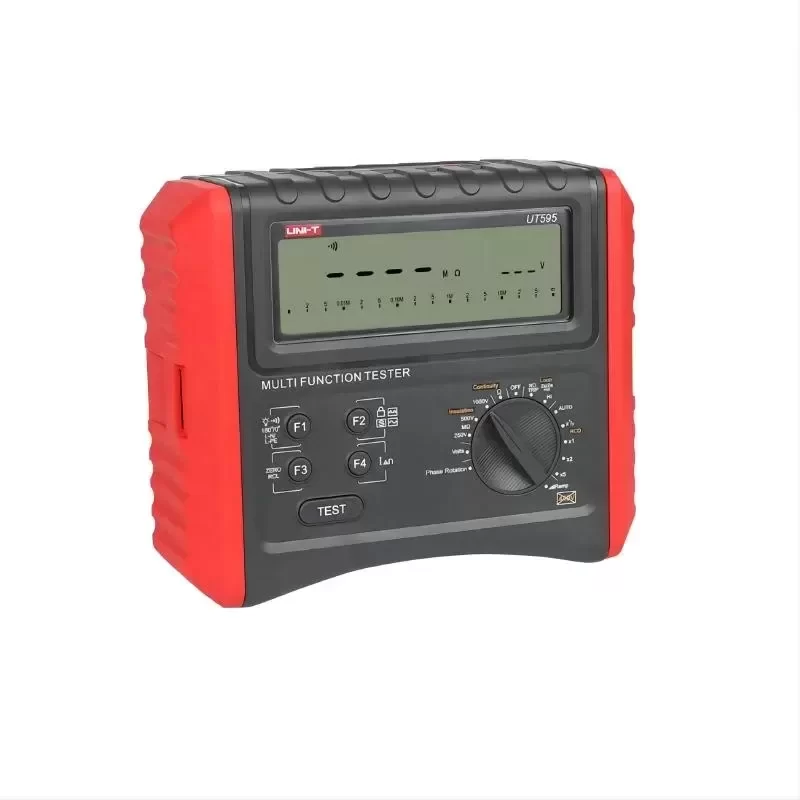

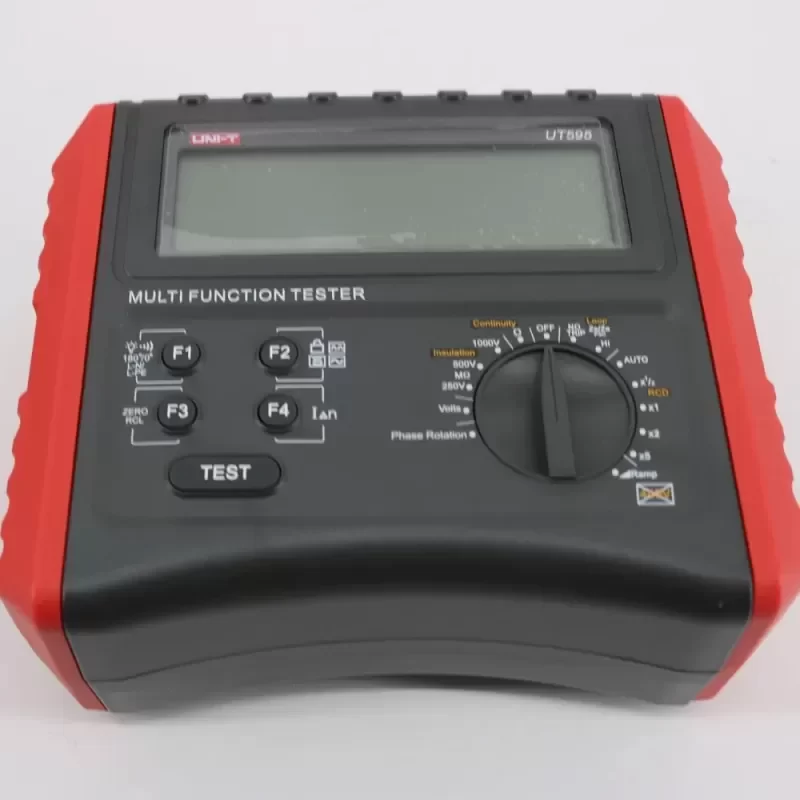

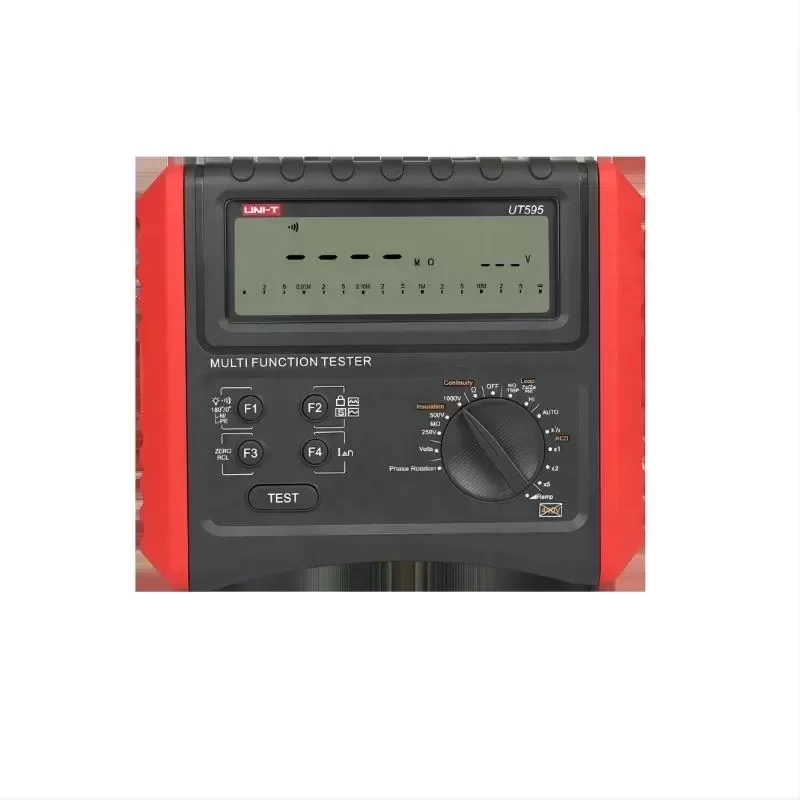

The UNI-T UT595 is a comprehensive digital electrical installation tester engineered for rigorous diagnostic and compliance testing in industrial and commercial power systems. This multifunction instrument integrates insulation resistance measurement, loop impedance analysis, and RCD trip testing into a single robust platform, ensuring electrical safety and regulatory compliance.
Technical Specifications:
Brand: UNI-T
Model: UT595
Instrument Type: Comprehensive Electrical Installation Tester
Insulation Resistance Test Voltages: 250V, 500V, 1000V DC
Insulation Resistance Range: 0.05MΩ to 1000MΩ
Low Resistance Continuity: 0.01Ω to 200Ω
Line/Loop Impedance Range: 0.05Ω to 2000Ω
RCD Operational Voltage: 220V ± 10%
RCD Test Currents: 10mA, 30mA, 100mA, 300mA, 500mA
AC/DC Voltage Measurement: 0V to 440V
Phase Sequence Test: 100V to 440V (45Hz to 65Hz)
Display Type: LCD with backlight, 9999 maximum count
Power Supply: 8 x 1.5V LR6 batteries
Safety Category: CAT III 300V
Certifications: CE, RoHS
Operating Temperature: 0°C to 40°C
Dimensions: 210mm x 175mm x 90mm
Weight: 1.0 kg
Industrial Application:
The UT595 is specifically designed for commissioning and periodic verification of low-voltage electrical installations. It is critical for facility maintenance engineers conducting mandatory RCD trip time verification and loop impedance testing in manufacturing plants, preventing ground faults and ensuring protective devices operate within specified tolerances.
Procurement and Integration:
Technical Compatibility is guaranteed for standard IEC 60364 verification protocols. This instrument reflects the Original Engineering standards of Uni-Trend Technology, delivering precise and repeatable diagnostics. Contact our technical supply team to confirm current Lead Time and calibration certificate availability for your compliance requirements.
Key Attributes
Accuracy Class: ±(5%+5)
Measuring Range: 0.01Ω~2000Ω
Testing Voltage: 0.01Ω~2000Ω
Place of Origin: China
Model Number: UT595
Brand Name: UNI-T
Dimensions: 510mm*330mm*300mm
Display Type: Digital Only
Operating Temperature: 0°C to 40°C
Product name: UNI-T
Model: UT595
Output voltage: 250V/500V/1000V
Insulation resistance (Ω): 0.05MΩ~1000MΩ
Test current: 20A
PFC test: 0kA~26kA
Operating voltage (Frequency): 100V~440V (45Hz~65Hz)
Packaging and Delivery
Selling Units: Single item
Single package size: 23X20X11 cm
Single gross weight: 4.000 kg
