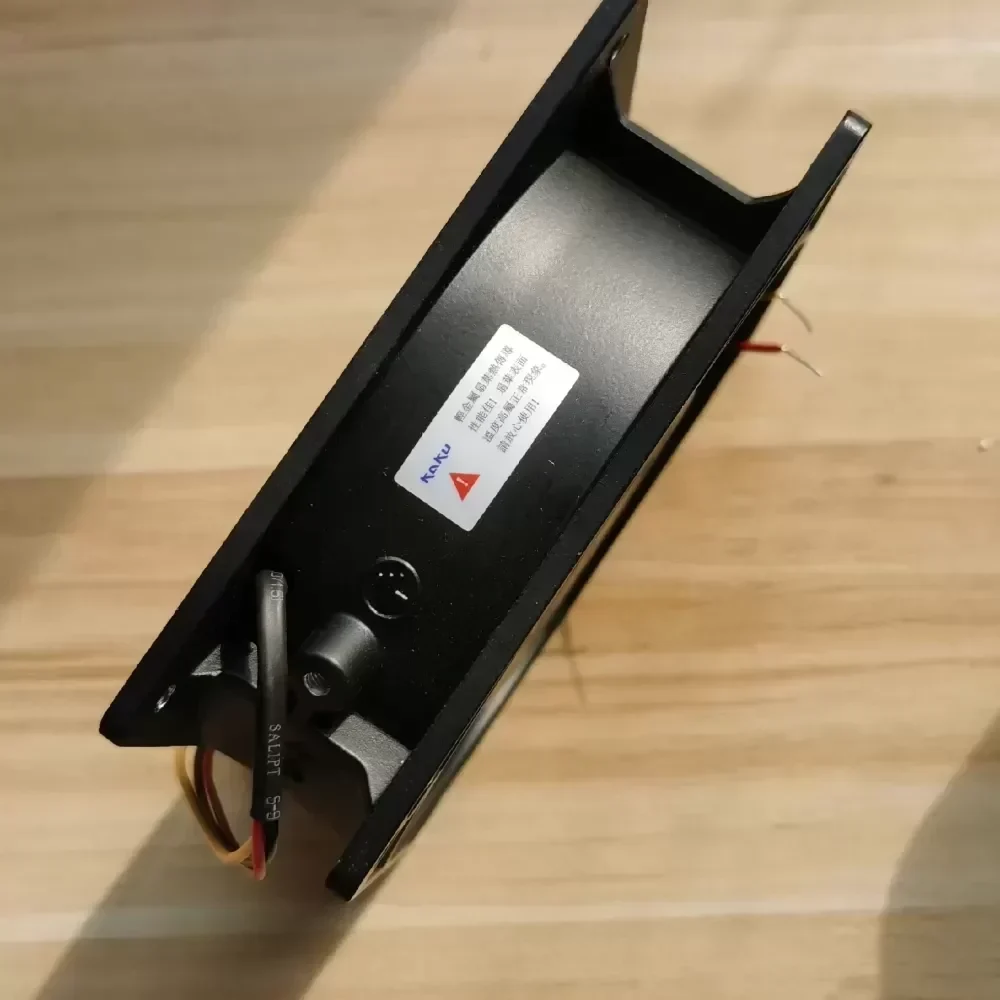

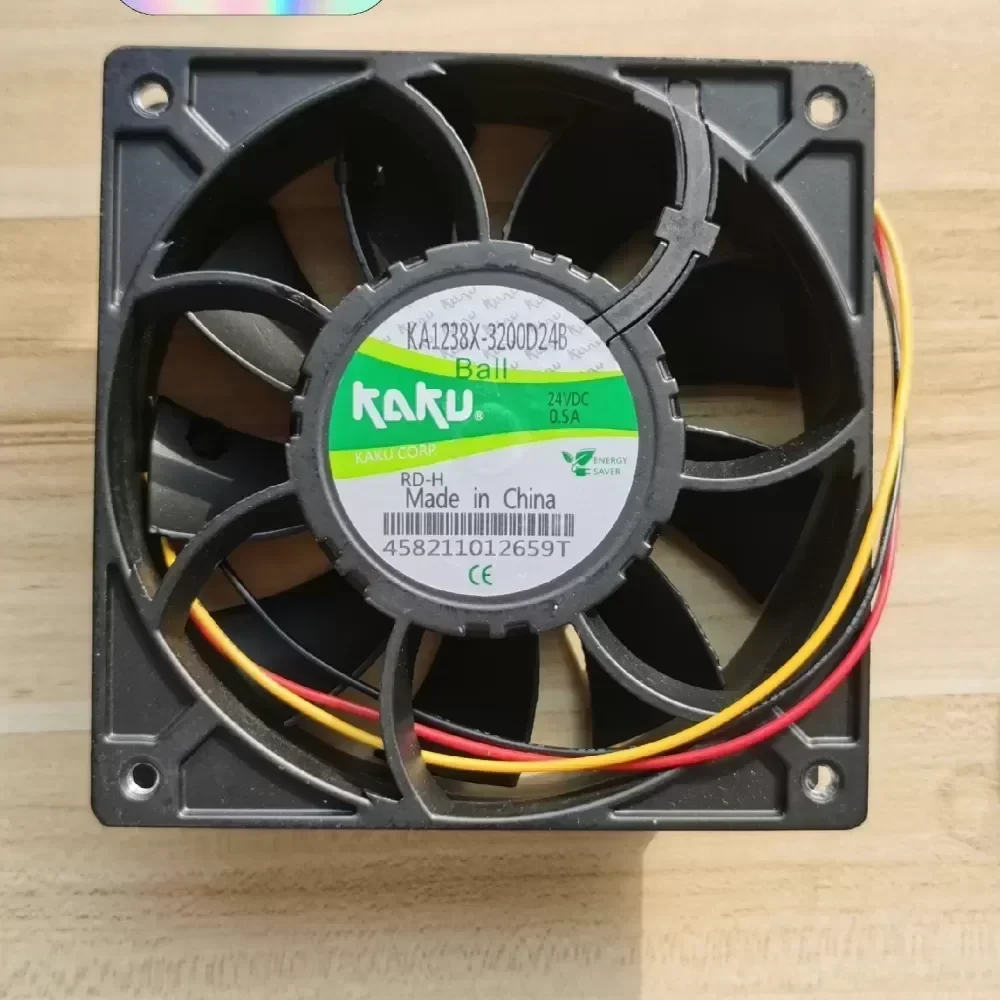

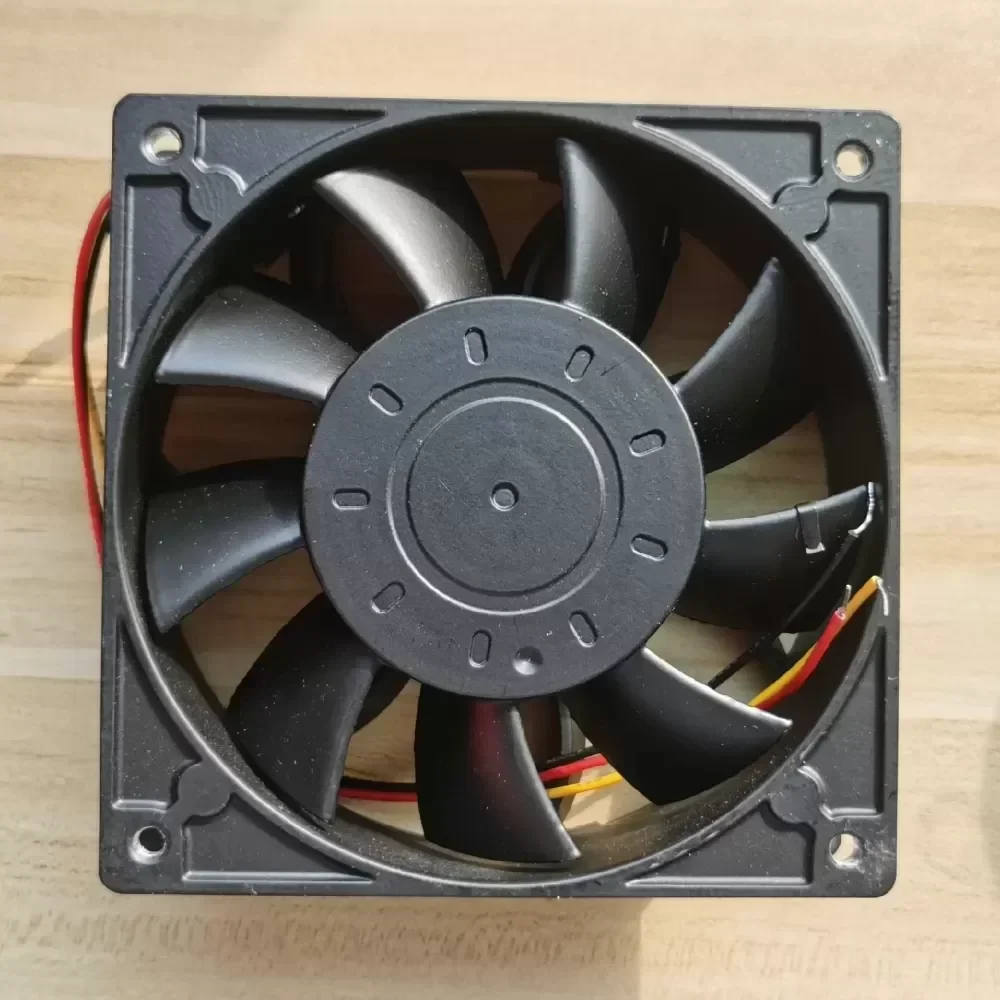

KA1238X-3200D24B RD-H KAKU 12038/24V fan
KA1238X-3200D24B RD-H KAKU 12038/24V fan
KA1238X-3200D24B RD-H KAKU 12038/24V fan
KA1238X-3200D24B RD-H KAKU 12038/24V fan

KA1238X-3200D24B RD-H KAKU 12038/24V fan

$10.71

SKU: 703398362474Brand:

Description

The KAKU KA1238X-3200D24B RD-HB is a high-performance industrial axial fan engineered for critical thermal management in power inverters and automation cabinets. This unit features Original Engineering standards to ensure Technical Compatibility with high-demand electronic systems. The integrated RD-H fault alarm provides a real-time signal to the system controller if the fan stops, preventing catastrophic overheating of sensitive components.

Technical Specifications:
Manufacturer: KAKU
Model Number: KA1238X-3200D24B RD-HB
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24V DC
Operating Voltage: 14.0 to 28.0V DC
Rated Current: 0.45A
Input Power: 10.8W
Rated Speed: 3200 RPM
Maximum Airflow: 115 CFM
Static Pressure: 11.2 mmH2O
Noise Level: 46 dB(A)
Bearing Type: Dual Ball Bearing
Signal Type: RD-H (Rotation Detector High Fault Alarm)
Wiring Configuration: 3-Wire Lead
Frame Material: Die-cast Aluminum
Impeller Material: PBT Plastic (UL 94V-0)
Insulation Resistance: 10M Ohm at 500V DC
Dielectric Strength: 5mA Max at 500V AC for 1 minute
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Life Expectancy: 50,000 Hours (L10 at 40°C)
Weight: 480g
Safety Certifications: CE, UL, RoHS

Application Scenario:
This fan is specifically designed for variable frequency drives (VFDs) and solar inverters where continuous airflow is mandatory. The RD-H alarm functionality allows for immediate system shutdown or redundancy activation in the event of mechanical failure, minimizing Lead Time for repairs and protecting high-value power electronics from thermal stress.

KA1238X-3200D24B RD-H KAKU 12038/24V fan

KA1238X-3200D24B RD-H KAKU 12038/24V fan

KA1238X-3200D24B RD-H KAKU 12038/24V fan

KA1238X-3200D24B RD-H KAKU 12038/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
