$20.71

SKU: 768942702098 Brand:

Description

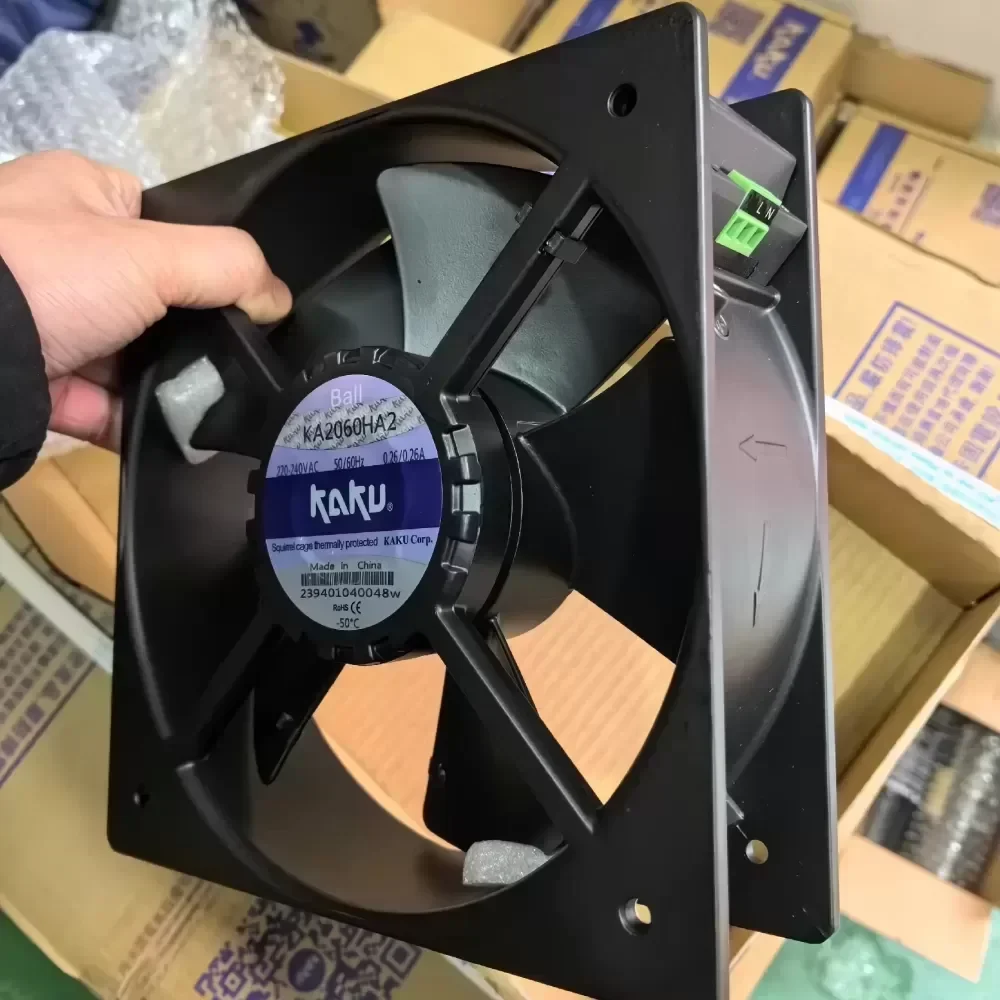

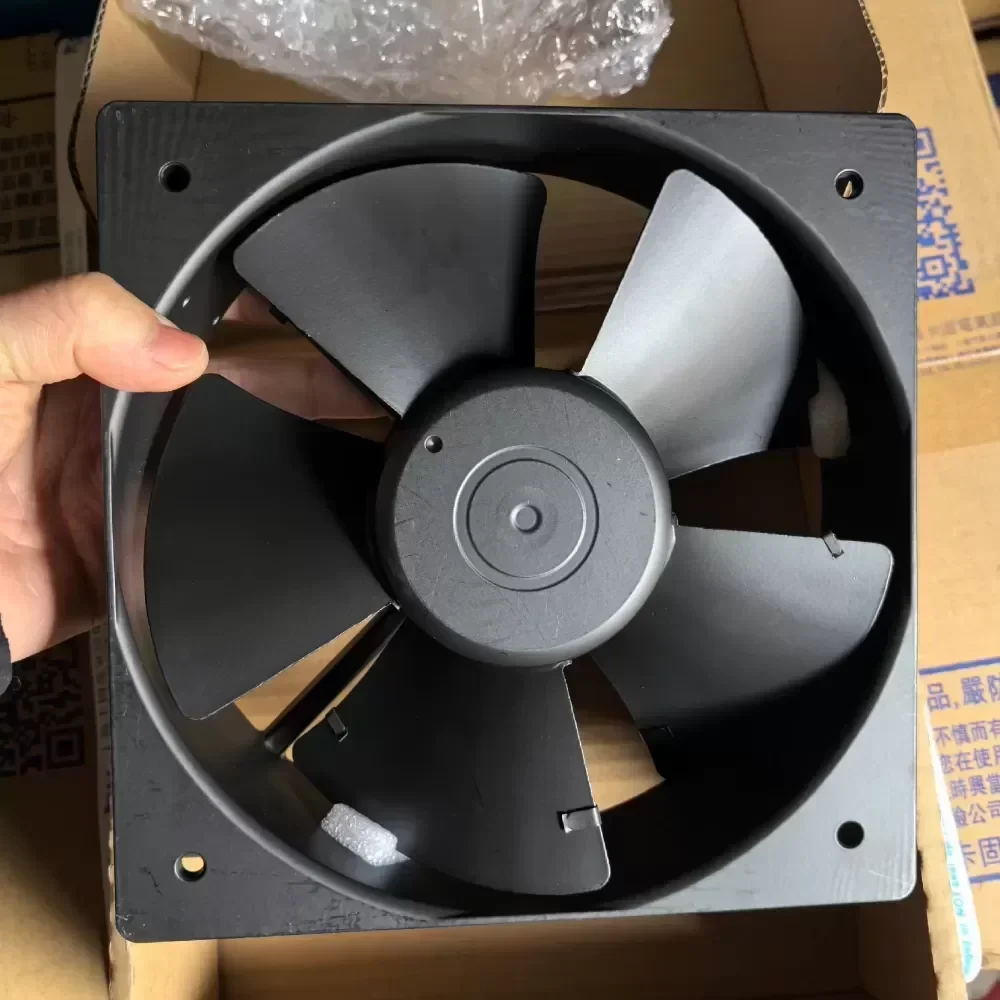

The KAKU KA2060HA2 is an industrial-grade AC axial cooling fan engineered for high-density thermal management in electrical enclosures, automation cabinets, and heavy-duty chassis systems. Built with Original Engineering standards, this 200mm cooling solution delivers optimal airflow to prevent thermal throttling in critical control systems.

Technical Specifications

Brand: KAKU
Model Number: KA2060HA2
Fan Type: AC Axial Fan
Frame Dimensions: 200mm x 200mm x 60mm
Operating Voltage: 220V – 240V AC
Frequency: 50/60 Hz
Current: 0.35 A
Power Consumption: 65 W
Speed: 2600 RPM ± 10%
Maximum Airflow: 380 CFM (10.7 m³/min)
Acoustic Noise: 62 dB(A)
Bearing Type: High-Precision Dual Ball Bearing
Frame Material: Die-Cast Aluminum Alloy (Anti-Corrosion Coating)
Impeller Material: UL94V-0 Flame Retardant Thermoplastic
Operating Temperature: -20°C to +70°C
Weight: 1.5 kg
Motor Protection: Impedance Protected
Dielectric Strength: 1500V AC for 1 minute
Insulation Resistance: 100 Megaohms at 500V DC
Certifications: CE, RoHS, UL

Industrial Application & Technical Compatibility

The KA2060HA2 is specifically designed for integration into CNC machinery control panels, variable frequency drive (VFD) cabinets, and telecommunication racks. Its robust die-cast aluminum frame and dual ball bearing architecture ensure Technical Compatibility with high-vibration environments. By maintaining a stable internal climate, it extends the lifecycle of sensitive microprocessors, transformers, and power supplies.

Procurement & Lifecycle Value

Designed for continuous 24/7 operation, this cooling fan offers an expected lifespan of 50,000 hours at 40°C. We maintain an optimized Lead Time for this component to ensure minimal downtime for your facility’s maintenance, repair, and overhaul (MRO) operations.

KA2060HA2 KAKU 20CM 220V fan

KA2060HA2 KAKU 20CM 220V fan

KA2060HA2 KAKU 20CM 220V fan

KA2060HA2 KAKU 20CM 220V fan

KA2060HA2 KAKU 20CM 220V fan

KA2060HA2 KAKU 20CM 220V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
