Description

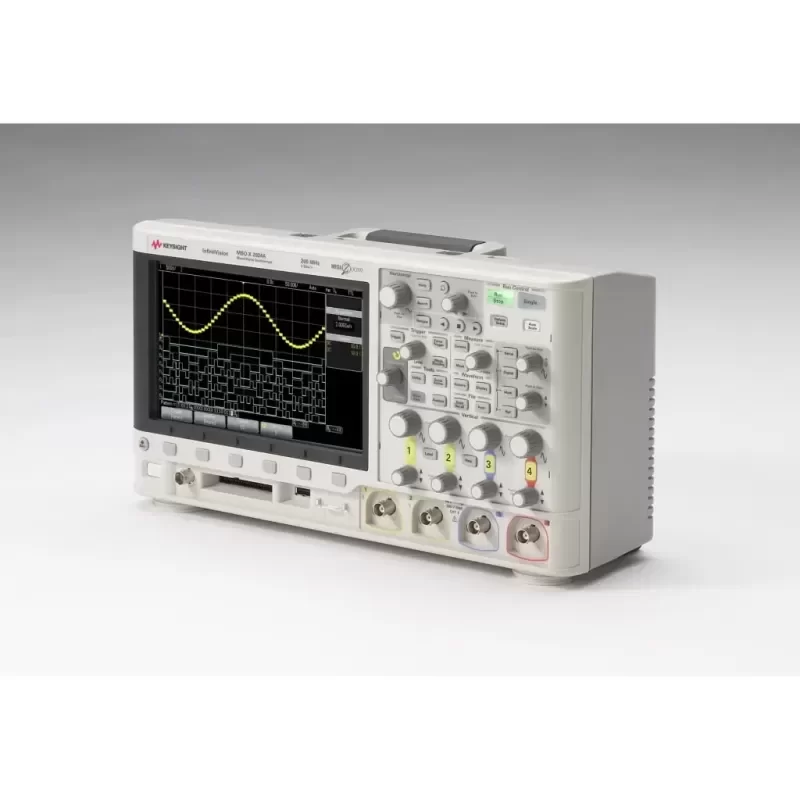

The Keysight DSOX2004A is a high-performance digital storage oscilloscope from the InfiniiVision 2000 X-Series, engineered for rigorous signal analysis, embedded system debugging, and automated test environments. Utilizing MegaZoom IV custom ASIC technology, this unit delivers an uncompromised waveform update rate to capture infrequent anomalies and glitches in complex digital circuits.
Technical Specifications:
Bandwidth: 70 MHz
Analog Channels: 4
Maximum Sample Rate: 2 GSa/s (half channel), 1 GSa/s (all channels)
Waveform Update Rate: 50,000 wfms/s
Memory Depth: 100 kpts standard (upgradable to 1 Mpts)
Display: 8.5-inch WVGA (800 x 480)
Vertical Resolution: 8 bits
Input Impedance: 1 M Ohm ± 2% // 16 pF
Timebase Range: 5 ns/div to 50 s/div

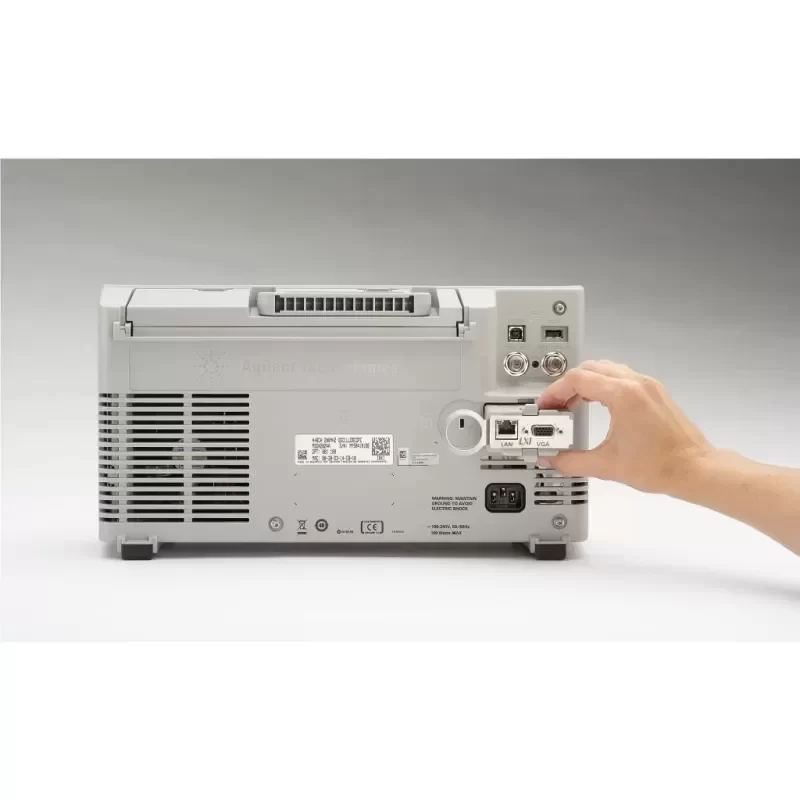

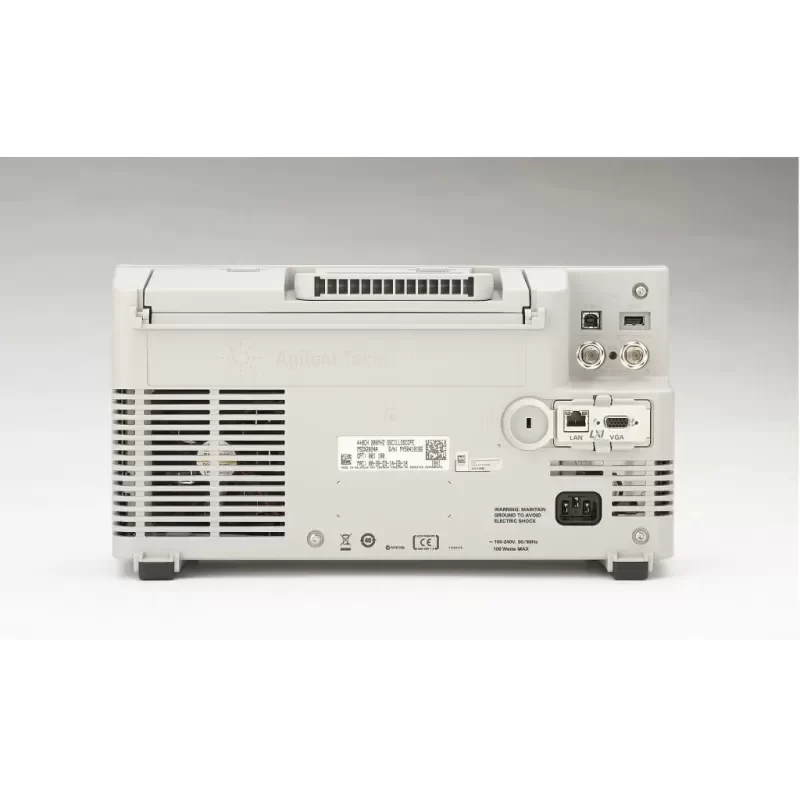

Connectivity: USB 2.0 host and device (LAN/VGA optional)
Operating Temperature: 0°C to 55°C
Weight: 3.85 kg
Condition: Brand New in Stock
System Architecture & Integration:
The DSOX2004A integrates seamlessly into existing benchtop and automated test setups. Its hardware-based architecture ensures that measurement responsiveness remains high even when utilizing deep memory or complex math functions. The inclusion of built-in waveform math, FFT, and optional serial protocol analysis ensures broad Technical Compatibility across diverse engineering platforms.
Industrial Application:
This oscilloscope is specifically utilized in microcontroller-based system design, power supply sequencing, and serial bus decoding (I2C, SPI, UART). In scenarios where rapid anomaly detection is critical, the 50,000 wfms/s update rate isolates transient errors that standard oscilloscopes miss. With a minimized Lead Time for this Brand New in Stock unit, facilities can immediately deploy Original Engineering equipment to maintain strict quality control and accelerate R&D cycles.
Key Attributes
Type: Digital Oscilloscope
Place of origin: United States
Size: 38*23*16cm
Model number: DSOX2004A
Brand name: Keysight
Customized support: OEM, ODM
Warranty: 1 years
Bandwidth: 70 MHz
Channels: 4
Sampling Rate: 2 GS/S
Memory: 1 MP [megapoints] (1024 kB)
Rise Time: 5 ns
Screen Size: 8.5 IN
Bits: 8
Packaging and Delivery
Selling Units: Single item
Single package size: 48X38X27 cm
Single gross weight: 4.500 kg
