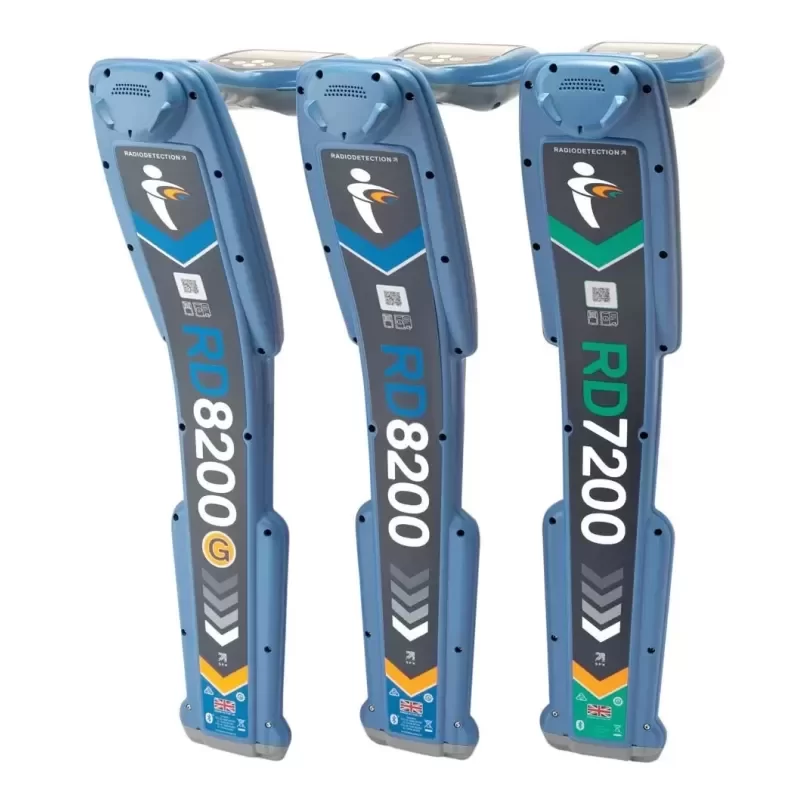

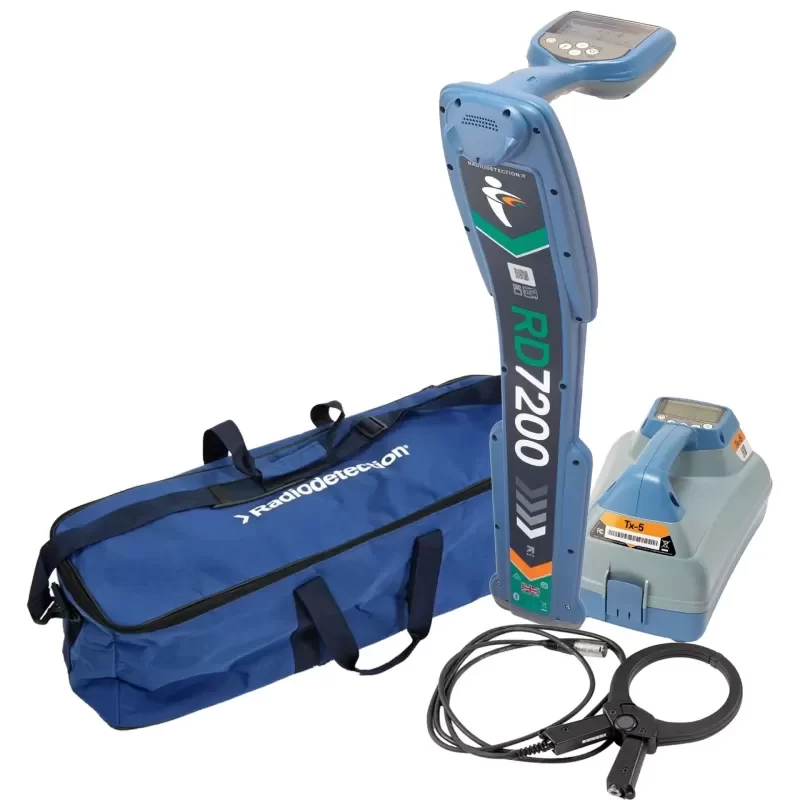

RD8200G Cable and Pipe Locators Electronic Underground Pipeline and Cable Line Detector Similar to RD7200

Description

The RD8200G represents the pinnacle of underground utility detection technology, engineered for damage prevention and infrastructure mapping in high-density utility environments. This advanced model integrates high-performance digital signal processing with integrated GPS logging to provide an auditable trail of survey measurements.

Technical Specifications:
Model: RD8200G
Manufacturer: Radiodetection
Locate Frequencies: 22 Active Frequencies (50Hz to 200kHz)
Sonde Frequencies: 4 Frequencies
Passive Modes: 5 (Power, Radio, CPS, CATV, Power Filters)
Sensitivity: 6µA at 1 meter (33kHz)
Depth Accuracy: ± 3% of depth in clean conditions
Maximum Depth Readout: 30m (100ft) for pipes; 18m (60ft) for sondes
Display: High-contrast outdoor-readable LCD with automatic backlight
Data Logging: 4GB Internal memory for usage and GPS positioning
Connectivity: Bluetooth Class 1 and USB 2.0
GNSS Support: Integrated GPS/GLONASS
Protection Rating: IP65 (Dust tight and protected against water jets)
Operating Temperature: -20°C to +50°C
Battery Type: 2 x D-Cell (LR20) or optional Li-Ion Rechargeable Pack
Weight: 1.8kg (4.0lb) including batteries

Advanced Engineering Features:
Custom Frequencies: Allows users to program unique frequencies for specific network requirements.
Power Filters: Enables the operator to distinguish between multiple power cables by using the harmonic characteristics of the signal.
StrikeAlert: Visual and audio warnings of shallow cables to minimize the risk of accidents.
Compass Indicator: Provides a visual indication of the target line direction relative to the locator.
Usage Logging: Automatically records locate parameters every second to verify work quality and safety compliance.

Industrial Application:
In complex urban environments where multiple utility lines are buried in close proximity, the RD8200G utilizes its high-selectivity filters to isolate the target signal. This Technical Compatibility with legacy and modern transmitters ensures seamless integration into existing fleets. The integrated GPS provides Original Engineering data for GIS mapping, solving the critical problem of inaccurate utility records during excavation.

Logistics and Support:
Lead Time: Typically 3-5 business days depending on regional stock availability.
Condition: Factory New with full manufacturer calibration certificate.
Technical Support: Comprehensive remote and on-site training available.

Key Attributes
Place of origin: United Kingdom
Customized support: OEM, ODM
Brand name: RADIODETECTION
Warranty: 1 years
Model number: RD7200
Product Descriptions: Multi-purpose Precision Locator
Sensitivity: 6E-15 Tesla 5uA at 1 meter (33kHz)
Dynamic range: 140dB rms/Hz
Selectivity: 120dB/Hz
Depth measurement precision1: ± 3%
Locate accuracy: ± 5% of depth
Start-up time: <1 second
Power: Electronic

Packaging and Delivery
Selling Units: Single item
Single package size: 70X38X27 cm
Single gross weight: 9.000 kg
