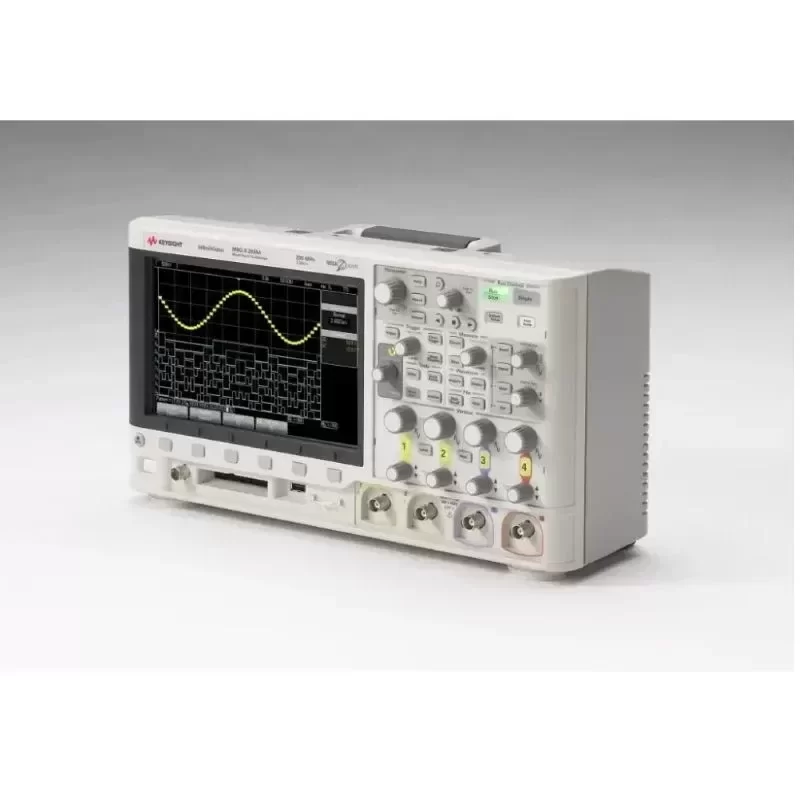

Keysight DSOX2014A Digital Oscilloscope 100 MHz 4 Channel

Description

The Keysight DSOX2014A is a professional-grade digital storage oscilloscope from the InfiniiVision 2000 X-Series. Engineered for precision signal analysis, this unit delivers robust diagnostic capabilities for embedded system debugging, manufacturing test environments, and research laboratories.

Technical Specifications:
Manufacturer: Keysight Technologies
Model Series: InfiniiVision 2000 X-Series
Model Number: DSOX2014A
Bandwidth: 100 MHz
Analog Channels: 4
Maximum Sample Rate: 2 GSa/s (half channel), 1 GSa/s (all channels)
Maximum Memory Depth: 100 kpts
Waveform Update Rate: 50,000 wfms/s
Display: 8.5-inch WVGA color display
Vertical Resolution: 8 bits
Input Impedance: 1 M ohm ± 2% / 16 pF ± 3 pF
Timebase Range: 5 ns/div to 50 s/div

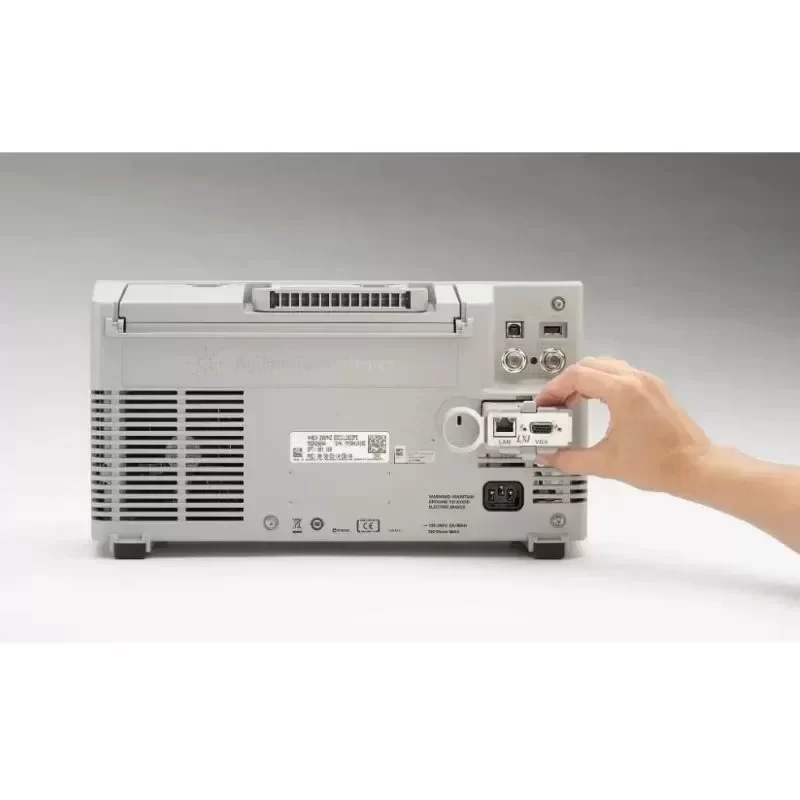

Connectivity: USB 2.0 (host and device), optional LAN/VGA
Operating Temperature: 0°C to 55°C
Weight: 3.85 kg

Industrial Application:
The DSOX2014A is specifically deployed in embedded system design, power supply testing, and automotive electronics troubleshooting. Its 50,000 wfms/s update rate allows engineers to capture infrequent anomalies, jitter, and transient glitches that standard oscilloscopes miss. This ensures high-fidelity signal integrity verification and seamless integration into automated test equipment (ATE) racks.

Procurement & Lifecycle:
Sourced through Original Engineering channels, this instrument guarantees strict Technical Compatibility with existing Keysight and legacy Agilent test architectures. Contact our procurement team for current Lead Time, calibration certificates, and shipping logistics.

Key Attributes
Type: Digital Oscilloscope
Place of origin: China
Size: 39*26*16cm
Model number: DSOX2014A
Brand name: Keysight
Customized support: OEM, ODM
Warranty: 1 years
Bandwidth: 100 MHz
Channels: 4
Sampling Rate: 2 GS/S
Memory: 1 MP [megapoints] (1024 kB)
Rise Time: 3.5 ns
Screen Size: 8.5 IN
Package Size: 51 x 30 x 37cm
Weight: 7.5kg

Packaging and Delivery
Selling Units: Single item
Single package size: 51X30X37 cm
Single gross weight: 7.500 kg
