Description

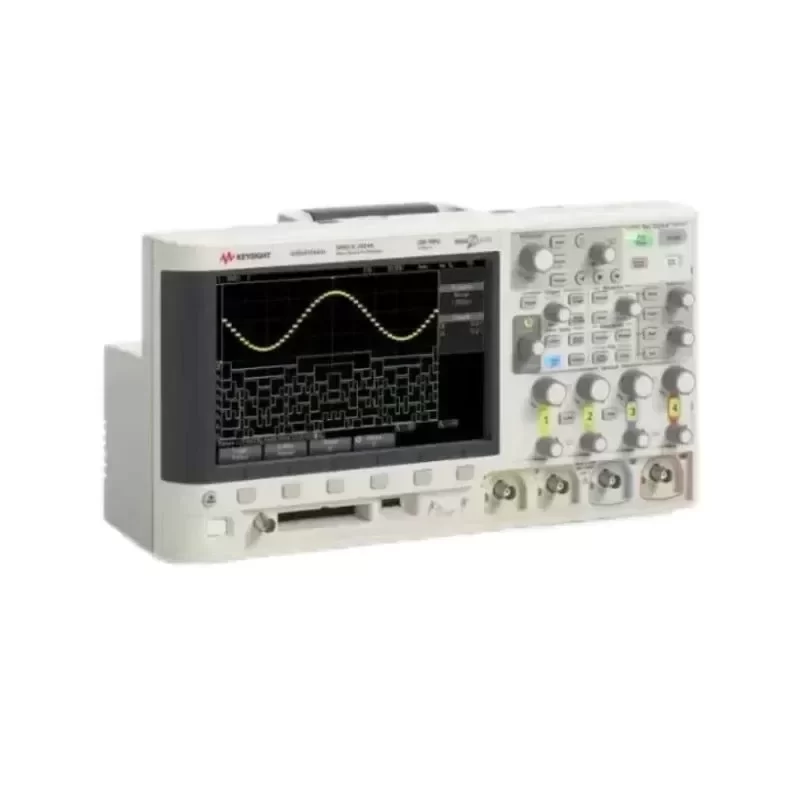

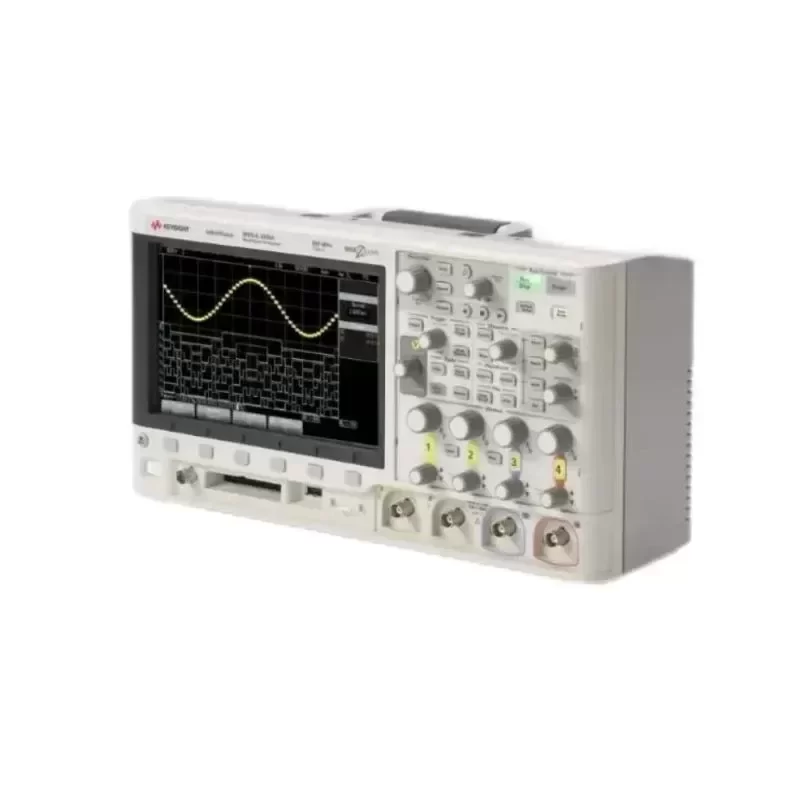

The Keysight DSOX2012A is a high-performance 2-channel digital storage oscilloscope belonging to the InfiniiVision 2000 X-Series. Engineered for rigorous signal analysis and debugging, this unit leverages proprietary MegaZoom IV custom ASIC technology to deliver an industry-leading update rate, ensuring the capture of infrequent and elusive signal anomalies.
Technical Specifications:
Manufacturer: Keysight Technologies
Model Number: DSOX2012A
Bandwidth: 100 MHz
Analog Channels: 2
Maximum Sample Rate: 2 GSa/s (half channel), 1 GSa/s (all channels)
Maximum Memory Depth: 100 kpts
Waveform Update Rate: >200,000 waveforms/second
Display: 8.5-inch WVGA (800 x 480) TFT LCD
Vertical Resolution: 8 bits
Input Impedance: 1 MΩ ± 2% // 16 pF ± 3 pF
Timebase Range: 5 ns/div to 50 s/div
Trigger Types: Edge, Pulse Width, Pattern, Video, I2C, SPI, UART/RS232

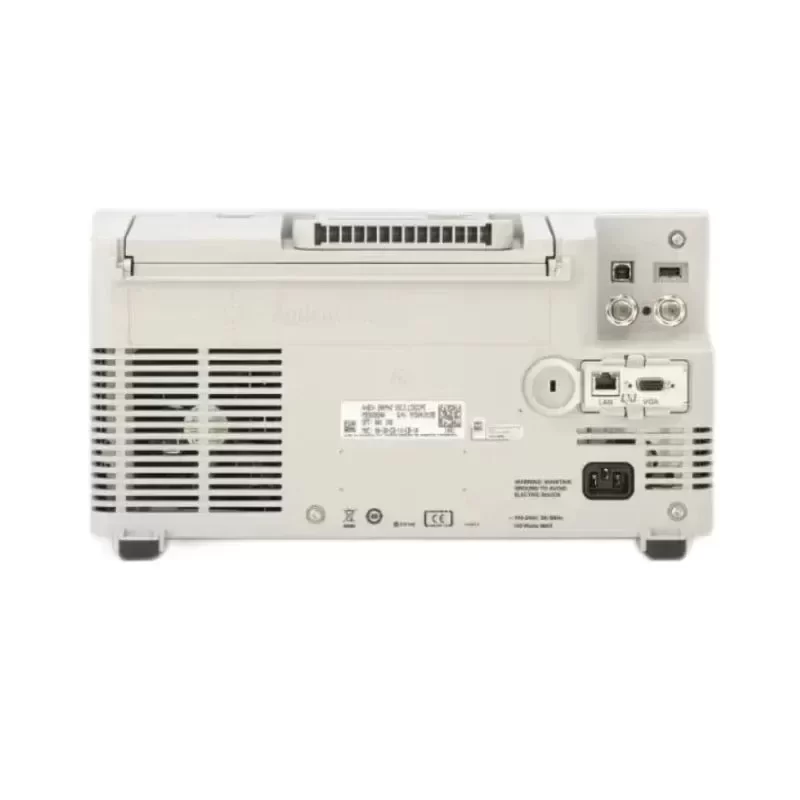

Connectivity: USB 2.0 Host and Device (Standard), LAN/VGA (Optional)
Operating Temperature: 0°C to +55°C
Storage Temperature: -40°C to +71°C
Operating Humidity: Up to 95% RH at 40°C
Dimensions (W x H x D): 381 mm x 204 mm x 142 mm
Weight: 3.85 kg
Industrial Application:
The DSOX2012A is specifically deployed in embedded system design, power supply validation, and automated manufacturing test environments. Its exceptional 200,000 wfms/s update rate is critical for identifying transient glitches, runt pulses, and jitter in mixed-signal architectures that standard oscilloscopes fail to detect. This unit provides engineers with the precise diagnostic capabilities required to validate complex micro-controller timing and serial bus communications.
Procurement and Integration Data:
Original Engineering: Manufactured to strict Keysight metrology standards, ensuring absolute data fidelity and measurement repeatability across prolonged testing cycles.
Technical Compatibility: Fully compatible with Keysight BenchVue software for seamless PC integration, automated test sequencing, and remote instrument control.
Lead Time: Available for immediate global dispatch with expedited shipping options to minimize critical testing downtime.
Key Attributes
Type: Oscilloscope
Place of origin: China
Size: 15 IN * 5.6 IN * 8 IN
Model number: DSOX2012A
Brand name: Keysight
Customized support: OEM
Warranty: 1 years
Bandwidth: 100 MHz
Channels: 2
Sampling Rate: 2 GS/S
Memory: 1 MP [megapoints] (1024 kB)
Rise Time: 14ns
Material: Plastic
Mode: Oscilloscope
Battery: No
Power: Power supply
Packaging and Delivery
Selling Units: Single item
Single package size: 48X38X28 cm
Single gross weight: 4.300 kg
