Description

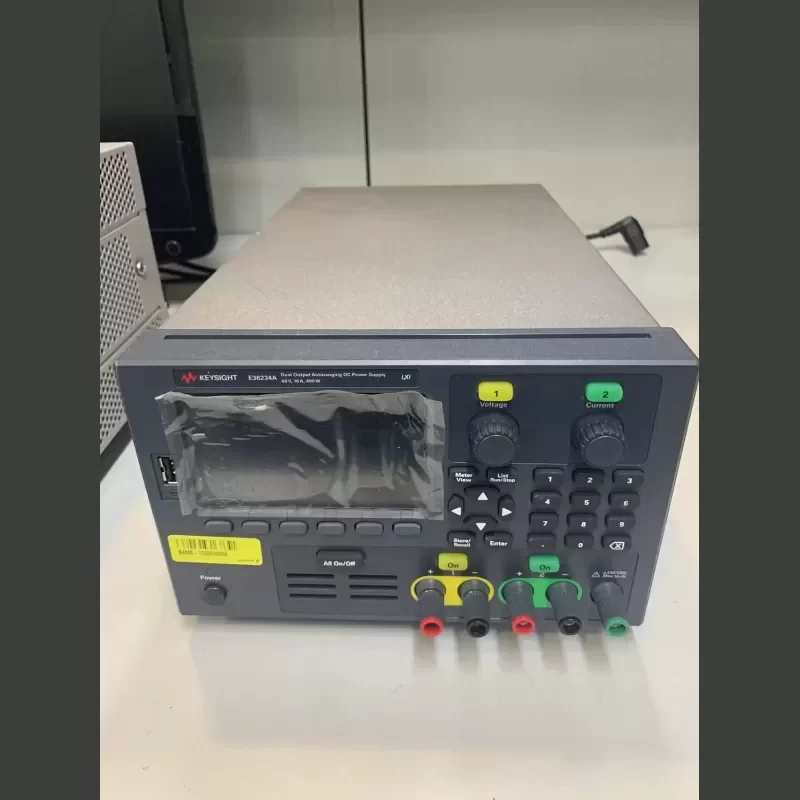

The Keysight E36234A is a professional-grade, autoranging dual-output DC power supply engineered for precision Automated Test Equipment (ATE) systems and benchtop validation. Utilizing an advanced autoranging architecture, this 400W unit delivers maximum power across a wide range of voltage and current combinations, ensuring Technical Compatibility with diverse load requirements without the need for multiple fixed-range supplies. The system logic integrates seamless output sequencing, internal data logging, and low-noise linear regulation characteristics within a high-efficiency switching topology.
Technical Specifications:
Manufacturer: Keysight Technologies
Model Number: E36234A
Output Configuration: Dual Channel, Isolated
Total Power Output: 400W (200W per channel)
Voltage Range: 0 to 60V DC
Current Range: 0 to 10A
Ripple and Noise (20 Hz to 20 MHz): < 1 mVrms / < 10 mVpp
Load Regulation: ± 0.01% + 2 mV
Line Regulation: ± 0.01% + 2 mV
Programming Accuracy: 0.03% + 8 mV / 0.1% + 3 mA
Readback Accuracy: 0.03% + 8 mV / 0.1% + 3 mA
Overvoltage Protection (OVP): Programmable
Overcurrent Protection (OCP): Programmable
Interfaces: LAN (LXI Core), USB, optional GPIB
Operating Temperature: 0°C to 40°C

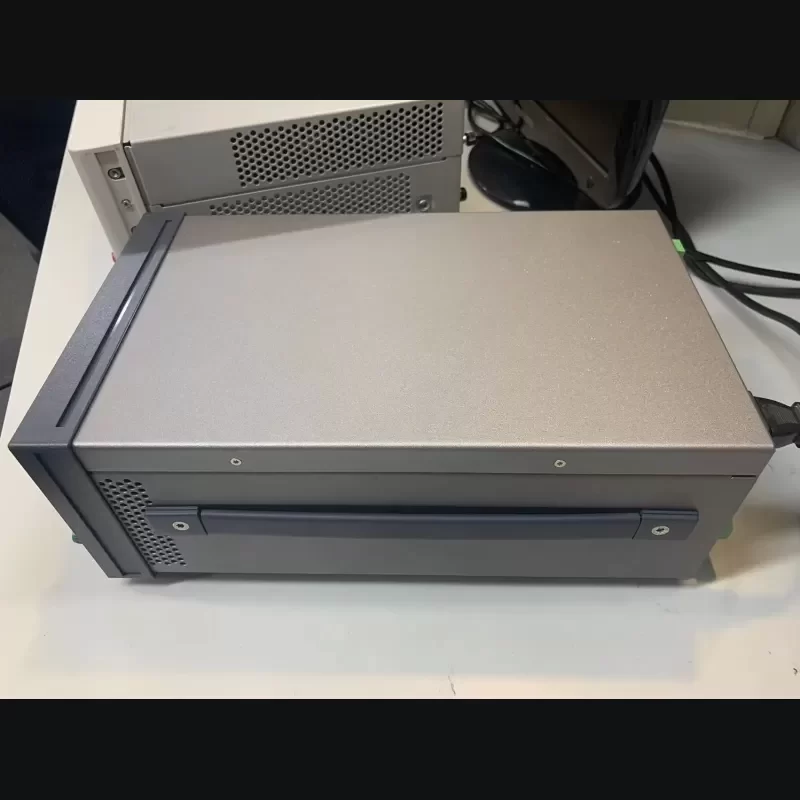

Dimensions (W x H x D): 214 mm x 88 mm x 381 mm (Half-rack, 2U)
Weight: 7.1 kg
System Architecture and Integration:

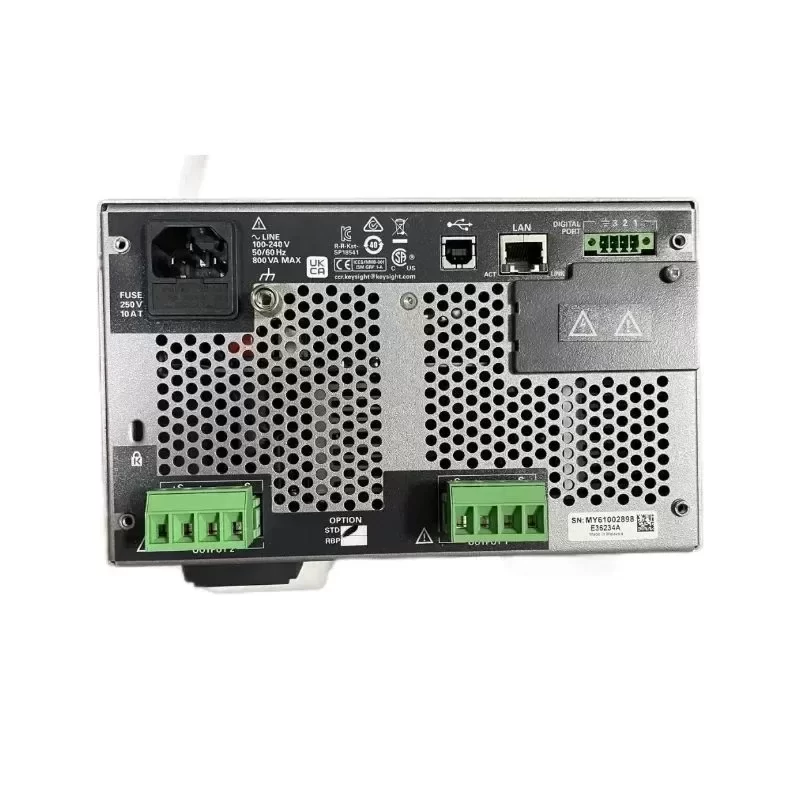

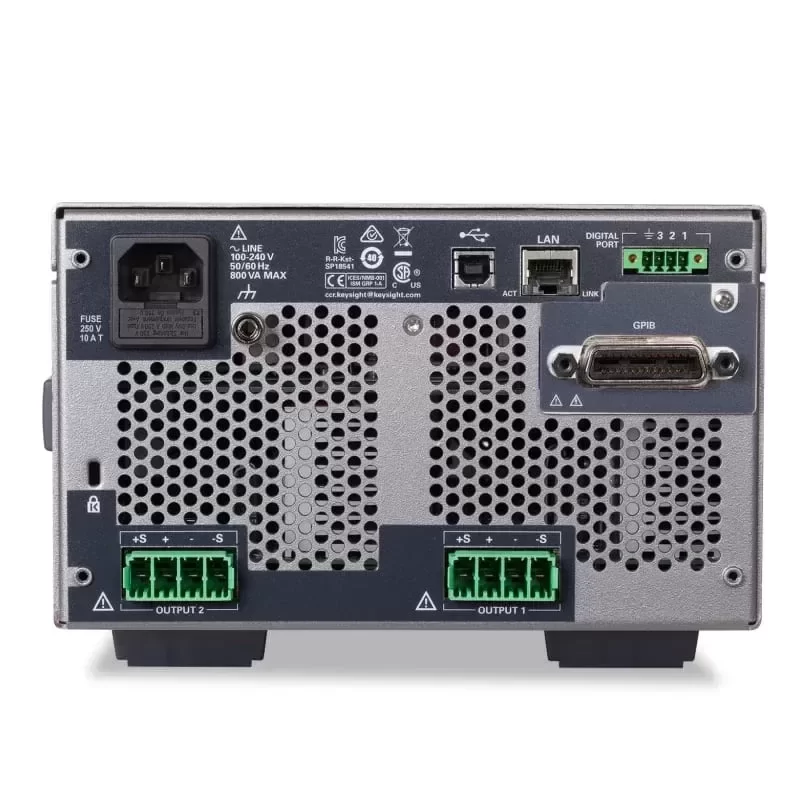

The E36234A features an independent, isolated dual-channel design that allows for series or parallel connections to achieve up to 120V or 20A. The integration of 4-wire remote sensing compensates for voltage drops in load leads up to 1V per lead, guaranteeing precise voltage delivery directly at the Device Under Test (DUT). Built-in protection logic, including OVP, OCP, and Over-Temperature Protection (OTP), safeguards critical components during continuous operation.
Industrial Application:
This unit is specifically optimized for automotive electronic control unit (ECU) validation and aerospace avionics testing. In these scenarios, the DUT experiences rapid transient power shifts. The E36234A resolves this by providing high-speed output response and microsecond-level transient recovery times, ensuring stable power delivery during dynamic load changes. The integrated data logger captures voltage and current profiles over time, eliminating the need for external measurement hardware during burn-in testing.
Procurement and Lifecycle Value:
Backed by Keysight’s Original Engineering, this power supply guarantees long-term calibration stability and robust lifecycle value. For facility upgrades or immediate ATE integration, verify current Lead Time with our distribution network to ensure project milestones are met. Its LXI-compliant architecture ensures seamless Technical Compatibility with legacy and modern test environments.
Key Attributes
Input Voltage: 60V
Output Current: 10A
Output Voltage: 60V
Place of Origin: China
Model Number: E36234A
Brand Name: Keysight
Output Frequency: Double
Output Power: Dual Output Power Supply
Outputs: Double
Voltage Output 1: Variable
Max Voltage Output 1: 60 V
Max Current Output 1: 10 A
Meter Type: Digital
Max Display Resolution Current: 1 mA
Max Display Resolution Voltage: 1 mV
Constant current/voltage: Yes
Packaging and Delivery
Selling Units: Single item
Single package size: 51X32X27 cm
Single gross weight: 4.000 kg
