Description

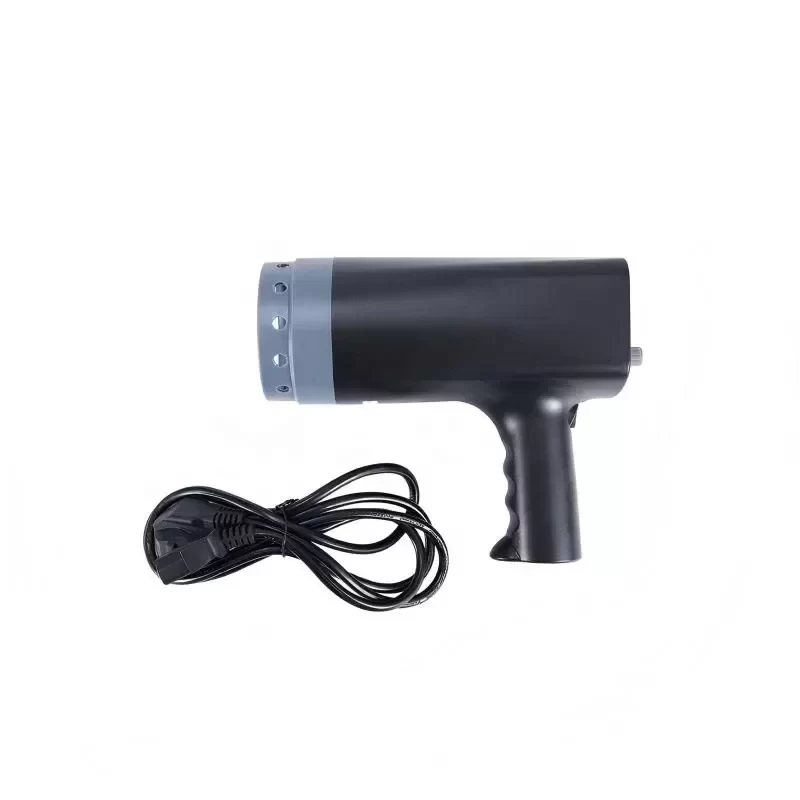

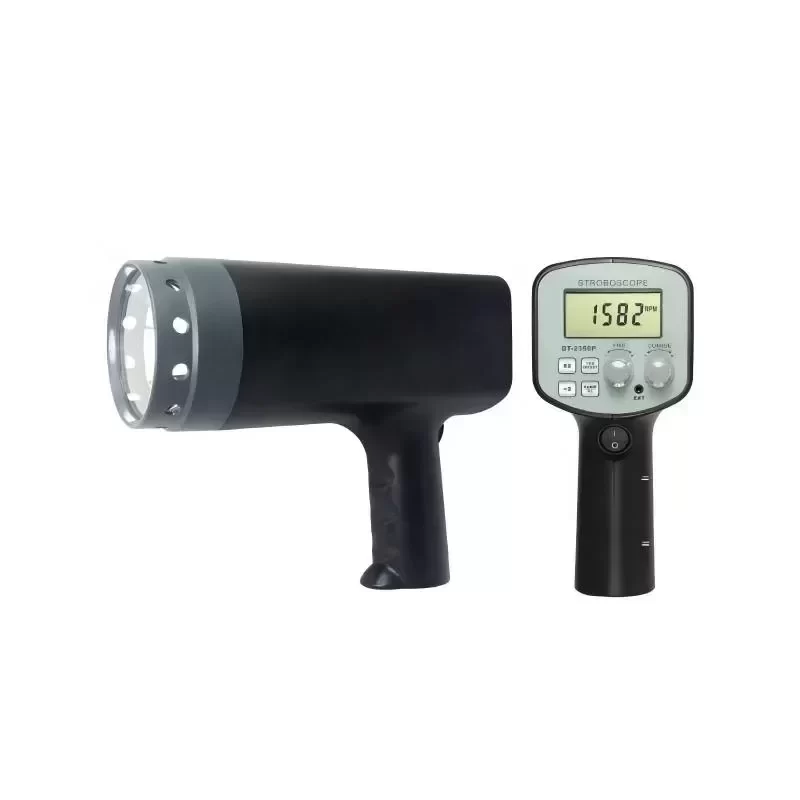

The Landtek DT-2350PE Digital Display Stroboscope is a precision-engineered speed measuring instrument designed for non-contact RPM measurement and motion analysis in high-speed industrial environments. Utilizing a high-intensity Xenon flash tube and advanced microprocessor control, this stroboscope allows operators to visually freeze motion, enabling detailed inspection of rotating, reciprocating, or oscillating machinery without interrupting production cycles.
Technical Specifications:
Brand: Landtek
Model: DT-2350PE
Measurement Range: 50 to 12,000 FPM (Flashes Per Minute)
Resolution: 0.1 FPM (under 1,000 FPM) / 1 FPM (over 1,000 FPM)
Accuracy: ±(0.05% + 1 digit)
Display: 5-digit LCD, 10mm character height

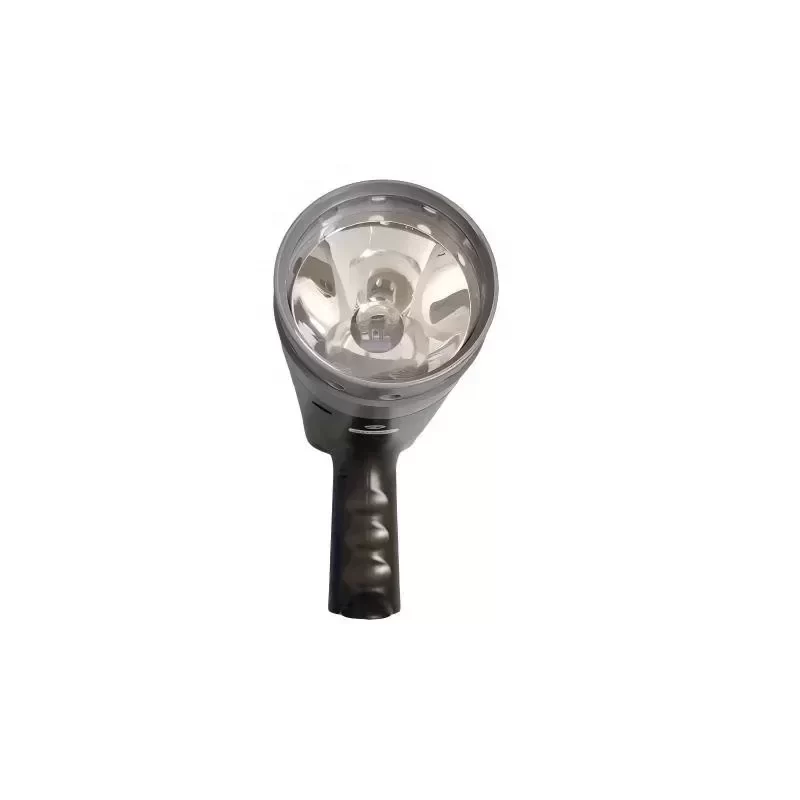

Flash Tube Type: High-intensity Xenon lamp
Flash Duration: Approximately 60 to 100 microseconds
Operating Temperature: 0 to 40 °C
Operating Humidity: < 85% RH
Power Supply: AC 220V or 110V
Weight: 1.0 kg
Dimensions: 210 x 85 x 85 mm
Industrial Application:
The DT-2350PE is critical for preventative maintenance and quality control in sectors such as textile manufacturing, printing, and HVAC. By matching the flash rate to the operational speed of fans, motors, gears, or print rollers, technicians can instantly identify misalignment, wear, or vibration anomalies. Its robust Technical Compatibility ensures seamless integration into standard diagnostic workflows.
Procurement Information:
Guaranteed Original Engineering directly from Landtek. Contact our technical sales team for current Lead Time, calibration certificates, and global shipping options.
Key Attributes
Type: LCD
Place of origin: Guangdong, China
Operating Temperature: -20°C To 50°C
Operating humidity: Up To 80% RH
Protection grade: IP65
Model number: DT-2350PE
Brand name: Landtek
Customized support: OEM
Material: Plastic
Size: 215 x 85 x180 mm
Warranty: 2 Years
Range: 50~2,000FPM
Accuracy: ±(0.05%n+1d)
Sampling Time: 0.3 Seconds
Flash Tube Life: 100 Millian Times
Packaging and Delivery
Selling Units: Single item
Single package size: 36X22X16 cm
Single gross weight: 1.800 kg
