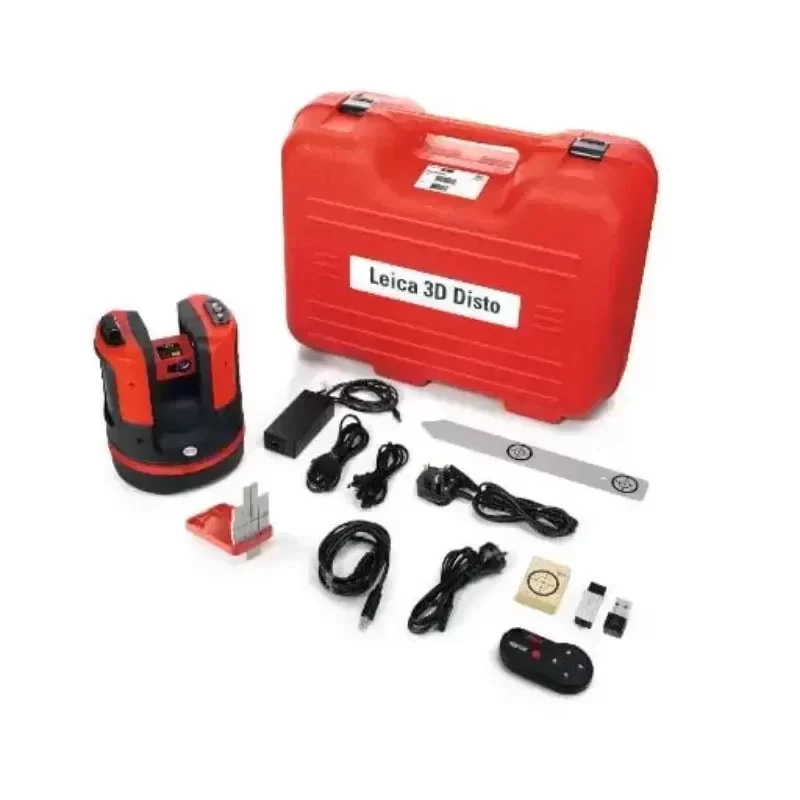

Leica Fully Automatic 3D Disto Laser Rangefinder Building Measuring Instrument

Description

The Leica 3D Disto is a fully automatic, motorized three-dimensional laser scanning and measuring instrument engineered for complex spatial data acquisition. Designed for Original Engineering applications requiring high-precision as-built documentation, this system integrates a high-resolution camera, a Class 2 laser distance meter, and precision motorized pan/tilt axes to capture spatial coordinates with millimeter accuracy. It seamlessly bridges the gap between conventional laser distance meters and complex surveying total stations, offering automated scanning of room dimensions, complex angles, and inaccessible points. The captured data is instantly processed into 2D or 3D DXF files for direct integration into CAD software, ensuring Technical Compatibility with modern BIM workflows and significantly optimizing project Lead Time.

Technical Specifications:
Measurement Range: 0.5 m to 50 m
Distance Accuracy: ± 1.0 mm at 10 m
Angle Accuracy: 5 arc seconds
Laser Class: 2 (650 nm, < 1 mW)
Horizontal Rotation Range: 360°
Vertical Rotation Range: 250°
Protection Rating: IP54 (dust and splash water)
Communication Interface: WLAN / USB
Power Supply: Rechargeable Li-Ion battery (14.4 V)
Operating Time: Up to 8 hours
Operating Temperature: 0 °C to 40 °C
Weight: 2.8 kg (instrument only)
Export Formats: DXF, DWG, TXT, CSV, JPG

Industrial Application Scenario:
The Leica 3D Disto is critical for architectural templating, custom fabrication, and interior fit-out projects where complex geometries must be digitized. In custom stair fabrication, CNC glass cutting, or structural steel detailing, the instrument solves the problem of measuring out-of-plumb walls and irregular angles. By automatically scanning the perimeter and projecting layout points directly onto the physical surface, it eliminates manual measurement errors and ensures precise off-site prefabrication, reducing material waste and installation rework.

Lifecycle and Integration Value:
As a premium diagnostic and measurement asset, the 3D Disto ensures long-term operational reliability through its robust IP54 housing and self-leveling compensator. Its native CAD integration capabilities streamline the transition from field measurement to digital fabrication, making it an indispensable tool for contractors, architects, and structural engineers demanding verifiable spatial accuracy.

Key Attributes
Place of origin: Switzerland
Material: Plastic
Size: 36 * 26 * 16cm
Weight: 4.5kg
Model number: 3D Disto
Brand name: Leica
Customized support: OEM, ODM
Warranty: 1 years
Product name: Leica
Model: 3D Disto
Angle Measurement Range: 360° horizontal, 250° vertical
Laser Distance Measurement System: 100 to 150 MHz
Laser Meter Type: Coaxial, visible red laser
Laser Type: Class 2
Interface: USB micro-B to A, WLAN
Memory Card: SD
Color: REED

Packaging and Delivery
Selling Units: Single item
Single package size: 46X32X21 cm
Single gross weight: 3.400 kg
