Description

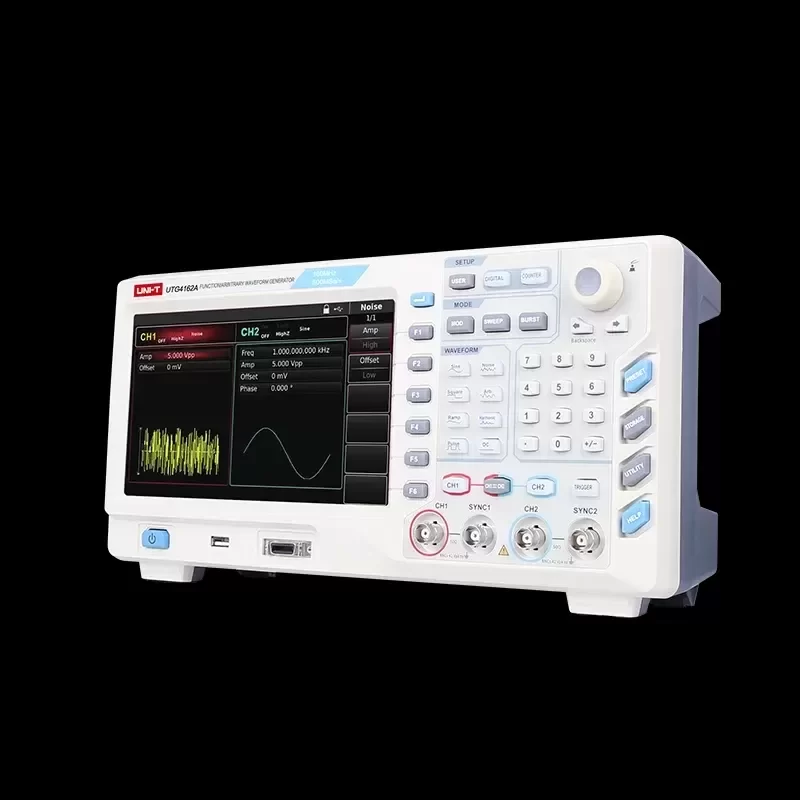

The UNI-T UTG4000A series, encompassing the UTG4162A, UTG4122A, and UTG4082A models, represents a class of high-performance dual-channel function and arbitrary waveform signal generators. Engineered for precision and reliability, these instruments are critical for advanced electronic testing, circuit simulation, and Original Engineering applications. The series utilizes Direct Digital Synthesis (DDS) technology to produce accurate, stable, and low-distortion output signals, ensuring seamless Technical Compatibility with complex automated test environments.
Technical Specifications:
Series Models: UTG4162A, UTG4122A, UTG4082A
Maximum Bandwidth: 160 MHz (UTG4162A), 120 MHz (UTG4122A), 80 MHz (UTG4082A)
Output Channels: 2 (Independent, equivalent performance)
Sampling Rate: 500 MSa/s
Vertical Resolution: 16 bits
Arbitrary Waveform Length: 32 Mpts
Standard Waveforms: Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arbitrary
Modulation Types: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
Frequency Resolution: 1 μHz
Amplitude Range: 1 mVpp to 10 Vpp (50Ω)
Display: 8-inch TFT LCD (800×480 WVGA)

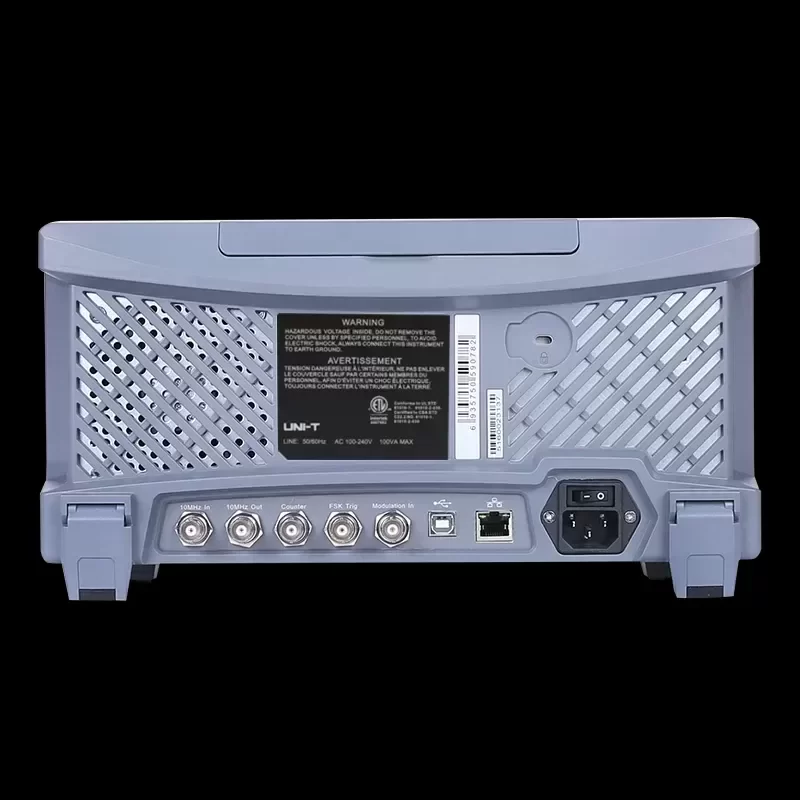

Interfaces: USB Host, USB Device, LAN, 10 MHz Clock In/Out
Operating Temperature: 0°C to 40°C
Power Supply: 100-240V AC, 50/60Hz
Weight: 3.2 kg
Dimensions: 336 mm x 164 mm x 108 mm
Industrial Application:
These waveform generators are specifically designed for rigorous industrial and laboratory environments. A primary application involves the calibration and stress-testing of telecommunications infrastructure and automotive Electronic Control Units (ECUs). By leveraging the 500 MSa/s sampling rate and 16-bit vertical resolution, engineers can simulate complex real-world sensor data and RF interference patterns with exceptional fidelity. This capability accelerates the validation phase of Original Engineering projects, minimizes diagnostic errors, and optimizes the overall Lead Time for product development and deployment.
Key Attributes
Type: Signal generator
Place of origin: Guangdong, China
Brand name: UNI-T
Customized support: OEM, ODM
Warranty: 1 years
Model number: UTG4162A
Product name: UNI-T
Model: UTG4162A
Color: White and grey
Bandwidth: 160MHz
Channels: 2 Channels
DC Gain Accuracy: ±3%
Sample Rate: 1.28GS/s
Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
