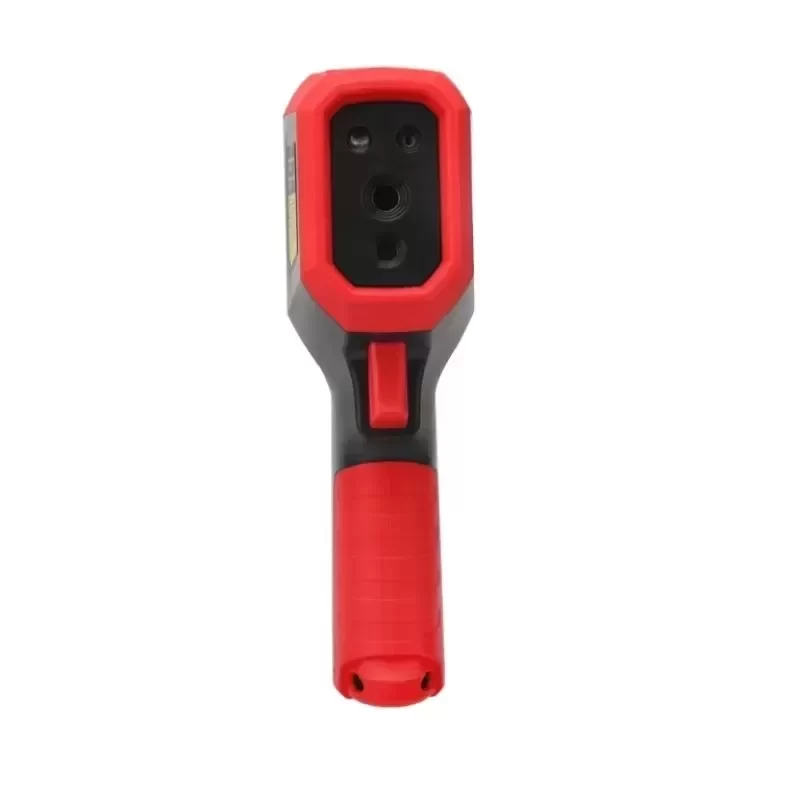

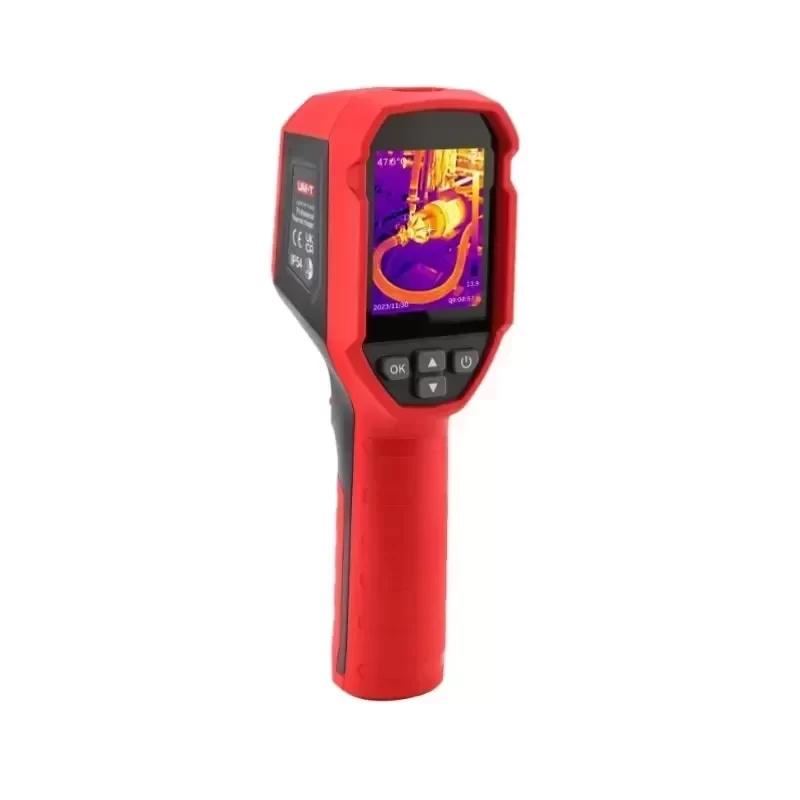

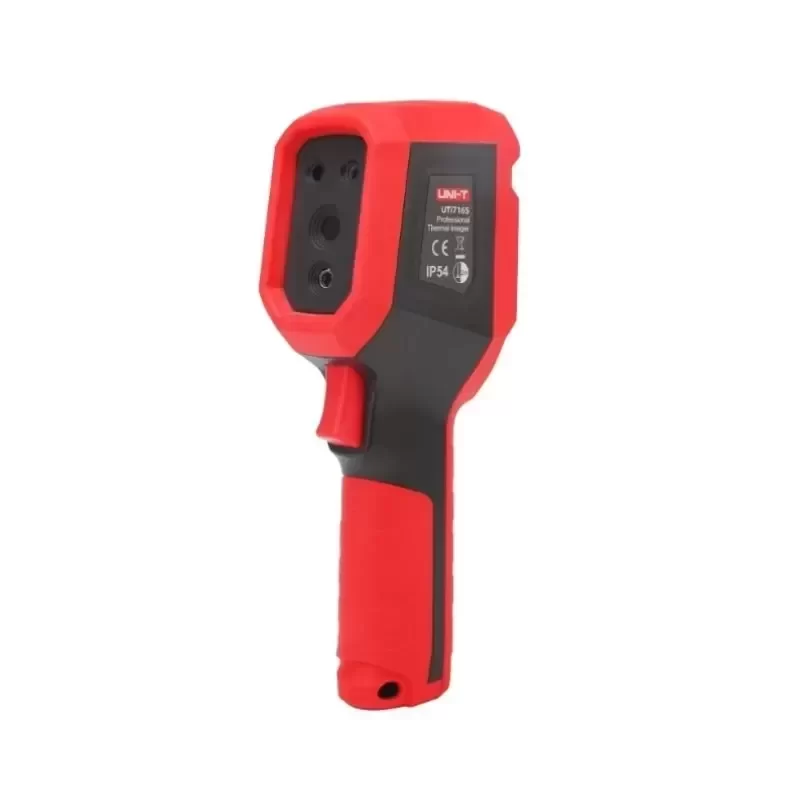

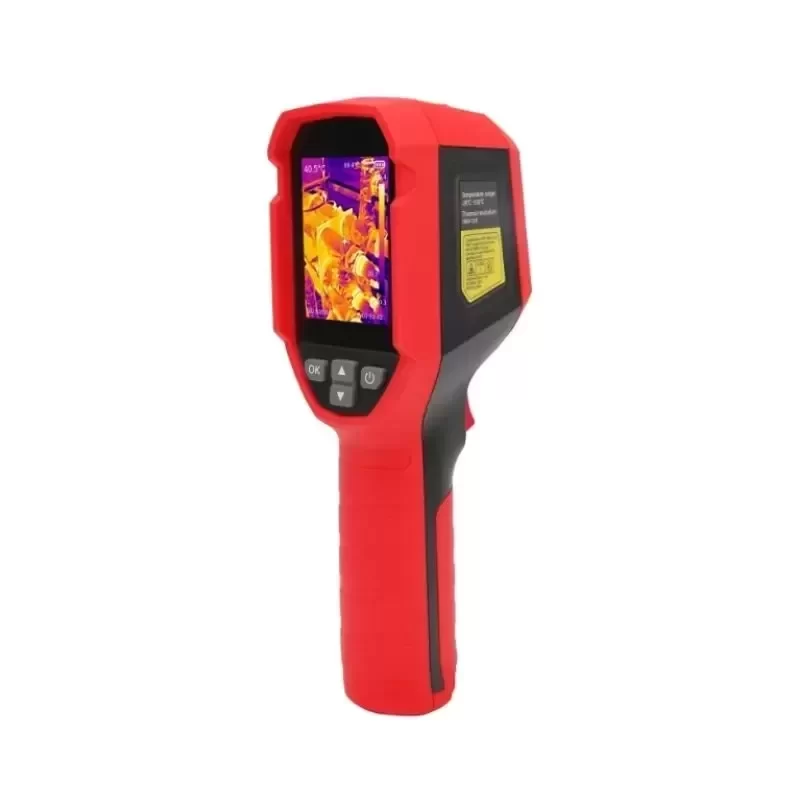

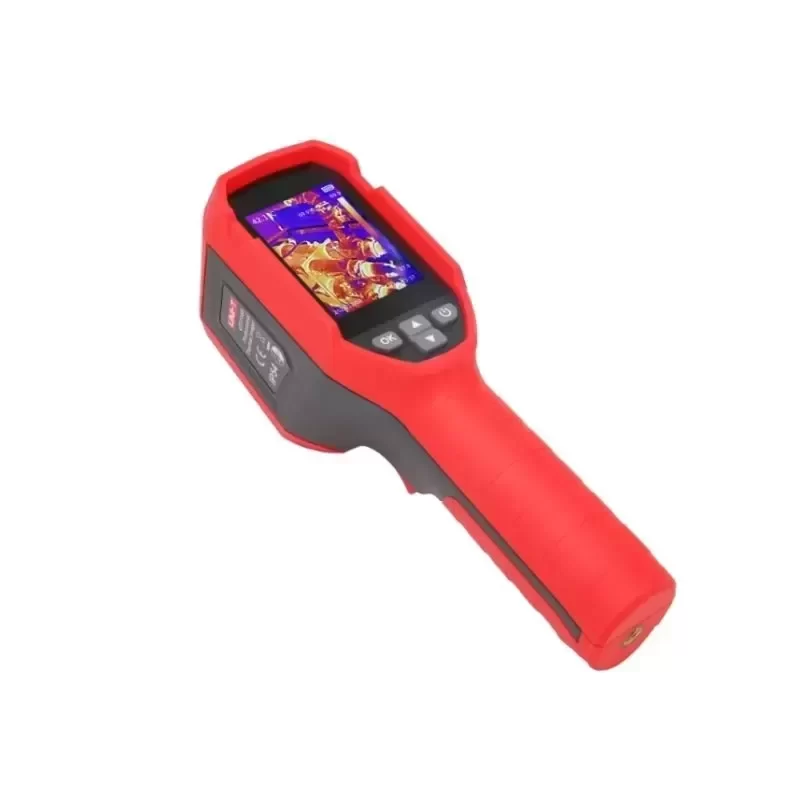

UNI-T UTi716S Infrared Thermal Camera High Permance Product

$236.00

SKU: 10000020204812 Brand:

Description

The UNI-T UTi716S is an industrial-grade infrared thermal imaging camera engineered for predictive maintenance, building envelope diagnostics, and electro-mechanical troubleshooting. Featuring original engineering from Uni-Trend Technology, the system incorporates an uncooled focal plane array sensor providing high-density thermal resolution and rapid dynamic responsiveness across harsh industrial environments. Its multi-spectral blending technology integrates thermal and visible spectrum channels to deliver high-contrast diagnostic telemetry.

Technical Compatibility and Hardware Specifications:
Manufacturer: UNI-T (Uni-Trend Technology)
Model Number: UTi716S
Sensor Type: Uncooled Focal Plane Array (UFPA)
Infrared Resolution: 216 × 160 pixels
Pixel Pitch: 12 µm
Thermal Sensitivity (NETD): < 45 mK (0.045 °C at 25 °C)
Measurement Range: -20 °C to 550 °C (-4 °F to 1022 °F)
Measurement Accuracy: ±2 °C or ±2% of reading (whichever is greater)
Field of View (FOV): 56° (H) × 42° (V)
Spatial Resolution (IFOV): 4.4 mrad
Frame Rate: 25 Hz
Spectral Response: 8 µm to 14 µm
Display: 3.2 inch IPS LCD (640 × 480 resolution)
Image Modes: Thermal, Visual Light, Dual-Light Fusion, Picture-in-Picture (PiP)
Color Palettes: Ironbow, Rainbow, White Hot, Black Hot, Lava, Red Hot, High Contrast
Emissivity Adjustment: 0.01 to 1.00 (Configurable)
Temperature Analysis Tools: Center Spot, Hot Spot, Cold Spot, 3 Custom Area Spots
Digital Interface: USB Type-C (UVC Real-Time Analysis and Charging)
Storage: Removable MicroSD Card (Expandable up to 32 GB)
Battery Type: 3.7 V / 5000 mAh Rechargeable Lithium-Ion
Operating Time: ≥ 6 hours continuous operation
Ingress Protection: IP54 (Dust and Splash Resistant)
Impact Resistance: 2.0 m Drop Tested
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 60 °C
Relative Humidity: ≤ 85% RH (Non-condensing)
Weight: 520 g
Certifications: CE, UKCA, RoHS, FCC

Operational Integration and Performance:
The UTi716S provides automated tracking of maximum, minimum, and center-point temperatures directly on the live display. Real-time alarm thresholds trigger audible and visual alerts when anomalous thermal patterns exceed predefined limits. Utilizing standard USB Type-C UVC communication protocols, the unit interfaces directly with PC analysis software for live-stream radiometric processing, automated reporting, and comprehensive post-capture temperature profile mapping.

Critical Industrial Application:
This instrument is optimized for detecting micro-thermal variance in high-voltage switchgear, motor winding insulation degradation, localized friction in bearing housings, and structural heat loss. By capturing thermal gradients at 25 Hz with sub-50 mK sensitivity, it prevents unmonitored component failure in mission-critical manufacturing facilities and automated assembly lines.

Standard procurement lead time applies based on industrial batch volume.

Key Attributes
Thermal color palettes: 4 Color Palettes
Thermal Image Pixel: 160 x 120
Thermal Sensitivity: 50 mk
Place of Origin: Guangdong, China
Display resolution: 160 x 120
Field of View: 40°(H) x 30°(V)
Image Frequency: 25Hz
Model Number: UTi716S
Brand Name: UNI-T
Thermal sensitivity(NETD): ≤50mK
Display: 2.4" TFT (320 x 240)
Focus: Focus Free

Packaging and Delivery
Selling Units: Single item
Single package size: 27X17X11 cm
Single gross weight: 0.706 kg
