Description

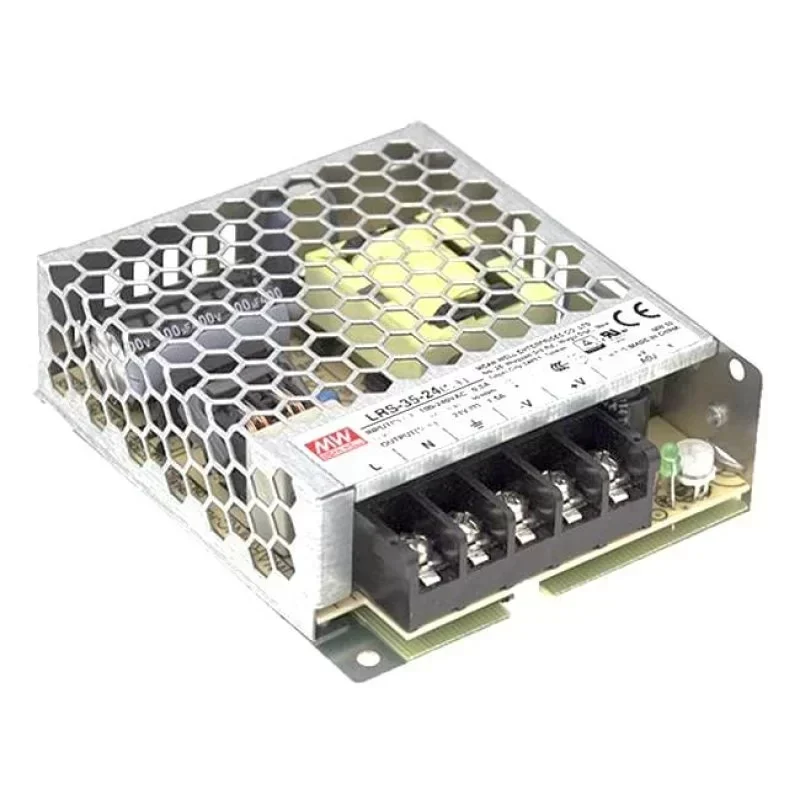

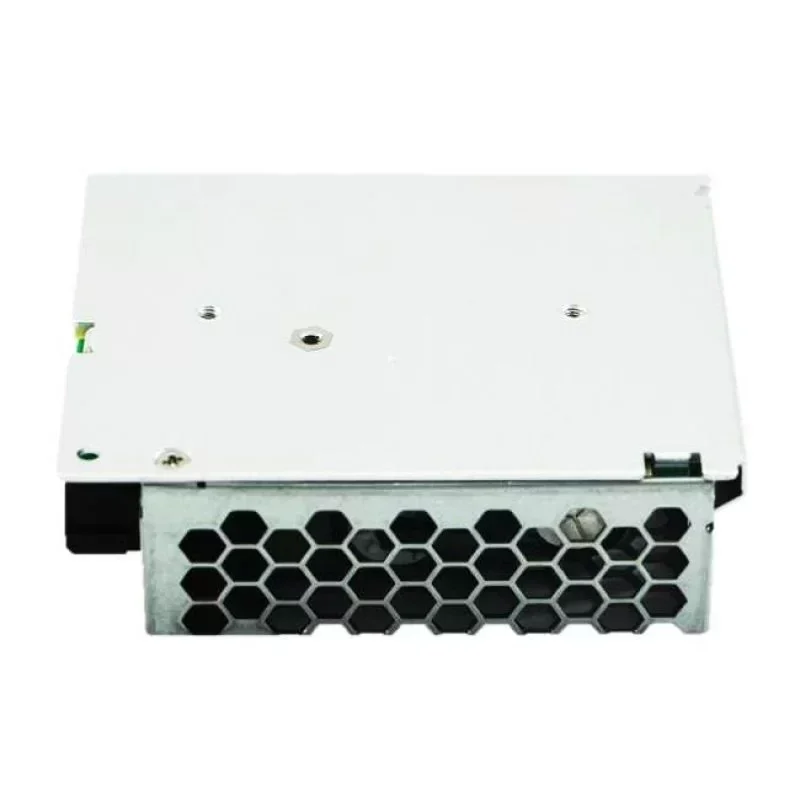

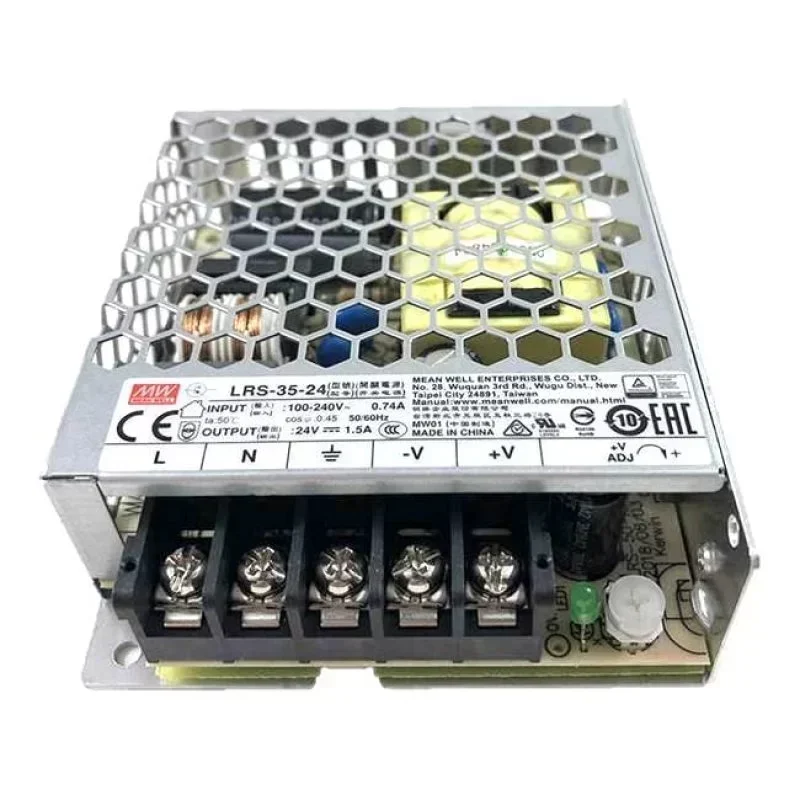

The Mean Well LRS-35-24 is a 36W single-output enclosed type AC/DC switching power supply engineered for industrial automation and control systems. Featuring a low-profile 30mm design, this unit is optimized for installations with strict space constraints while maintaining high reliability and efficiency. The Original Engineering of the LRS series ensures robust performance under harsh conditions, offering excellent Technical Compatibility with a wide range of electromechanical apparatus, factory automation equipment, and household control systems.
Technical Specifications:
Manufacturer: Mean Well
Model Number: LRS-35-24
Output Voltage: 24V DC
Output Current: 1.5A
Rated Power: 36W
Input Voltage Range: 85 to 264V AC / 120 to 373V DC
Efficiency: 89%
No Load Power Consumption: <0.2W
Operating Temperature: -30°C to +70°C
Cooling Method: Free air convection
Protections: Short circuit, Overload, Over voltage
Vibration Resistance: 5G (10 to 500Hz, 10min/1cycle, 60min each along X, Y, Z axes)
Operating Altitude: Up to 5000m
Dimensions: 99 x 82 x 30 mm
Weight: 0.23 kg
MTBF: 765.8K hrs min. MIL-HDBK-217F (25°C)
Safety Standards: UL62368-1, TUV EN62368-1, EN60335-1
Industrial Application:
The LRS-35-24 is specifically deployed in distributed control nodes and sensor networks within automated manufacturing lines. Its high efficiency and low no-load power consumption solve thermal management issues in sealed control cabinets. The 5G vibration resistance and 5000m altitude rating guarantee stable 24V DC power delivery to PLCs, relays, and proximity sensors in heavy-duty mechanical environments or high-altitude installations. Standardized dimensions and reliable Lead Time make it an essential component for both OEM integration and rapid maintenance cycles.
Key Attributes
Input Voltage: 85 ~ 264VAC 120 ~ 373VDC
Output Current: 1.5A
Output Voltage: 24V
Place of Origin: Taiwan, China
Model Number: LRS-35-24
Brand Name: Menawell
Output Frequency: 47 ~ 63Hz
Output Type: Single
Ripple/noise: 150mVp-p
Efficiency: 88%
AC Current: 0.7A/115VAC 0.42A/230VAC
Over Voltage: 28.8 ~ 33.6V
Over Load: 110 ~ 150% rated output power
Dimension: 99*82*30 mm
Weight: 0.23 kg
Product Name: LRS-35-24 AC DC Enclosed Meanwell 35W Switching 24v Power Supply
Packaging and Delivery
Selling Units: Single item
