Description

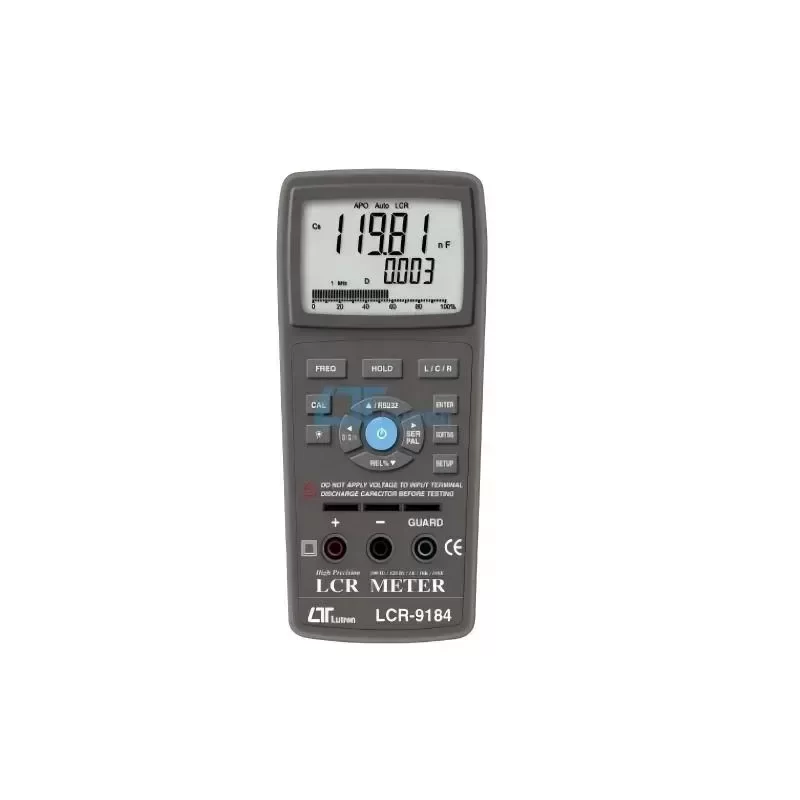

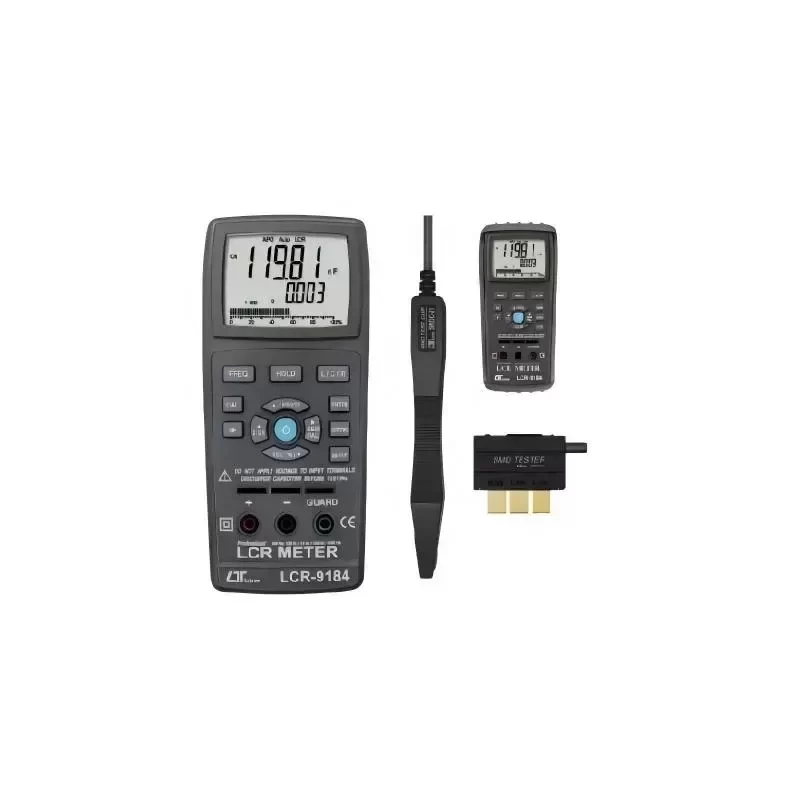

The LUTRON LCR-9184 is engineered for high-density component analysis in laboratory and industrial production environments. It utilizes a sophisticated microprocessor-based architecture to provide five selectable test frequencies up to 100 kHz, ensuring Technical Compatibility with high-frequency electronic designs. The integrated Auto-LCR logic simplifies the workflow by automatically determining the component type and selecting the appropriate measurement parameters, reducing human error in high-throughput testing scenarios.
Technical Specifications:
Model: LCR-9184
Measurement Parameters: L (Inductance), C (Capacitance), R (Resistance), D (Dissipation Factor), Q (Quality Factor), Theta (Phase Angle), ESR (Equivalent Series Resistance)
Test Frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
Basic Accuracy: ± 0.8% (Inductance, Capacitance, Resistance)
Display Type: Dual LCD with Green Backlight
Measurement Modes: Series and Parallel
Auto-LCR Function: Automatic identification of component type and optimal range
Inductance Range: 20.000 µH to 2000.0 H
Capacitance Range: 20.000 pF to 20.00 mF
Resistance Range: 20.000 Ω to 200.00 MΩ
Data Interface: RS232 / USB PC Connectivity
Power Source: 9V DC Battery (006P) or 9V DC Adapter
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: Less than 80% R.H.
Dimensions: 193 mm x 88 mm x 41 mm
Weight: 420 g (including battery)
Industrial Application:
This instrument is critical for Quality Assurance in PCB assembly and passive component manufacturing. Its ability to measure ESR and Phase Angle allows engineers to diagnose capacitor health and inductor performance in switching power supplies. The RS232/USB interface facilitates automated data logging, essential for Original Engineering validation and long-term reliability studies. With its high-resolution display and wide measurement range, the LCR-9184 ensures precise characterization of SMD and leaded components, minimizing downtime in production line troubleshooting.
Logistics and Compliance:
Lead Time: Standard stock availability applies for global distribution.
Certifications: CE compliant, IEC1010 safety standards.
Package Includes: Instruction manual, Alligator clips, and Battery.
Key Attributes
Place of origin: China
Model number: LCR-9184
Brand name: LUTRON
Customized support: No
Material: Plastic
Power: Battery powered
Resolution: 1%
Size: 18 * 10 * 6cm
Warranty: 1 years
Range L: 20 H-2000H
Range C: 20pF-20mF
Range R: 20Ω - 200MΩ
Basic accuracy: 0,5%
Packaging and Delivery
Selling Units: Single item
Single package size: 32X17X14 cm
Single gross weight: 1.200 kg
