Lutron MG-3002 Magnetic Field Meter

Description

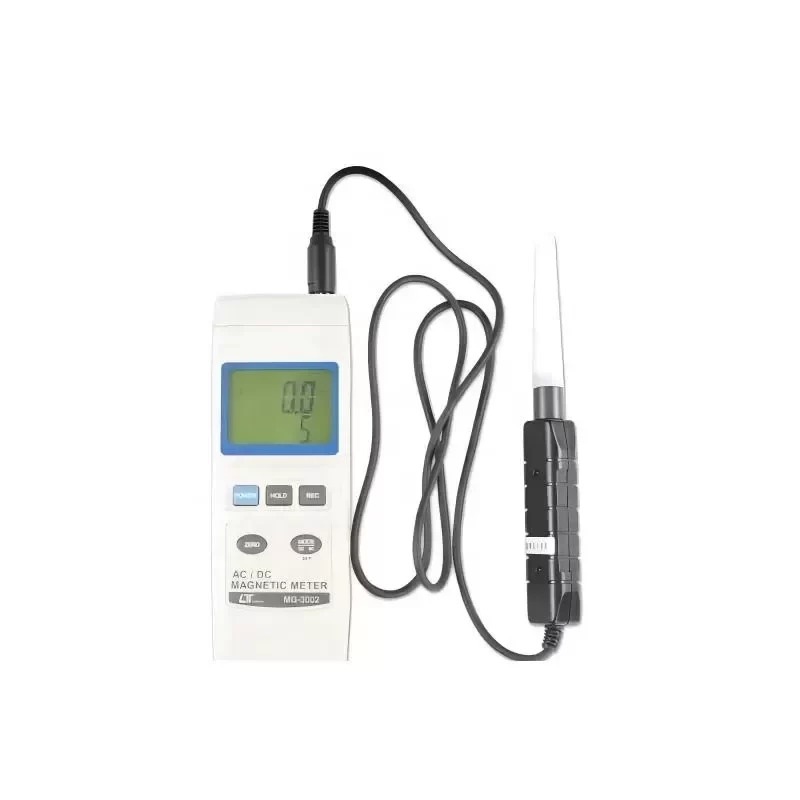

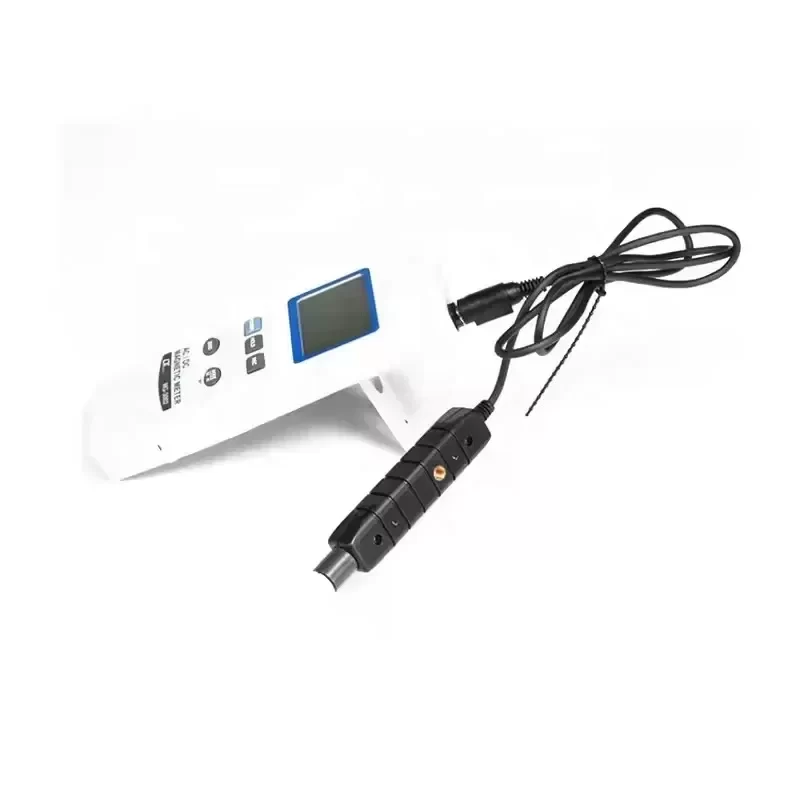

The Lutron MG-3002 is a professional-grade, high-precision Magnetic Field Meter engineered for the accurate measurement of both AC and DC magnetic fields. Utilizing a uniaxial Hall effect sensor integrated with Automatic Temperature Compensation (ATC), this instrument ensures high data fidelity across fluctuating environmental conditions. The device is designed for rigorous industrial diagnostics, offering wide measurement ranges in both milliTesla (mT) and Gauss (G) to accommodate diverse magnetic field intensities.

Technical Specifications:
Measurement Type: AC/DC Magnetic Field
Measurement Units: milliTesla (mT), Gauss (G)
DC Range 1: 300.00 mT / 3000.0 G
DC Range 2: 3000.0 mT / 30000 G
AC Range 1: 150.00 mT / 1500.0 G
AC Range 2: 1500.0 mT / 15000 G
Resolution: 0.01 mT / 0.1 G (Low Range), 0.1 mT / 1 G (High Range)
Accuracy: ± (5% + 10 digits)

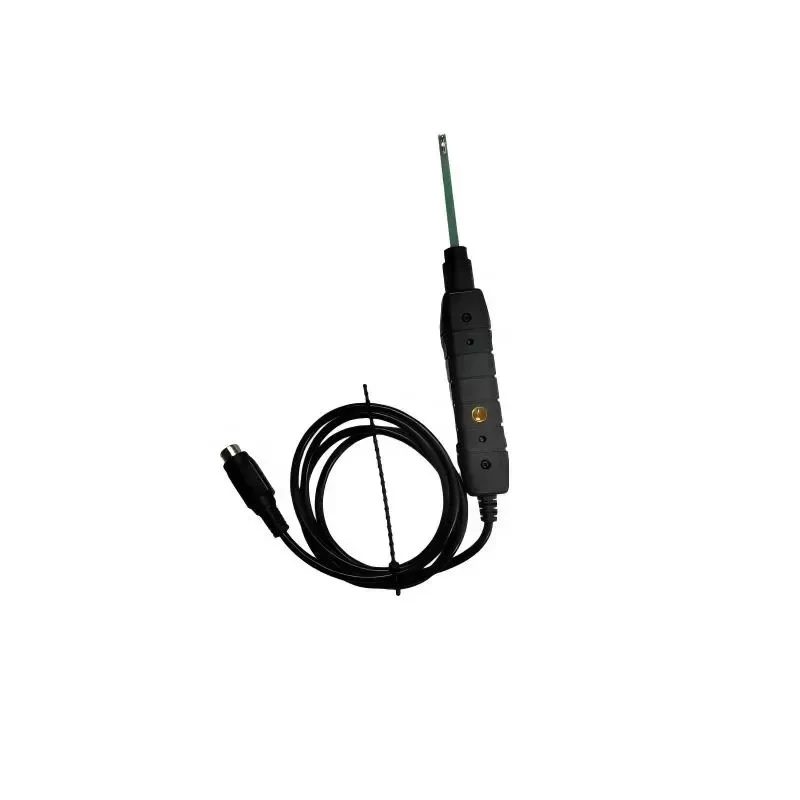

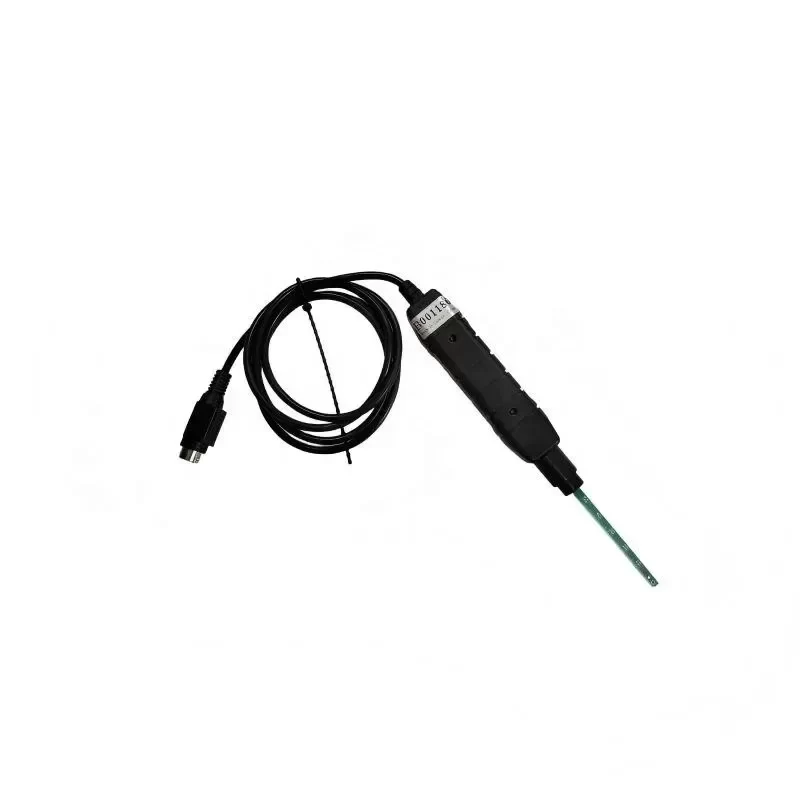

Sensor Type: Hall effect sensor with ATC
Frequency Response (AC): 50 Hz / 60 Hz
Display: 52 mm x 38 mm LCD with green backlight
Data Output: RS232 / USB PC serial interface
Operating Temperature: 0 °C to 50 °C
Operating Humidity: < 85% RH
Power Supply: 9V DC battery (006P) or 9V DC adapter
Dimensions (Meter): 198 x 68 x 30 mm
Dimensions (Probe): 195 x 25 x 19 mm
Weight: 270 g

Industrial Application:
The MG-3002 is critical for verifying the field strength of magnetic separators in food and pharmaceutical processing lines, ensuring compliance with strict contamination control standards. It is also widely utilized in the testing of permanent magnet motors, relays, and heavy-duty industrial electromagnets where precise flux density mapping is required for operational validation and safety compliance.

Procurement and Integration:
Maintaining Technical Compatibility with standard RS232 and USB data acquisition systems, this meter integrates seamlessly into automated quality control and logging workflows. Sourced strictly through Original Engineering channels, the device guarantees baseline calibration accuracy and sensor longevity. We optimize Lead Time for global B2B distribution, ensuring rapid deployment for time-sensitive facility maintenance and compliance audits.

Key Attributes
Type: Magnetic Tester
Accuracy: 3%
Place of origin: China
Customized support: Software Reengineering
Power: 50 Hz / 60 Hz
Protection Class: IP65
Voltage: Other
Logo/graphic design: Laser Engraving
Brand name: Lutron
Warranty: 1 years
Frequency Response: 50 Hz / 60 Hz
Data Hold: Freeze the display reading
Data Output: RS 232/USB PC serial interface
Operating Humidity: Less than 85% R.H.

Packaging and Delivery
Selling Units: Single item
Single package size: 32X21X18 cm
Single gross weight: 2.000 kg
