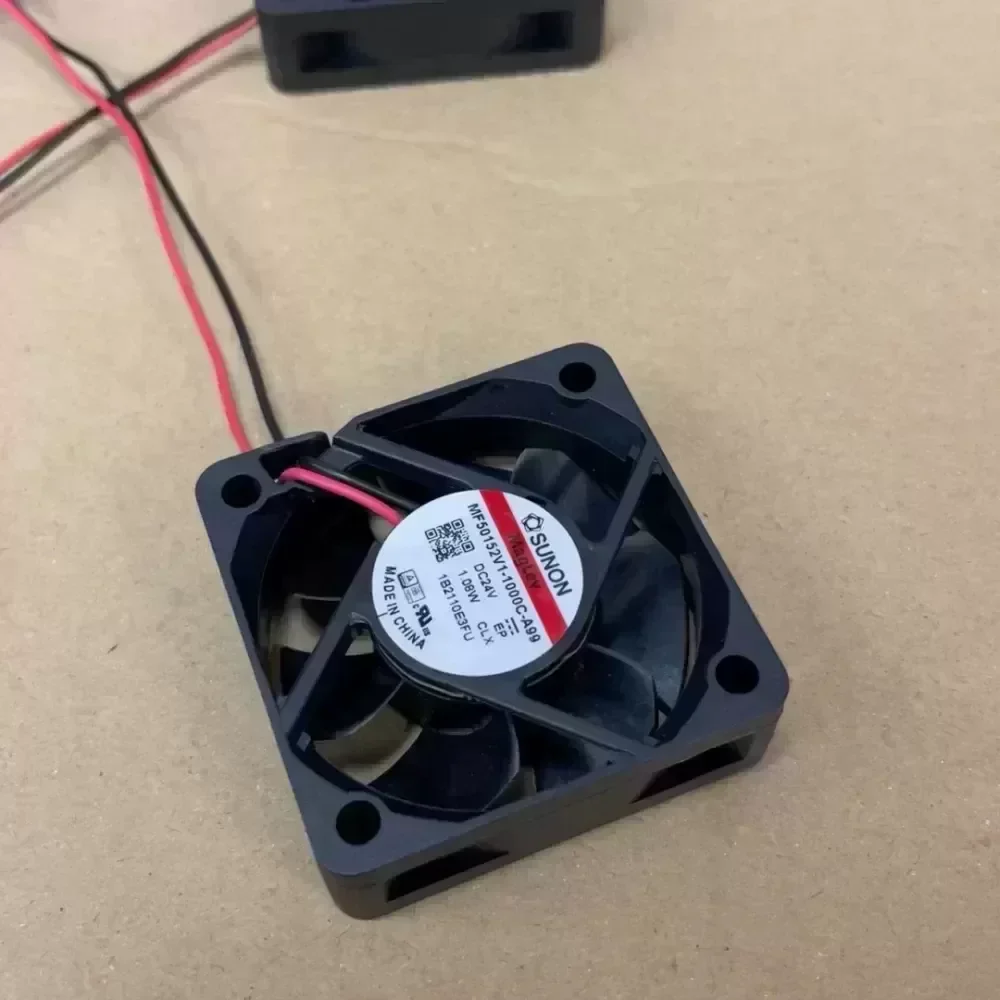

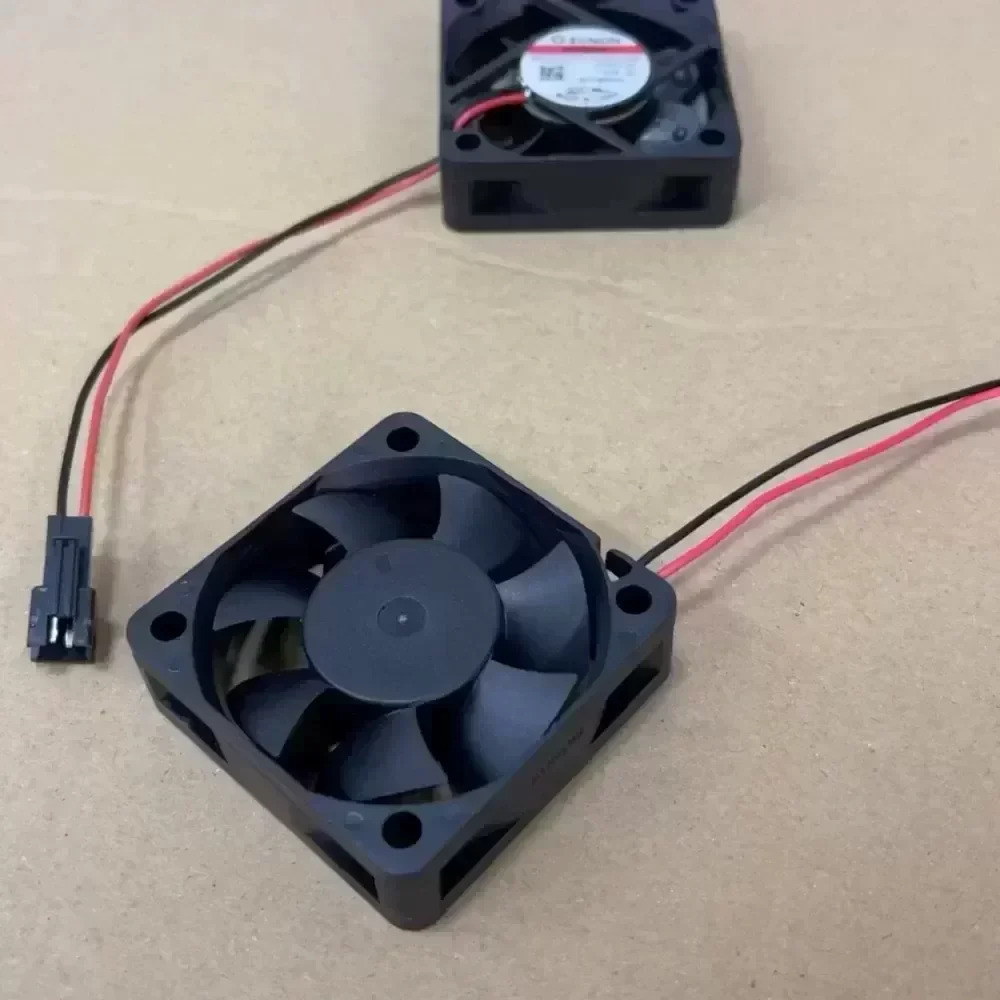

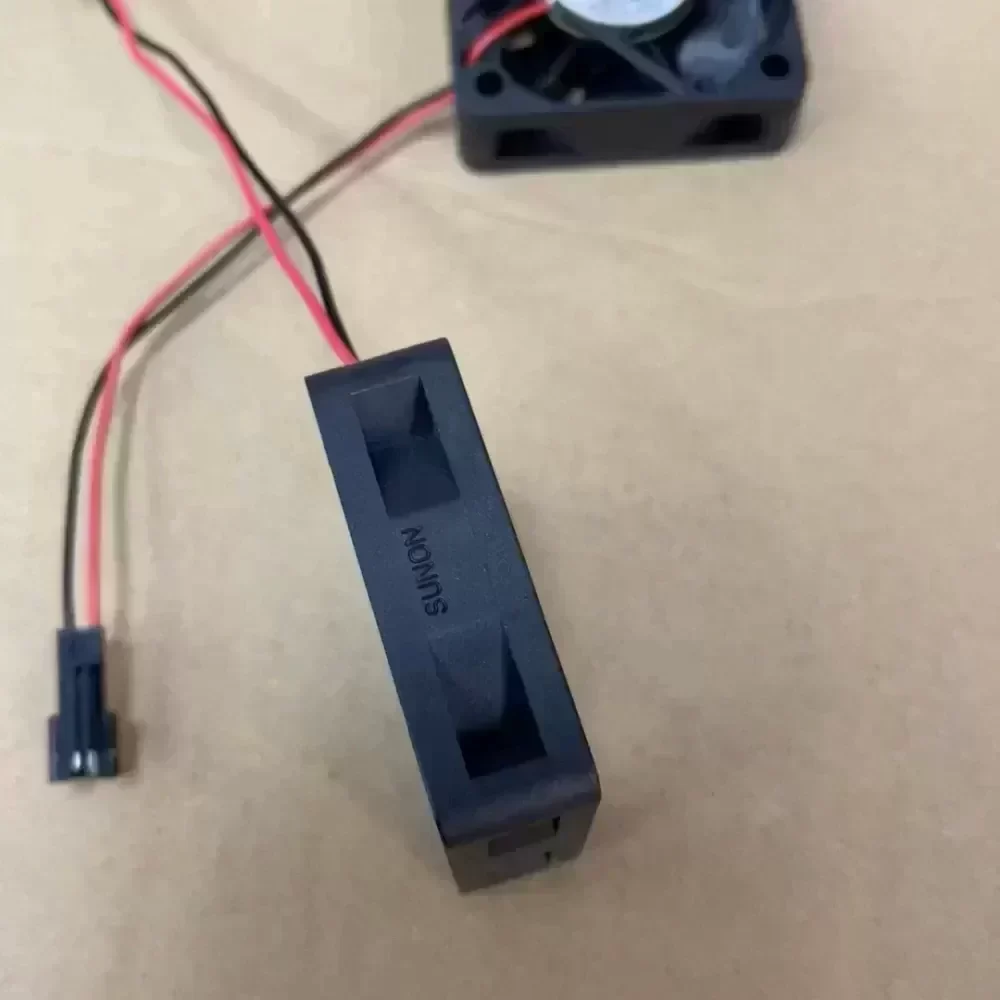

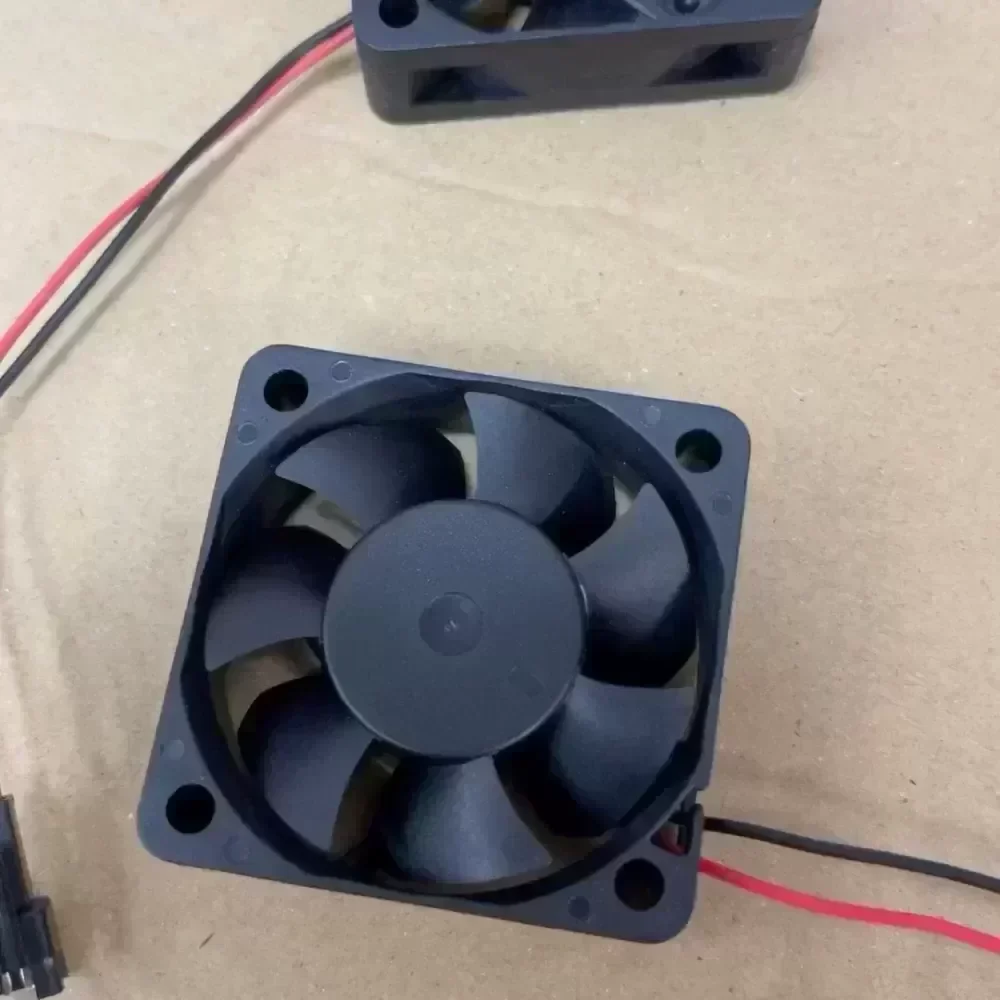

MF50152V1-1000C-A99 SUNON fan
MF50152V1-1000C-A99 SUNON fan
MF50152V1-1000C-A99 SUNON fan
MF50152V1-1000C-A99 SUNON fan
MF50152V1-1000C-A99 SUNON fan

MF50152V1-1000C-A99 SUNON fan

$3.57

SKU: 898167703039 Brand:

Description

The SUNON MF50152V1-1000C-A99 represents high-reliability thermal management engineered for demanding compact electronic assemblies. Utilizing Sunon patented MagLev Vapo-Bearing technology, this 50 mm x 50 mm x 15 mm 24 VDC brushless cooling fan eliminates mechanical contact friction, ensuring sustained rotational stability, minimal vibration, and extended service life across mission-critical hardware. Built under strict Original Engineering standards, it provides optimized airflow and high static pressure in confined spatial envelopes.

Technical Specifications:
Manufacturer: SUNON
Model Number: MF50152V1-1000C-A99
Series: MF MagLev Series
Dimensions: 50 mm x 50 mm x 15 mm (Tolerance ± 0.5 mm)
Rated Voltage: 24 VDC
Operating Voltage Range: 10.0 VDC to 27.6 VDC
Rated Power Consumption: 1.08 W
Rated Current: 0.045 A (45 mA)
Rated Speed: 5500 RPM (Tolerance ± 15%)
Maximum Air Flow: 14.5 CFM (0.41 m³/min)
Maximum Static Pressure: 0.23 Inch-H2O (57.2 Pa)
Acoustic Noise Level: 33.0 dB(A)
Bearing Architecture: MagLev Vapo-Bearing System
Frame Construction: Thermoplastic PBT (UL94V-0 Rated)
Impeller Construction: Thermoplastic PBT (UL94V-0 Rated)
Lead Wire: UL1007 26AWG (Standard 2-Wire Interface)
Dielectric Strength: 500 VAC for 1 Minute
Insulation Resistance: 10 MΩ Minimum at 500 VDC
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Life Expectancy (L10): 70,000 Hours at 40 °C
Weight: 28.5 g
Regulatory Compliance: RoHS, REACH, CE, UL Certified

Industrial Application & Technical Compatibility:
The MF50152V1-1000C-A99 is specifically engineered to mitigate thermal saturation in dense electronic packaging where high backpressure degrades conventional axial fans. Its static pressure characteristics make it an optimal solution for industrial additive manufacturing (3D printer hotend and enclosure cooling), medical diagnostic imaging devices, telecom power modules (SMPS), and automation controller chassis. Technical Compatibility is verified for 24 V industrial bus architectures, ensuring seamless drop-in replacement and predictable thermal dissipation.

Procurement & Supply Chain Parameters:
Condition: Unused, Factory-Original Stock
Availability: Ready for Immediate Dispatch
Lead Time: Ex-stock fulfillment with minimized turnaround

MF50152V1-1000C-A99 SUNON fan

MF50152V1-1000C-A99 SUNON fan

MF50152V1-1000C-A99 SUNON fan

MF50152V1-1000C-A99 SUNON fan

MF50152V1-1000C-A99 SUNON fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
