Description

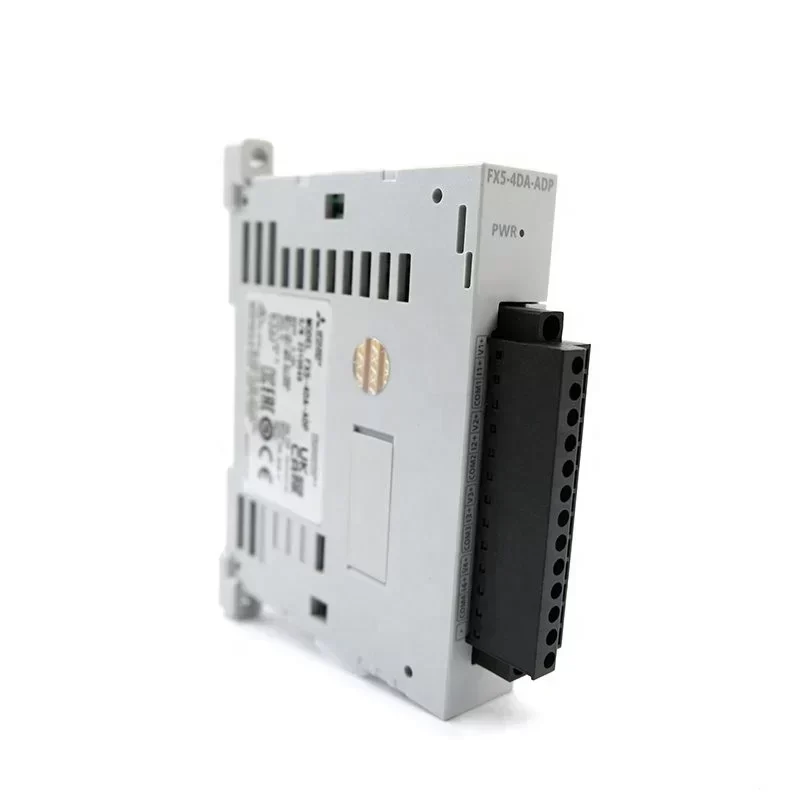

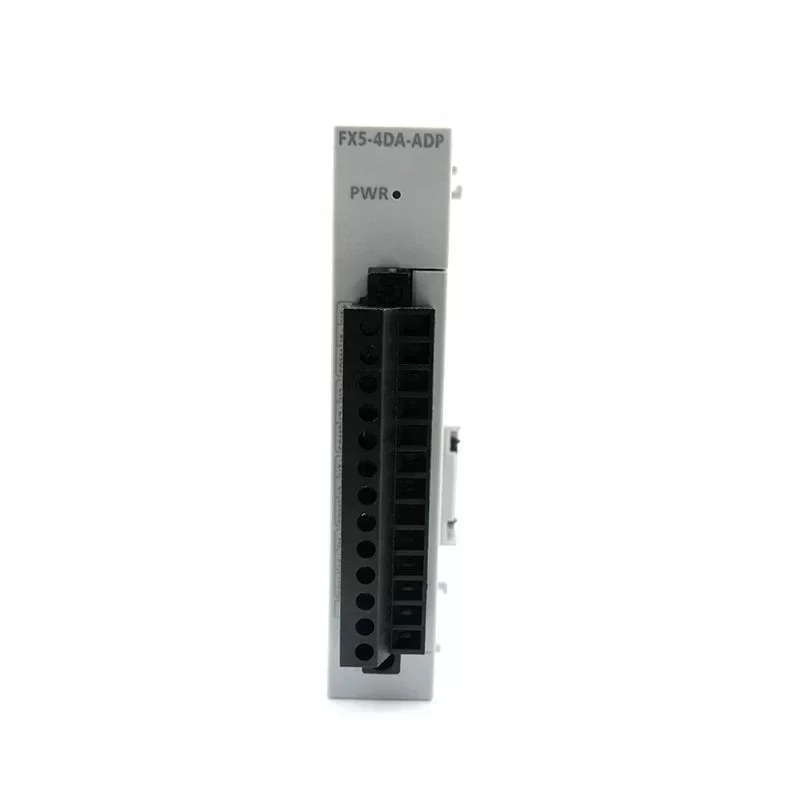

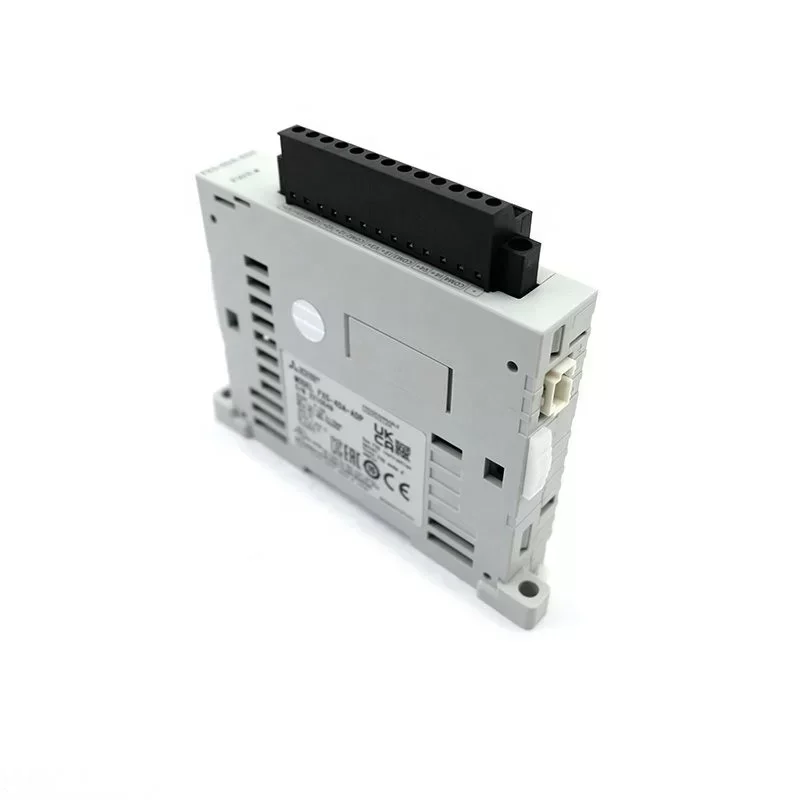

The Mitsubishi FX5-4DA-ADP is a high-precision analog output adapter engineered for the MELSEC iQ-F Series programmable logic controllers. Designed to deliver superior signal conversion, this 4-channel module translates digital PLC data into precise voltage or current analog signals. It ensures seamless integration with FX5U and FX5UC CPU modules, providing critical control for variable frequency drives, proportional valves, and servo systems in complex automation architectures.

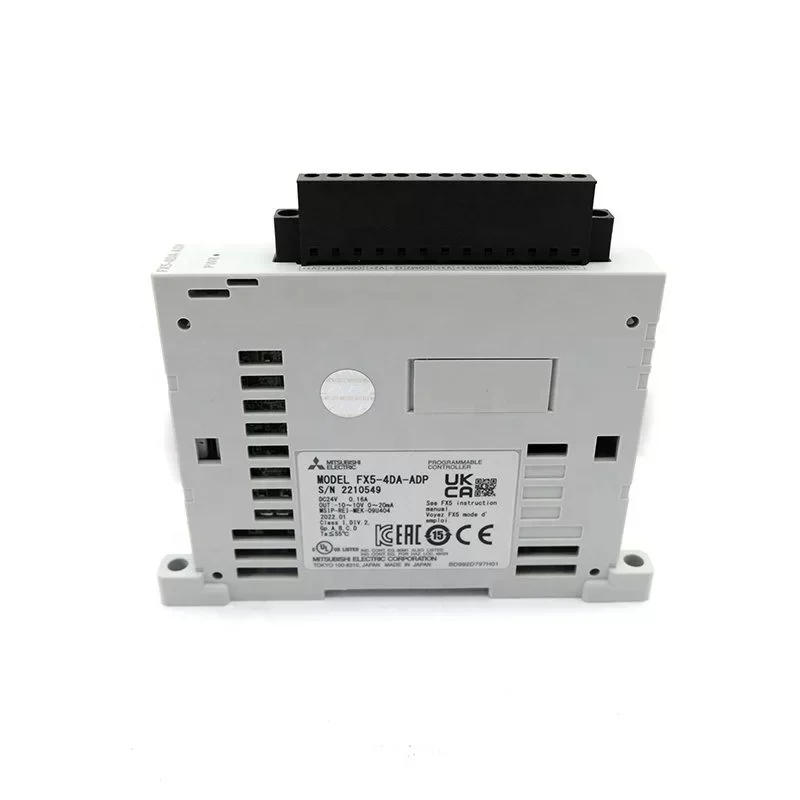

Technical Specifications:
Manufacturer: Mitsubishi Electric
Series: MELSEC iQ-F (FX5 Series)
Model Number: FX5-4DA-ADP
Module Type: Analog Output Adapter
Number of Channels: 4 Channels (Voltage/Current)
Analog Output Voltage Range: ±10V DC (External load resistance 1k Ohm to 1M Ohm)
Analog Output Current Range: 0 to 20mA DC (External load resistance 500 Ohm or less)
Digital Resolution (Voltage): 14-bit binary (2.5mV)
Digital Resolution (Current): 14-bit binary (4µA)
Conversion Speed: 80µs per channel
Overall Accuracy (Ambient 25°C): ±0.1% of full scale
Isolation Method: Photocoupler isolation (between output terminals and PLC)
Power Supply (Internal): 5V DC, 10mA (supplied from PLC)
Power Supply (External): 24V DC +20% / -15%, 160mA
Operating Temperature: -20°C to 55°C
Relative Humidity: 5% to 95% (non-condensing)
Weight: 0.1 kg
Dimensions (H x W x D): 106mm x 17.6mm x 89.1mm
Mounting: DIN rail (35mm) or direct mounting
System Architecture & Compatibility:

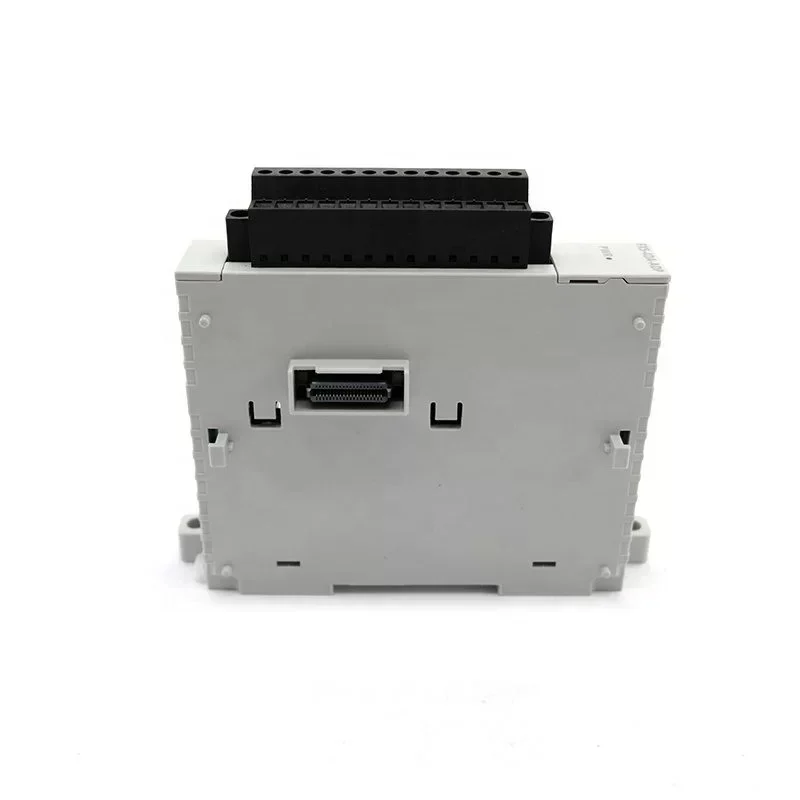

This adapter requires strict Technical Compatibility with FX5U or FX5UC CPU modules. It connects directly to the left side of the CPU module or other expansion adapters, eliminating the need for complex wiring backplanes. The Original Engineering of the iQ-F bus ensures rapid data transfer and synchronization between the CPU and the analog output terminals, minimizing latency in closed-loop control systems.
Industrial Application Scenario:
The FX5-4DA-ADP is highly effective in continuous web tension control systems within paper manufacturing and textile converting facilities. By utilizing its 80µs conversion speed and 14-bit resolution, the module provides ultra-precise 0-10V reference signals to multiple variable frequency drives simultaneously. This rapid response eliminates tension fluctuations, preventing material tearing and ensuring uniform spooling at high production speeds.
Procurement & Lifecycle:
Procuring this factory-new module guarantees maximum operational lifespan and adherence to strict industrial safety certifications. We maintain an optimized supply chain to ensure a minimized Lead Time for critical replacement parts, reducing costly facility downtime and maintaining continuous production efficiency.
Key Attributes
Place of Origin: Japan
Brand Name: Mitsubishi
Communication Interface: Standard
Product Name: Mitsubishi Module
Payment Method: Western Union&T/T& Paypal
Quality: Original New
Payment Term: All terms are accepted
Warranty: 3 Months for Used and 12 Months for New
Service: One-stop Service
Port of Export: ShenZhen
MOQ: 1 Piece
Lead Time: In Stock
Package: With Carton Package
Packaging and Delivery
Selling Units: Single item
Single package size: 30X20X20 cm
Single gross weight: 3.000 kg
