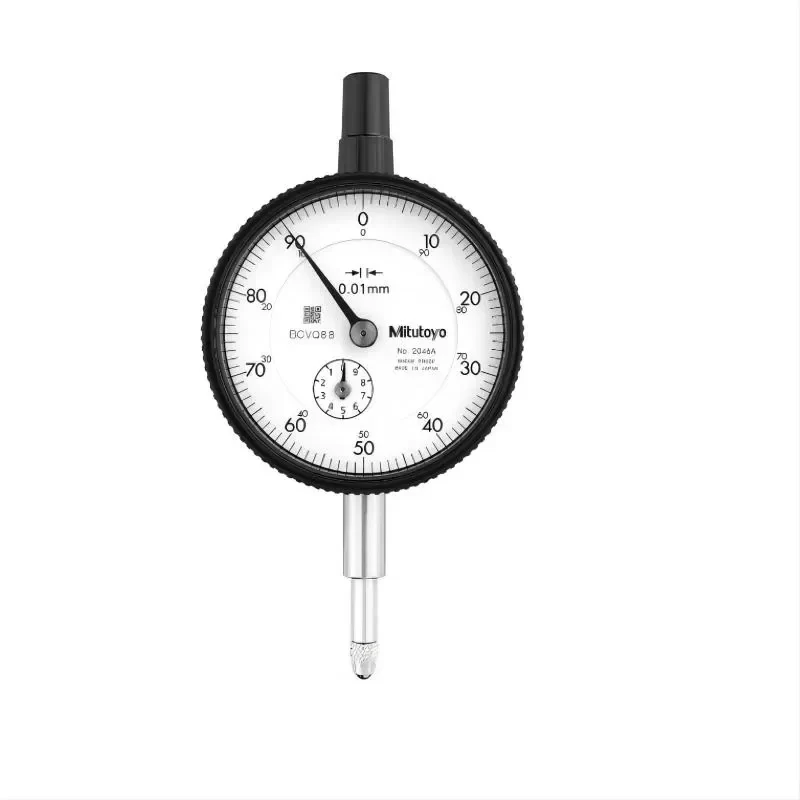

Mitutoyo 2046A Series 2 Metric ISO Type Dial Indicator 0 to 10 mm Range 0.01 mm Accuracy Standard-Type with Lug Back

Description

The Mitutoyo 2046A Series 2 is a high-precision metric dial indicator engineered for rigorous dimensional inspection and quality control environments. Utilizing Original Engineering from Mitutoyo, this standard-type indicator delivers exceptional repeatability and durability in industrial metrology applications. The instrument features a robust outer frame with an O-ring seal to prevent the ingress of oil and water, ensuring long-term Technical Compatibility with harsh machining centers.

Technical Specifications:
Manufacturer: Mitutoyo
Model Number: 2046A
Product Series: Series 2 Standard Type
Measurement System: Metric (ISO/JIS Type)
Measuring Range: 0 to 10 mm
Range Per Revolution: 1.0 mm
Graduation: 0.01 mm
Dial Reading: 0-100 (Continuous)
Overall Accuracy: ±0.013 mm
Measuring Force: 1.4 N or less
Stem Diameter: Ø 8 mm
Contact Point Thread: M2.5 x 0.45 (Carbide tipped)

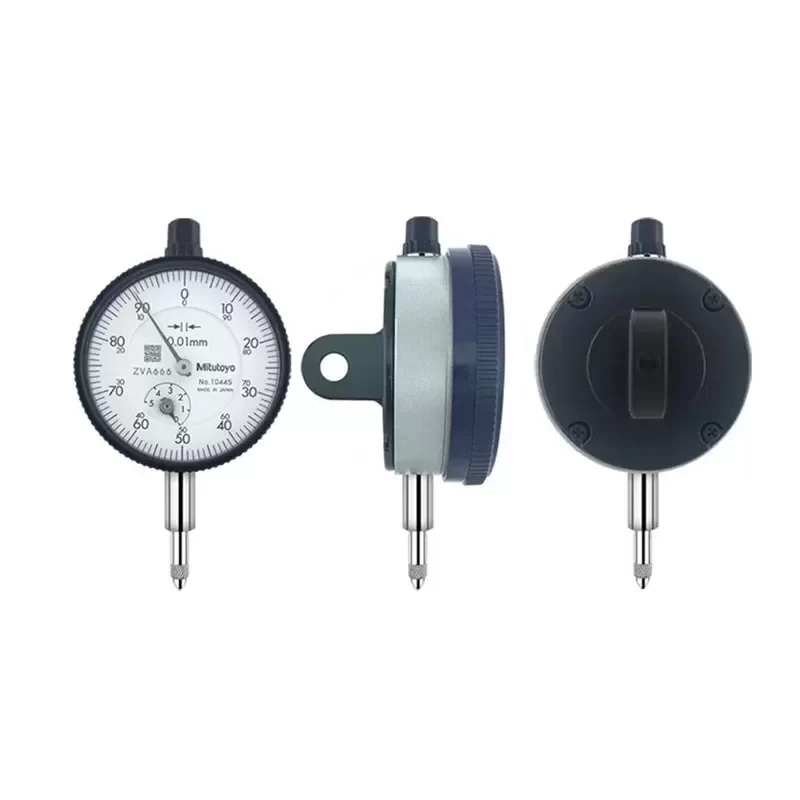

Back Configuration: Lug Back
Weight: 144 g
Operating Temperature: 0°C to 40°C

Industrial Application:
This dial indicator is specifically designed for integration into custom inspection jigs, magnetic bases, and machine tool setups. Its 10 mm range and 0.01 mm resolution make it critical for verifying spindle runout, aligning workpieces in CNC milling operations, and conducting precise tolerance checks in automotive and aerospace manufacturing. The standard Ø 8 mm stem ensures seamless Technical Compatibility with standard holding fixtures.

Procurement and Lifecycle:
Sourced through authorized supply chains, this component guarantees authentic Mitutoyo Original Engineering. We optimize our inventory to ensure minimal Lead Time for critical replacement parts, minimizing downtime in high-throughput quality assurance laboratories and production floors.

Key Attributes
Accuracy: ±0.013 mm
Material: Plastic+iron
Place of origin: Japan
Model number: 2046A
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Product name: Mitutoyo
Model: 2046A
Range: 0 to 10 mm
Accuracy: ±0.013 mm
Graduation: 0.01 mm
Measuring Force: 1.4 N or less
Dial Reading: 0-100
Conformity: Meets ISO/JIS standards

Packaging and Delivery
Selling Units: Single item
Single package size: 16X16X11 cm
Single gross weight: 1.500 kg
