$6.43

SKU: 899403146354 Brand:

Description

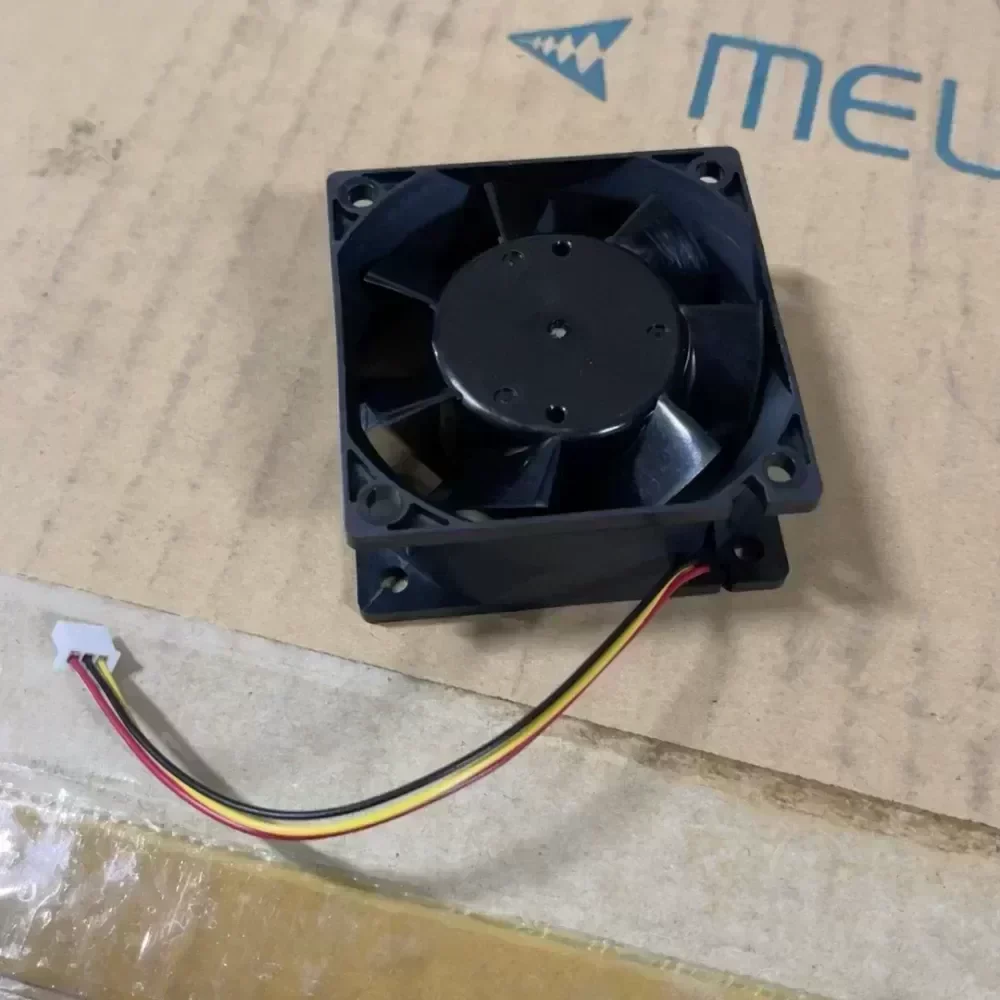

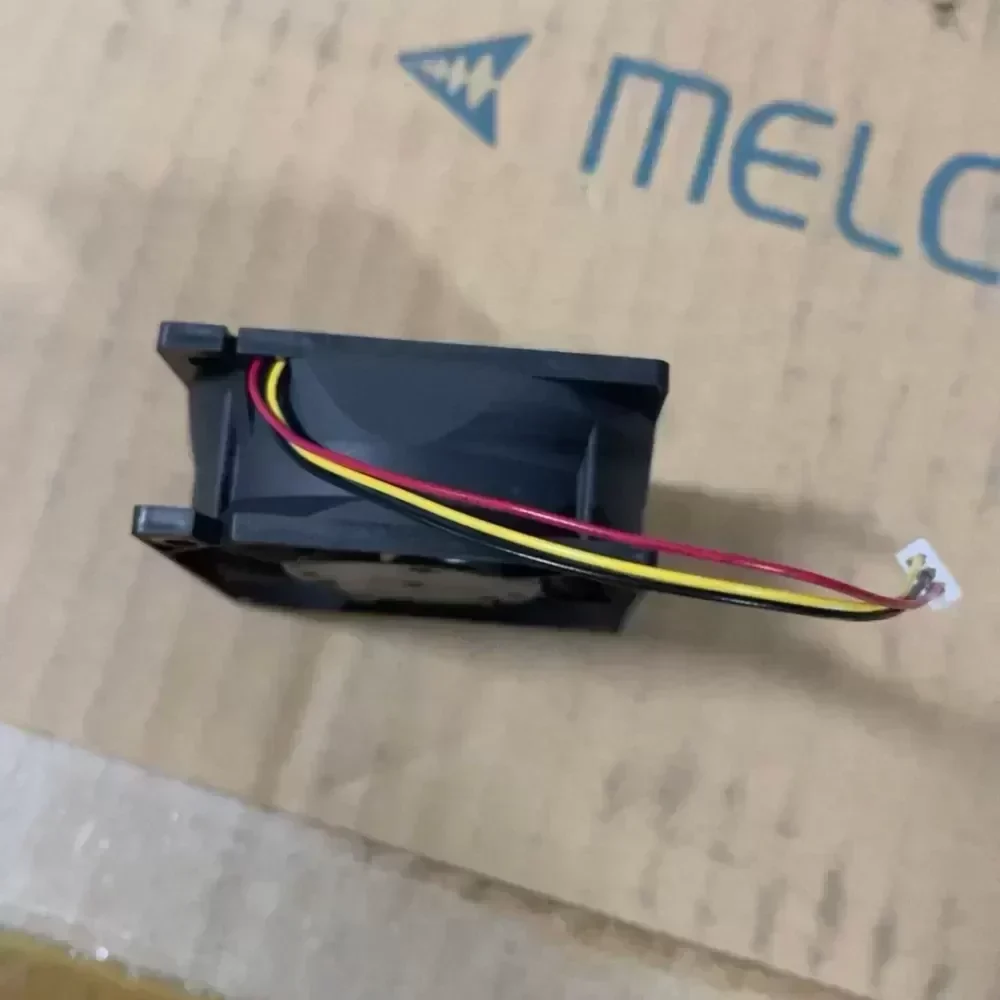

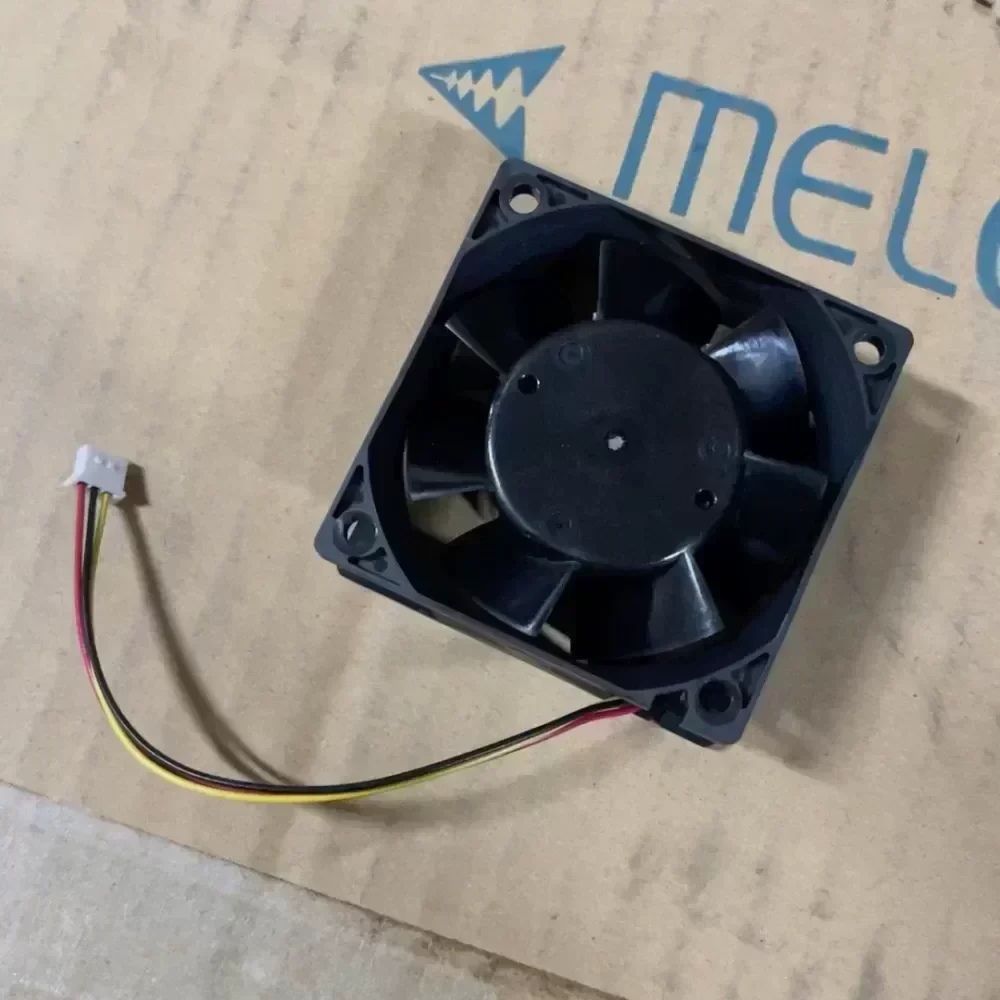

The Mitsubishi MMF-06P24SS-FM4 is a high-reliability DC axial cooling fan engineered specifically for thermal management inside Mitsubishi variable frequency drives (VFDs) and industrial automation chassis. Designed to exact Original Engineering specifications, this unit maintains mandatory airflow over internal power semiconductor assemblies, including IGBT modules and electrolytic capacitor banks, preventing thermal shutdown and extending overall inverter operational lifespan.

TECHNICAL SPECIFICATIONS

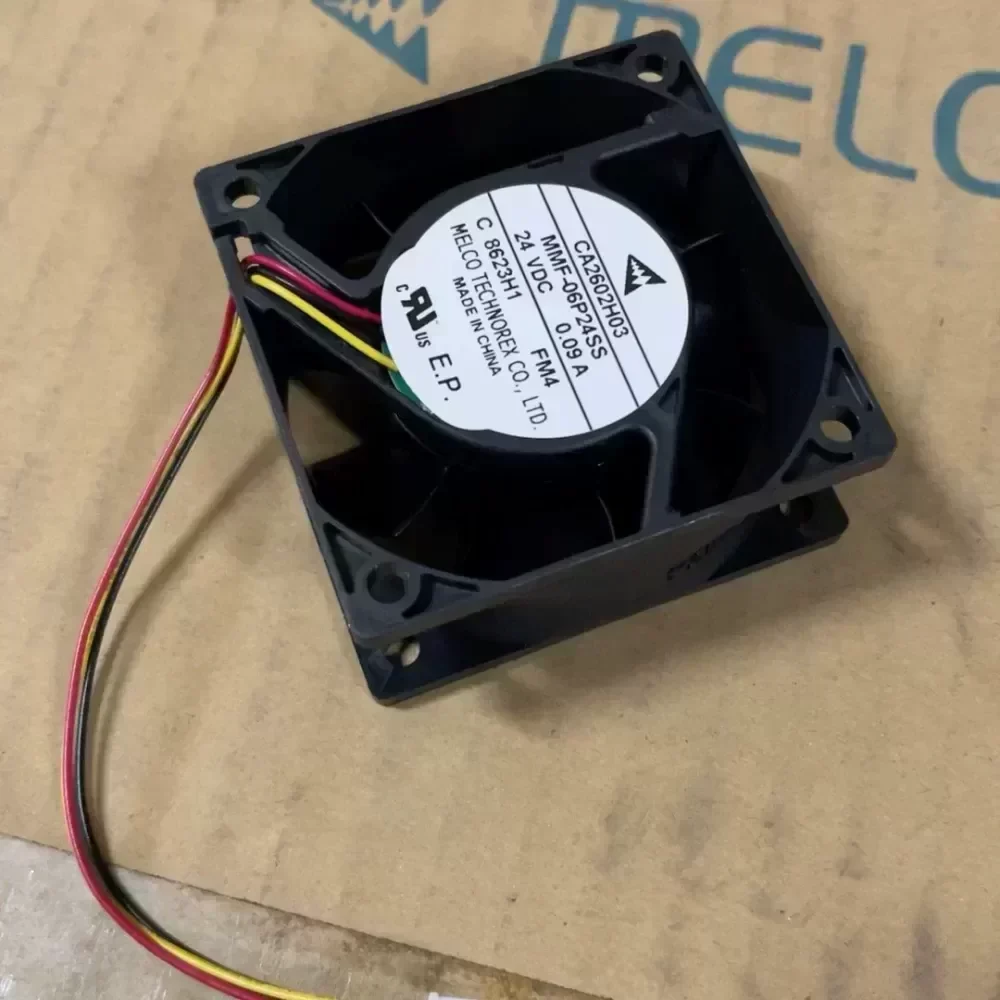

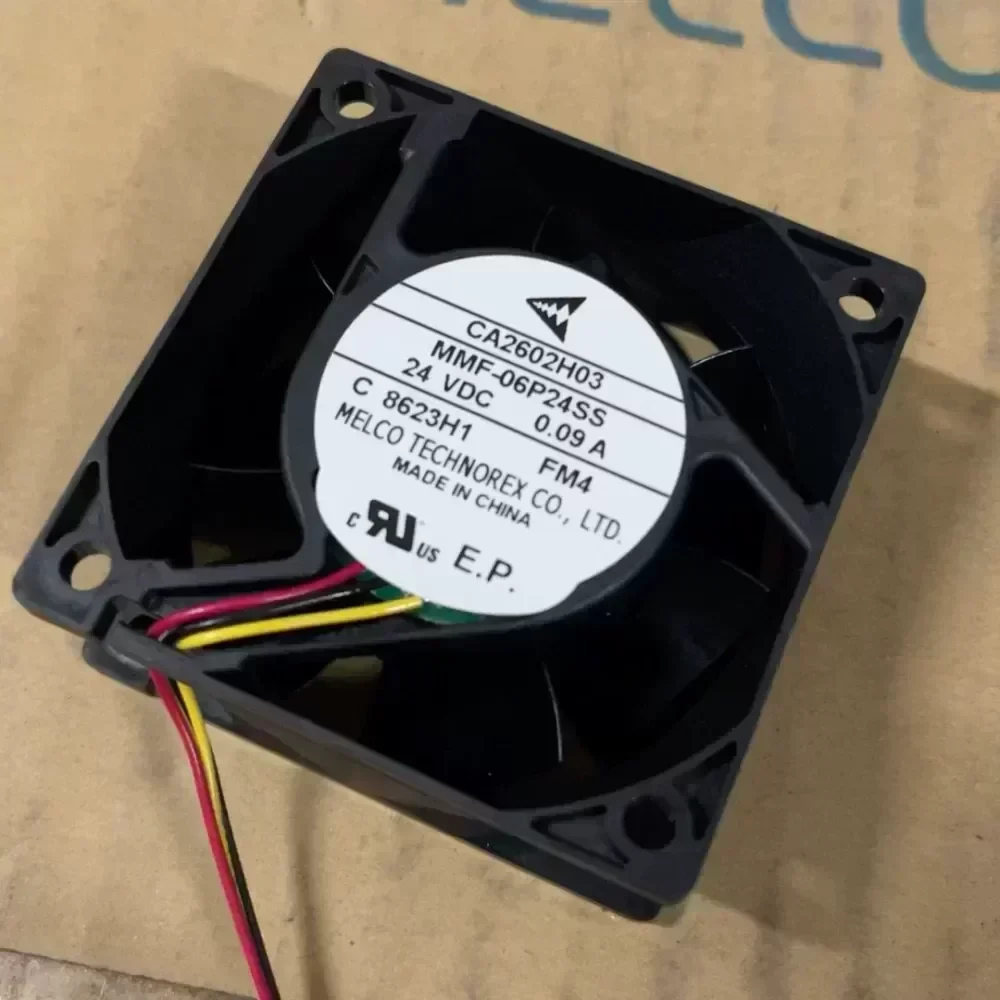

Manufacturer: Mitsubishi Electric / Melco
Model Number: MMF-06P24SS-FM4
Part Type: Industrial Inverter Axial Cooling Fan
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 VDC to 27.6 VDC
Rated Current: 0.09 A
Power Consumption: 2.16 W
Frame Dimensions: 60 mm x 60 mm x 25 mm
Mounting Hole Pitch: 50.0 mm ± 0.3 mm
Mounting Hole Diameter: 4.3 mm Ø
Bearing Mechanism: Dual High-Precision Ball Bearings
Airflow Capacity: 0.58 m³/min (20.5 CFM)
Static Pressure: 44.1 Pa
Nominal Speed: 4200 RPM
Noise Level: 28 dB(A)
Termination: 3-Wire Dedicated Connector Harness (Power, Ground, Sensor/Tachometer)
Insulation Class: Class A (105 °C)
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -20 °C to +85 °C
Expected Service Life: 50,000 Hours at 40 °C (L10 rating)
Weight: 85 g

SYSTEM INTEGRATION & INDUSTRIAL APPLICATION
In variable frequency drive systems such as the Mitsubishi FR-A700, FR-F700, and FR-A800 series, inadequate heatsink ventilation leads to rapid junction-temperature spikes, trigger faults (e.g., Fin Overheat / OH faults), and derated drive output. The MMF-06P24SS-FM4 solves this thermal bottleneck by providing consistent forced-air cooling directly across heat sinks and choke coils. The FM4 sub-index defines the factory-pinned connector and pulse-sensor configuration, allowing the inverter firmware to continuously verify rotational speed. In the event of mechanical obstruction or RPM drop, the drive safely detects the loss of cooling before thermal destruction of the power stage occurs.

PROCUREMENT & COMPATIBILITY
Technical Compatibility: Direct drop-in OEM replacement for designated Mitsubishi Electric VFD heatsink assemblies and power chassis requiring 24VDC 0.09A FM4 pinout architecture.
Supply Reliability: Ready-stock inventory supports emergency machine-down repairs with minimal Lead Time to restore critical processing lines.

MMF-06P24SS-FM4 Mitsubishi Fan

MMF-06P24SS-FM4 Mitsubishi Fan

MMF-06P24SS-FM4 Mitsubishi Fan

MMF-06P24SS-FM4 Mitsubishi Fan

MMF-06P24SS-FM4 Mitsubishi Fan

MMF-06P24SS-FM4 Mitsubishi Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
