$11.43

SKU: 949865599871 Brand:

Description

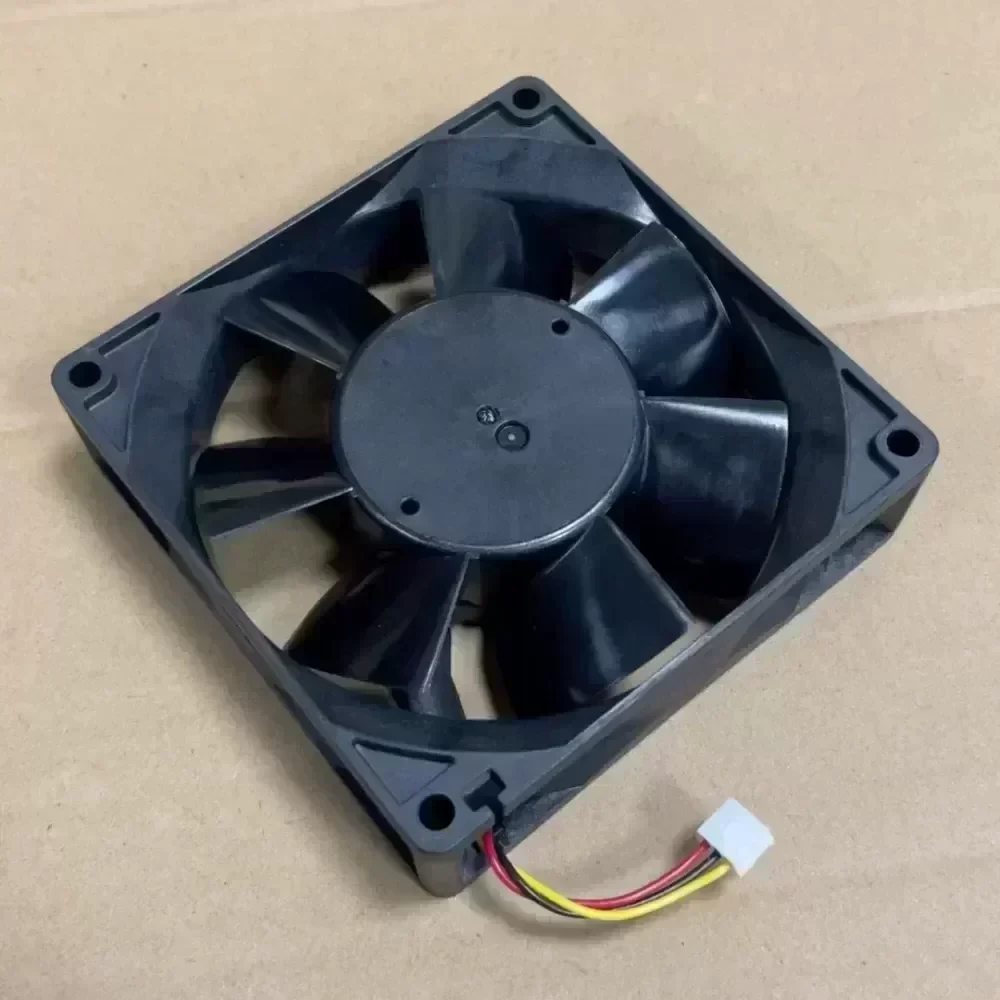

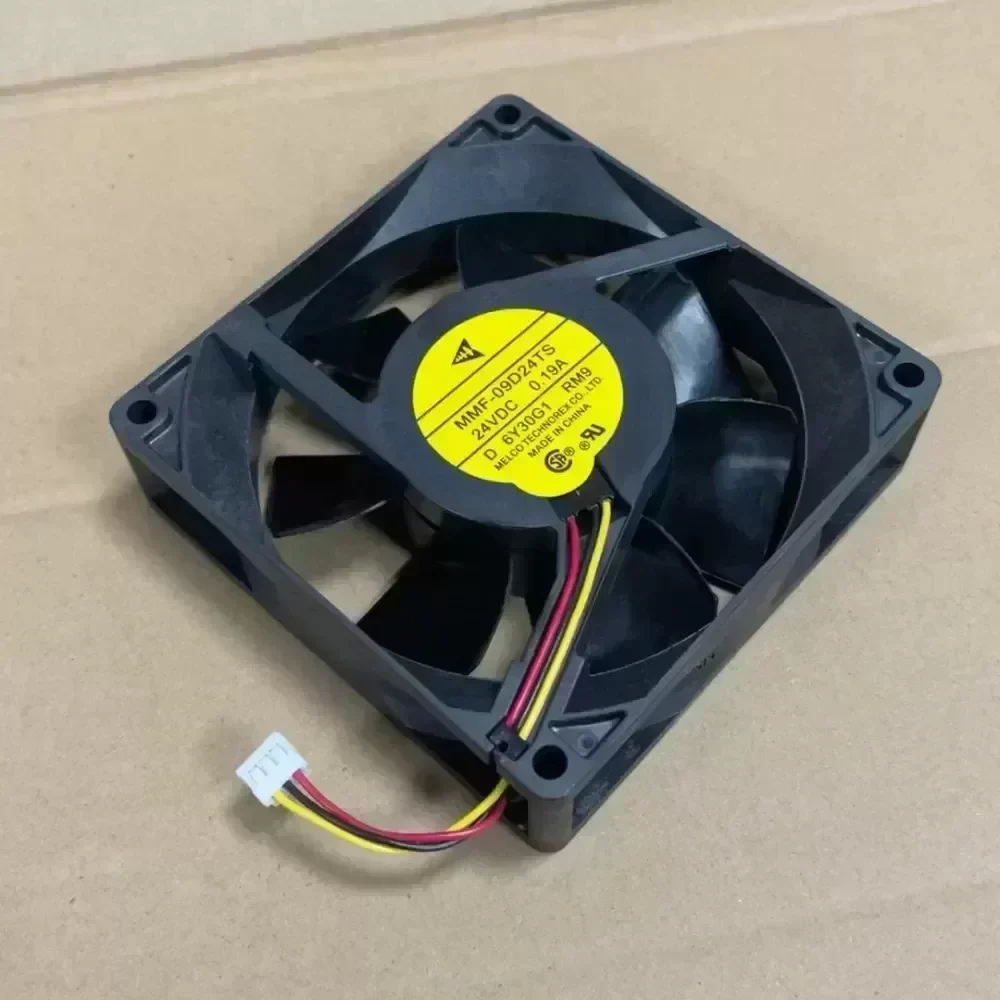

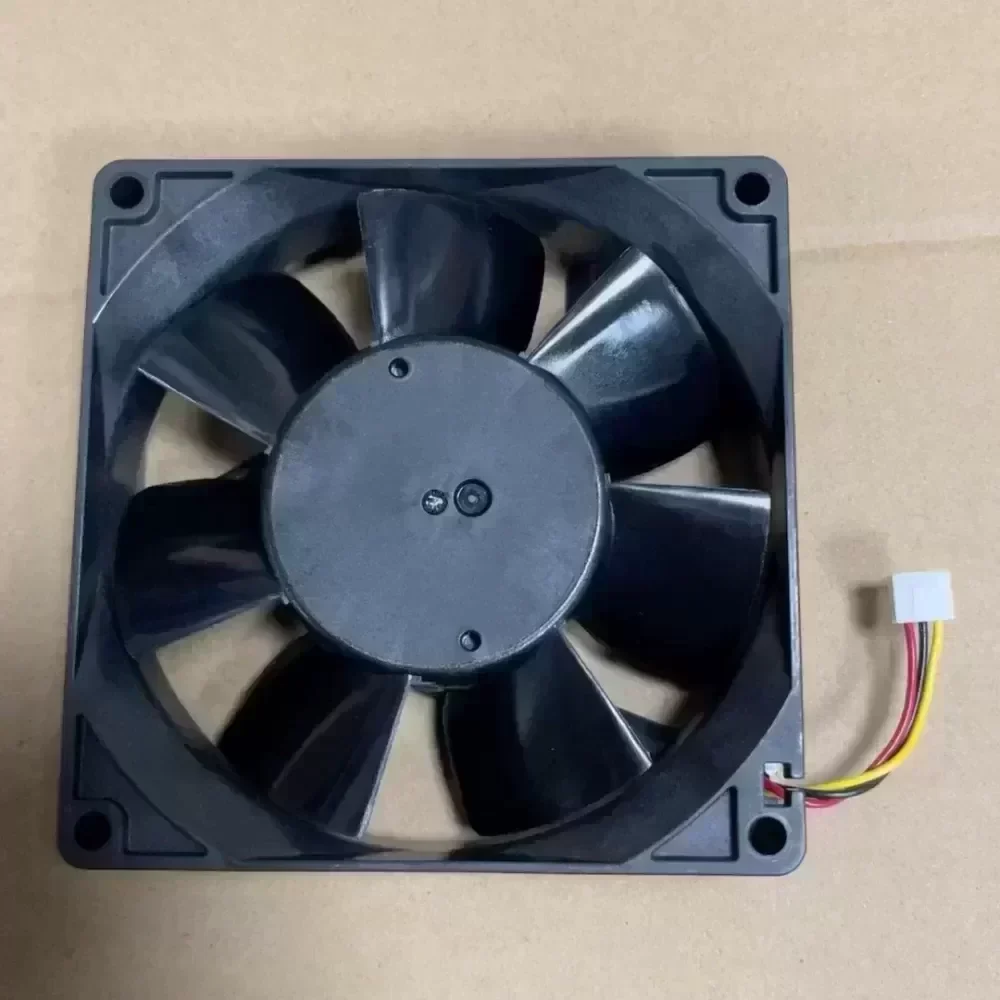

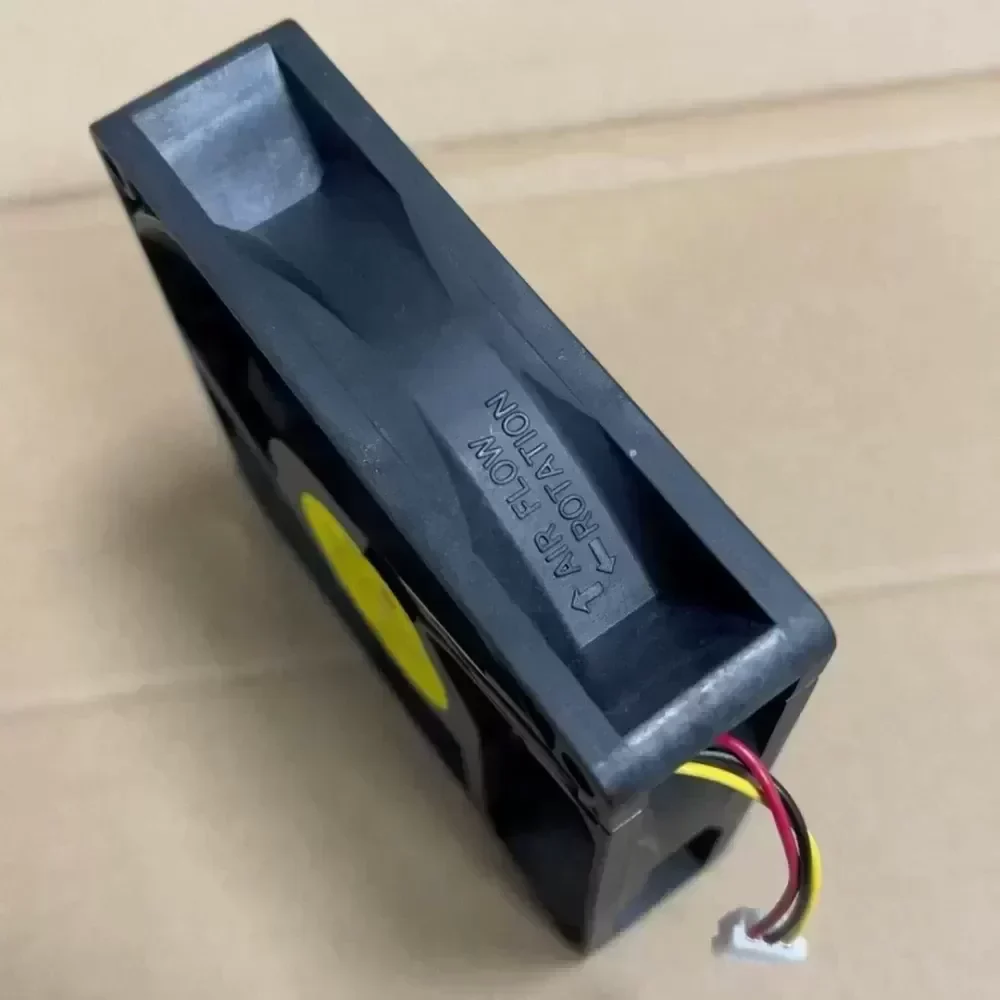

The Mitsubishi MMF-09D24TS-RM9 is a high-performance industrial DC axial fan engineered specifically for thermal regulation within variable frequency drives (VFDs) and automation control cabinets. Featuring Original Engineering standards, this fan ensures optimal heat dissipation to prevent thermal runaway in critical power electronics.

Technical Specifications:
Manufacturer: Mitsubishi Electric
Model Number: MMF-09D24TS-RM9
Frame Size: 90 mm x 90 mm x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 VDC to 27.6 VDC
Rated Current: 0.19 A
Power Consumption: 4.56 W
Bearing Type: Dual Precision Ball Bearing
Termination Type: 3-wire lead with OEM connector
Expected Lifecycle: 60,000 hours at 40°C
Frame Material: Glass-fiber reinforced thermoplastic (UL 94V-0)
Impeller Material: Glass-fiber reinforced thermoplastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Certifications: UL, CSA, CE, RoHS Compliant
Weight: 0.12 kg

Technical Compatibility and Application:
This cooling fan is designed for direct integration into Mitsubishi FR-A700, FR-F700, and FR-E700 series inverters. In high-demand industrial environments such as continuous manufacturing lines, automated assembly plants, and CNC machining centers, VFDs generate substantial thermal loads. The MMF-09D24TS-RM9 provides the precise static pressure and airflow required to maintain internal IGBT junction temperatures within safe operating limits, preventing unscheduled downtime and extending the service life of the host drive.

Supply and Logistics:
Condition: New authentic product in original packaging
Lead Time: Standard dispatch within 1-3 business days for in-stock units
Global Shipping: Available with express tracking options

MMF-09D24TS-RM9 Mitsubishi fan

MMF-09D24TS-RM9 Mitsubishi fan

MMF-09D24TS-RM9 Mitsubishi fan

MMF-09D24TS-RM9 Mitsubishi fan

MMF-09D24TS-RM9 Mitsubishi fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
