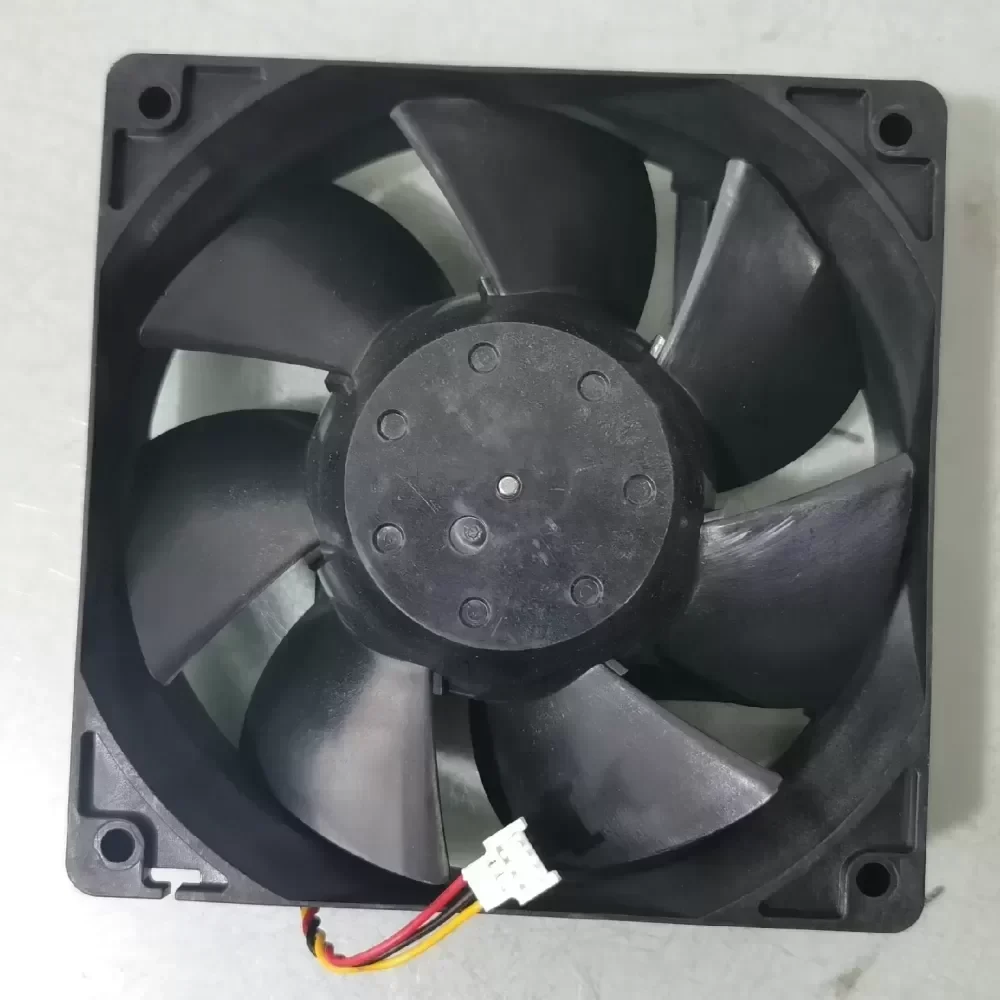

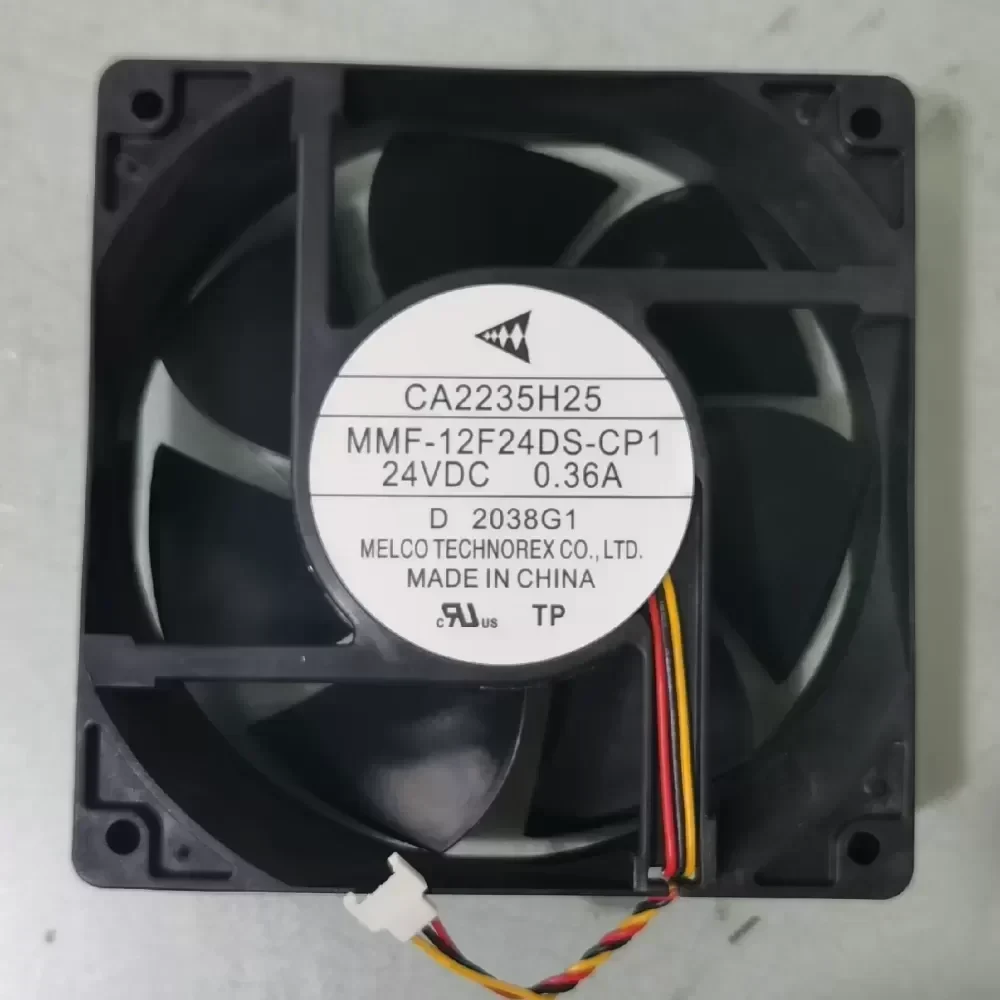

MMF-12F24 DS-CP1 New Mitsubishi
MMF-12F24 DS-CP1 New Mitsubishi
MMF-12F24 DS-CP1 New Mitsubishi

MMF-12F24 DS-CP1 New Mitsubishi

$12.86

SKU: 700523505463 Brand:

Description

The Mitsubishi MMF-12F24 DS-CP1 is a high-performance DC axial cooling fan engineered specifically for thermal management in industrial variable frequency drives (VFDs). As an Original Engineering component, this 12038 form factor fan ensures optimal heat dissipation, preventing thermal throttling and extending the operational lifespan of critical drive systems. With a standard Lead Time optimized for global B2B procurement, this unit guarantees seamless Technical Compatibility with designated Mitsubishi inverter series.

Technical Specifications
Manufacturer: Mitsubishi Electric
Model Number: MMF-12F24 DS-CP1
Equipment Type: DC Axial Cooling Fan / Inverter Fan
Dimensions: 120mm x 120mm x 38mm
Operating Voltage: 24V DC ±10%
Current Rating: 0.36A
Power Consumption: 8.64W
Bearing System: High-precision Dual Ball Bearing
Housing Material: UL94V-0 Flame Retardant Plastic
Impeller Material: UL94V-0 Flame Retardant Plastic
Termination: 3-wire with proprietary Mitsubishi VFD connector
Operating Temperature: -10°C to +60°C
Weight: 0.26 kg
Acoustic Noise: < 48 dBA
Certifications: CE, RoHS, UL

Application & Technical Compatibility
The MMF-12F24 DS-CP1 is purpose-built for forced-air cooling in high-load industrial environments. Its specific airflow characteristics solve the critical problem of heat accumulation within the heat sinks of Mitsubishi FR-A700, FR-F700, and FR-E700 series inverters. By maintaining the IGBT modules and internal circuitry within safe thermal limits, this fan prevents premature component failure in continuous-duty applications such as CNC machining, HVAC control panels, and heavy-duty conveyor systems.

MMF-12F24 DS-CP1 New Mitsubishi

MMF-12F24 DS-CP1 New Mitsubishi

MMF-12F24 DS-CP1 New Mitsubishi

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
