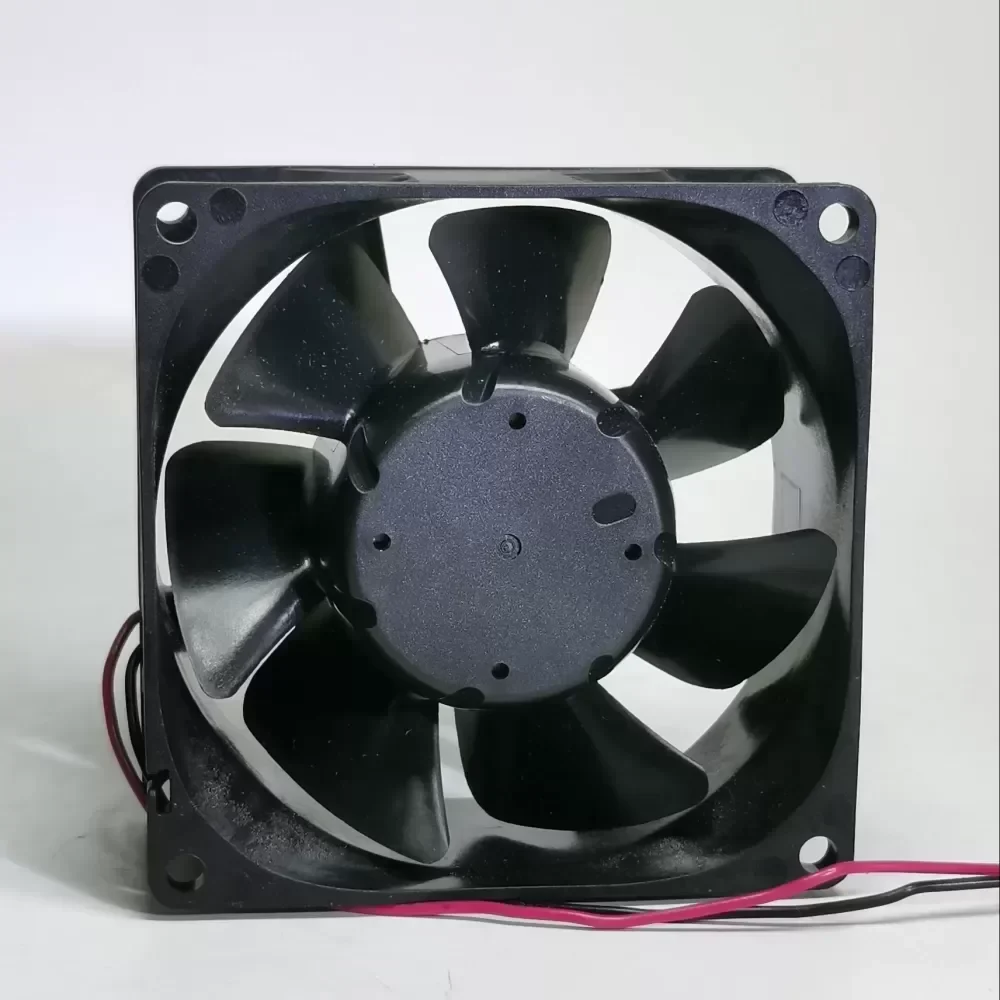

New Delta fan AFB0824GHE 8038/24V
New Delta fan AFB0824GHE 8038/24V
New Delta fan AFB0824GHE 8038/24V
New Delta fan AFB0824GHE 8038/24V
New Delta fan AFB0824GHE 8038/24V

New Delta fan AFB0824GHE 8038/24V

$6.43

SKU: 679677841409 Brand:

Description

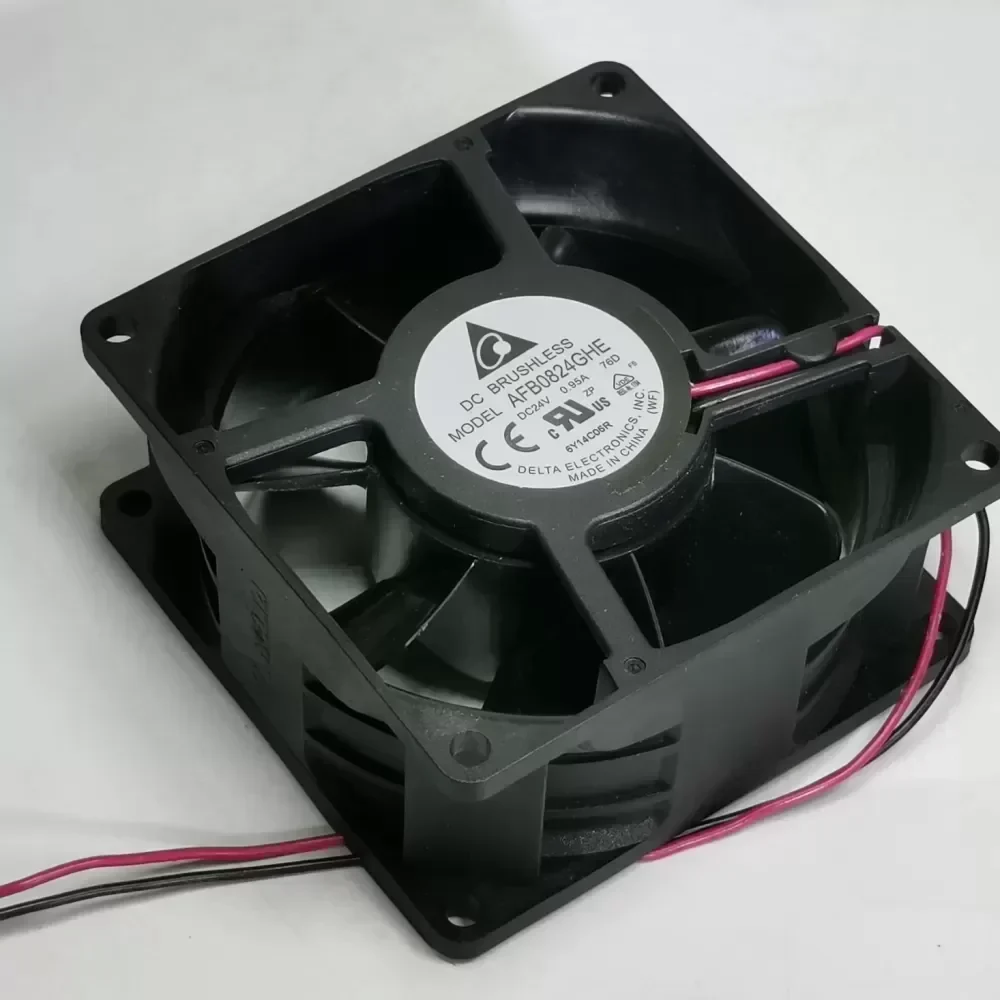

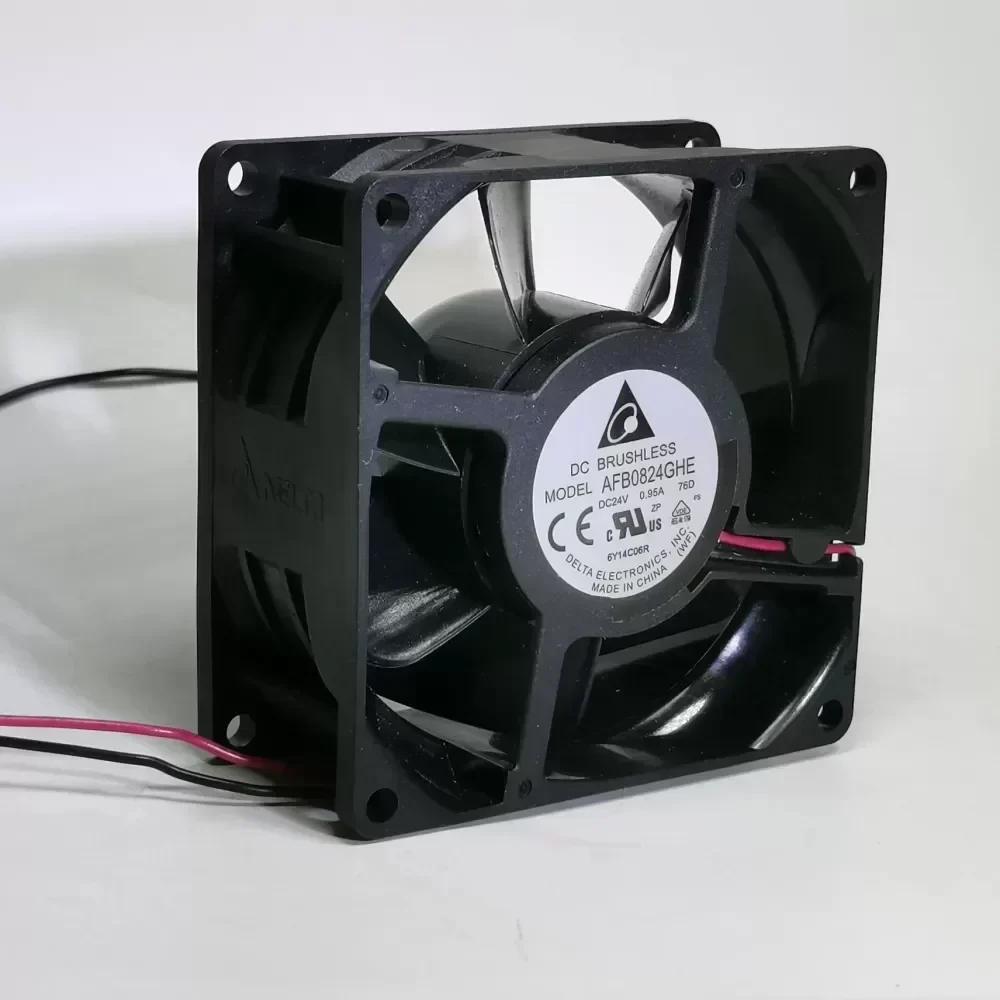

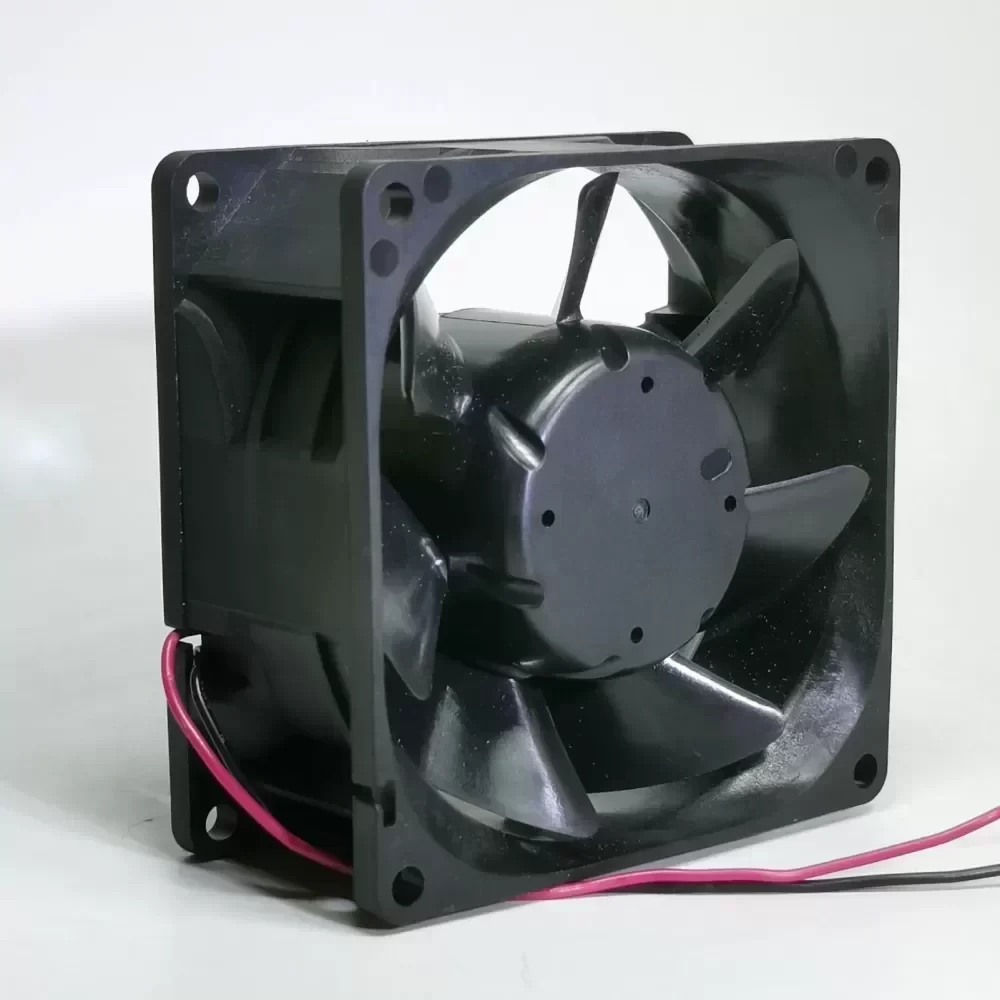

The Delta AFB0824GHE is an industrial-grade DC axial fan engineered for high-density thermal management in frequency converters, telecommunication enclosures, and server arrays. Designed to mitigate thermal throttling in continuous-duty environments, this 80x80x38mm module delivers extreme volumetric airflow and high static pressure, ensuring optimal operating temperatures for critical electronic components.

Featuring exact Technical Compatibility with major VFD and inverter brands, this fan serves as a direct drop-in replacement for OEM cooling systems. Standard Lead Time applies for bulk industrial procurement, ensuring minimal downtime for facility maintenance and automated production lines.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0824GHE
Dimensions: 80 x 80 x 38 mm
Nominal Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Input Current: 0.60 A
Input Power: 14.4 W
Rated Speed: 5900 RPM ± 10%
Maximum Airflow: 108 CFM (3.06 m³/min)
Maximum Static Pressure: 21.5 mmH2O
Acoustic Noise: 59.0 dB(A)
Bearing System: High-Precision Dual Ball Bearing
Impeller Material: Plastic PBT (UL 94V-0)
Housing Material: Plastic PBT (UL 94V-0)
Operating Temperature: -10°C to +60°C
Life Expectancy: 70,000 hours at 40°C
Weight: 156 g
Certifications: CE, UL, CSA, RoHS

Application Scenario:
In high-load frequency converter applications, the AFB0824GHE prevents IGBT module overheating by forcing high-velocity air through densely packed heatsink fins. The dual ball bearing architecture guarantees extended lifecycle reliability even in environments with elevated ambient temperatures and continuous vibration.

New Delta fan AFB0824GHE 8038/24V

New Delta fan AFB0824GHE 8038/24V

New Delta fan AFB0824GHE 8038/24V

New Delta fan AFB0824GHE 8038/24V

New Delta fan AFB0824GHE 8038/24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
