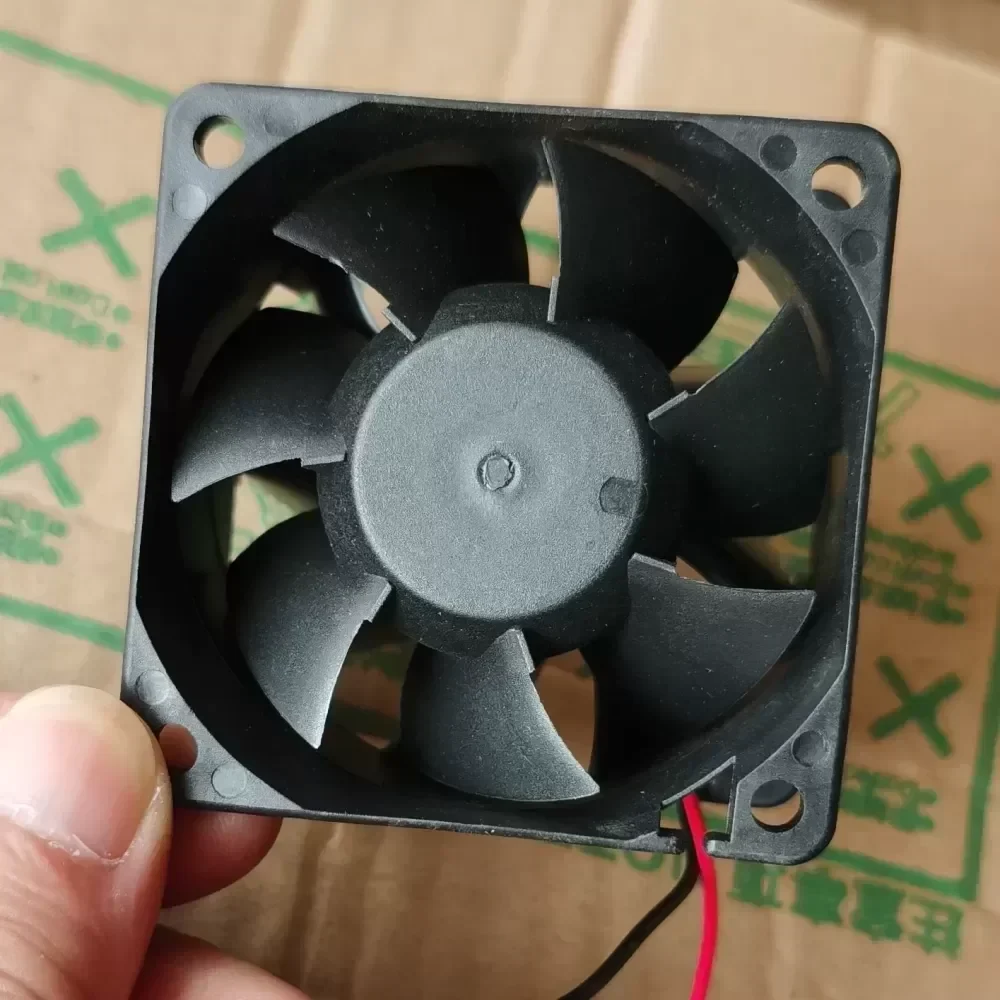

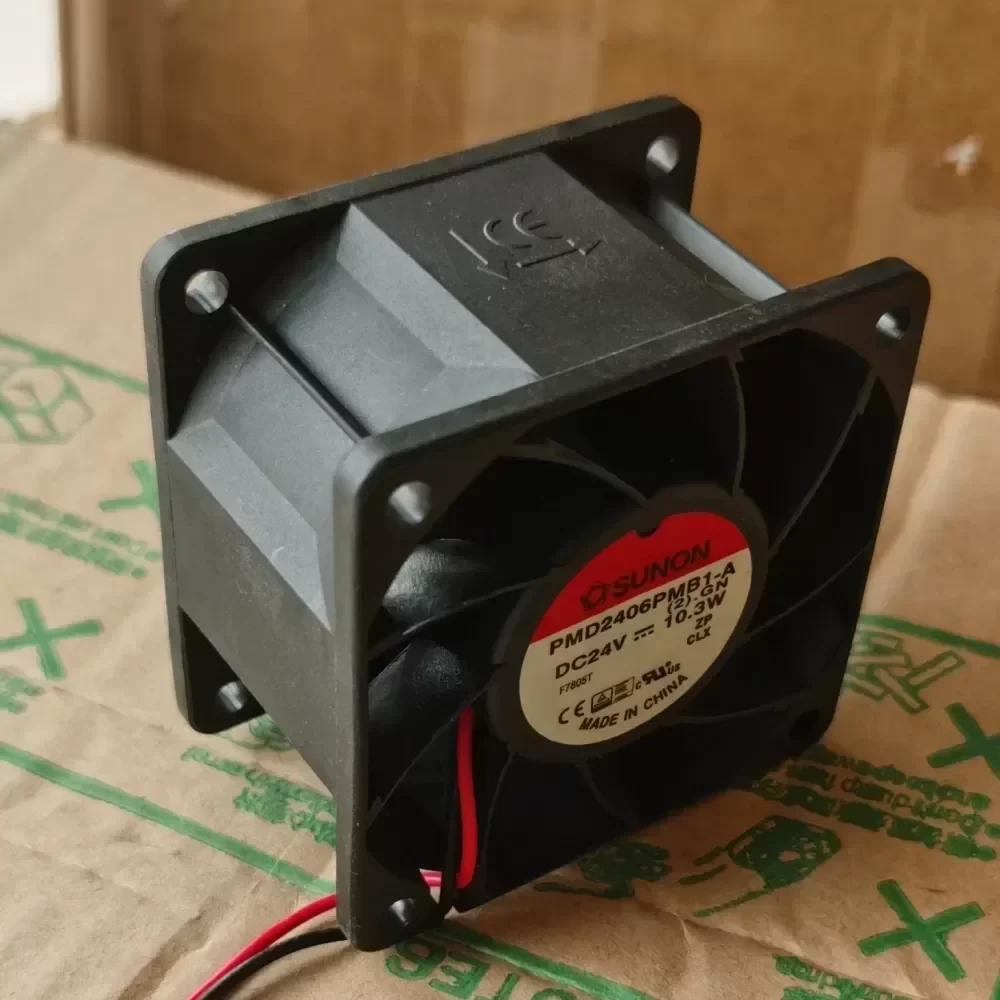

PMD2406PMB1-A SUNON 6038/24V fan
PMD2406PMB1-A SUNON 6038/24V fan
PMD2406PMB1-A SUNON 6038/24V fan

PMD2406PMB1-A SUNON 6038/24V fan

$7.43

SKU: 683640729430 Brand:

Description

Original Engineering SUNON PMD2406PMB1-A DC Axial Cooling Fan. Engineered for high-density thermal management in industrial inverters and telecom equipment, this 60x60x38mm fan delivers exceptional volumetric airflow under high static pressure conditions.

Technical Specifications:
Manufacturer: SUNON
Model Number: PMD2406PMB1-A
Fan Type: DC Axial Flow Fan
Dimensions: 60 x 60 x 38 mm (6038 form factor)
Rated Voltage: 24V DC
Operating Voltage Range: 10.0 to 27.6 VDC
Starting Voltage: 10.0 VDC (25°C Power ON/OFF)
Rated Current: 0.24 A
Power Consumption: 5.8 Watts
Speed: 8000 RPM ± 10%
Maximum Airflow: 41.5 CFM (1.17 m³/min)
Static Pressure: 0.54 Inch-H2O
Noise Level: 54 dB(A)
Bearing System: Precision Dual Ball Bearing
Motor Protection: Auto Restart / Polarity Protection
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Weight: 90.0 g
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 hours at 40°C
Certifications: UL, CUR, TUV, CE, RoHS

Industrial Application:
The PMD2406PMB1-A is specifically designed to resolve critical thermal bottlenecks in variable frequency drives (VFDs), solar inverters, and high-density server racks. Its robust dual ball bearing architecture ensures continuous 24/7 operation in harsh environments where airborne particulates and elevated ambient temperatures degrade standard cooling solutions. The high static pressure of 0.54 Inch-H2O forces air through densely packed heatsinks, preventing thermal throttling and extending the operational lifespan of critical power electronics.

Procurement & Lifecycle Value:
Ensuring Technical Compatibility with existing 24V DC infrastructure, this Original Engineering component minimizes integration risks. Our optimized supply chain ensures a predictable Lead Time, allowing maintenance teams to execute preventative replacements without prolonged system downtime.

PMD2406PMB1-A SUNON 6038/24V fan

PMD2406PMB1-A SUNON 6038/24V fan

PMD2406PMB1-A SUNON 6038/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
