$18.57

SKU: 724256536611 Brand:

Description

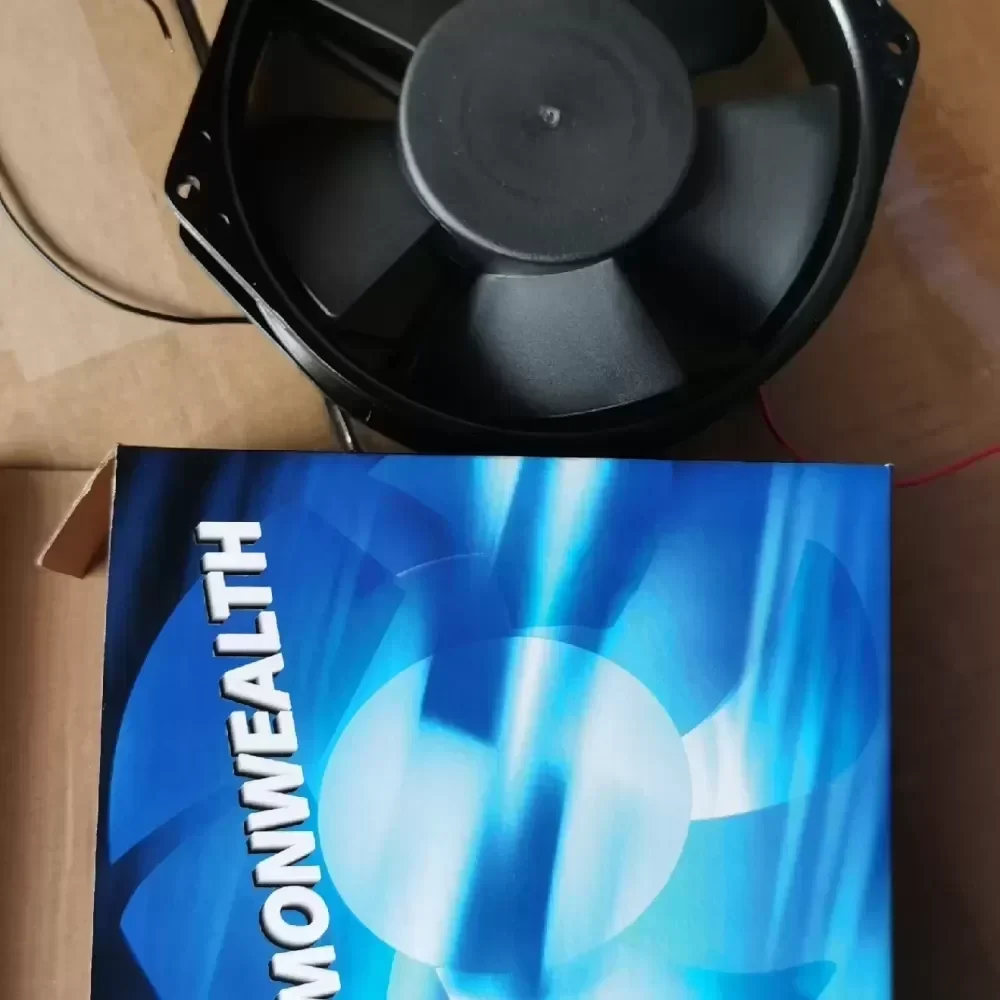

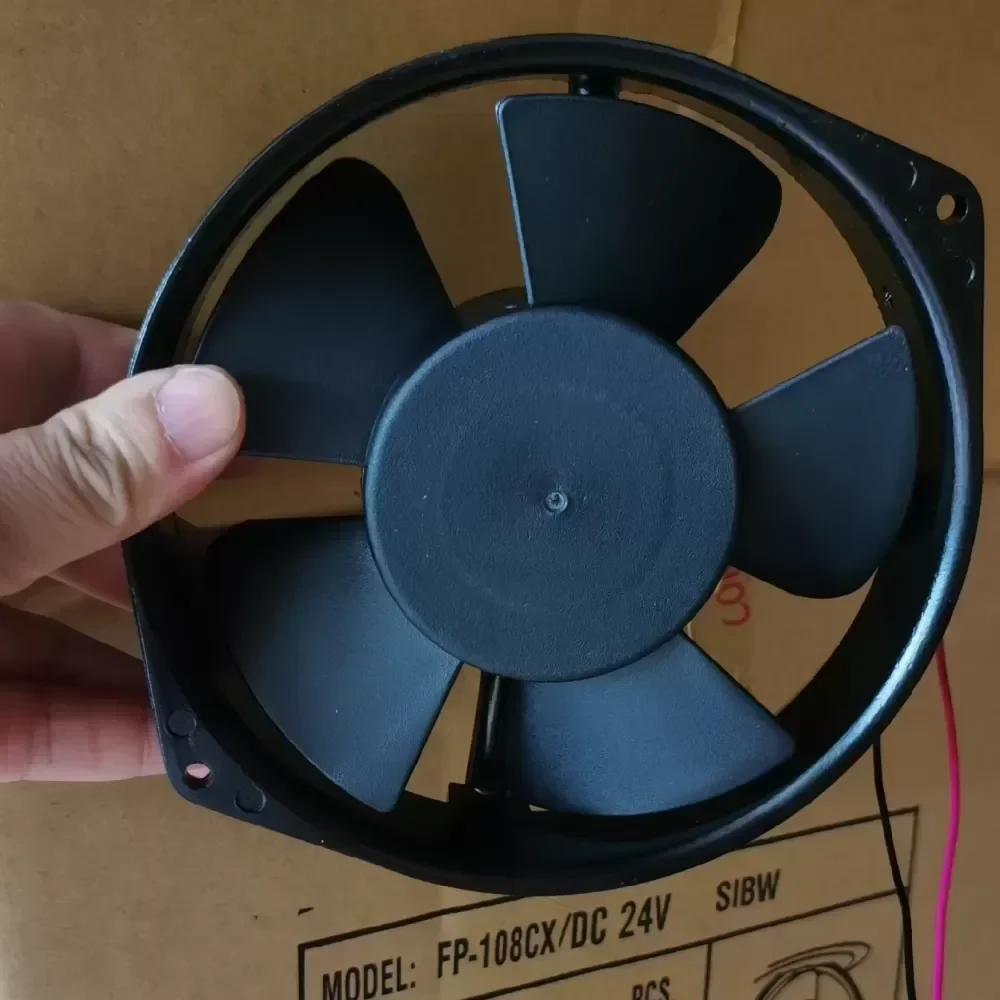

The Commonwealth FP-108CX/DC is a high-performance industrial axial cooling fan engineered for continuous operation in demanding thermal management systems. Manufactured in Taiwan by Sanxie, this 24V DC fan is specifically designed for inverter cooling, offering exceptional airflow and static pressure to prevent thermal throttling in critical power electronics.

Technical Specifications
Model: FP-108CX/DC
Brand: Commonwealth (Sanxie)
Fan Type: DC Axial Cooling Fan
Dimensions: 172 x 150 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.46A
Power Consumption: 11.04W
Rated Speed: 2800 ± 10% RPM
Maximum Airflow: 6.23 m³/min
Static Pressure: 0.65 inch-H2O
Noise Level: 53 dB(A)
Bearing System: Precision Dual Ball Bearing
Weight: 800 g

Material and Environmental Data
Housing Material: Die-cast Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Dielectric Strength: 500V AC for 1 minute
Insulation Resistance: 10M Ohm minimum at 500V DC
Certifications: CE, UL, TUV, RoHS

Industrial Application
This cooling fan is engineered for integration into high-capacity Variable Frequency Drives (VFDs), CNC machine control cabinets, and industrial power inverters. In these environments, rapid heat dissipation is critical. The robust die-cast aluminum housing and high-velocity 6.23 m³/min airflow ensure that sensitive insulated-gate bipolar transistors (IGBTs) remain within safe operating temperatures, thereby extending the lifespan of the drive systems and preventing costly downtime.

Procurement and Integration
Maintaining Original Engineering standards is paramount for system reliability. This authentic Commonwealth component guarantees seamless Technical Compatibility with existing 17238 form-factor enclosures. We optimize our supply chain to ensure a minimized Lead Time for both bulk OEM production runs and emergency spare part replacements.

FP-108Cx/DC commonwealth 17238/24V fan

FP-108Cx/DC commonwealth 17238/24V fan

FP-108Cx/DC commonwealth 17238/24V fan

FP-108Cx/DC commonwealth 17238/24V fan

FP-108Cx/DC commonwealth 17238/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
