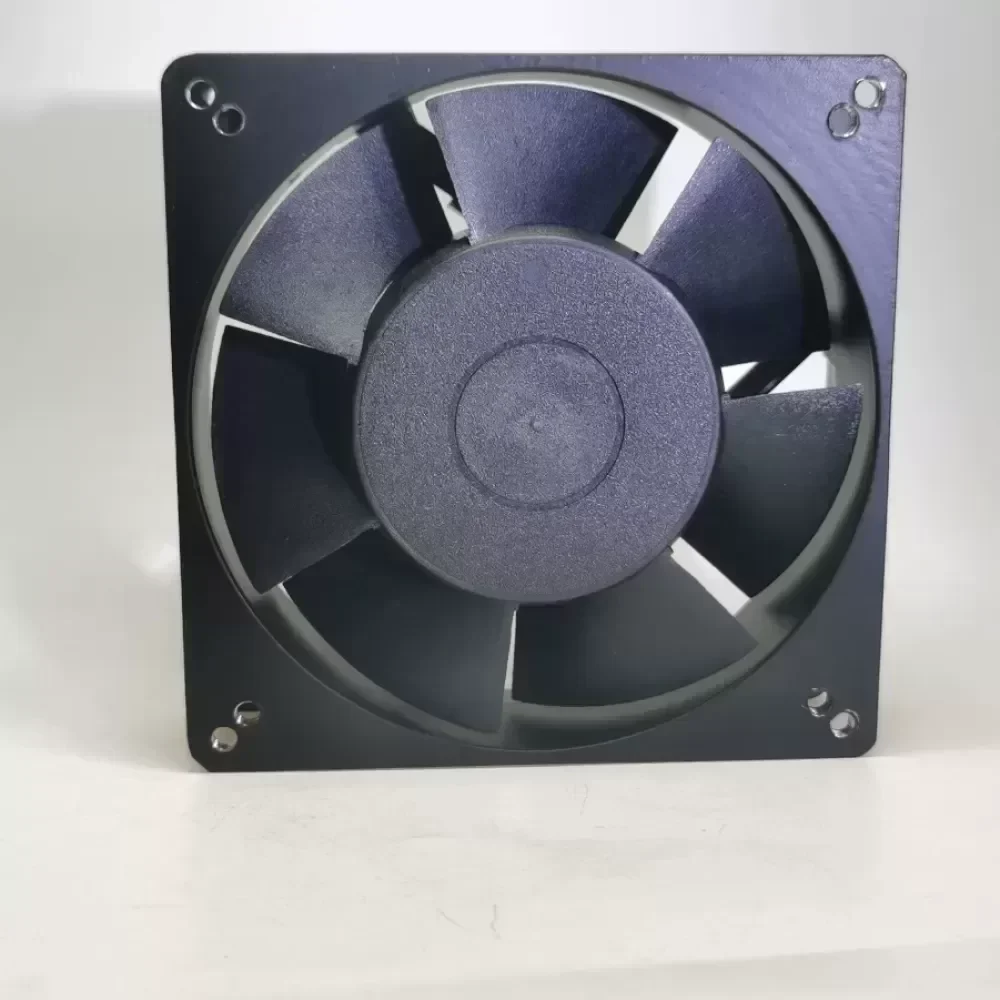

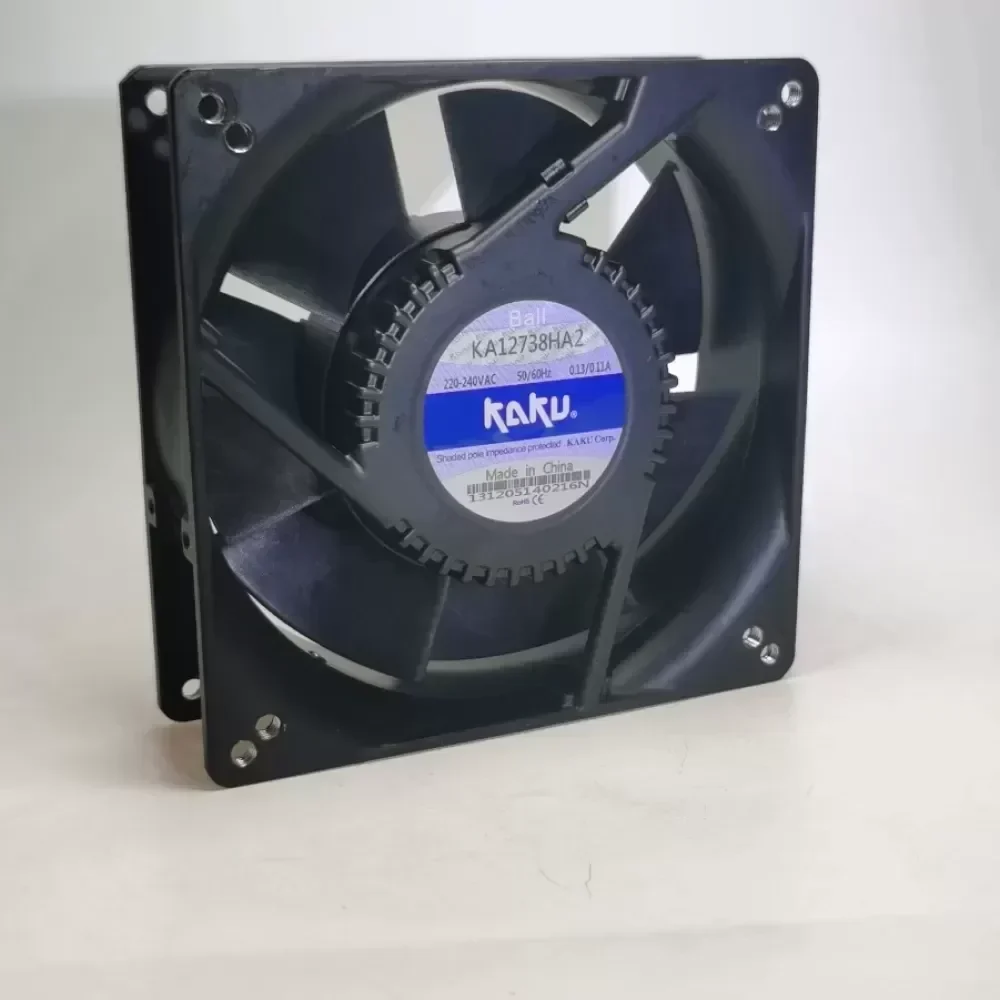

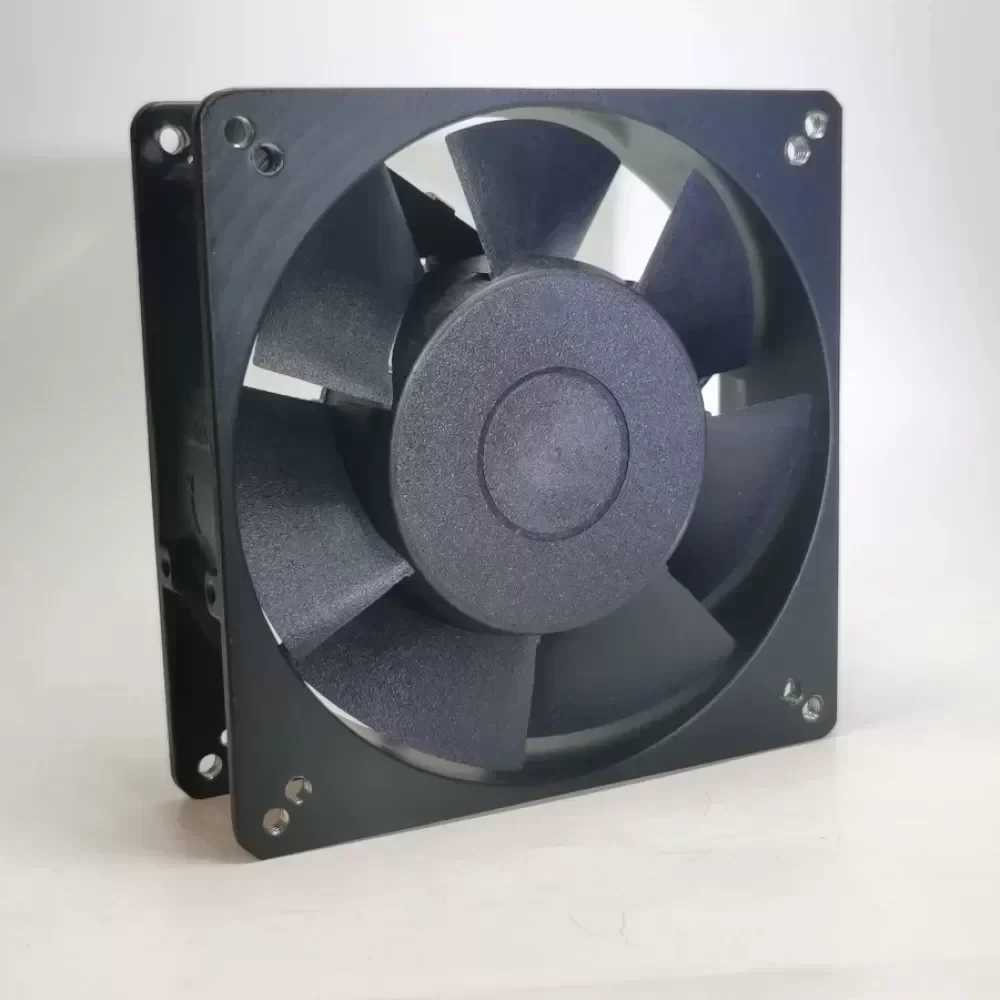

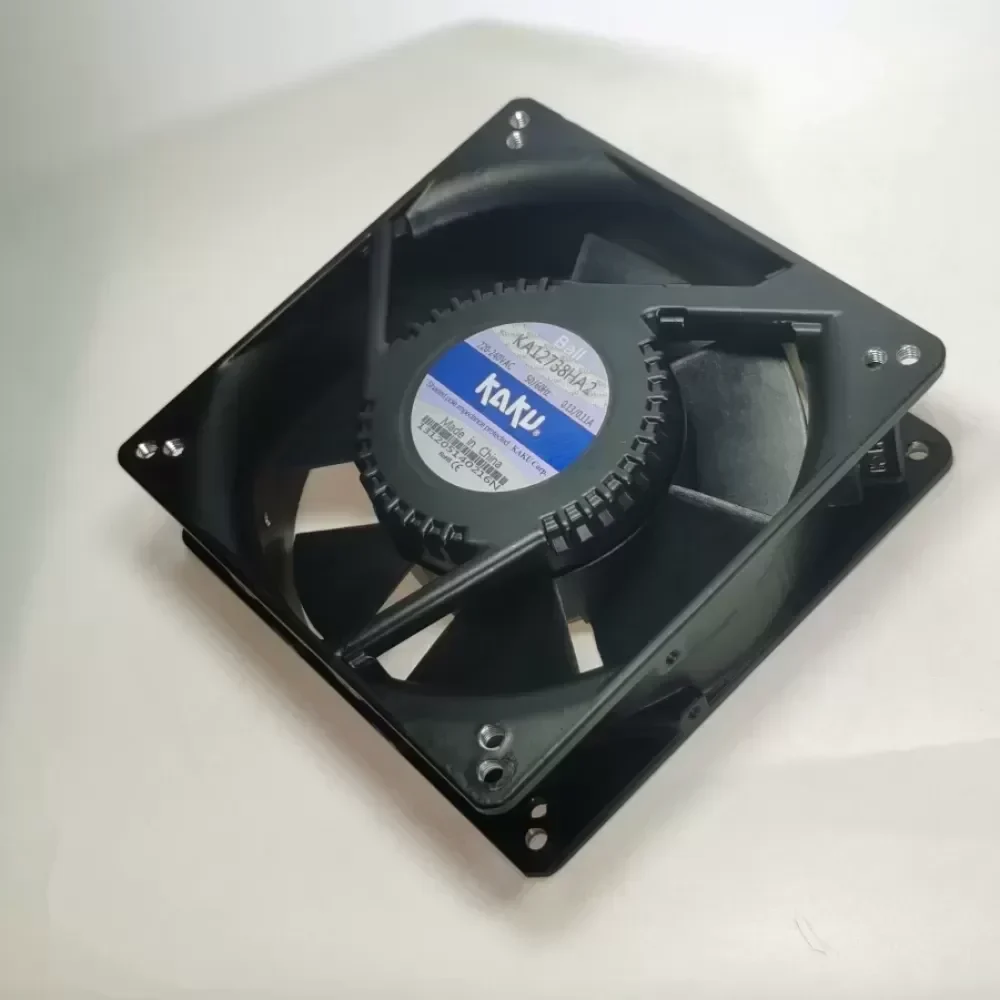

New KA12738HA2 KAKU all-metal frame
New KA12738HA2 KAKU all-metal frame
New KA12738HA2 KAKU all-metal frame
New KA12738HA2 KAKU all-metal frame
New KA12738HA2 KAKU all-metal frame

New KA12738HA2 KAKU all-metal frame

$17.86

SKU: 676522790144 Brand:

Description

Manufacturer: KAKU Taiwan
Model: KA12738HA2
Product Category: Industrial Axial Flow Cooling Fan
Frame Construction: Die-cast Aluminum Alloy (All-Metal)
Impeller Material: Stainless Steel / Metal Blade
Bearing Type: Dual High-Precision Ball Bearing

Technical Specifications:
Rated Voltage: 220V AC
Frequency: 50/60 Hz
Input Power: 21.0 / 18.0 W
Rated Current: 0.12 / 0.10 A
Rotational Speed: 2700 / 3000 RPM
Airflow Volume: 161 / 195 m³/h
Static Pressure: 83.3 / 93.1 Pa
Noise Level: 45 / 50 dB(A)

Physical Dimensions and Installation:
Frame Size: 127 x 127 x 38 mm
Mounting Hole Pitch: 113.5 x 113.5 mm
Weight: 560 g
Connection Type: Lead Wire or Terminal (Model Dependent)

Environmental and Safety Standards:
Operating Temperature: -20°C to +80°C
Storage Temperature: -40°C to +100°C
Insulation Resistance: 500MΩ at 500V DC
Dielectric Strength: 1500V AC for 1 minute
Protection Rating: IP44 / IP54 Equivalent
Certifications: CE, TUV, UL Recognized

Industrial Application and System Integration:
The KA12738HA2 is engineered for high-thermal stress environments where plastic components fail due to ambient heat or chemical exposure. Its all-metal frame and blade configuration ensure structural integrity in heavy-duty CNC machinery, high-voltage power cabinets, and industrial welding equipment. The dual ball bearing system is designed for continuous 24/7 operation, significantly extending the lifecycle of critical electronic enclosures.

Original Engineering: Authentic KAKU Taiwan manufacture ensures precise blade balancing and minimal vibration.
Technical Compatibility: Standard 12738 footprint allows for seamless drop-in replacement in legacy cooling systems.
Lead Time: Standard stock item for rapid deployment in maintenance and repair operations (MRO).

New KA12738HA2 KAKU all-metal frame

New KA12738HA2 KAKU all-metal frame

New KA12738HA2 KAKU all-metal frame

New KA12738HA2 KAKU all-metal frame

New KA12738HA2 KAKU all-metal frame

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
